      Product description Jantzen Audio 000-2045 | 2,5 mH | 0,44 Ω | 3% | 18 AWG

      Compact 2.5mH iron core coil with ultra-low DCR, ideal for bass & mid crossovers.



      Highlights

      • High-purity 18 AWG copper wire for pristine signal flow
      • Low 0.44 Ω resistance preserves driver damping factor
      • Permite core for reduced hysteresis and higher power handling
      • Precision 3% inductance tolerance for accurate crossover construction



      Product details

      Jantzen Audio 000-2045 | 2,5 mH | 0,44 Ω | 3% | 18 AWG | Iron Core Coil

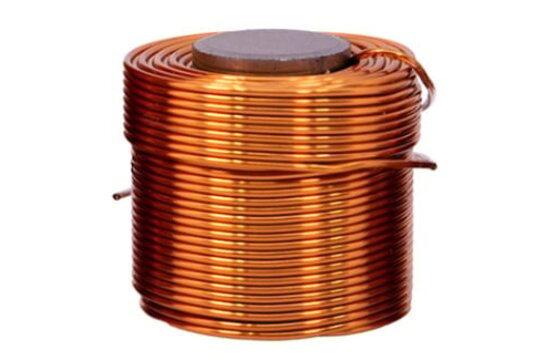

      The Jantzen Audio 000-2045 iron core coil is a key component for custom-built audio crossovers, particularly suited for the bass and mid-sections. With an inductance of 2.5mH and a remarkably low direct current resistance (DCR) of just 0.44 ohms, this coil maintains the efficiency of your speakers by ensuring minimal alteration to the driver's damping factor. The coil utilizes high-purity 18 AWG copper wire wound around a Permite core, a material known for its lower hysteresis and excellent power handling capabilities compared to ferrite cores. This combination allows for superior sound clarity and a faithful audio reproduction. The coil's 3% inductance tolerance signifies precision engineering, contributing to accurate crossover networks. Though primarily recommended for bass and midrange applications due to its iron core, the Jantzen Audio 000-2045 coil's robust construction and technical specifications make it a reliable choice for any audiophile aiming to build a high-quality speaker system with clear and precise sound output.

      Specifications

      Article number
      000-2045
      EAN
      9505752858127
      Coil type
      Iron core coils
      Inductance
      2.5 mH
      DCR
      0.44 ohms
      Tolerance
      3%
      Wire diameter
      18 AWG

      Show more
