        000-2286 | 0,56 mH | 0,25 Ω | 3% | 21 AWG | Iron Core Coil

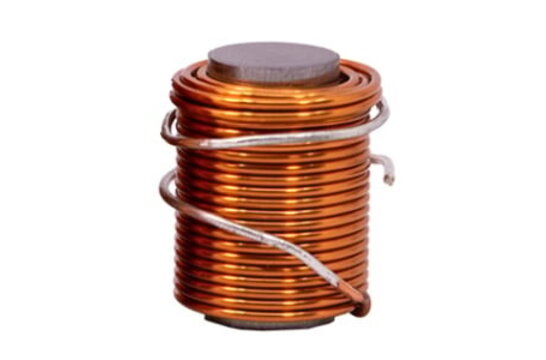

        Jantzen Audio 000-2286 | 0,56 mH | 0,25 Ω | 3% | 21 AWG | Iron Core Coil

        €3,45

        4 In stock10 expected on 06-12-2024

        Add to cart

        Jantzen Audio 000-2286 | 0,56 mH | 0,25 Ω | 3% | 21 AWG | Iron Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Iron core coils
        000-2286 | 0,56 mH | 0,25 Ω | 3% | 21 AWG | Iron Core Coil
        € 2,85€ 3,45 4 In stock10 expected on 06-12-2024
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-2286 | 0,56 mH | 0,25 Ω | 3% | 21 AWG | Iron Core Coil

        Product description Jantzen Audio 000-2286 | 0,56 mH | 0,25 Ω | 3% | 21 AWG

        Robust 0.56mH iron core coil with high-purity copper, low DCR, and 3% tolerance.



        Highlights

        • 0.56mH inductance rating suitable for bass & mid crossover sections
        • Ultra-low 0.25 Ω resistance to maintain efficiency
        • High-purity copper wire for improved signal integrity
        • 21 AWG wire and Permite core for high power handling



        Product details

        Jantzen Audio 000-2286 | 0,56 mH | 0,25 Ω | 3% | 21 AWG | Iron Core Coil



        The Jantzen Audio 000-2286 Iron Core Coil is an essential component for audiophiles seeking to build or upgrade their speaker crossovers, particularly for the bass and midrange sections. With an inductance of 0.56mH and a precision tolerance of 3%, this coil ensures accurate frequency division, vital for high-fidelity audio reproduction. Its extremely low direct current resistance (DCR) of just 0.25 Ω minimizes energy loss and does not affect the speaker's damping factor, preserving the speaker's efficiency and sound quality. Crafted with high-purity copper wire wound around a Permite core, it significantly reduces hysteresis, allowing for clearer sound compared to coils with ferrite cores. The 21 AWG wire gauge is carefully selected to provide a balance between size and power handling capability, making it an excellent choice for handling the demanding dynamics of bass and midrange frequencies. Although primarily recommended for specific sections of a crossover, its robust construction and superior materials make the Jantzen Audio 000-2286 coil a reliable choice for any audio enthusiast looking to enhance their sound system's performance.

        Show more

        Specifications

        Article number
        000-2286
        EAN
        9504399228980
        Coil type
        Iron core coils
        Inductance
        0.56 mH
        DCR
        0.25 ohms
        Tolerance
        3%
        Wire diameter
        21 AWG
        Dimensions: Ø * H (mm)
        14 x 40

        Show more
