        000-2302 | 1,2 mH | 0,33 Ω | 3% | 20 AWG | Iron Core Coil

        Jantzen Audio 000-2302 | 1,2 mH | 0,33 Ω | 3% | 20 AWG | Iron Core Coil

        €6,45

        Out of stock

        Add to cart

        Jantzen Audio 000-2302 | 1,2 mH | 0,33 Ω | 3% | 20 AWG | Iron Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Iron core coils
        000-2302 | 1,2 mH | 0,33 Ω | 3% | 20 AWG | Iron Core Coil
        € 5,33€ 6,45 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-2302 | 1,2 mH | 0,33 Ω | 3% | 20 AWG | Iron Core Coil

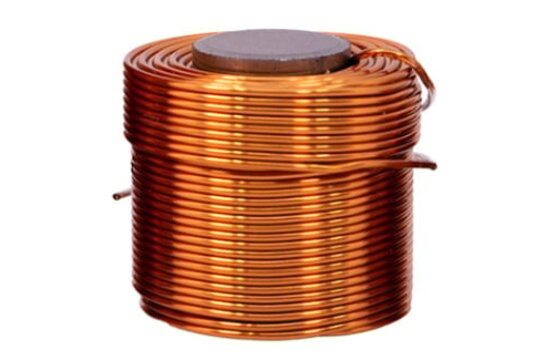

        Product description Jantzen Audio 000-2302 | 1,2 mH | 0,33 Ω | 3% | 20 AWG

        Compact 1.2mH iron core coil for speaker crossovers, 0.33Ω, 3% tolerance, 20 AWG.



        Highlights

        • High-purity 20 AWG copper wire ensures excellent signal quality.
        • Low DCR of 0.33Ω to maintain driver efficiency and damping.
        • Permite core for lower hysteresis and high power handling.
        • Optimized for bass & midrange sections in speaker crossovers.



        Product details

        Jantzen Audio 000-2302 | 1,2 mH | 0,33 Ω | 3% | 20 AWG | Iron Core Coil



        The Jantzen Audio 000-2302 iron core coil is a meticulously crafted component designed for high-fidelity audio crossover systems. Wound with high-purity 20 AWG copper wire around a Permite core, this coil offers an inductance of 1.2mH with a low direct current resistance (DCR) of just 0.33Ω. This minimal resistance is critical as it does not affect the damping factor of the driver or contribute to loss of efficiency, ensuring your audio system delivers clear and precise sound. With a tight 3% inductance tolerance, this coil promises consistent performance across various units. Unlike coils with ferrite cores, the non-ferrite Permite material significantly reduces hysteresis while enhancing power handling capabilities. The core size and wire thickness are carefully selected to balance the power handling needs, especially critical for the bass and midrange sections of the speaker crossover. Although typically recommended for these specific frequency ranges, the Jantzen Audio 000-2302's superior build quality and materials make it a reliable choice for audiophiles and speaker designers seeking to optimize their sound systems.

        Show more

        Specifications

        Article number
        000-2302
        EAN
        9508864214911
        Coil type
        Iron core coils
        Inductance
        1.2 mH
        DCR
        0.33 ohms
        Tolerance
        3%
        Wire diameter
        20 AWG
        Dimensions: Ø * H (mm)
        18 x 40
