Compact 6.8mH iron core coil with low resistance and high precision.
Highlights
- High-purity 20 AWG copper wire
- Extremely low DCR at 1.15 Ω
- 3% inductance tolerance for accurate performance
- Optimized for bass & mid sections in crossovers
Product details

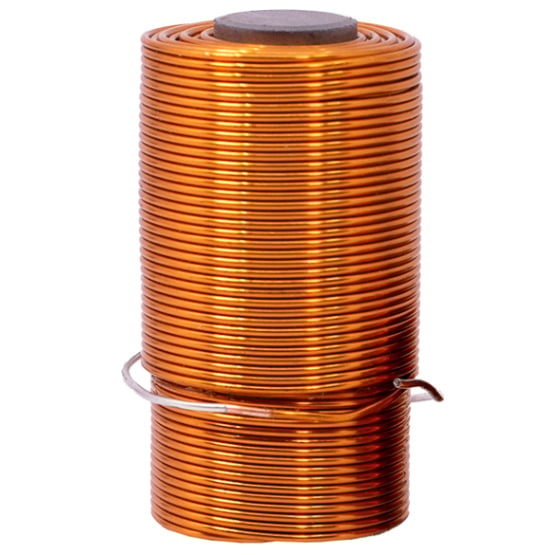

Jantzen Audio 000-2398 | 6,8 mH | 1,15 Ω | 3% | 20 AWG | Iron Core Coil
The Jantzen Audio 000-2398 iron core coil is an essential component for those looking to build or upgrade their speaker crossovers, specifically tailored for the bass and mid-section. Wound with high-purity 20 AWG copper wire around a Permite core, this coil boasts an inductance of 6.8 mH and maintains an extremely low DCR of 1.15 Ω, ensuring minimal impact on the driver damping factor and efficiency loss. The non-ferrite core material of this coil significantly reduces hysteresis compared to ferrite core coils, which translates to lower distortion and enhanced audio clarity. With a tight 3% inductance tolerance, this coil provides the precision needed for high-fidelity audio systems. Furthermore, the power handling of the Jantzen Audio coil is optimized based on core size and wire thickness, making it a robust choice for handling the demanding dynamics of bass and mid frequencies in crossover networks. Choose the Jantzen Audio 000-2398 for uncompromised audio quality and reliability in your speaker system.
