        000-5117 | 1,0 mH | 0,10 Ω | 3% | 15 AWG | Iron Core Coil With Disks

        Jantzen Audio 000-5117 | 1,0 mH | 0,10 Ω | 3% | 15 AWG | Iron Core Coil With Disks

        €12,95

        6 In stock

        Add to cart

        Jantzen Audio 000-5117 | 1,0 mH | 0,10 Ω | 3% | 15 AWG | Iron Core Coil With Disks

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Iron core coils
        000-5117 | 1,0 mH | 0,10 Ω | 3% | 15 AWG | Iron Core Coil With Disks
        € 10,70€ 12,95 6 In stock
        • -5% Purchase 4 for only € 12,30 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-5117 | 1,0 mH | 0,10 Ω | 3% | 15 AWG | Iron Core Coil With Disks

        Product description Jantzen Audio 000-5117 | 1,0 mH | 0,10 Ω | 3% | 15 AWG

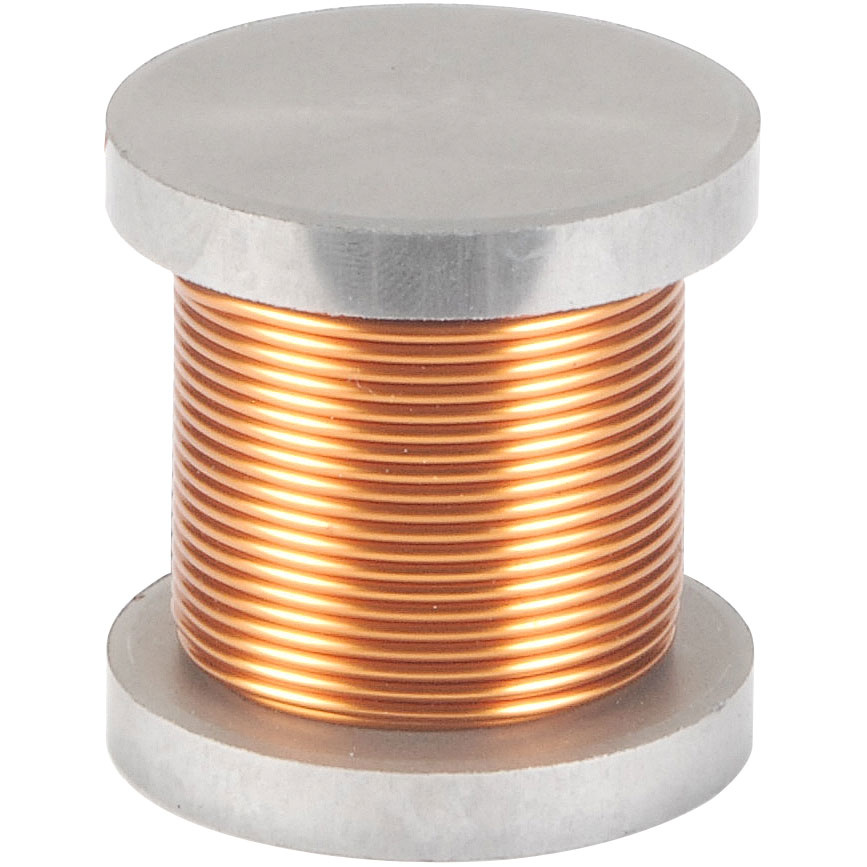

        High-purity copper wire wound around a Permite core with discs.



        Highlights

        • Enameled copper wire solder able with self-bonding topcoat, class 155, acc to IEC 60317-35, DIN EN 60317-35
        • Grade 1B copper wire
        • Polyurethane with aliphatic polyamide bond coat
        • Temperature index of 155, solder ability at 390°C without removing the enamel coating, bonded under action of heat (high voltage)
        • High power handling



        Product details

        Jantzen Audio 000-5117 | 1,0 mH | 0,10 Ω | 3% | 15 AWG | Iron Core Coil With Disks



        Extremely low DCR which does not alter driver damping factor and add to loss of efficiency. The non-ferrite core/disc material provides significant lower hysteresis compared to coils with ferrite cores, at the same time delivering higher power handling. Generally only recommended for bass & mid-section on crossover. Power handling capability is determined by core/disc size and wire thickness.



        All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



        Specifications: Overall diameter: max 1.091 • Flexibility: 10% 1 d • Elongation: ³30 % • Temperature index: 155 • Cut through: ³ 200°C • Heat shock at 175°C: 1xd • Bonding temperature: 170-200°C • Re-softening temperature: 155°C • 15 AWG • Wire diameter 1.4mm • Inductance 0.22mH to 15mH.

        Show more

        Specifications

        Article number
        000-5117
        EAN
        8785256839230
        Coil type
        Iron core coil
        Inductance
        1 mH
        DCR
        0.10 ohms
        Tolerance
        3%
        Wire diameter
        15 AWG
        Power handling (RMS)
        400 watts
        Dimensions: Ø * H (mm)
        45 x 46

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        uitstekend filterspoel voor 4 Ohm boxen volgens d'Appolitoprincipe; kan grote stroom leveren voor de bass-sectie
        By paul on 23 September 2022
