        000-6577 | 16 mH | 0,16 Ω | 5% | 14 AWG | C-Coil

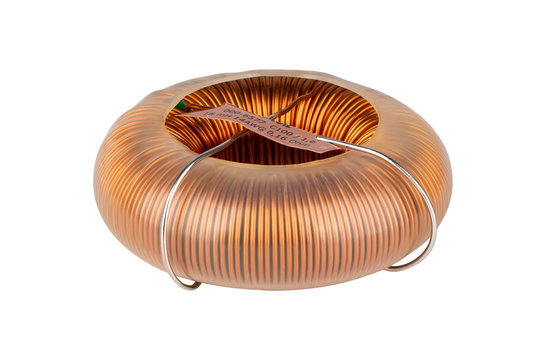

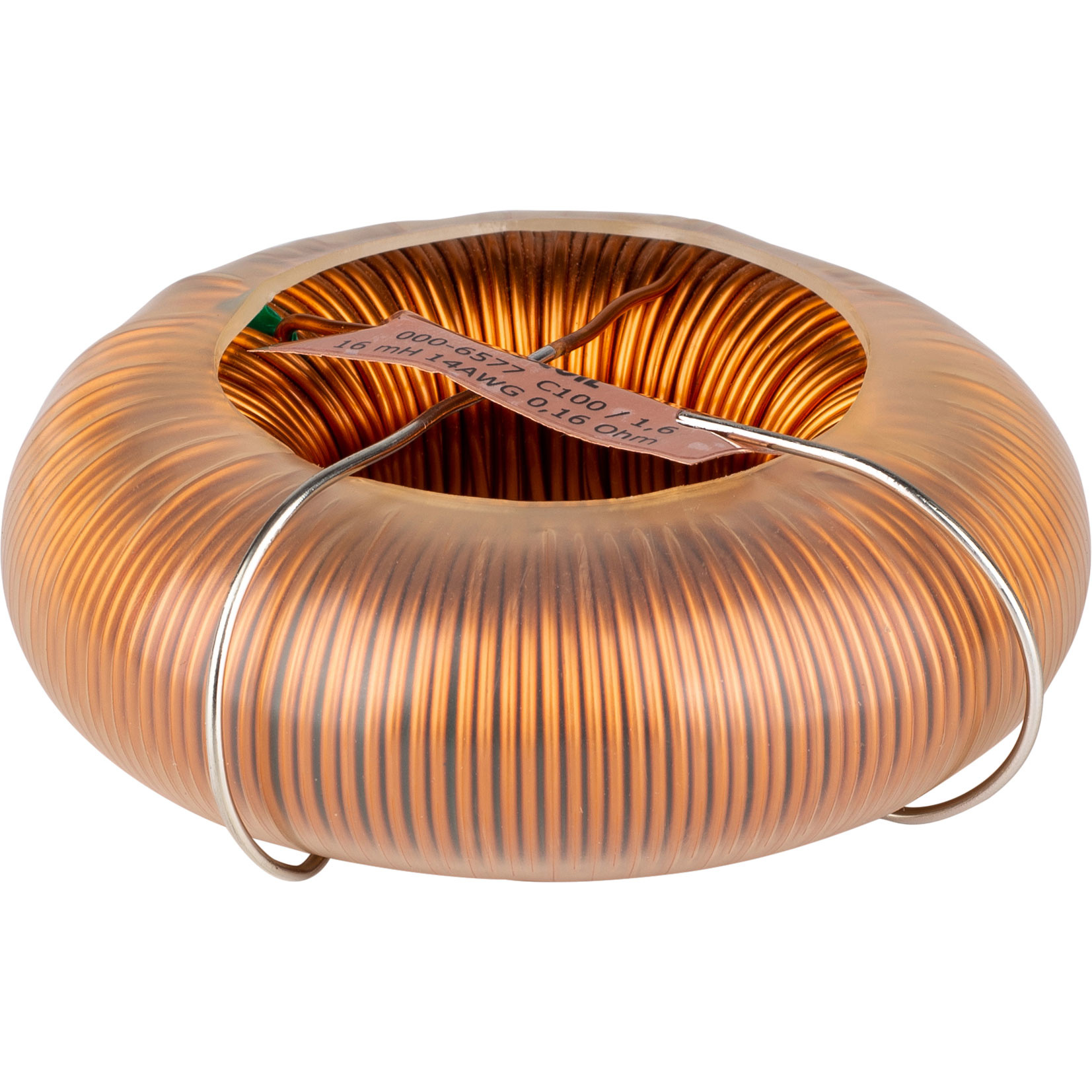

        Jantzen Audio 000-6577 | 16 mH | 0,16 Ω | 5% | 14 AWG | C-Coil

        €87,95

        4 In stock

        Add to cart

        Jantzen Audio 000-6577 | 16 mH | 0,16 Ω | 5% | 14 AWG | C-Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Toroidal coils
        000-6577 | 16 mH | 0,16 Ω | 5% | 14 AWG | C-Coil
        € 72,69€ 87,95 4 In stock
        • -5% Purchase 4 for only € 83,55 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-6577 | 16 mH | 0,16 Ω | 5% | 14 AWG | C-Coil

        Product description Jantzen Audio 000-6577 | 16 mH | 0,16 Ω | 5% | 14 AWG

        The C-Coil is wound around a toroidal sandwich core, and it has extremely low resistance and can shift a large amount of power without getting over heated. If the stated maximum wattage is not exceeded the core will never saturate. The C-Coil is designed for the bass section of crossovers and for passive Sub-Woofers.



        Highlights

        • Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
        • Toroidal (sandwich) core made from epoxy laminated steel plates
        • All C-Coils are measured after being wound, using a professional CLIO system @ AC 1V 1kHz
        • Not suitable for crossovers with an XO point above 1.20 kHz



        Product details

        Jantzen Audio 000-6577 | 16 mH | 0,16 Ω | 5% | 14 AWG | C-Coil



        The C-Coil is an audio inductor, unique to Jantzen Audio. It is a toroidal core audio inductor with a very high-power handling and extremely low resistance (RDC). The extremely high-power handling makes it the ultimate inductor for the bass section for certain crossover design. Wound on a toroidal sandwiched steel core and using shrink foil to reduce microphonic effect. The C-Coil is specifically designed for the bass section for crossovers and is not recommended for the mid-range or tweeter section.



        All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



        Specifications: Power handling: 1500 Watt RMS • Inductance tolerance: +/- 5% • Resistance (RDC) tolerance: +/- 10%.

        Show more

        Specifications

        Article number
        000-6577
        EAN
        8785256839216
        Coil type
        Toroidal coil
        Inductance
        16 mH
        DCR
        0.16 ohms
        Tolerance
        5%
        Wire diameter
        14 AWG
        Power handling (RMS)
        700 watts
        Dimensions: Ø * H (mm)
        105 x 36
