        000-8056 | 0,56 mH | 0,14 Ω | 2% | 12 AWG | Wax Coil

        Jantzen Audio 000-8056 | 0,56 mH | 0,14 Ω | 2% | 12 AWG | Wax Coil

        €62,45

        Out of stock

        Add to cart

        Jantzen Audio 000-8056 | 0,56 mH | 0,14 Ω | 2% | 12 AWG | Wax Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Copper foil coils
        000-8056 | 0,56 mH | 0,14 Ω | 2% | 12 AWG | Wax Coil
        € 51,61€ 62,45 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-8056 | 0,56 mH | 0,14 Ω | 2% | 12 AWG | Wax Coil

        Product description Jantzen Audio 000-8056 | 0,56 mH | 0,14 Ω | 2% | 12 AWG

        High-performance 0.56 mH wax coil inductor with precise 2% inductance tolerance.



        Highlights

        • ETP copper foil for efficient electron travel
        • Special paraffin wax impregnation for durability
        • Excellent power handling and dynamic headroom
        • Inductance tolerance of +/- 2% for accuracy



        Product details

        Jantzen Audio 000-8056 | 0,56 mH | 0,14 Ω | 2% | 12 AWG | Wax Coil

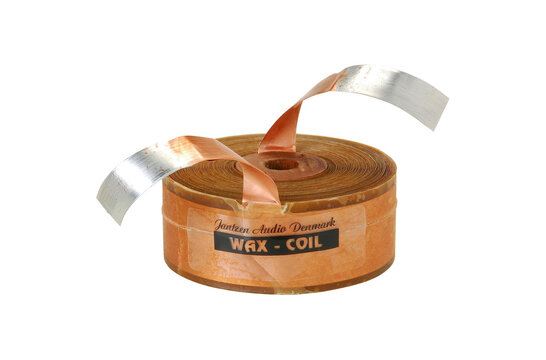

        The Jantzen Audio 000-8056 is an exceptional 0.56 mH copper foil coil, ideal for crossover components in high-end audio systems. Designed with meticulous attention to detail, this Wax Coil features Electrolytic-Tough-Pitch (ETP) copper foil, ensuring a larger surface for electron travel and significantly reducing distortion. The coil is certified C11000 / IACS, highlighting its premium quality and conductivity. Impregnated with Jantzen Audio's special paraffin wax, it guarantees no air pockets and high temperature tolerance, surpassing natural waxes like beeswax in stability and performance. This wax not only protects the copper foil from environmental factors but also maintains the coil's windings integrity for many years. With an inductance tolerance of +/- 2% and DCR tolerance of +/- 5%, this Wax Coil ensures precise crossover functionality. The included paper insulation further enhances the coil's durability. Whether you're an audiophile or a professional audio equipment manufacturer, the Jantzen Audio Wax Coil is tailored for superior sound fidelity and long-lasting reliability.

        Show more

        Specifications

        Article number
        000-8056
        EAN
        9506681637364
        Coil type
        Copper foil coils
        Inductance
        0.56 mH
        DCR
        0.14 ohms
        Tolerance
        2%
        Wire diameter
        12 AWG
        Dimensions: Ø * H (mm)
        71 x 55

        Show more
