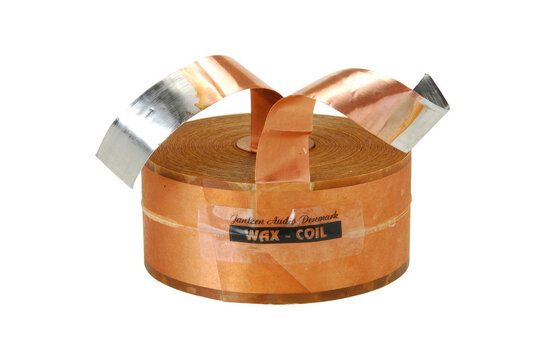

        000-8130 | 1,8 mH | 0,26 Ω | 2% | 12 AWG | Wax Coil

        Jantzen Audio 000-8130 | 1,8 mH | 0,26 Ω | 2% | 12 AWG | Wax Coil

        €108,95

        Out of stock

        Add to cart

        Jantzen Audio 000-8130 | 1,8 mH | 0,26 Ω | 2% | 12 AWG | Wax Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Copper foil coils
        000-8130 | 1,8 mH | 0,26 Ω | 2% | 12 AWG | Wax Coil
        € 90,04€ 108,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-8130 | 1,8 mH | 0,26 Ω | 2% | 12 AWG | Wax Coil

        Product description Jantzen Audio 000-8130 | 1,8 mH | 0,26 Ω | 2% | 12 AWG

        High-performance 1.8mH wax coil for superior sound quality in audio crossovers.



        Highlights

        • ETP copper foil design for optimal electron flow
        • Special paraffin wax impregnation for longevity
        • Inductance tolerance of +/- 2% for precision
        • Paper insulated with a DCR of 0.26 Ω



        Product details

        Jantzen Audio 000-8130 | 1,8 mH | 0,26 Ω | 2% | 12 AWG | Wax Coil



        The Jantzen Audio 000-8130 Wax Coil is engineered to deliver impeccable audio quality for your crossover components. This top-tier 12 AWG copper foil coil has been meticulously crafted with Electrolytic-Tough-Pitch (ETP) copper, ensuring an expansive surface for electron travel that significantly reduces distortion. Each coil is certified with an IACS C11000 standard, guaranteeing the purest copper material for your audio system. With an inductance of 1.8 millihenries and a direct current resistance (DCR) of just 0.26 Ohms, this coil offers unmatched precision with an inductance tolerance of +/- 2% and DCR tolerance of +/- 5%. The coil's special paraffin wax impregnation, unique to Jantzen Audio, not only protects the copper foil but also enhances the coil's temperature tolerance, outperforming natural waxes like beeswax. This wax coil is an evolution of the Cross Coil technology, leveraging the benefits of wax impregnation to further refine the performance of foil-based inductors. The result is a component that provides improved power handling, dynamic headroom, and stability that audiophiles and professional sound engineers will appreciate. Encased in specially produced paper insulation, this coil is designed to maintain its integrity and provide high-quality sound for decades.

        Show more

        Specifications

        Article number
        000-8130
        EAN
        9506116399997
        Coil type
        Copper foil coils
        Inductance
        1.8 mH
        DCR
        0.26 ohms
        Tolerance
        2%
        Wire diameter
        12 AWG
        Dimensions: Ø * H (mm)
        96 x 55

        Show more
