        000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Coil

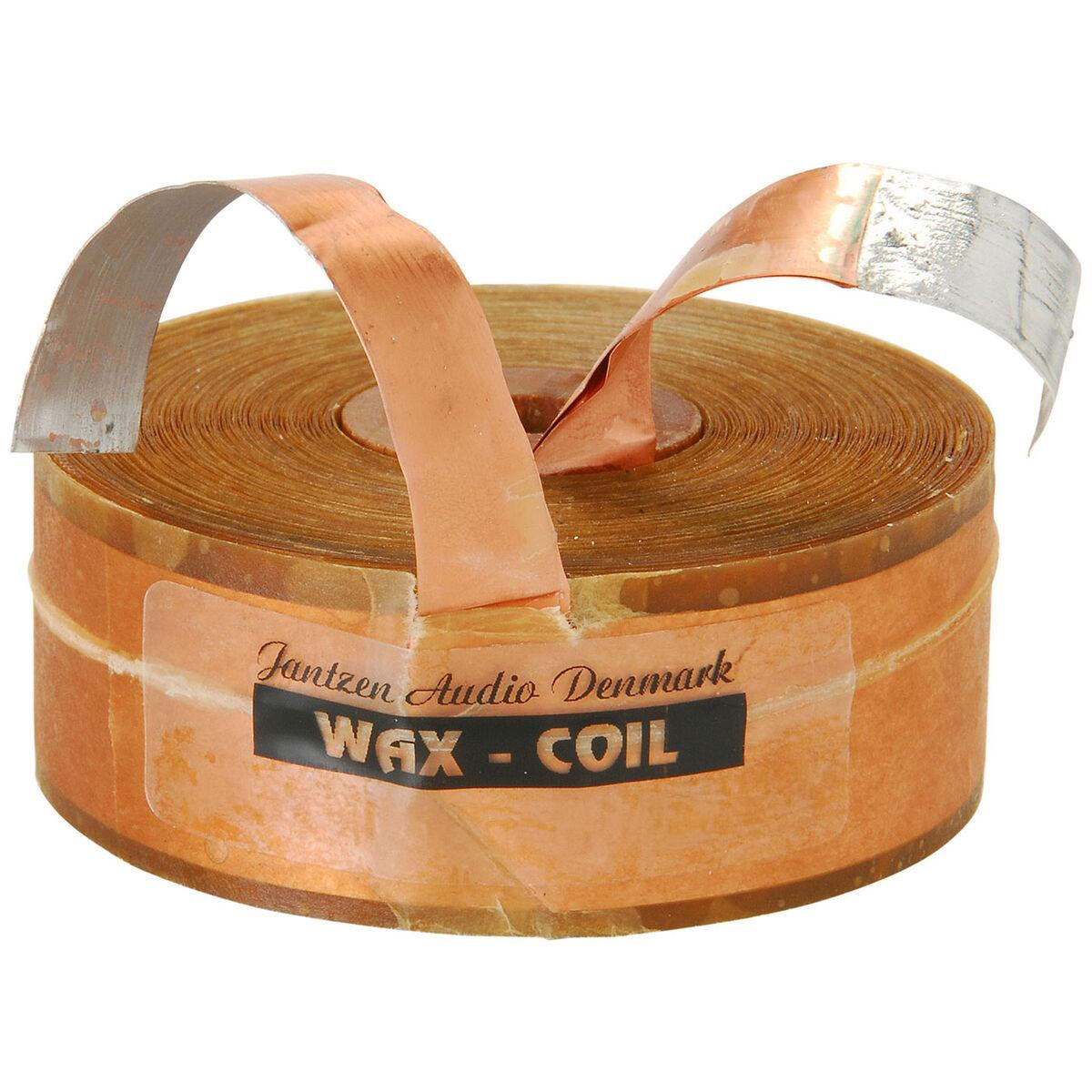

        Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Coil

        €112,45

        Out of stock

        Add to cart

        Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Copper foil coils
        000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Coil
        € 92,93€ 112,45 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Coil

        Product description Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG

        Compact 2.0 mH Jantzen Audio Wax Coil with premium copper foil and paraffin wax impregnation.



        Highlights

        • Made with high-purity ETP copper foil
        • Special paraffin wax impregnation for durability
        • Precision inductance tolerance of +/- 2%
        • Low DCR of 0.28 Ω with a tolerance of +/- 5%



        Product details

        Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Coil



        The Jantzen Audio Wax Coil is engineered for audio enthusiasts seeking exceptional sound clarity and durability in crossover components. Boasting a 2.0 mH inductance with a tight tolerance of +/- 2%, this coil is designed to preserve the integrity of the audio signal, ensuring high-fidelity sound reproduction. The coil's low direct current resistance (DCR) of 0.28 Ω, with a tolerance of +/- 5%, minimizes energy loss and maintains efficiency. Crafted from Electrolytic-Tough-Pitch (ETP) copper foil, certified C11000/IACS, the Wax Coil offers a substantial surface for electron travel which significantly reduces distortion. Jantzen Audio's special paraffin wax impregnation process eliminates air pockets and increases temperature tolerance, outperforming natural waxes and securing the coil windings over time. The meticulous construction of the coil includes a specially produced paper insulation that, along with the wax, protects the copper foil. This creates a component that not only enhances audio quality but is also built to last, maintaining performance for decades. The Jantzen Audio Wax Coil is an evolution of the Cross Coil, further refined with wax impregnation to excel in high-performance audio systems.

        Show more

        Specifications

        Article number
        000-8140
        EAN
        9502813816454
        Coil type
        Copper foil coils
        Inductance
        2 mH
        DCR
        0.28 ohms
        Tolerance
        2%
        Wire diameter
        12 AWG
        Dimensions: Ø * H (mm)
        96 x 55

        Show more
