        000-8353 | 0,85 mH | 0,23 Ω | 2% | 14 AWG | Wax Coil

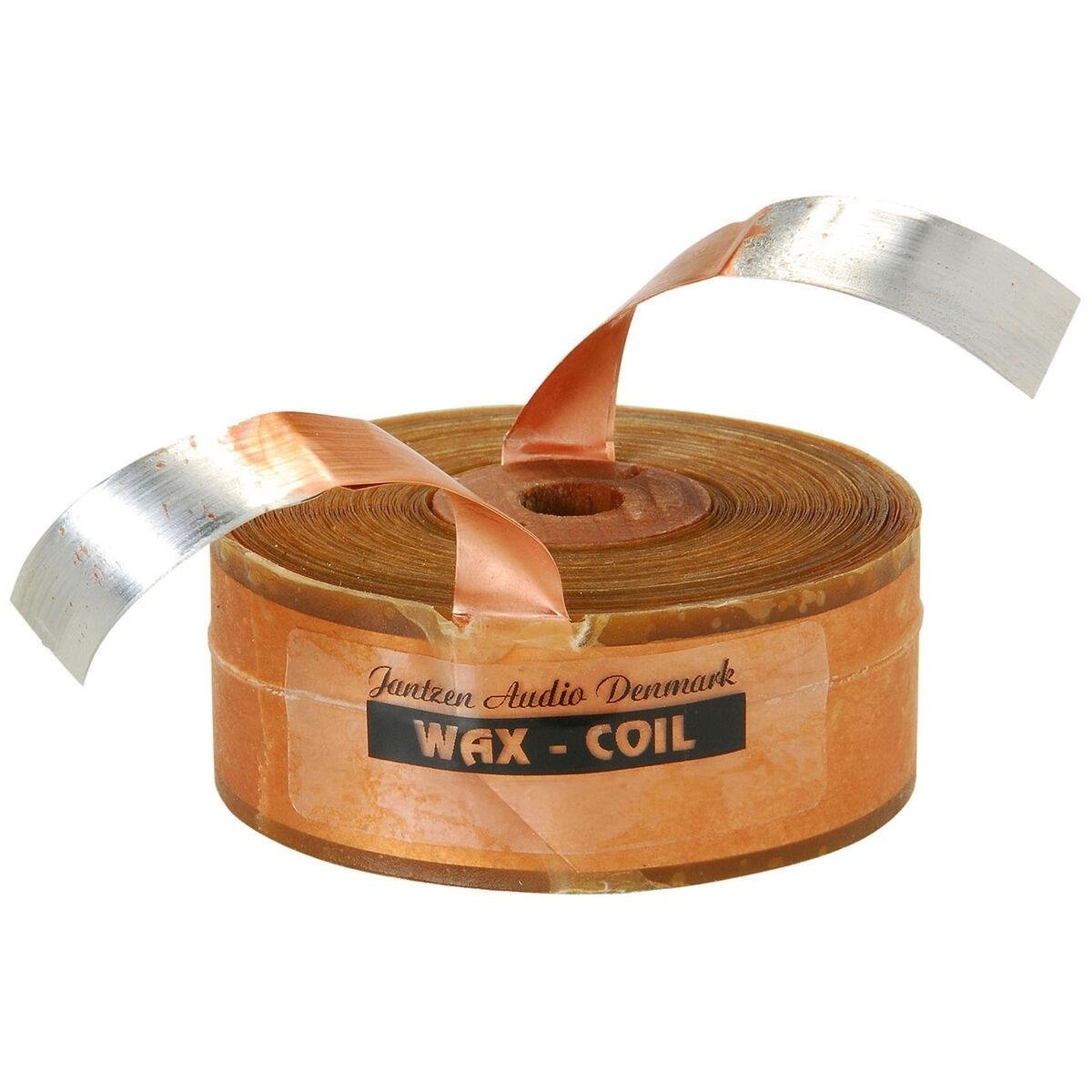

        Jantzen Audio 000-8353 | 0,85 mH | 0,23 Ω | 2% | 14 AWG | Wax Coil

        €49,45

        Out of stock

        Add to cart

        Jantzen Audio 000-8353 | 0,85 mH | 0,23 Ω | 2% | 14 AWG | Wax Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Copper foil coils
        000-8353 | 0,85 mH | 0,23 Ω | 2% | 14 AWG | Wax Coil
        € 40,87€ 49,45 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-8353 | 0,85 mH | 0,23 Ω | 2% | 14 AWG | Wax Coil

        Product description Jantzen Audio 000-8353 | 0,85 mH | 0,23 Ω | 2% | 14 AWG

        High-performing 0.85mH Wax Coil by Jantzen Audio, with exceptional inductance and resistance precision.



        Highlights

        • Superior audio clarity with pure ETP copper foil construction
        • Special paraffin wax impregnation for longevity and performance
        • Precise inductance of 0.85mH with a tolerance of +/- 2%
        • Optimized electron travel, reducing distortion with 14 AWG thickness



        Product details

        Jantzen Audio 000-8353 | 0,85 mH | 0,23 Ω | 2% | 14 AWG | Wax Coil



        The Jantzen Audio 000-8353 Wax Coil is a premium crossover component that stands at the forefront of audio technology. Crafted with Electrolytic-Tough-Pitch (ETP) copper foil, this coil is recognized for its exceptional electrical conductivity and IACS certification, ensuring the highest quality in signal transmission. The coil's inductance is rated at 0.85mH with an impressive precision tolerance of +/- 2%, and its resistance measures at 0.23 Ω with a tolerance of +/- 5%, guaranteeing consistent performance. The 14 AWG thickness of the coil is meticulously chosen to facilitate optimal electron flow and to minimize distortion, thus enhancing overall sound quality. In a groundbreaking approach, Jantzen Audio has impregnated the coil with a special paraffin wax, surpassing traditional natural waxes in both air-pocket prevention and temperature tolerance. This ensures the coil's durability and maintains the integrity of the windings for decades. Each Wax Coil is a testament to Jantzen Audio's commitment to superior sound, offering improved power handling and dynamic headroom, especially when juxtaposed with single wire or multi-strand wire inductors. The Wax Coil is not only an evolution of the Cross Coil design but a significant leap forward in foil-based inductor technology.

        Show more

        Specifications

        Article number
        000-8353
        EAN
        9504429859788
        Coil type
        Copper foil coils
        Inductance
        0.85 mH
        DCR
        0.23 ohms
        Tolerance
        2%
        Wire diameter
        14 AWG
        Dimensions: Ø * H (mm)
        74 x 37

        Show more
