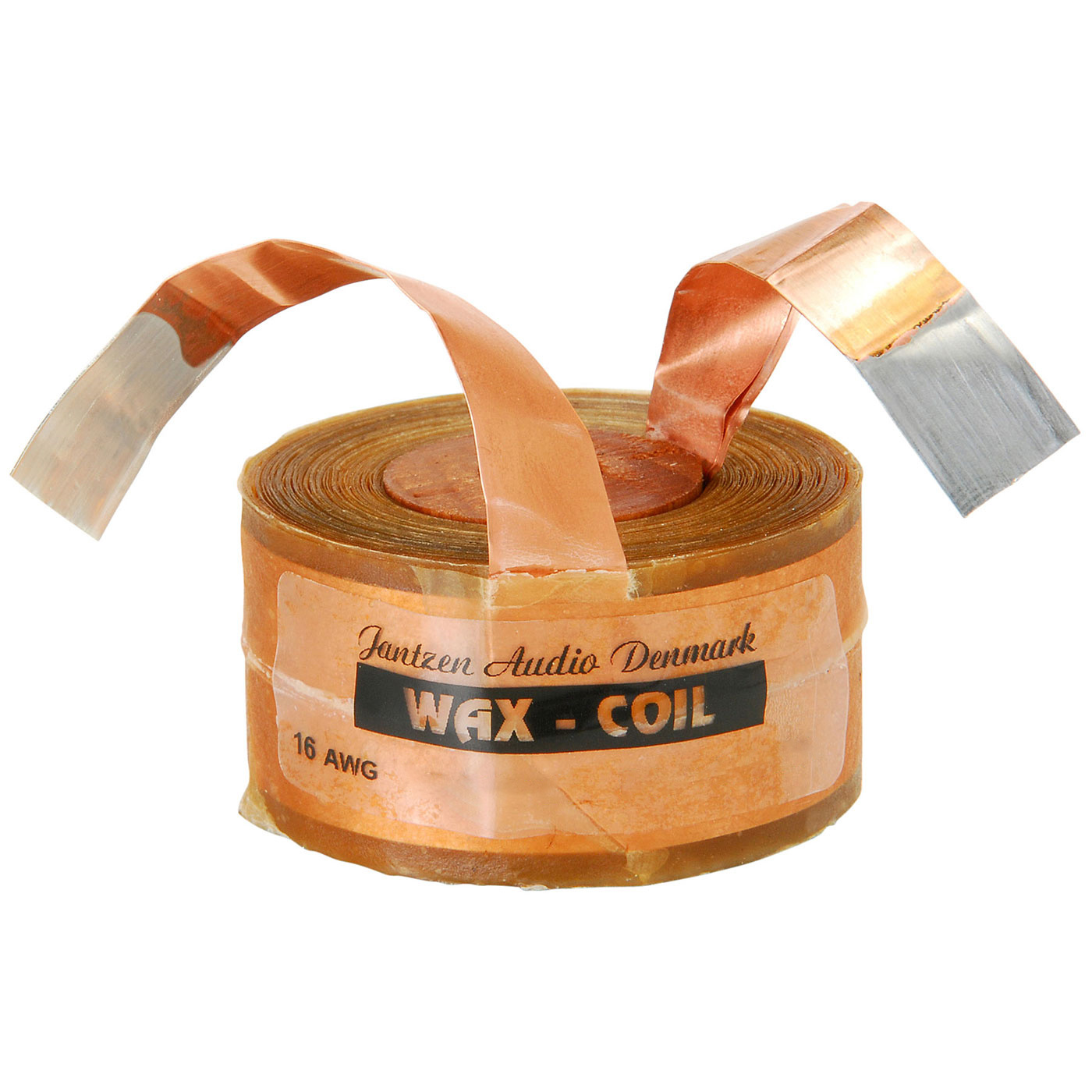

        000-8593 | 0,60 mH | 0,27 Ω | 2% | 16 AWG | Wax Coil

        Jantzen Audio 000-8593 | 0,60 mH | 0,27 Ω | 2% | 16 AWG | Wax Coil

        €31,45

        2 In stock

        Add to cart

        Jantzen Audio 000-8593 | 0,60 mH | 0,27 Ω | 2% | 16 AWG | Wax Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Copper foil coils
        000-8593 | 0,60 mH | 0,27 Ω | 2% | 16 AWG | Wax Coil
        € 25,99€ 31,45 2 In stock
        • -5% Purchase 4 for only € 29,88 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-8593 | 0,60 mH | 0,27 Ω | 2% | 16 AWG | Wax Coil

        Product description Jantzen Audio 000-8593 | 0,60 mH | 0,27 Ω | 2% | 16 AWG | Wax Coil

        The insulation used for Wax Coils consist of a specially produced paper type and then the whole coil is impregnated with a unique paraffin wax, especially developed for Jantzen Audio. Superior to natural waxes, this special paraffin wax ensures that there are no air-pockets trapped in the wax and has a higher temperature tolerance, compared to i.e. beeswax.



        Highlights

        • Made from ETP (Electrolytic-Tough-Pitch) copper foil
        • The copper foil is C11000 / IACS certified
        • The coil is impregnated with a special parafine wax
        • Each Wax Coil is tested with the Clio system as part of quality control
        • Insulation: Special paper



        Product details

        Jantzen Audio 000-8593 | 0,60 mH | 0,27 Ω | 2% | 16 AWG | Wax Coil



        The Wax Coil is the innovation level for foil based audio-grade inductors. It is a high performance foil inductor offering improved power handling and dynamic head room. The wax impregnation insures the copper foil and winding integrity for decades of high performance. Using pure copper foil we have insured a better surface for electron travel and a better distortion reduction compared to single-wire based inductors. The Wax Coil is a further development of the Cross Coil, using the wax impregnation to further secure the tightness of windings.



        All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



        Specifications: Power handling: 16 AWG – approx. 350 watts RMS • RDC tolerance: +/- 5% • Resistance Inductance tolerance: +/- 2%.

        Show more

        Specifications

        Article number
        000-8593
        EAN
        8785256839063
        Coil type
        Copper foil coil
        Inductance
        0.6 mH
        DCR
        0.27 ohms
        Tolerance
        2%
        Wire diameter
        16 AWG
        Power handling (RMS)
        350 watts
        Dimensions: Ø * H (mm)
        64 x 25

        Show more

        Reviews

        0 reviews
        Review this product

        There are no reviews written yet about this product..
