        000-L-0022 | 0,22 mH | 0,14 Ω | 3% | 15 AWG | Litz Wire Wax Coil

        Jantzen Audio 000-L-0022 | 0,22 mH | 0,14 Ω | 3% | 15 AWG | Litz Wire Wax Coil

        €14,45

        Out of stock

        Add to cart

        Jantzen Audio 000-L-0022 | 0,22 mH | 0,14 Ω | 3% | 15 AWG | Litz Wire Wax Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Litz wire wax coils
        000-L-0022 | 0,22 mH | 0,14 Ω | 3% | 15 AWG | Litz Wire Wax Coil
        € 11,94€ 14,45 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-L-0022 | 0,22 mH | 0,14 Ω | 3% | 15 AWG | Litz Wire Wax Coil

        Product description Jantzen Audio 000-L-0022 | 0,22 mH | 0,14 Ω | 3% | 15 AWG

        High-quality 0.22mH Litz wire wax coil with precise inductance and low resistance.



        Highlights

        • Reduced skin effect and lower resistance
        • Wax-impregnated for integrity and reduced distortion
        • Co-engineered with Audiothlon™ for optimal performance
        • Inductance tolerance of +/- 3% and DCR tolerance of +/- 5%



        Product details

        Jantzen Audio 000-L-0022 | 0,22 mH | 0,14 Ω | 3% | 15 AWG | Litz Wire Wax Coil

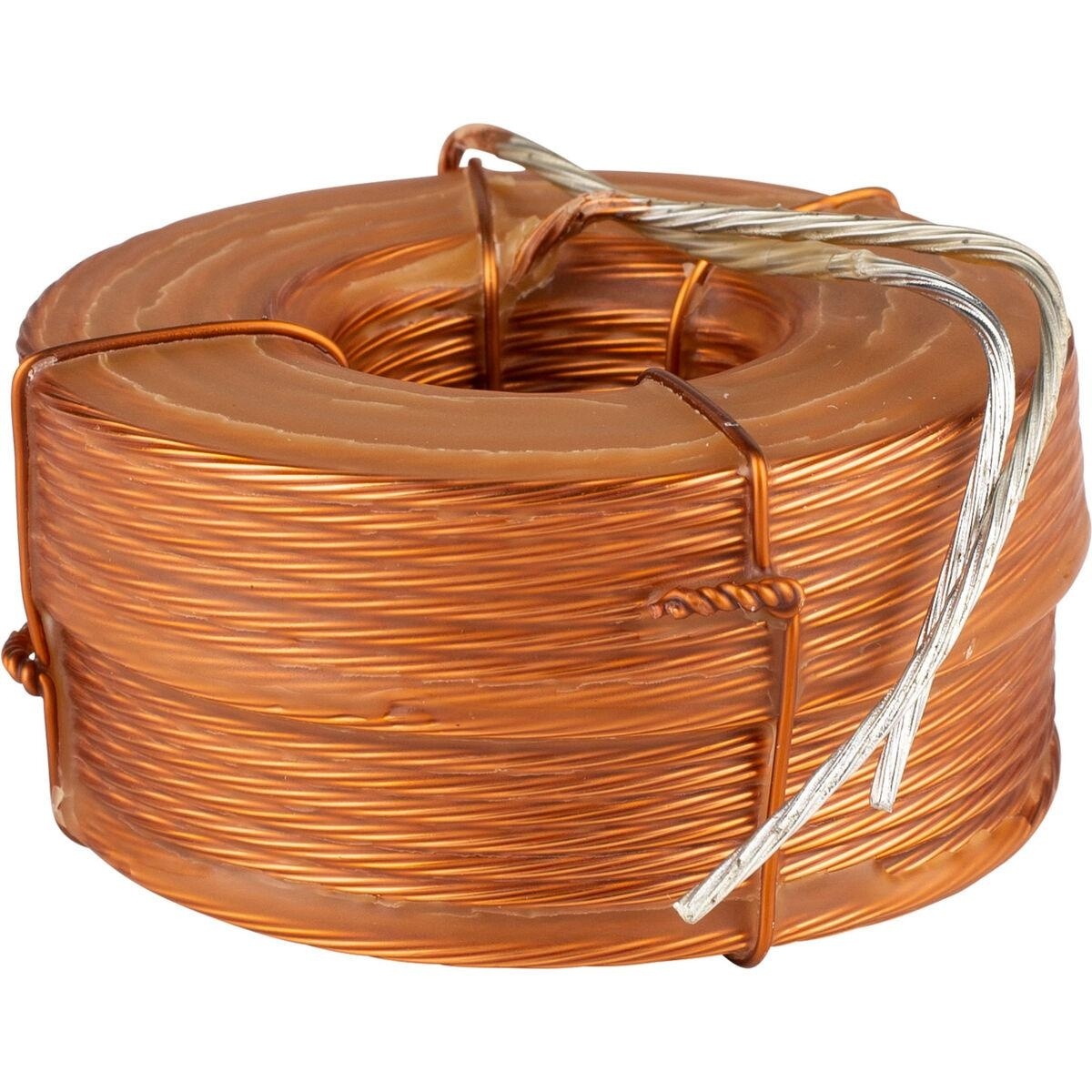

        The Jantzen Audio Litz Wire Wax Coil is a top-tier component for audio enthusiasts seeking a balance between performance and price. This 0.22 mH inductor, with a low resistance of 0.14 Ω, is the only wax impregnated litz wire coil available in the market, ensuring unparalleled quality. Crafted with ETP C11000 copper wire and an inductance tolerance of +/- 3%, it delivers exceptional audio clarity. Its 15 AWG wire, composed of 7 x 0.5 mm stranded wires, is specifically designed to reduce skin and proximity effect losses in conductors up to frequencies of approximately 1 MHz, offering more dynamic headroom and a clearer sound profile. The use of high-quality wax reduces unwanted distortion and microphonic effects, preserving the integrity of the windings. Co-engineered with the renowned Audiothlon™ in Poland, this coil is an ideal substitute for foil-based inductors, providing the advantageous properties of both wire- and foil-based inductors in a compact and cost-effective form. Whether for DIY projects or professional applications, the Jantzen Audio Litz Wire Wax Coil stands as an exemplary choice for creating refined and dynamic audio systems.

        Show more

        Specifications

        Article number
        000-L-0022
        EAN
        9502258333653
        Coil type
        Litz wire wax coils
        Inductance
        0.22 mH
        DCR
        0.14 ohms
        Tolerance
        3%
        Wire diameter
        15 AWG
        Dimensions: Ø * H (mm)
        50 x 20

        Show more
