        000-L-0075 | 0,75 mH | 0,295 Ω | 3% | 15 AWG | Litz Wire Wax Coil

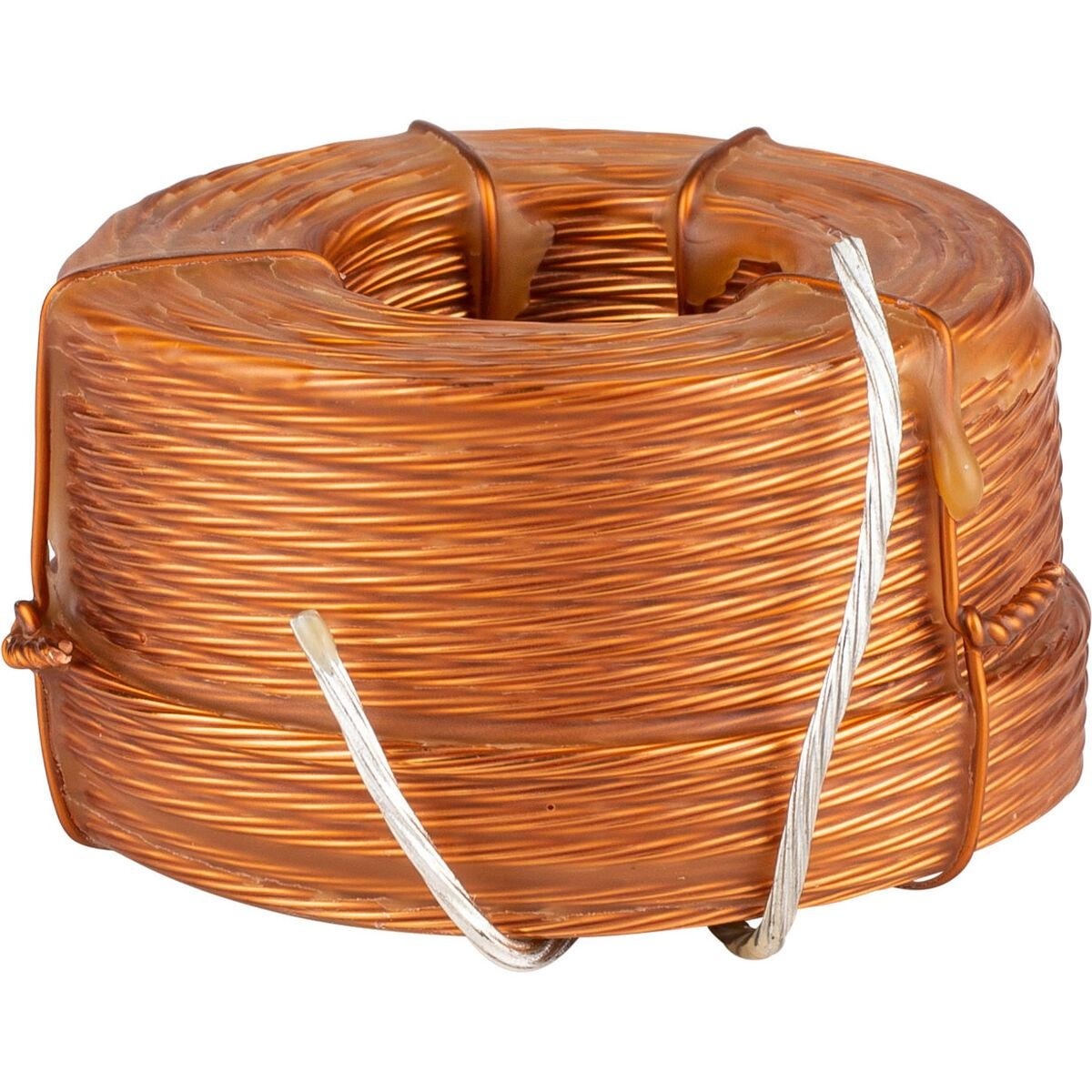

        Jantzen Audio 000-L-0075 | 0,75 mH | 0,295 Ω | 3% | 15 AWG | Litz Wire Wax Coil

        €25,95

        Out of stock

        Add to cart

        Jantzen Audio 000-L-0075 | 0,75 mH | 0,295 Ω | 3% | 15 AWG | Litz Wire Wax Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Litz wire wax coils
        000-L-0075 | 0,75 mH | 0,295 Ω | 3% | 15 AWG | Litz Wire Wax Coil
        € 21,45€ 25,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-L-0075 | 0,75 mH | 0,295 Ω | 3% | 15 AWG | Litz Wire Wax Coil

        Product description Jantzen Audio 000-L-0075 | 0,75 mH | 0,295 Ω | 3% | 15 AWG

        Experience enhanced audio clarity with Jantzen Audio's Litz Wire Wax Coil, ideal for superior crossovers.



        Highlights

        • Advanced ETP C11000 copper wire for premium conductivity
        • Wax impregnation for minimized distortion and microphonics
        • Optimized for frequencies up to 1 MHz with reduced skin effect
        • Precise inductance of 0.75 mH with a tolerance of +/- 3%



        Product details

        Jantzen Audio 000-L-0075 | 0,75 mH | 0,295 Ω | 3% | 15 AWG | Litz Wire Wax Coil



        Delve into the realm of high-fidelity sound with the Jantzen Audio 000-L-0075 Litz Wire Wax Coil, a groundbreaking crossover component that stands as the only wax impregnated litz wire coil available. Co-engineered with the expertise of Audiothlon™ in Poland, this inductor is designed to bridge the gap between wire-based and foil-based options, offering a blend of performance and value. The coil is crafted from high-quality ETP C11000 copper wire, ensuring IACS certified conductivity and featuring a unique 15 AWG (7 x 0.5 mm stranded wires) construction, which significantly reduces skin and proximity effect losses up to frequencies of approximately 1 MHz. The meticulous wax impregnation process not only enhances the durability of the windings but also greatly reduces any unwanted distortion and microphonic effects, ensuring your audio remains pristine and clear. With an inductance tolerance of +/- 3% and a DCR tolerance of +/- 5%, the Jantzen Audio Litz Wire Wax Coil is tailored for those seeking dynamic headroom and a clearer sound experience in their audio systems.

        Show more

        Specifications

        Article number
        000-L-0075
        EAN
        9504131775123
        Coil type
        Litz wire wax coils
        Inductance
        0.75 mH
        DCR
        0.295 ohms
        Tolerance
        3%
        Wire diameter
        15 AWG
        Dimensions: Ø * H (mm)
        56 x 30

        Show more
