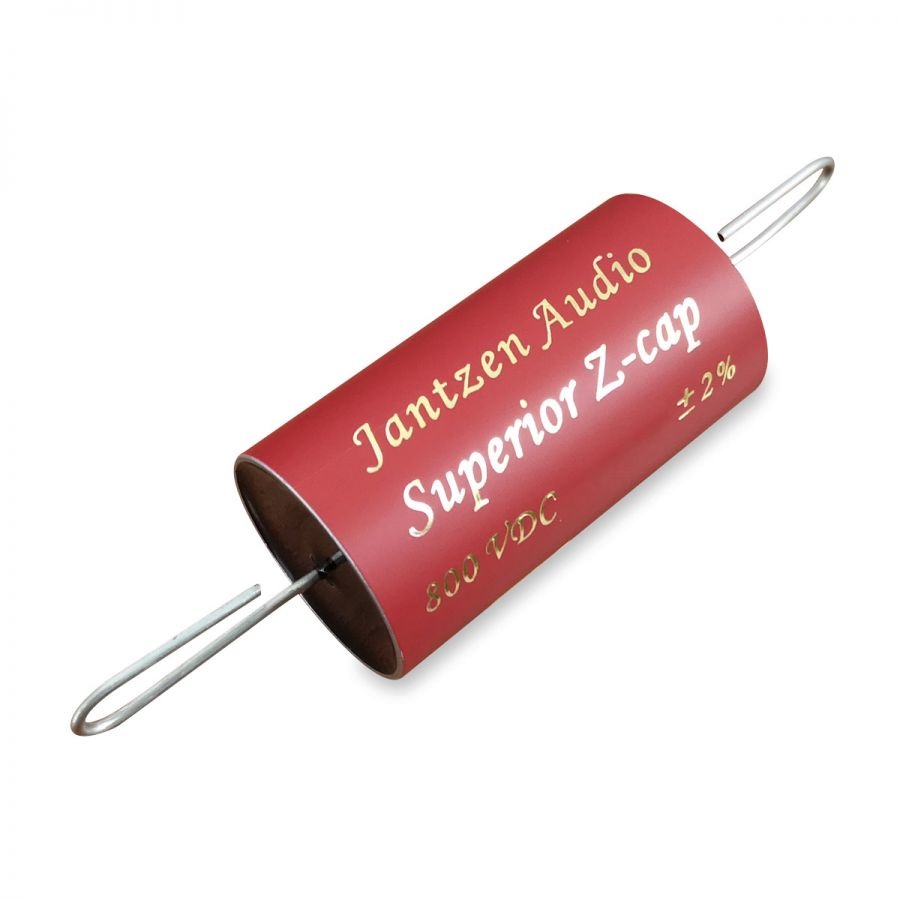

        001-0582 | 12 µF | 2% | 800 V | Superior Z-Cap

        Jantzen Audio 001-0582 | 12 µF | 2% | 800 V | Superior Z-Cap

        €52,95

        Out of stock

        Add to cart

        Jantzen Audio 001-0582 | 12 µF | 2% | 800 V | Superior Z-Cap

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Film/ foil capacitors
        001-0582 | 12 µF | 2% | 800 V | Superior Z-Cap
        € 43,76€ 52,95 Out of stock
        • -5% Purchase 4 for only € 50,30 per piece
        • -10% Purchase 10 for only € 47,66 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        001-0582 | 12 µF | 2% | 800 V | Superior Z-Cap

        Product description Jantzen Audio 001-0582 | 12 µF | 2% | 800 V

        With the Superior Z-Cap even the finest nuances can be heard. The sound never gets over-edged, superb naturalness with a somewhat bright top-end.



        Highlights

        • Capacitor foil: Metalized (ZnAl) polypropylene foil
        • Dielectric insulation: Polypropylene film
        • Terminal leads: PCOCC copper wire
        • Capacitance tolerance: +/- 2%
        • Signal direction: None (non-polarized capacitor)



        Product details

        Jantzen Audio 001-0582 | 12 µF | 2% | 800 V | Superior Z-Cap



        All Jantzen Audio Z-Caps are nitrogen filled, which means that you get more foil per capacitor and no risk of the evaporation that can occur in oil/dielectric fluid filled capacitors. Highly recommended for use as a high-end tweeter capacitor or as a coupling cap in an amplifier. For the best performance, signal should enter on the left-hand side (From reading direction).



        Specifications: Metallization: Aluminium and Zinc particles • Ends: Are made from copper thread • Dielectric: Polypropylene • Tolerance: 1% - 2% • Loss angle tan = 0.00002 to 1K • Loss angle tan = 0.00001 to 10K • Film: Metallized polypropylene • Dimension dia- 17/ 43 mm. hor • Axial • Non inductive construction • 0,47 uF - 22 uF AC value of the voltage rating 800 VDC / 425 VAC. • Loss factor: 1K 0.00002 • Working Temperature Range: - 30C to + 85C.

        Show more

        Specifications

        Article number
        001-0582
        EAN
        8785256840502
        Capacitance (µF)
        12 µF
        Voltage Rating
        800 V
        Tolerance
        2%
        Dimensions: Ø * L (mm)
        46 x 70
        Termination Style
        Axial

        Show more
