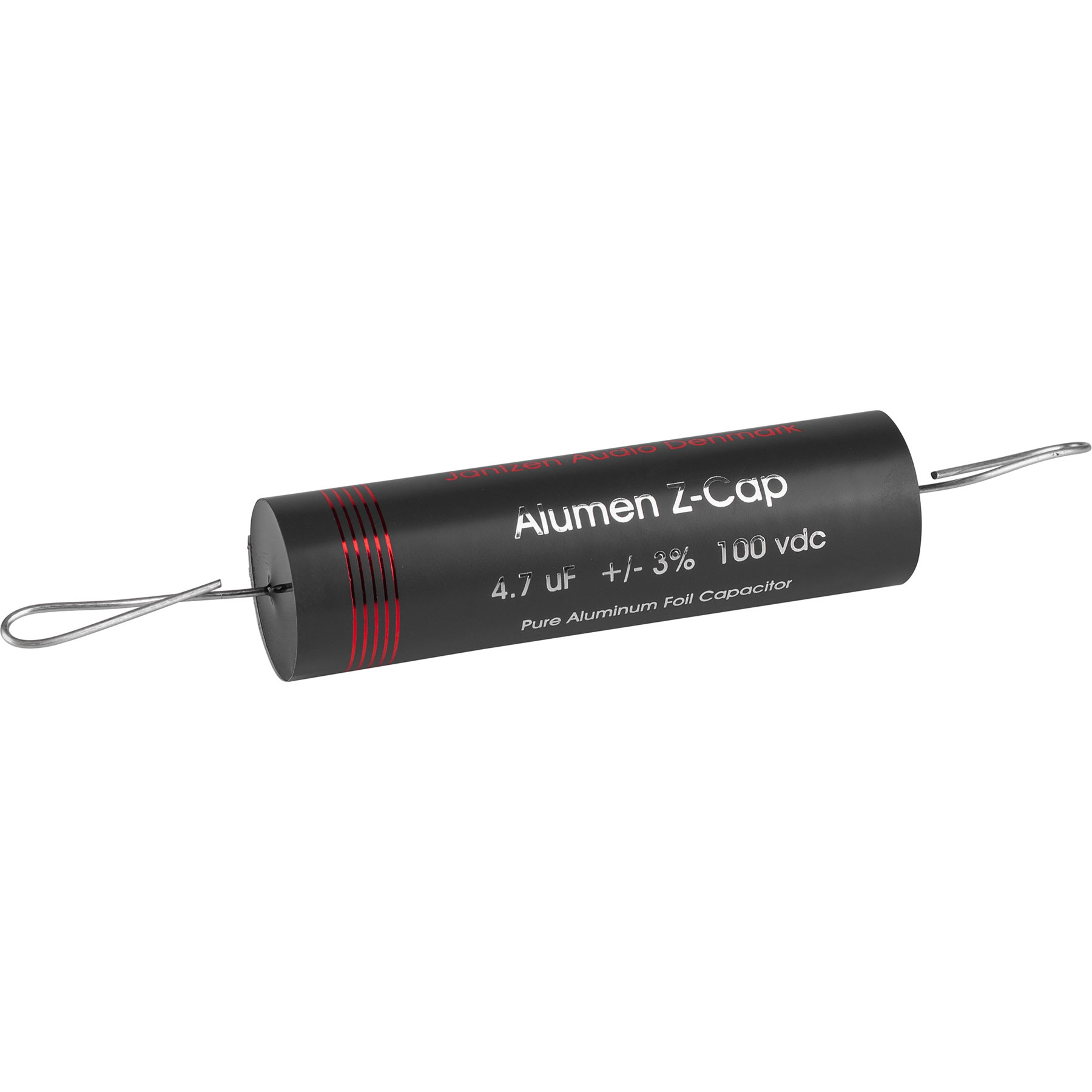

        001-7040 | 4,70 µF | 3% | 100 V | Alumen Z-Cap

        Jantzen Audio 001-7040 | 4,70 µF | 3% | 100 V | Alumen Z-Cap

        €57,95

        6 In stock

        Add to cart

        Jantzen Audio 001-7040 | 4,70 µF | 3% | 100 V | Alumen Z-Cap

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Film/ foil capacitors
        001-7040 | 4,70 µF | 3% | 100 V | Alumen Z-Cap
        € 47,89€ 57,95 6 In stock
        • -5% Purchase 4 for only € 55,05 per piece
        • -10% Purchase 10 for only € 52,16 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        001-7040 | 4,70 µF | 3% | 100 V | Alumen Z-Cap

        Product description Jantzen Audio 001-7040 | 4,70 µF | 3% | 100 V

        The Alumen Z-Cap (pure aluminium foil capacitors) was especially designed for the tweeter and mid-section of crossovers for passive hi-fi speakers.



        Highlights

        • Ultra-thin dielectric insulation to eliminate memory effect in the capacitor
        • An extremely fast reacting capacitor
        • High quality pure aluminium foil wound with highly specialised machinery and precision winding techniques
        • Specifically designed for the tweeter and mid-range section of passive crossovers
        • Can also be used as coupling capacitors for transistor amplifiers



        Product details

        Jantzen Audio 001-7040 | 4,70 µF | 3% | 100 V | Alumen Z-Cap



        The improved transparency performance of this new cap is on the same high level as Jantzen Silver/Gold Z-Cap, but with a slightly softer tonal presence and less brightness / sheen / glare in comparison. The Alumen Z-Cap will offer a more “neutral” presentation in the overall sound in certain crossover designs. By “neutral” Jantzen refers to the fact that the focus will be shifted from what can be a somewhat overemphasized brightness from a Super PP cap, to a more even balancing between the depth of the midrange and the presence of the tweeter.



        It utilises a much thinner dielectric insulation compared to the market standard. A high voltage rating is not needed for application related to passive loudspeaker crossovers. The usage of a thinner dielectric insulator allows for a capacitor with less “memory” and one that is much faster reacting. The Alumen Z-Cap offers unparalleled value for money in terms of cost versus performance. Compared to the Superior capacitors, the Alumen Z-Cap will bring less brightness and a little more natural top end balance to your system. Ideal for audio aficionados who prefer a slightly less bright system, while also hearing improvements in the overall naturalness/neutrality of the system as a whole.



        Specifications: Capacitor foil: Pure aluminium • Dielectric: Polypropylene • Voltage rating:100 VDC / 65 VAC • Capacitance tolerance: +/- 3% (on nominal value) • Temperature range: - 30C to + 85C • Extremely low ESR and SEL data • Non inductive construction • Terminal leads: Pure PCOCC grade copper • Dissipation factor: .0001 • Signal direction: None (non-polarised capacitor) • Very low ESR, SEL, inductance and dielectric absorption data • Leadout dimensions: 1mm (diameter) x 55mm (length).

        Show more

        Specifications

        Article number
        001-7040
        EAN
        8785256840762
        Capacitance (µF)
        4.7 µF
        Voltage Rating
        100 V
        Tolerance
        3%
        Dimensions: Ø * L (mm)
        24 x 94
        Termination Style
        Axial

        Show more
