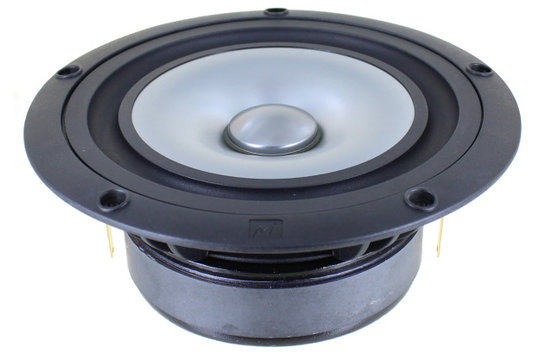

        Alpair-11MS Grey 6,5" Full Range  Woofer

        Markaudio Alpair-11MS Grey 6,5" Full Range Woofer

        €104,95

        6 In stock

        Markaudio Alpair-11MS Grey 6,5" Full Range Woofer

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Markaudio
        € 86,74€ 104,95 6 In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Markaudio Alpair-11MS Grey Full-range Woofer

        The advanced design Alpair 11MS (mono suspension) is a radical departure from previous models. The 11MS is completely new, utilising many new design components and manufacturing processes. The two main features are the patent-pending Negative Camber Cone and Mono suspension system. Other key features include a custom designed, gas-flowed glass-fibre chassis and dedicated ultra light voice coil.



        Highlights

        • Latest model.
        • The run-in time for the 11MS is significantly reduced compared to previous models. Ten hours of light music at moderate volumes is sufficient for the suspension to reach its optimal operating pattern.
        • An Arrestor (as deployed in previous Alpair models) provides an audible warning of accidental excess excursion.
        • The low-mass coil has a vented former and the motor employs custom made copper plating to reduce distortion.
        • The MS11 is a bass capable audio driver with comparable performance to light-medium load traditional mid-bass units.



        Product details

        Markaudio Alpair-11MS Grey 6,5" Full Range Woofer



        After releasing the Pluvia range of drivers, which have been well received, Mark set about the next design evolution. As some of you will know Mark’s design ethos is mechanical efficiency, adding lightness and simplifying where possible. In these new drivers Mark has managed to achieve much more with much less.



        The advanced design Alpair 11MS (mono suspension) is a radical departure from previous models. The 11MS is completely new, utilising many new design components and manufacturing processes. The two main features are the patent-pending Negative Camber Cone and Mono suspension system. Other key features include a custom designed, gas-flowed glass-fibre chassis and dedicated ultra light voice coil.

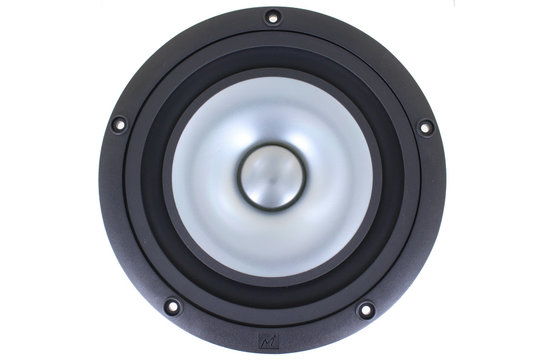

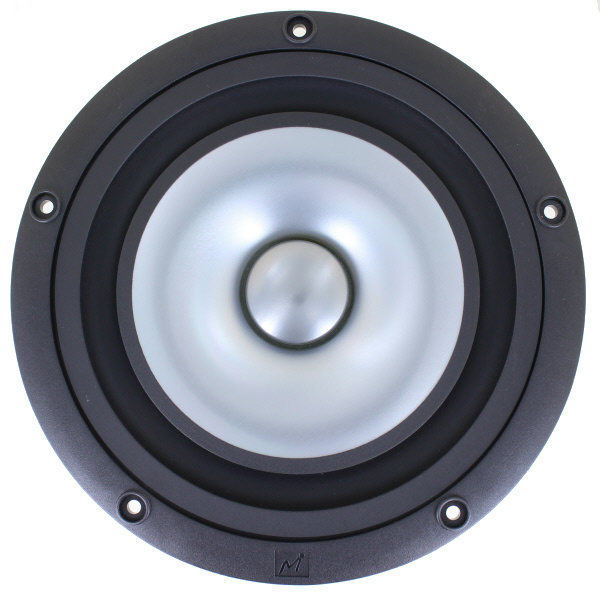

        The 11MS cone is an ultra shallow design affording a wide dispersion pattern. The outer section of the cone profile is angled backwards creating a +180 degrees emittance pattern to help optimise stereo imaging. Vocals from quality sources sound more natural and detailed as the central cap and cone profile are geometrically close-aligned.



        Much technical research has been done to balance the driver’s powertrain (cone, cap, coil and suspension) between its axis of travel and the corresponding centre of gravity. The new negative-camber cone facilitates the repositioning of the coil to avoid the need for a traditional rear suspension (spider). This new mono suspension design frees the coil from having a restrictive spider bonded to it, improving the transfer of energy from the driver’s motor to its cone. The new suspension employs an all new custom mix of four synthetic materials, resulting in improved linearity under low frequency loads.

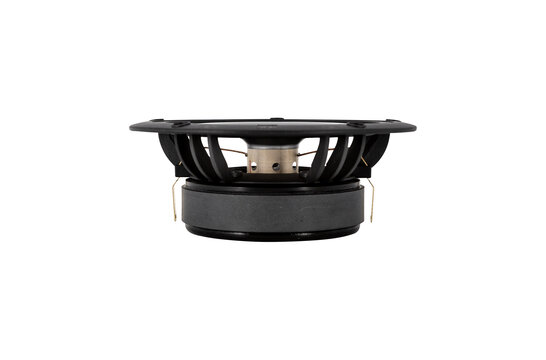

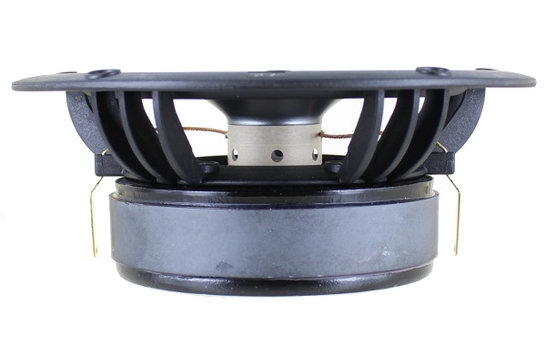

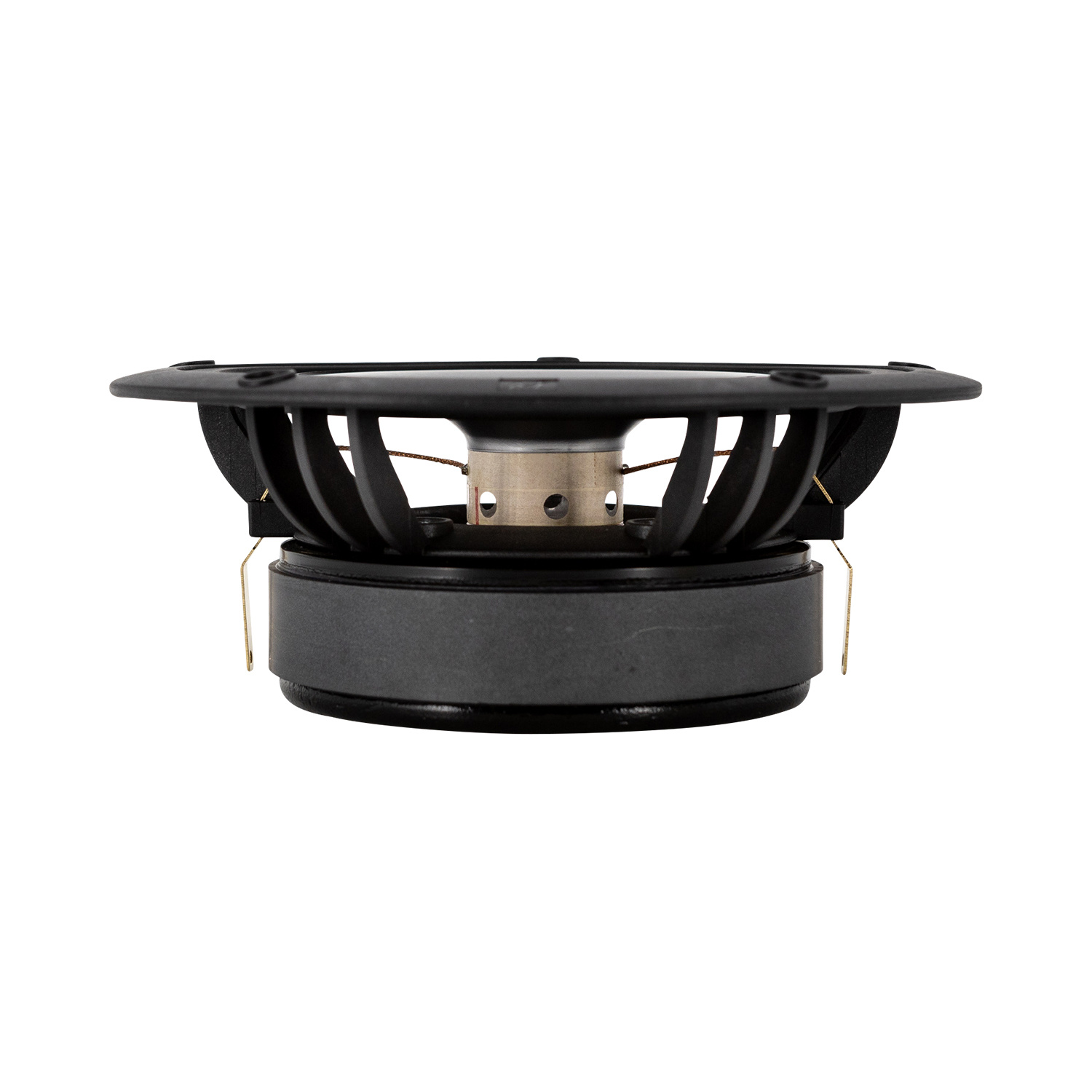

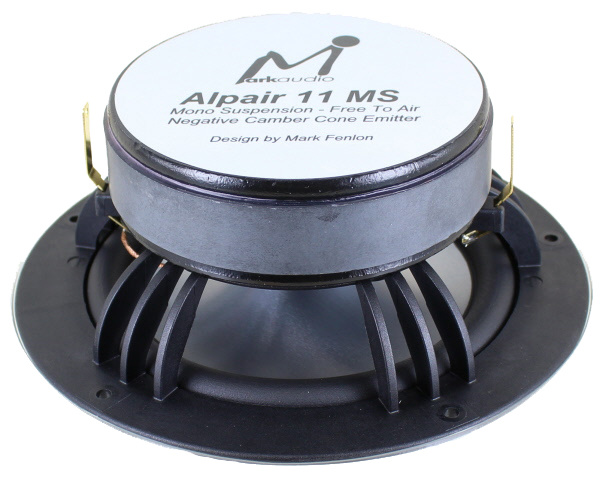

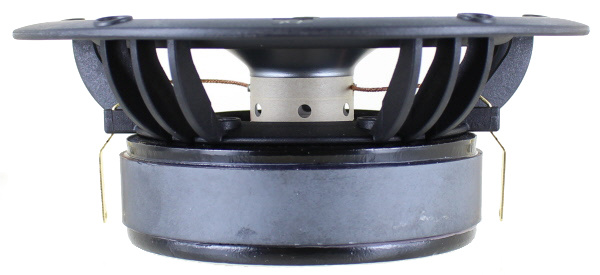

        The 11MS all new chassis is optimised to enhance airflow. The various slopes and rounded angles help improve sound wave emittance. Custom extended terminals are provided for push-on connectors or light-soldering for cables up to 1.5mm diameter.



        The 11MS is an audio driver designed for the dedicated music lover and High-Fidelity enthusiast. Attention to design detail along with an close tolerance manufacturing standard to +/- 0.05mm on most component alignments make this new generation of Markaudio transducers stand out from the crowd.

        Show more

        Specifications

        Article number
        Alpair-11MS Grey
        EAN
        0691046947574
        Woofer Series
        Markaudio Alpair series
        Woofer Type
        Full-range
        Nominal Diameter
        5"
        Power Handling (max)
        35 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88.1 dB
        Frequency Response
        40 to 22,000 Hz
        DC Resistance (Re)
        7.2 ohms
        Resonant Frequency (Fs)
        44 Hz
        Mechanical Q (Qms)
        2.22
        Electromagnetic Q (Qes)
        0.41
        Total Q (Qts)
        0.34
        Diaphragm Mass Inc. Airload (Mms)
        12 g
        Mechanical Compliance of Suspension (Cms)
        1.008 mm/N
        Surface Area of Cone (Sd)
        111 cm²
        BL Product (BL)
        7.8 Tm
        Compliance Equivalent Volume (Vas)
        0.625 ft.³
        Maximum Linear Excursion (Xmax)
        8 mm
        Overall Outside Diameter
        6.75"
        Overall Depth
        2.60"
        Baffle Cutout Diameter
        5.67"
        # Mounting Holes
        5

        Show more

        5 of 5
        all arrived ok, drive units installed in flugel horn enclosures and working, driven from audio note valve amp. assume sound will be fantastic but not had a chance to listen properly yet as room is being decorated.
        By simon marley on 29 June 2022
        5 of 5
        De prestaties van deze kleine reus zijn bijzonder. Het hele spectrum wordt met een bijzondere helderheid en transparantie weer gegeven... Een echte aanrader die je versteld doet staan...
        By Aldo F. on 2 March 2021
