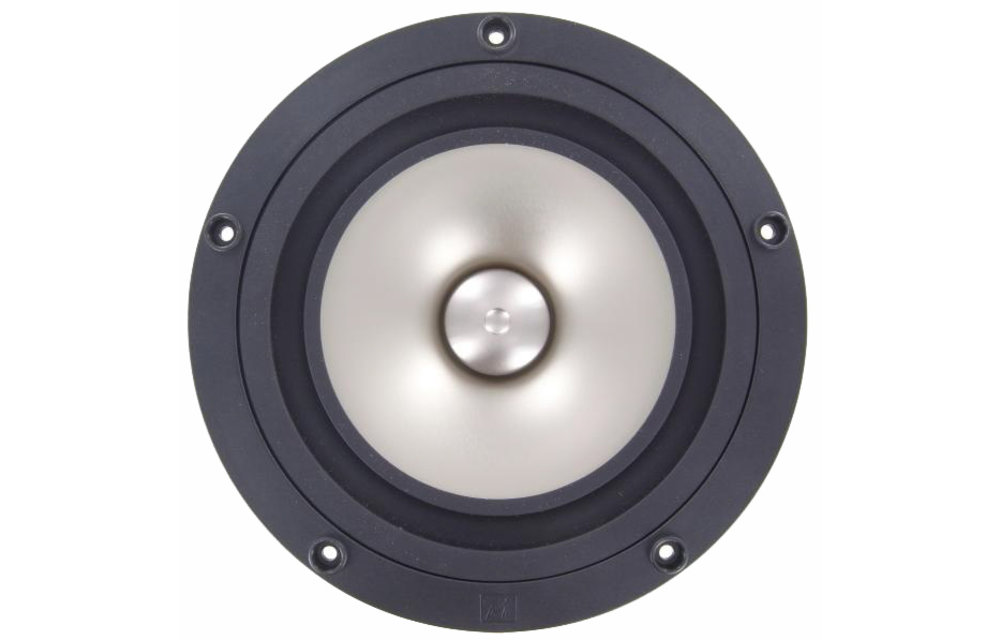

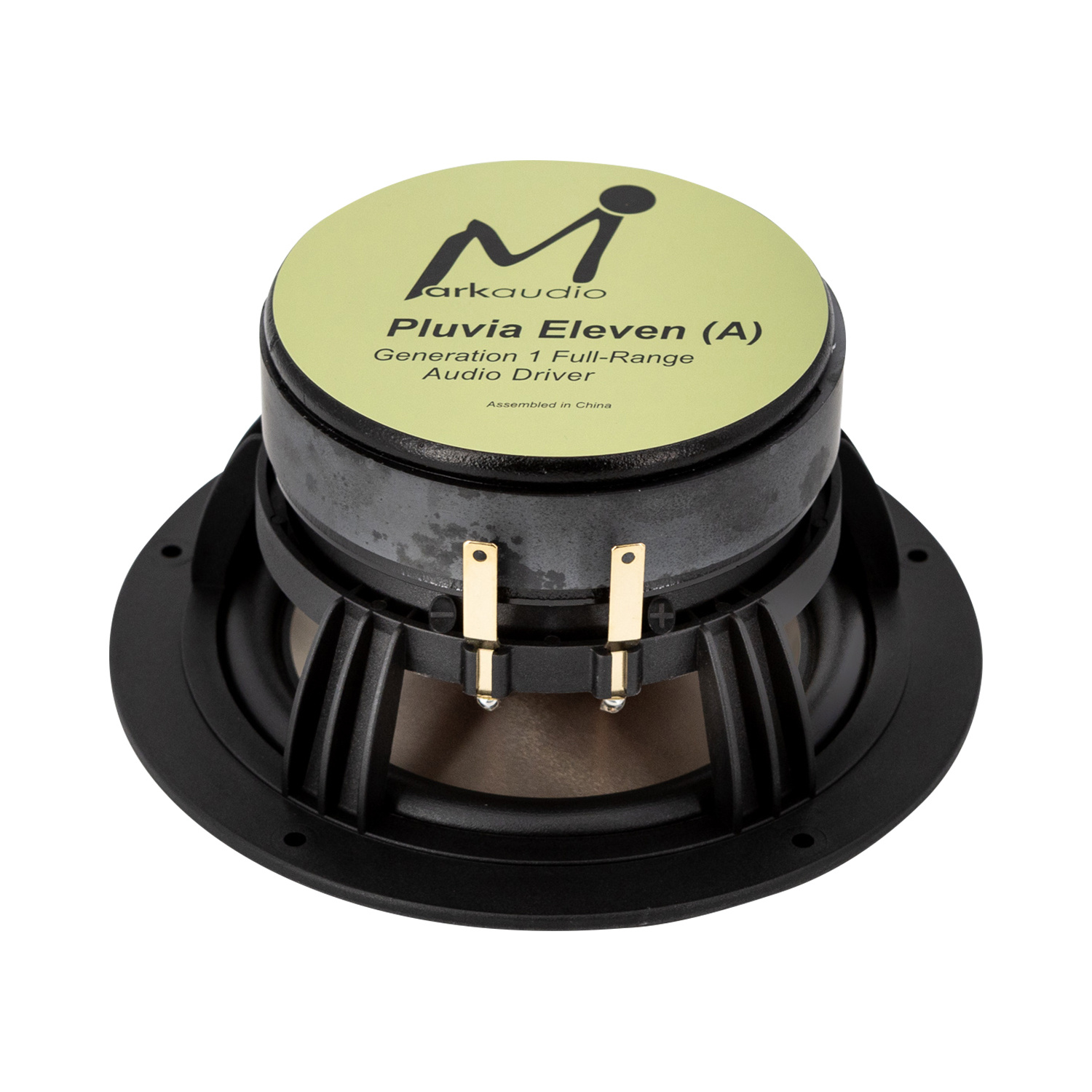

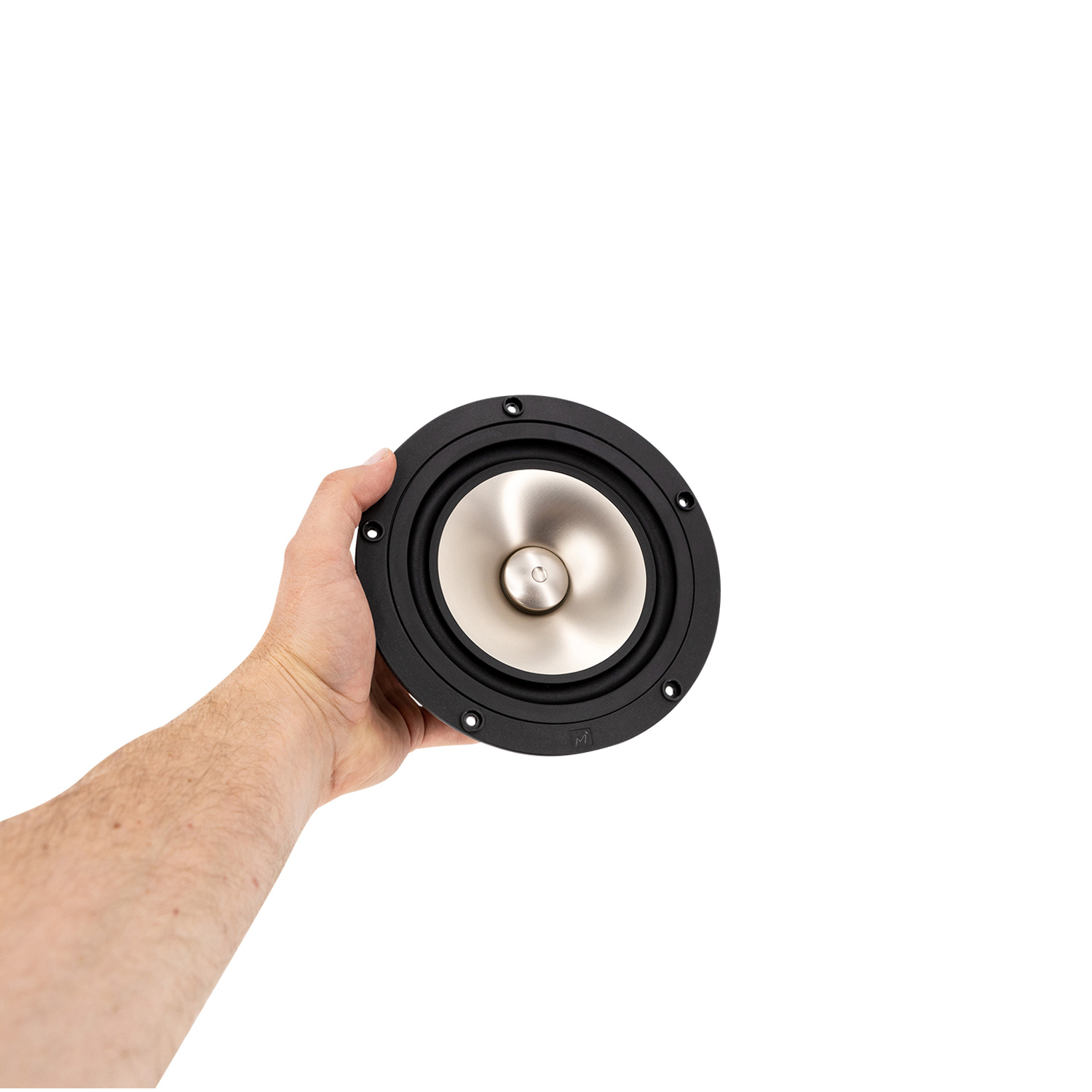

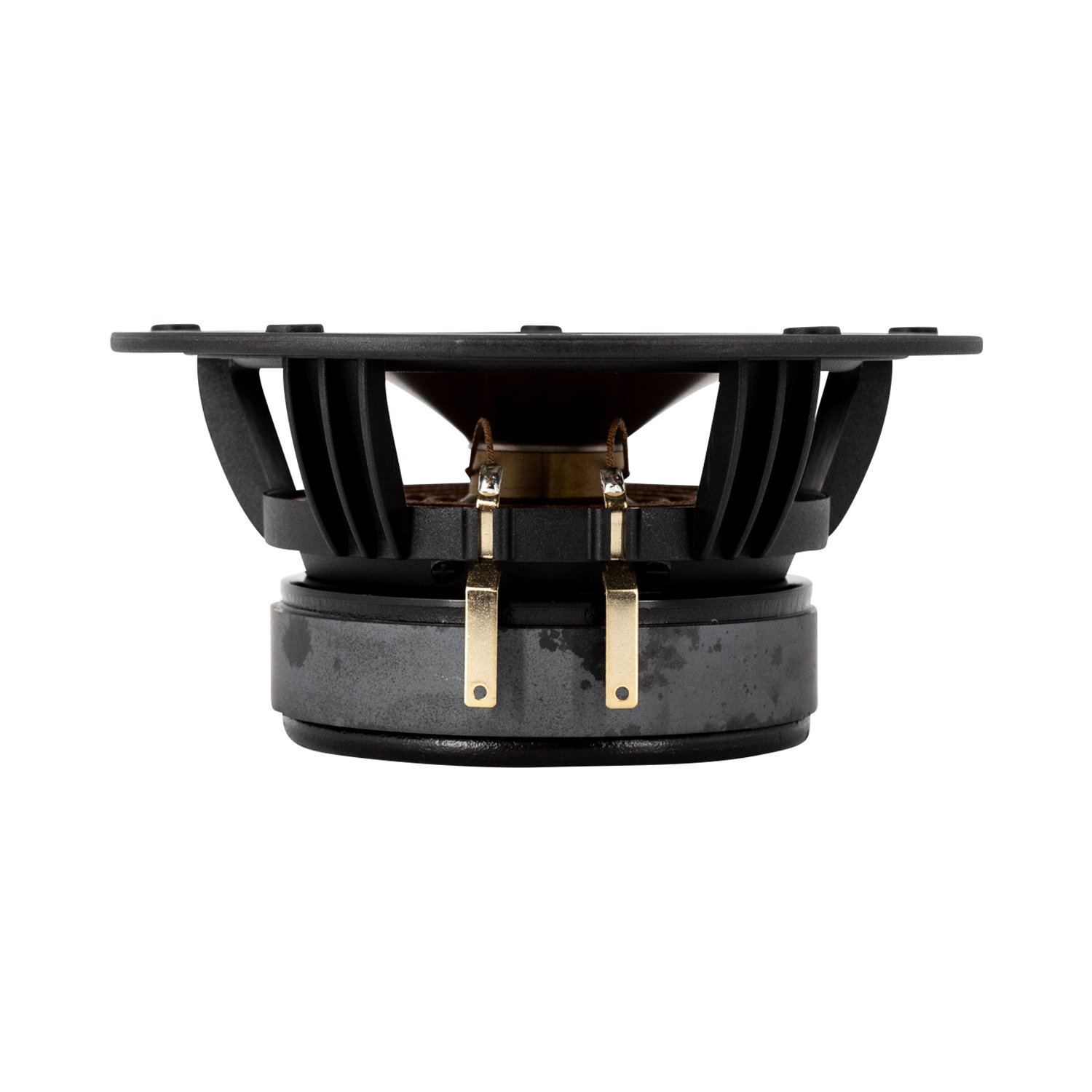

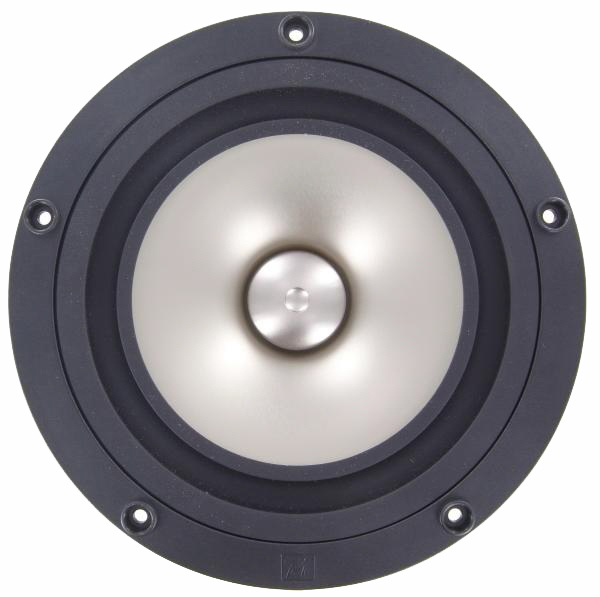

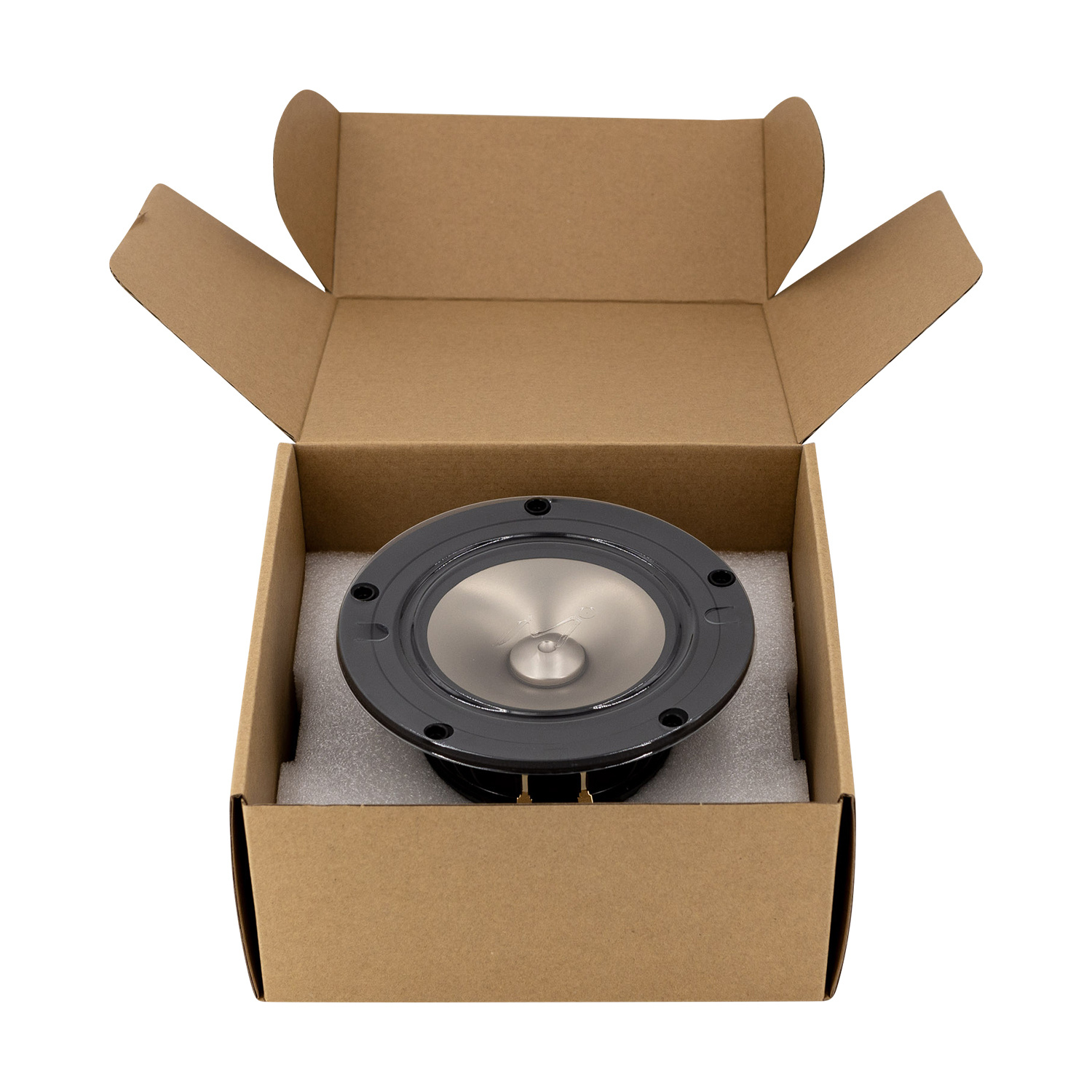

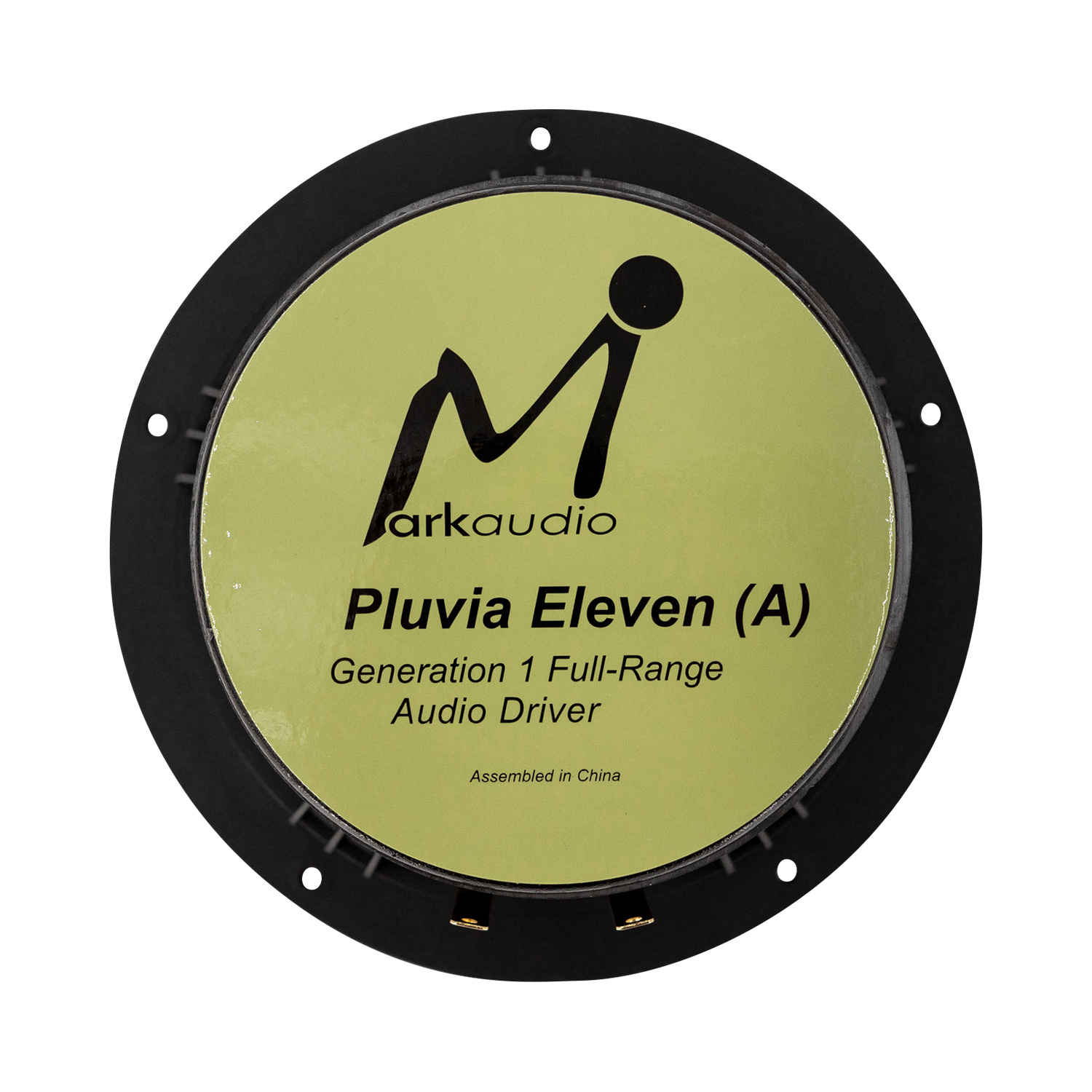

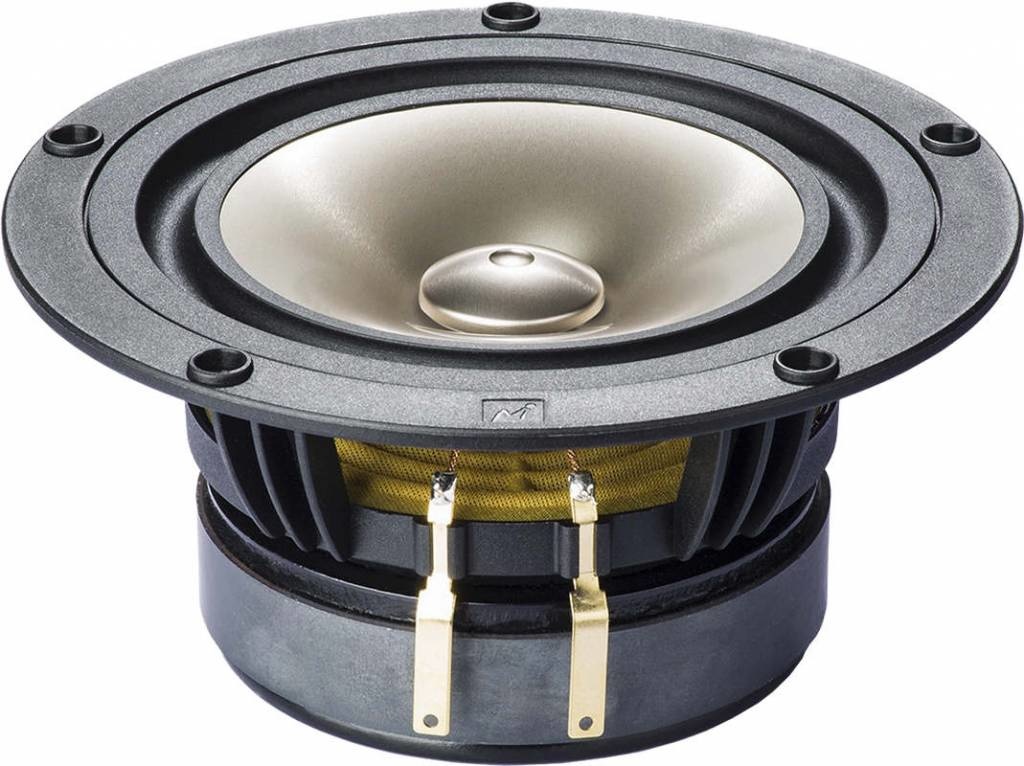

        PLUVIA-11 Grey 7" Full Range Aluminium Woofer

        Markaudio PLUVIA-11 Grey 7" Full Range Aluminium Woofer

        €99,95

        7 In stock

        Markaudio PLUVIA-11 Grey 7" Full Range Aluminium Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Markaudio
        € 82,60€ 99,95 7 In stock
        • -5% Purchase 4 for only € 94,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Markaudio PLUVIA-11 Grey Full-range Woofer

        The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



        Highlights

        • Synthetic rubber surround
        • Super-strength alloy
        • Improved bass handeling
        • Improved dust cap



        Product details

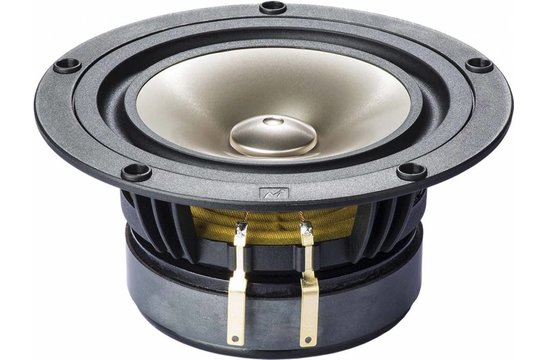

        Markaudio Pluvia-11 Grey 7” full Range Aluminium woofer



        The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



        The Pluvia 11 cone is an entirely new design from Mark Fenlon. It uses a new super-strength aerospace grade alloy designed to cope with high bending stress loads. The material thickness is increased by 50% over previous Markaudio designs, yet the profile remains shallow to increase dispersion. Two more processes have been added to the Multiform cone production sequence to increase Pluvia 11's operational low frequency load capacity.



        The all-new front suspension has a variable thickness geometry, increasing oscillatory stability by 30% over previous designs. The rear suspension (spider) has an operational surface area 25% larger than the Alpair 10 to cope with load demands of typical mid-bass units. However, the Pluvia 11’s high range has not been sacrificed. It outperforms the smaller Alpair 10 by reaching slightly higher frequencies with an improved spread on the high-range lift above 10kHz. Other design advances include the new “easy install” frame. This new-technology one-piece moulding utilises a GF30 glass fibre and resin mix. Pluvia 11’s frame is more rigid than previous designs, with a mounting depth of only 4.5mm, making both recessed and surface-mounting simple. Two new cone colours add visual interest. Along with the Pluvia 7, this new family of drivers will serve custom builders well into the future.



        For the first time in the history of traditional full-range driver design, users now have a genuine choice to go full-range without sacrificing bass handling, or use it as a wide-range mid-bass driver that allows simple filtering.



        The new Pluvia 11 is an excellent high-end and multi-purpose driver. It's also suitable for many computer, Home Theatre, TV, and commercial A/V applications.

        Show more

        Specifications

        Article number
        PLUVIA-11 Grey
        EAN
        0696277268207
        Woofer Series
        Markaudio Pluvia series
        Woofer Type
        Full-range
        Nominal Diameter
        7"
        Power Handling (RMS)
        45 Watts
        Power Handling (max)
        90 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88.1 dB
        Frequency Response
        100 to 20,000 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        5.4 ohms
        Voice Coil Inductance (Le)
        0.68 mH
        Resonant Frequency (Fs)
        39.1 Hz
        Mechanical Q (Qms)
        1.80
        Electromagnetic Q (Qes)
        0.351
        Total Q (Qts)
        0.293
        Diaphragm Mass Inc. Airload (Mms)
        11.4 g
        Surface Area of Cone (Sd)
        109,359 cm²
        BL Product (BL)
        6.56 Tm
        Compliance Equivalent Volume (Vas)
        0.848 ft.³
        Maximum Linear Excursion (Xmax)
        7 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Basket / Frame Material
        Glass-Fibre
        Magnet Material
        Ferrite
        Overall Outside Diameter
        6.77"
        Overall Depth
        3.15"
        Baffle Cutout Diameter
        5.65"
        Bolt Circle Diameter
        6.22"
        # Mounting Holes
        5
