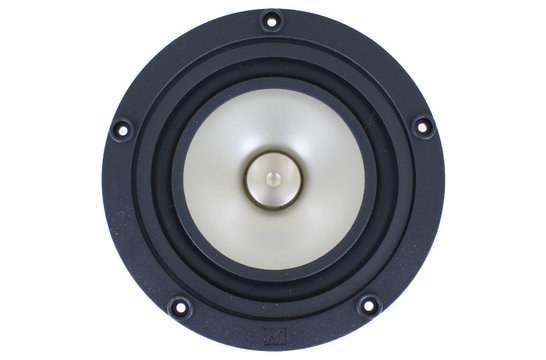

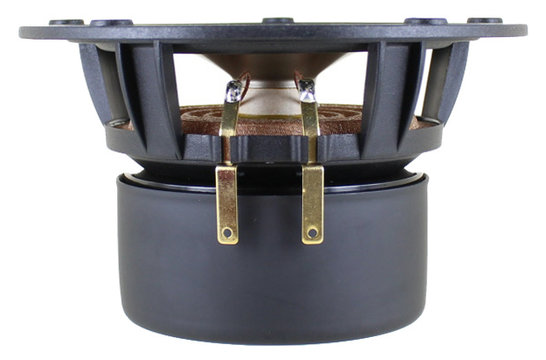

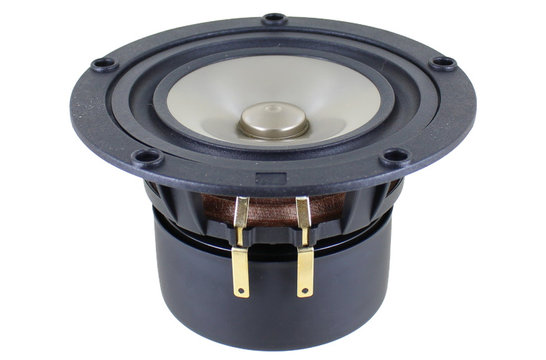

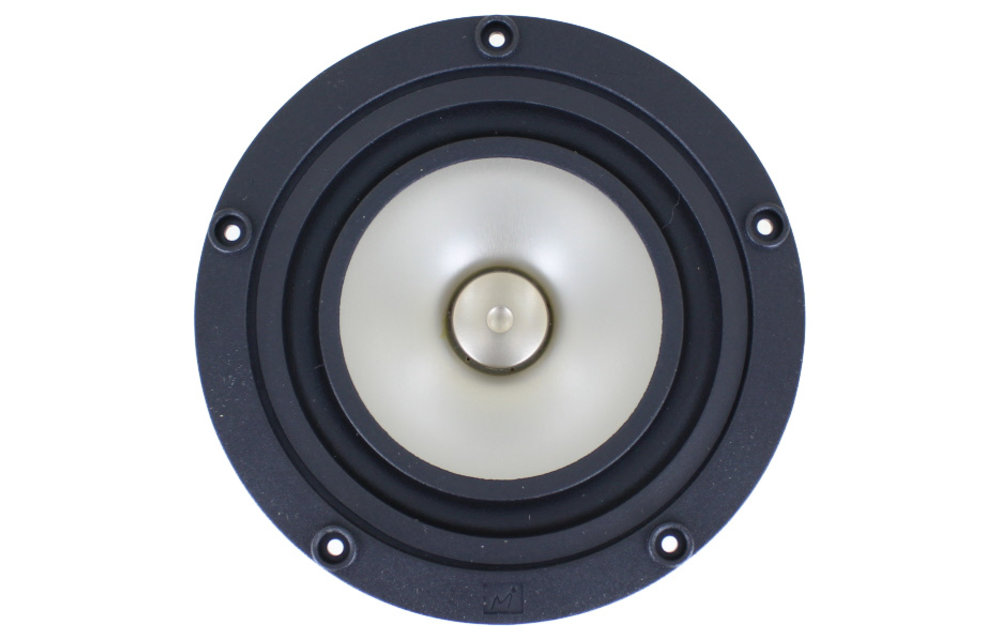

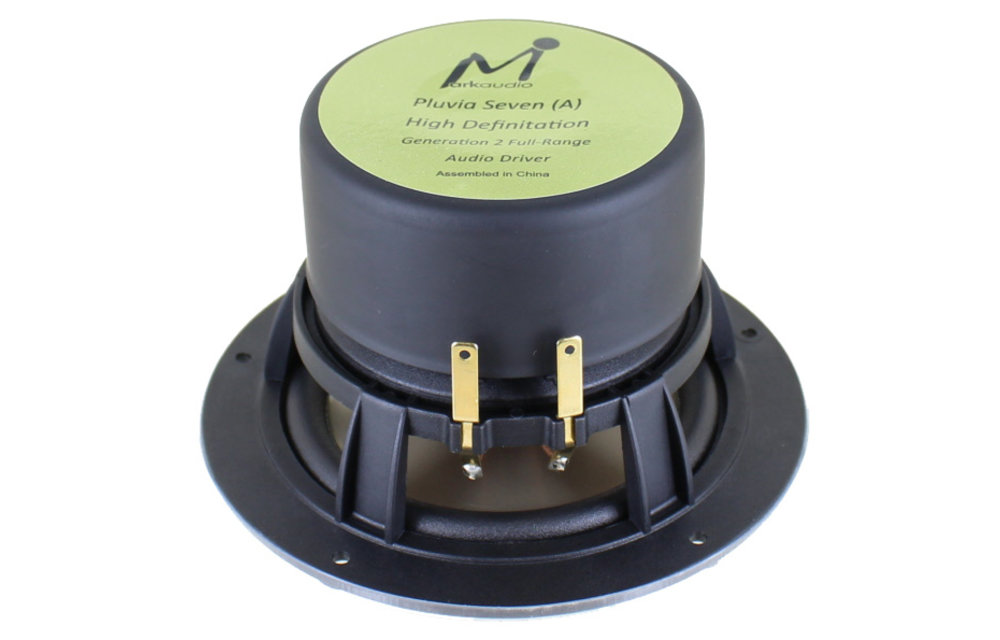

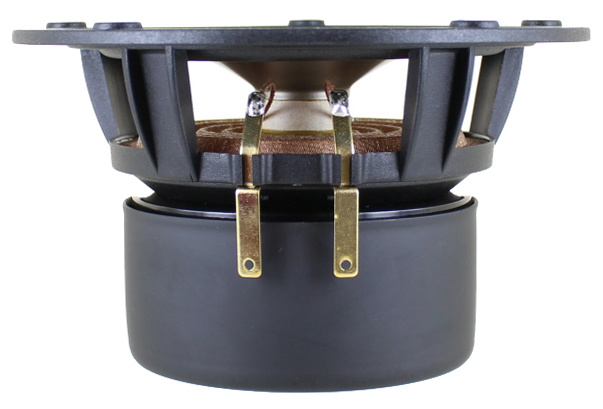

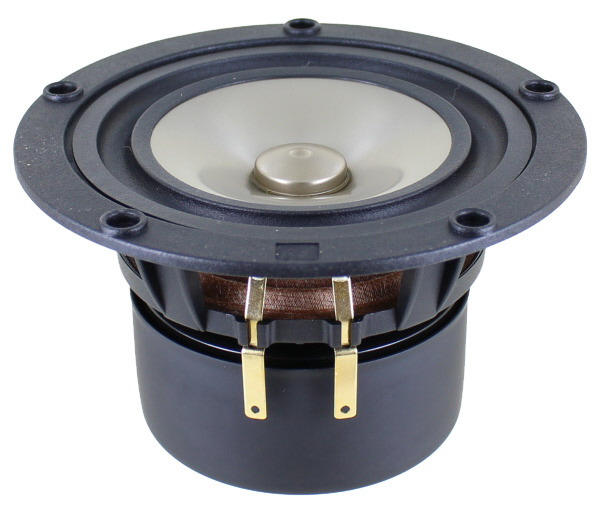

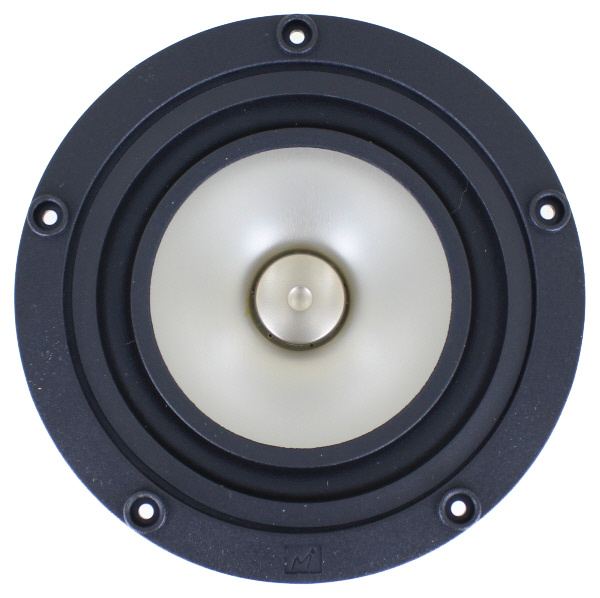

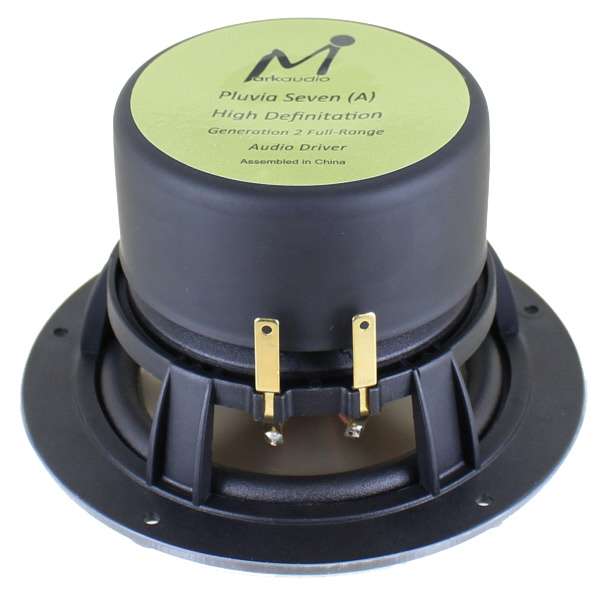

        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome

        Markaudio PLUVIA-7HD Chrome Full-range Woofer Soft Chrome

        €52,45

        10+ In stock

        Add to cart

        Markaudio PLUVIA-7HD Chrome Full-range Woofer Soft Chrome

        2 reviews
        5 from 5
        2 reviews
        5 stars
        50%
        4 stars
        50%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Markaudio
        Show all Full-range woofer
        4" | 8 Ω
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        € 43,35€ 52,45 10+ In stock
        • -5% Purchase 4 for only € 49,83 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome
        PLUVIA-7HD Chrome Full-range Woofer Soft Chrome

        Product description Markaudio PLUVIA-7HD Chrome Full-range Woofer

        The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components, and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame.



        Highlights

        • Vintage Gold 4’’ magnesium alloy cone
        • Operating range to 30KHz - very linear response
        • Very shallow multiform cone profile – very broad directivity pattern
        • Advanced low-distortion motor design
        • Long-stroke suspension with arrestor and progressive-rate spider
        • Low-profile surface-mount reinforced polymer basket



        Product details

        Markaudio Pluvia 7 HD Chrome Full-range Woofer



        The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame. With a mounting depth of less than 4mm, the Pluvia may be surface or flush-mounted, and the design of the mounting legs is very open, allowing good airflow to the rear.



        The low-mass coil, suspension, and shallow-profile cone are highly efficient. Frequency response extends beyond 30KHz, and the generous 4mm (1-way) Xmax and conveniently balanced T/S parameters allow 40Hz bass output in suitable enclosure designs. The sound character is neutral and highly detailed, with excellent off-axis performance. It is an extremely flexible drive unit for music, small HT and commercial AV applications, and offers exceptional performance at an affordable price point.

        Show more

        Specifications

        Article number
        PLUVIA-7HD Chrome
        EAN
        0691046947758
        Woofer Series
        Markaudio Pluvia series
        Woofer Type
        Full-Range Woofer
        Nominal Diameter
        4''
        Power Handling (RMS)
        20 Watts
        Impedance (Z)
        8 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.74 dB
        Frequency Response
        20 - 40,000 Hz
        DC Resistance (Re)
        5.4000 Ohms
        Voice Coil Inductance (Le)
        0.1652 mH
        Resonant Frequency (Fs)
        72.5 Hz
        Mechanical Q (Qms)
        3.1446
        Electromagnetic Q (Qes)
        0.7173
        Total Q (Qts)
        0.584
        Diaphragm Mass Inc. Airload (Mms)
        3.8390 g
        Moving Mass Of Diaphragm (Mmd)
        3.6373 g
        Mechanical Compliance of Suspension (Cms)
        1.2536 mm/N
        Surface Area of Cone (Sd)
        0.0050 m2
        BL Product (BL)
        3.6297
        Compliance Equivalent Volume (Vas)
        4.4227 L
        Maximum Linear Excursion (Xmax)
        4 mm
        Cone / Diaphragm Material
        Magnesium alloy
        Surround Material
        Rubber
        Basket / Frame Material
        Polymer
        Magnet Material
        Ferrite
        Overall Outside Diameter
        122.3 mm
        Overall Depth
        71.5 mm
        Baffle Cutout Diameter
        100 mm
        Bolt Circle Diameter
        112 mm
        # Mounting Holes
        5
        Mounting Hole Diameter
        5 - 3.1 mm

        Show more

        Reviews

        2 reviews
        Review this product
        4 of 5
        Gut.
        By Alfredo A. on 4 July 2020
        5 of 5
        Wie alle Markaudio-Treiber sind auch diese Breitbänder excellent und fast auf gleichem Niveau wie die Alpairs, welche geringsfügig feiner/sauberer auflösen. Die Unterschiede sind aber wirklich nur marginal...wer also etwas Geld sparen möchte, liegt hier genau richtig !
        By Kai L. on 27 January 2020
