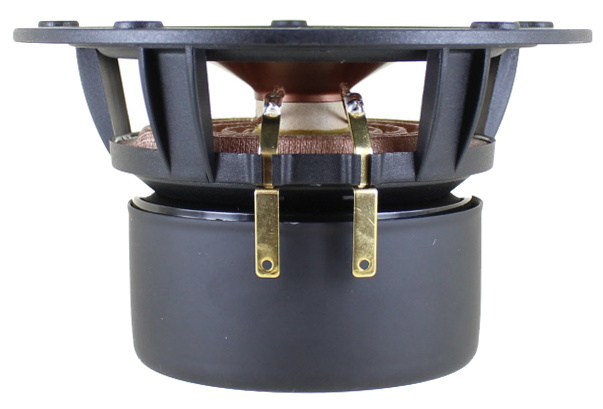

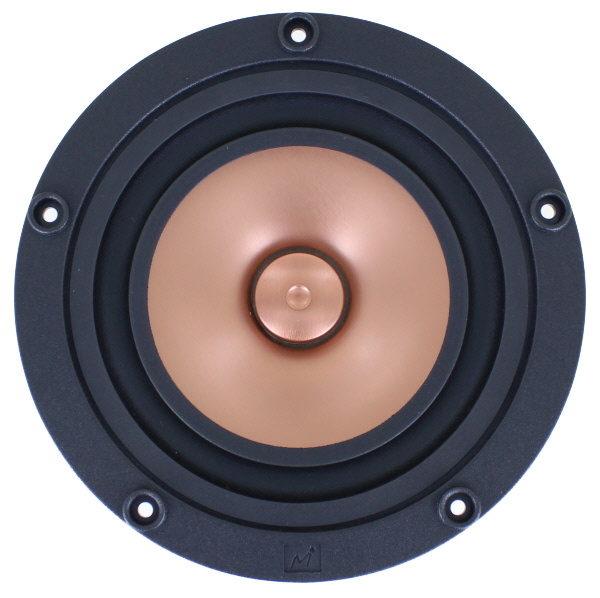

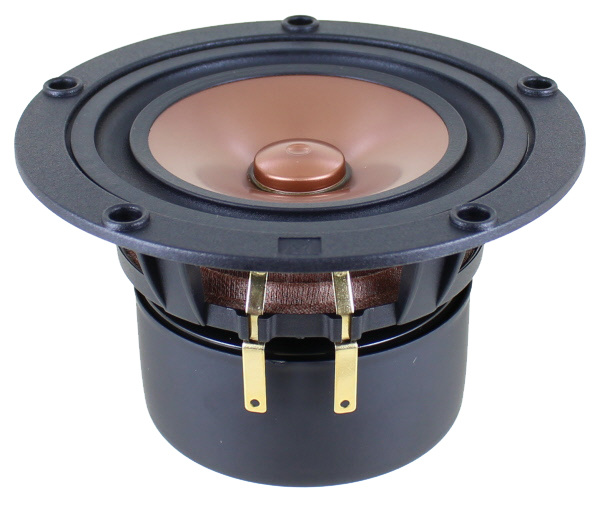

Markaudio PLUVIA-7HD Gold Full-range Woofer

€52,45

10+ In stock

Add to cart

Markaudio PLUVIA-7HD Gold Full-range Woofer

9 reviews

Brand: Markaudio

Show all Full-range woofer

4" | 8 Ω

€ 52,⁴⁵ 10+ In stock

We ship to United States of America
Ordered now, shipped today
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Markaudio PLUVIA-7HD Gold Full-range Woofer

The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components, and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame.

Highlights

Vintage Gold 4’’ magnesium alloy cone
Operating range to 30KHz - very linear response
Very shallow multiform cone profile – very broad directivity pattern
Advanced low-distortion motor design
Long-stroke suspension with arrestor and progressive-rate spider
Low-profile surface-mount reinforced polymer basket

Product details

Markaudio PLUVIA-7HD Gold Full-range Woofer

The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame. With a mounting depth of less than 4mm, the Pluvia may be surface or flush-mounted, and the design of the mounting legs is very open, allowing good airflow to the rear.

The low-mass coil, suspension, and shallow-profile cone are highly efficient. Frequency response extends beyond 30KHz, and the generous 4mm (1-way) Xmax and conveniently balanced T/S parameters allow 40Hz bass output in suitable enclosure designs. The sound character is neutral and highly detailed, with excellent off-axis performance. It is an extremely flexible drive unit for music, small HT and commercial AV applications, and offers exceptional performance at an affordable price point.

Specifications

Article number: PLUVIA-7HD Gold
EAN: 0691046947741
Woofer Series: Markaudio Pluvia series
Woofer Type: Full-Range Woofer
Nominal Diameter: 4''
Power Handling (RMS): 20 Watts
Impedance (Z): 8 Ohms
Sensitivity (SPL at 1m / 2.83V): 85.74 dB
Frequency Response: 20 - 40,000 Hz
DC Resistance (Re): 5.4000 Ohms
Voice Coil Inductance (Le): 0.1652 mH
Resonant Frequency (Fs): 72.5 Hz
Mechanical Q (Qms): 3.1446
Electromagnetic Q (Qes): 0.7173
Total Q (Qts): 0.584
Diaphragm Mass Inc. Airload (Mms): 3.8390 g
Moving Mass Of Diaphragm (Mmd): 3.6373 g
Mechanical Compliance of Suspension (Cms): 1.2536 mm/N
Surface Area of Cone (Sd): 0.0050 m2
BL Product (BL): 3.6297
Compliance Equivalent Volume (Vas): 4.4227 L
Maximum Linear Excursion (Xmax): 4 mm
Cone / Diaphragm Material: Magnesium alloy
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Ferrite
Overall Outside Diameter: 122.3 mm
Overall Depth: 71.5 mm
Baffle Cutout Diameter: 100 mm
Bolt Circle Diameter: 112 mm
# Mounting Holes: 5
Mounting Hole Diameter: 5 - 3.1 mm

Reviews

9 reviews

Review this product

5 of 5

By Piotr on 7 January 2025

5 of 5

Will build low cost streaming music system with excellent sound. Will combine Fosi MC101 with the PLUVIA. Because of fullrange no need for crossover and my calculations of "bassreflexbox" shows F3 will be around 50Hz. I.e. a really good combo!!!

By Tord on 25 October 2024

5 of 5

By Winfried on 12 March 2024

5 of 5

By Kjell on 9 February 2024

5 of 5

Got these for nearfield desktop speakers and I'm more than pleased. They sound very balanced and require only small amount of EQ to sound close to perfect for my ears. They don't require a separate tweeter for the high end and with right enclosure they get down to 40hz.

By Lauri on 11 January 2024

5 of 5

By Andrew on 19 June 2023

5 of 5

Compared to the Alpair 7 there is no or little difference in frequency extension, the bass is lighter but I wait for 100 hours burn in + Same enclosure with Alpair 7 so that you can make easy comparison ...

By Alessandro on 15 March 2022

5 of 5

Sehr gutetr Klang. Preis und Leistung top. Sehr schnelle Lieferung.

By Christian S. on 14 February 2021

5 of 5

Safe sound delivery

By Per L. on 3 January 2021
