        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio

        miniDSP C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio

        €699,95

        1 In stock4 expected on 17-01-2025

        Add to cart

        miniDSP C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: miniDSP
        Show all DSP modules
        car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        € 578,47€ 699,95 1 In stock4 expected on 17-01-2025
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio
        C-DSP 8x12 V2.0 Boxed Digital Audio Processor for Mobile/Car audio

        Product description miniDSP C-DSP 8x12 Boxed DSP module

        Premium Digital Audio Processor for Mobile/Car audio installations, 32bit floating point SHARC ADSP21489 @ 400MHz, 8x12 I/O, Remote for Preset/Master & Sub volume control.



        Highlights

        • 400MHz 32bit Sharc Floating point processor, Up to 192kHz processing
        • Digital and analog inputs (Low/High levels), 12 analog outputs
        • Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
        • Windows/Mac compatible GUI
        • Remote control or preset/master & sub volume control
        • V2.0



        Product details

        miniDSP C-DSP 8x12 V2.0 Digital Signal Processor for Mobile/Car audio

        Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

        The C-DSP 8x12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8x12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems.



        The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.



        Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.



        Documents



        What's in the box?

        • 1 x C-DSP 8x12 V2.0 DSP processor
        • 1 x USB cable
        • 1 x remote unit
        • 1 x 5m long remote cable
        • 1 x Coupon code for miniDSP plugin download.

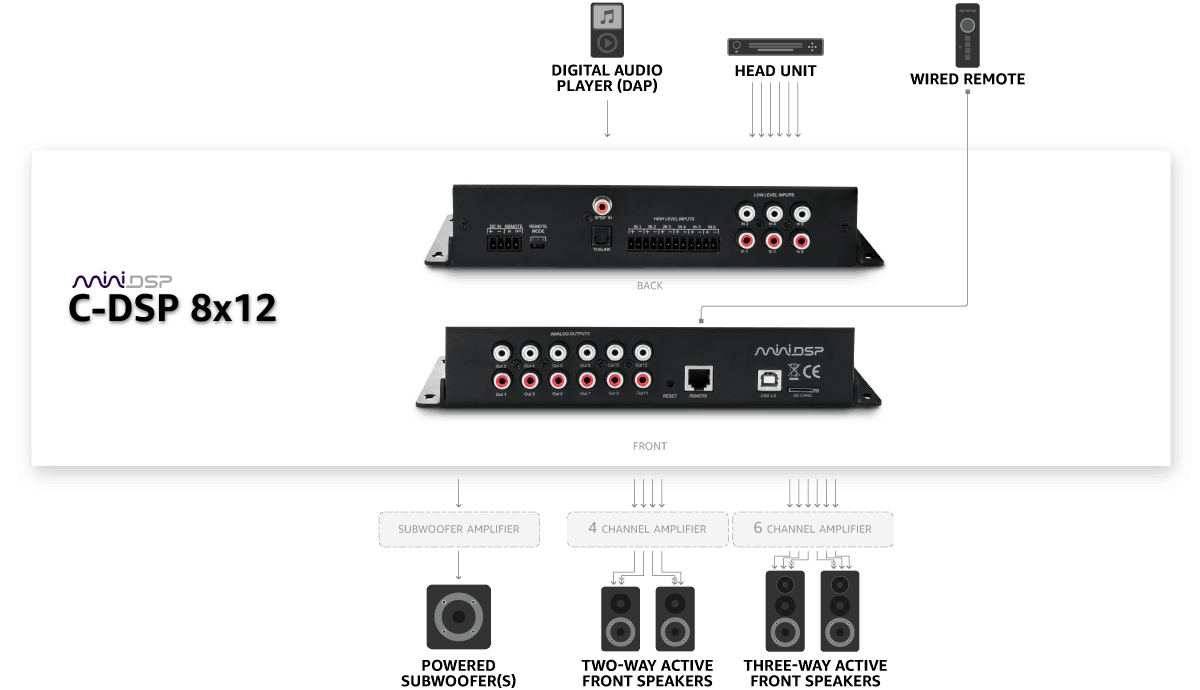

        Typical Application

          width=



        Mechanical Specifications

          width=

        Show more

        Specifications

        Article number
        C-DSP 8x12 Boxed
        EAN
        0642125617086
        Device type
        Boxed
        Device serie
        Car Audio DSP
        DSP chip
        Analog Devices ADSP21489
        Processing resolution & sample rate
        32 bit / 192 kHz
        Input / ouput configuration
        8 / 12
        Audio input connectivity
        High level (terminal block), low level (RCA), Toslink, SPDIF (RCA)
        Audio output connectivity
        RCA
        Max input level
        8 / 12 Vrms (high level)
        2 /4 Vrms (low level)
        Max output level
        6 Vrms
        Input impedance
        68 ohms (high level / 10k ohms (low level)
        Output impedance
        560 ohms
        Calibration software
        miniDSP C-DSP 8x12 plug-ins
        IIR
        FIR
        Dirac Live®
        -
        DSP presets
        4
        Impulse response correction
        Infrared remote learning
        Windows / Mac compatible
        /
        UMIK-1 included
        No
        Room EQ wizard support
        Dimensions
        205 x 122 x 41 mm
        Power
        Isolated DC-DC conversion for 12V Car Audio environment
