        DDRC-24 USB DAC Digital Signal Processor

        miniDSP DDRC-24 USB DAC Digital Signal Processor

        €469,95

        10+ In stock

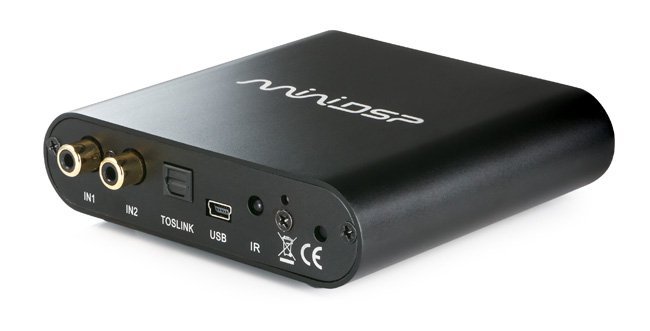

        miniDSP DDRC-24 USB DAC Digital Signal Processor

        18 reviews
        5 from 5
        18 reviews
        5 stars
        83%
        4 stars
        17%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: miniDSP
        € 388,39€ 469,95 10+ In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description miniDSP DDRC-24 DSP module

        Introducing the world’s smallest Dirac Live® hardware processor: the miniDSP DDRC-24 DSP.


        Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 HD, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing.


        The miniDSP DDRC-24 digital audio processor will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed.



        Highlights DDRC-24

        • ADSP21489 400MHz SHARC DSP floating point engine
        • XMOS Xcore200 for USB control and bidirectional audio streaming
        • 24 bit ADC/DAC resolution
        • Dirac Live 3.x for miniDSP with 4 presets, fully configurable target curve
        • Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
        • Toslink digital input
        • Unbalanced outputs: Max 2Vrms
        • USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx
        • 4 preset configuration, recallable via IR, Software
        • Wi-Fi/Alexa voice control via WI-DG accessory



        Product details DDRC-24

        MiniDSP DDRC-24 Digital Signal Processor



        400Mhz SHARC-processor: higher precision, dynamic range

        The onboard 400 MHz Analog Devices SHARC processor enables substantial processing upgrades previously available only on more expensive platforms. One example is 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software. The SHARC processor can perform fixed-point as well as floating-point calculations. This makes the miniDSP DDRC-24 perfect for for a wide range of applications.



        Next level I/O capabilities

        With the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input, the miniDSP DDRC-24 will find application in many ways. Full-sized hifi and home theater systems, on desktops, in cars, in recording studios — anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.



        What’s included with this product?

        • DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin
        • 12V power supply with UK/EU/US/AU plugs
        • shielded USB cable

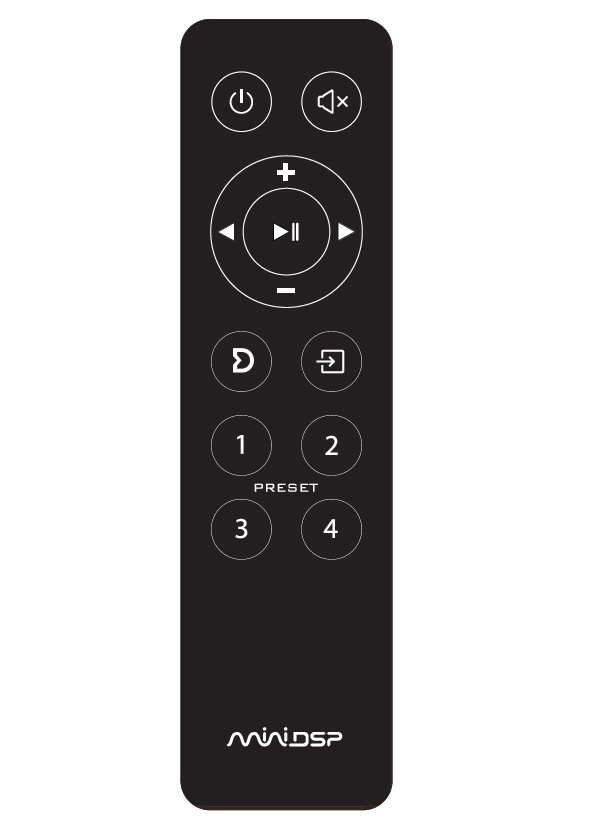

        • IR remote
        • Coupon code for miniDSP plugin



        Frequently Asked Questions

        Can I transfer my Dirac Live license from one product to another (E.g. DDRC-24 to Flex)?

        Unfortunately it's not possible as per T&C of Dirac Research to transfer a license from one product to another as the licensing works on a per product basis. The license is tied to the hardware it was activated for. For this reason, you will need to purchase a unique license for each product.



        Is it true the DDRC-24 process audio at 48 kHz?

        Yes. Sample rates higher than 48 kHz will be down-converted at the input to the DDRC-24, but many customers report that the gains from Dirac Live far outweigh any potential loss due to the sample rate. If you need a higher internal sample rate, please see our higher-end SHD Series processors.

        Show more

        Specifications

        Article number
        DDRC-24
        EAN
        0691046947376
        Device type
        Boxed
        Device serie
        Dirac Live Series
        DSP chip
        Analog Devices ADSP21489
        Processing resolution & sample rate
        32 bit / 48 kHz
        Input / ouput configuration
        2 / 4

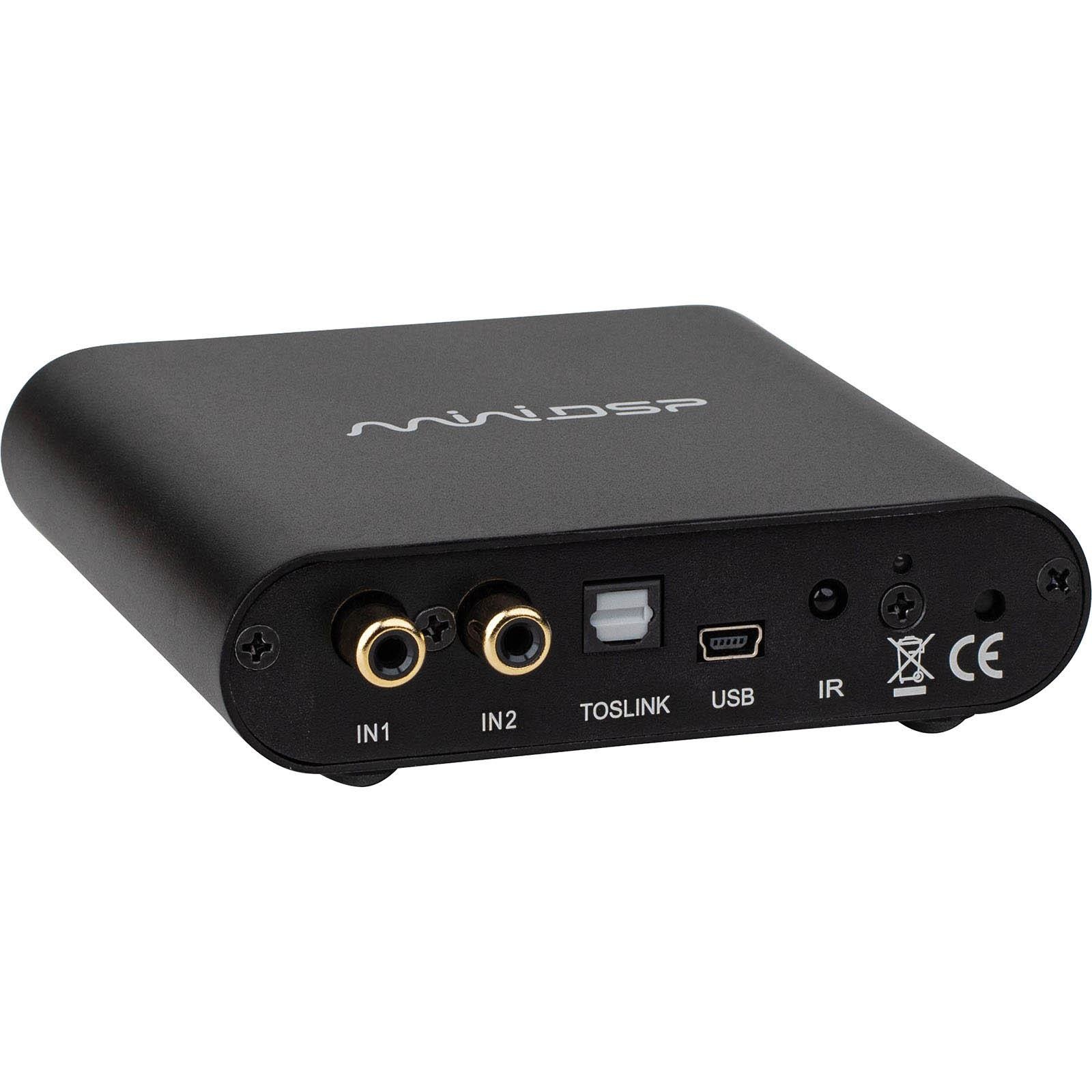

        Audio input connectivity
        RCA, Stereo USB, Stereo TOSLINK (optical)

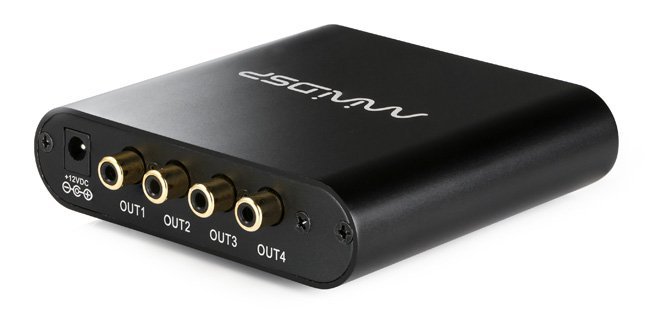

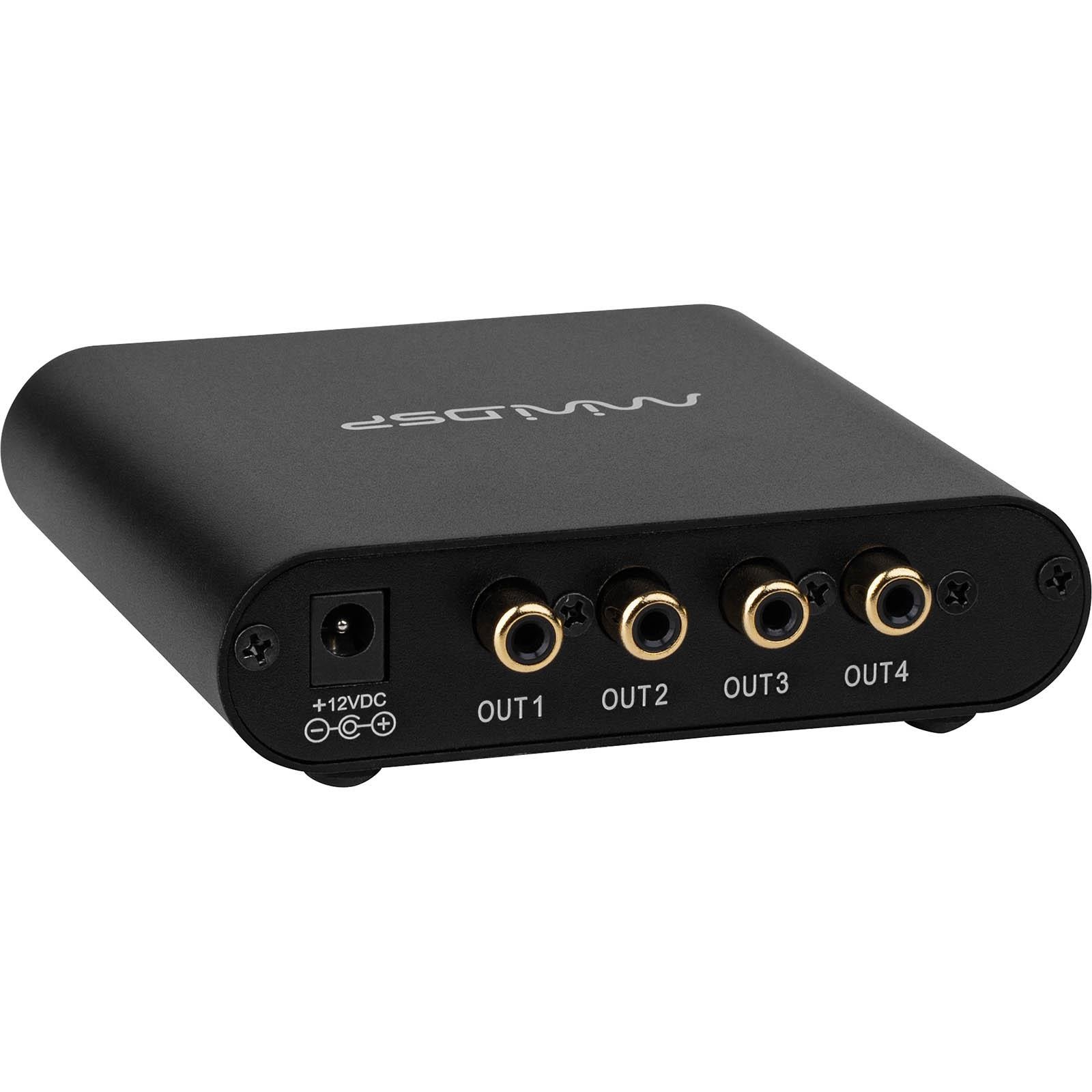

        Audio output connectivity
        RCA
        Max input level
        2 / 4 Vrms (selectable)
        Max output level
        2 Vrms
        Input impedance
        10 kOhm
        Output impedance
        560 Ohm
        Calibration software
        DDRC-24 plugin
        IIR
        FIR
        Dirac Live®
        1.0 + 2.0
        DSP presets
        4
        Impulse response correction
        -
        Infrared remote learning
        Windows / Mac compatible
        /
        UMIK-1 included
        No
        Room EQ wizard support

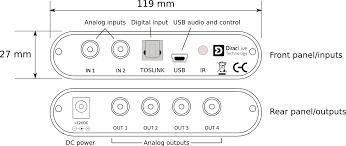

        Dimensions
        119 x 107 x 27 mm
        Power
        12 VDC

        Show more

        4 of 5
        Problemlos
        By GÜNTER on 11 October 2024
        5 of 5
        I bought this version of the minidsp in combination with a UMIK-2. I had no experience with room correction DSP's before. It was very easy to use only tip can give is make sure you have a tripod for the mic. The one included is very small and maybe only usefull for the "lower" part of the measurements. The couple that should be measured above head level is hard to do without tripod. The first measurement I put the volume up to about 75 db on th...

        Show more

        By Wesley Schuurman on 5 October 2024
        Show more
