        Product description miniDSP UMIK-X-2 Multichannel microphone array

        USB Multichannel microphone array, Up to 8ch audio recording, A2B wiring allows daisy-chaining of multiple arrays, REW integration for multichannel-analysis



        Highlights

        • Multichannel - Multipoint Microphone measurement system
        • Up to 2xUMA4 MEMS microphone arrays can be daisy-chained
        • Low Distortion, High AOP, High SNR Knowles MEMS (SPH0655LM4H-1)
        • 24bit 44.1/48kHz recording, ASIO drivers
        • USB to A2B® module for multichannel audio streaming over long cables (up to 40m)
        • REW license for Multichannel measurement



        Product Details

        miniDSP UMIK-X-2 USB Multichannel microphone array

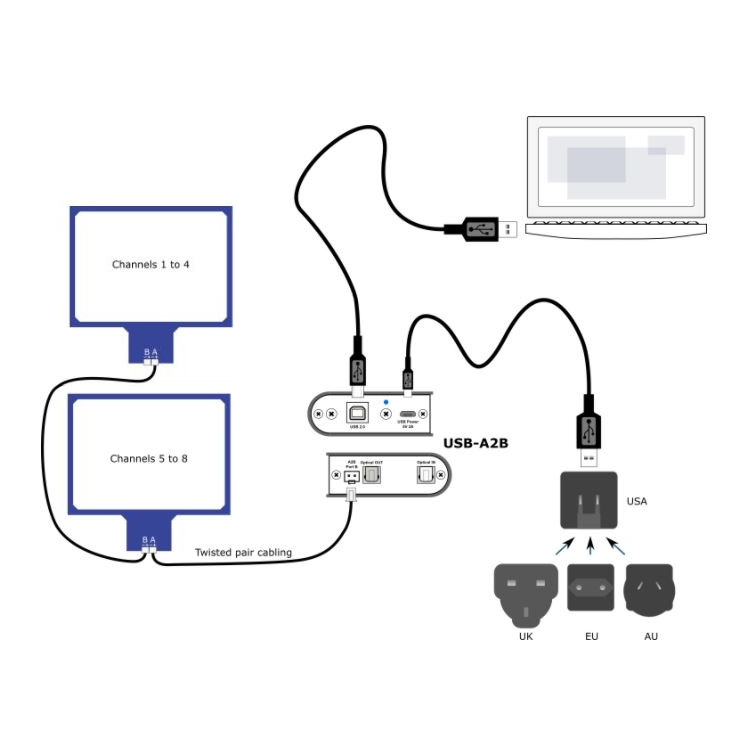

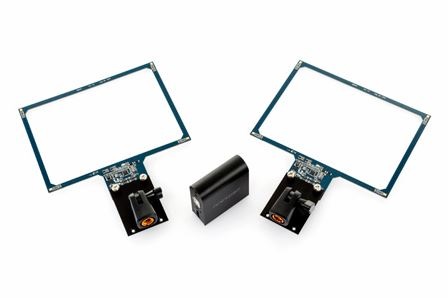

        The UMIK-X consists of one to two UMA4 microphone modules and a USB-A2B interface to interface the modules to the computer. Between four and 16 microphones can therefore be connected. UMA4 modules are daisy-chained to each other using a single twisted-pair cable carrying Analog Devices A2B protocol for multichannel audio at 24-bit/44.1 or 48 kHz. A single cable for audio + power for up to 40m distance! Applications include environmental monitoring and distributed sound field measurement. The distributed omnidirectional microphones in the array allow quick measurement and analysis in applications such as room equalization and distributed subwoofer tuning.



        The UMIK-X is a UAC-2 compliant interface that comes with its own ASIO driver and is driverless for macOS and Linux. For Windows, an ASIO driver is provided. Last but not least, the UMIK-X is compatible with the new multi-channel measurement capability of Room EQ Wizard (v5.20 and up). While this is normally a paid upgrade, a license for the upgrade is already included with your purchase.



        The UMIK-X is now available for sale in 2 complete, ready to go packages to get up and running in no time! The basic package supports up to 8 x Channel recording (2 x UMA4 arrays).

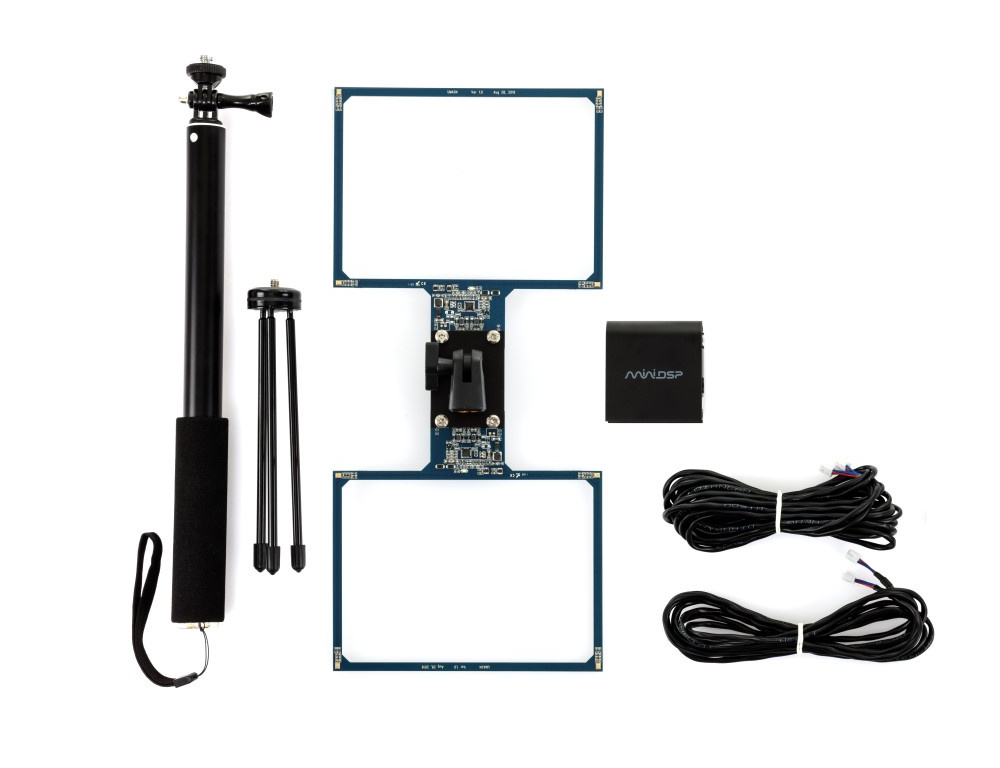

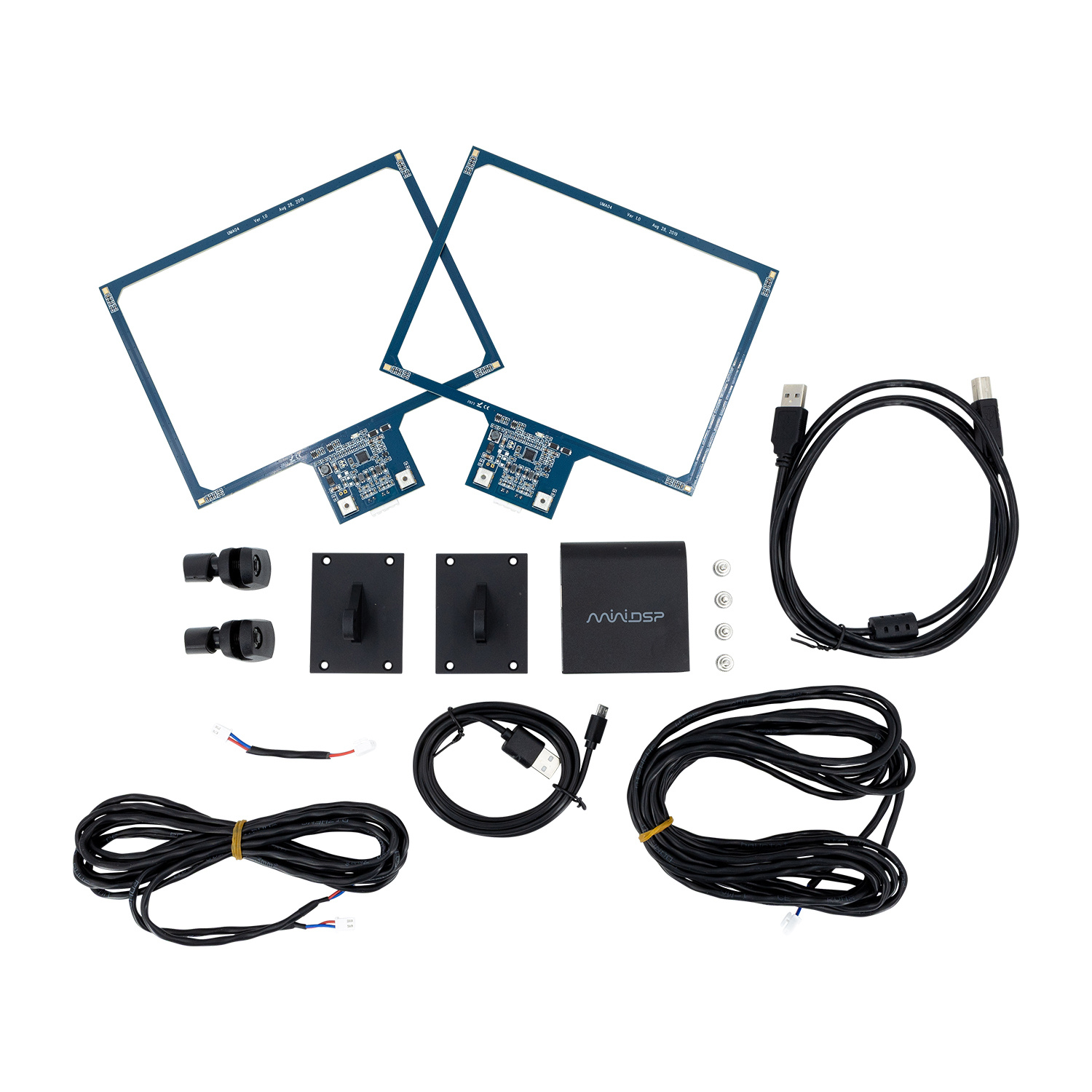

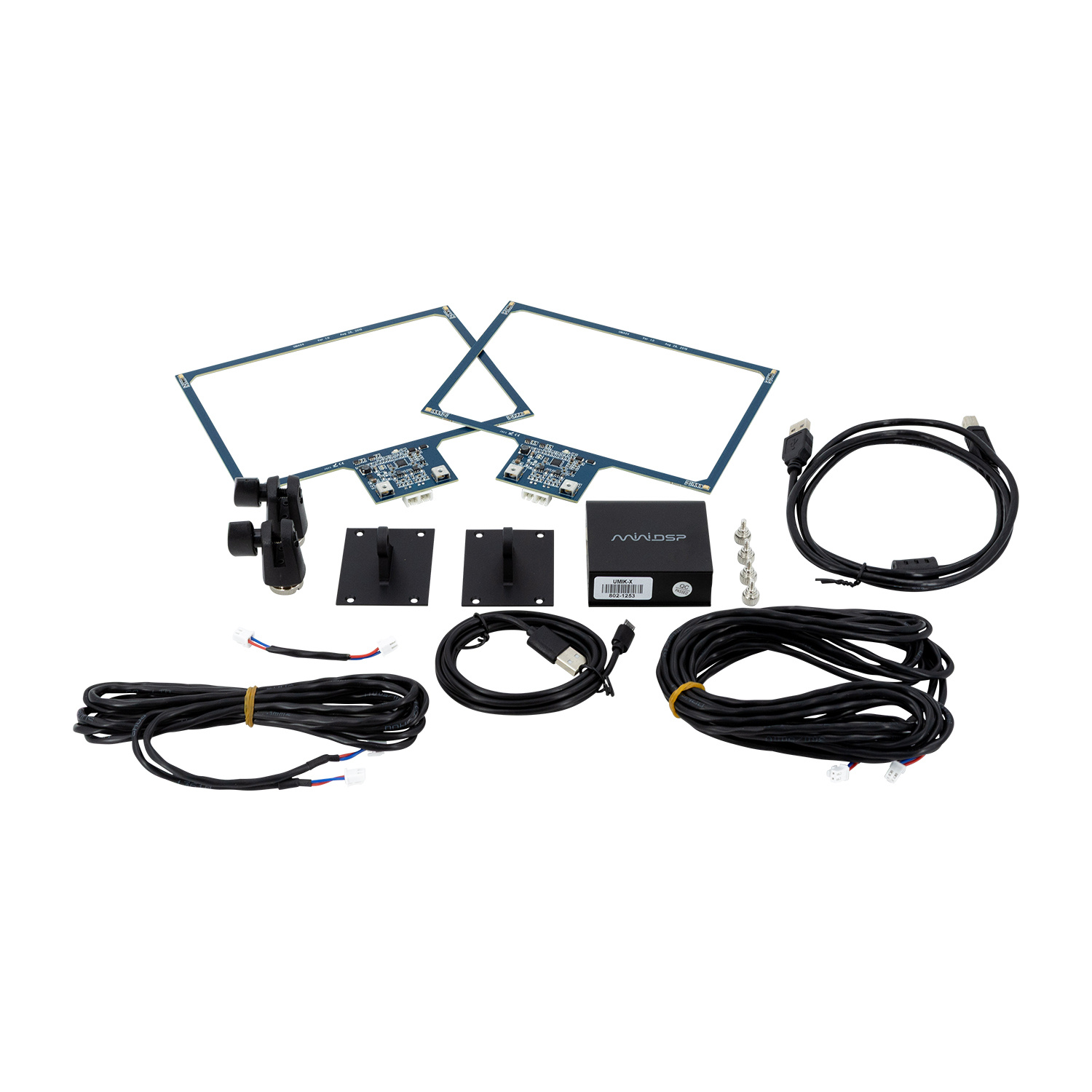

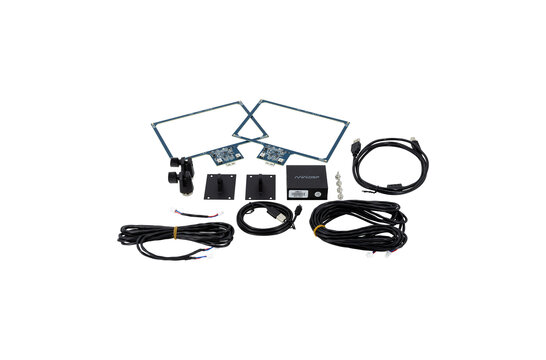

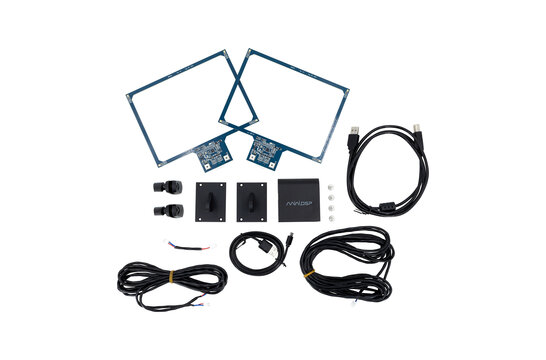

        What's in the box?

        • 1 x USB to A2B interface for multichannel audio streaming / Multichannel USB audio streaming
        • 1 x License Code for Multichannel Audio Measurement with REW (100 USD worth)
        • 1 x shielded USB cable (2m)

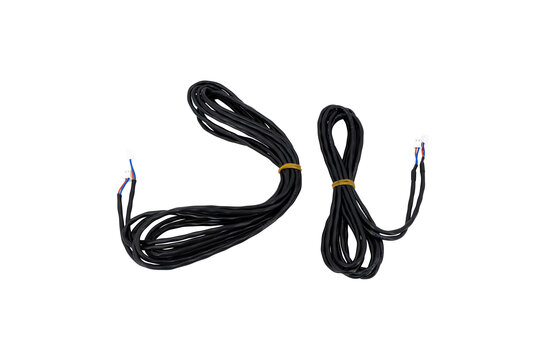

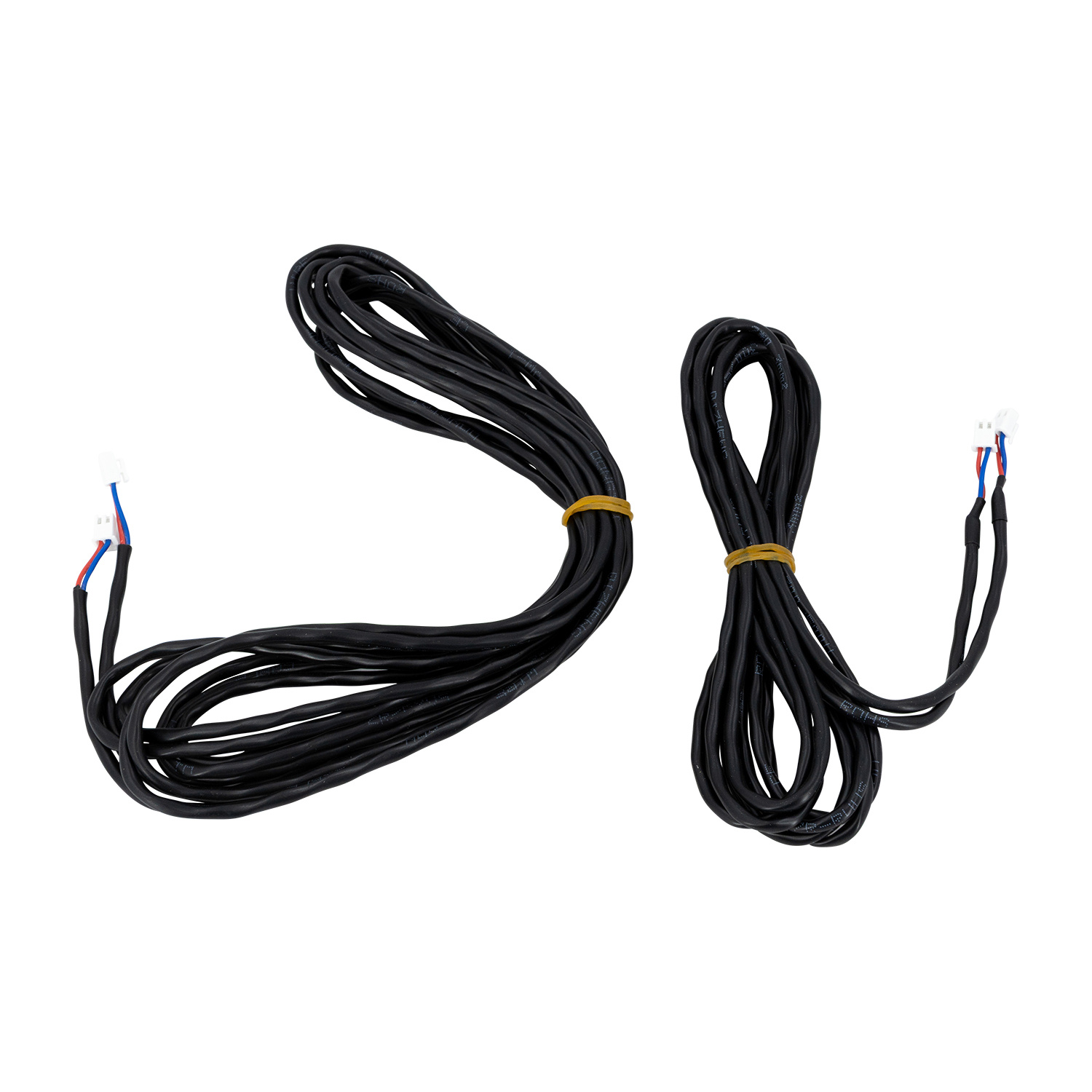

        • A2B Twisted pair cable for microphone module daisy chainning: 2 x UMA4/XL package (1 x 5m, 1 x 3m , 1 x 5cm), 4 x UMA4/XL package (1 x 5m, 3 x 3m , 2x 5cm)
        • Linking brackets to link 2 x UMA-4 microphone arrays together (if option selected)



        PRODUCT SPECIFICATIONS

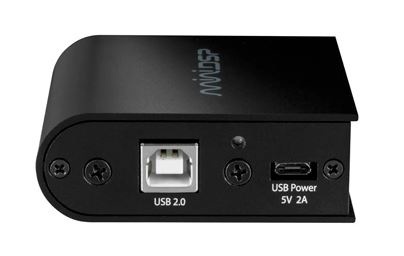

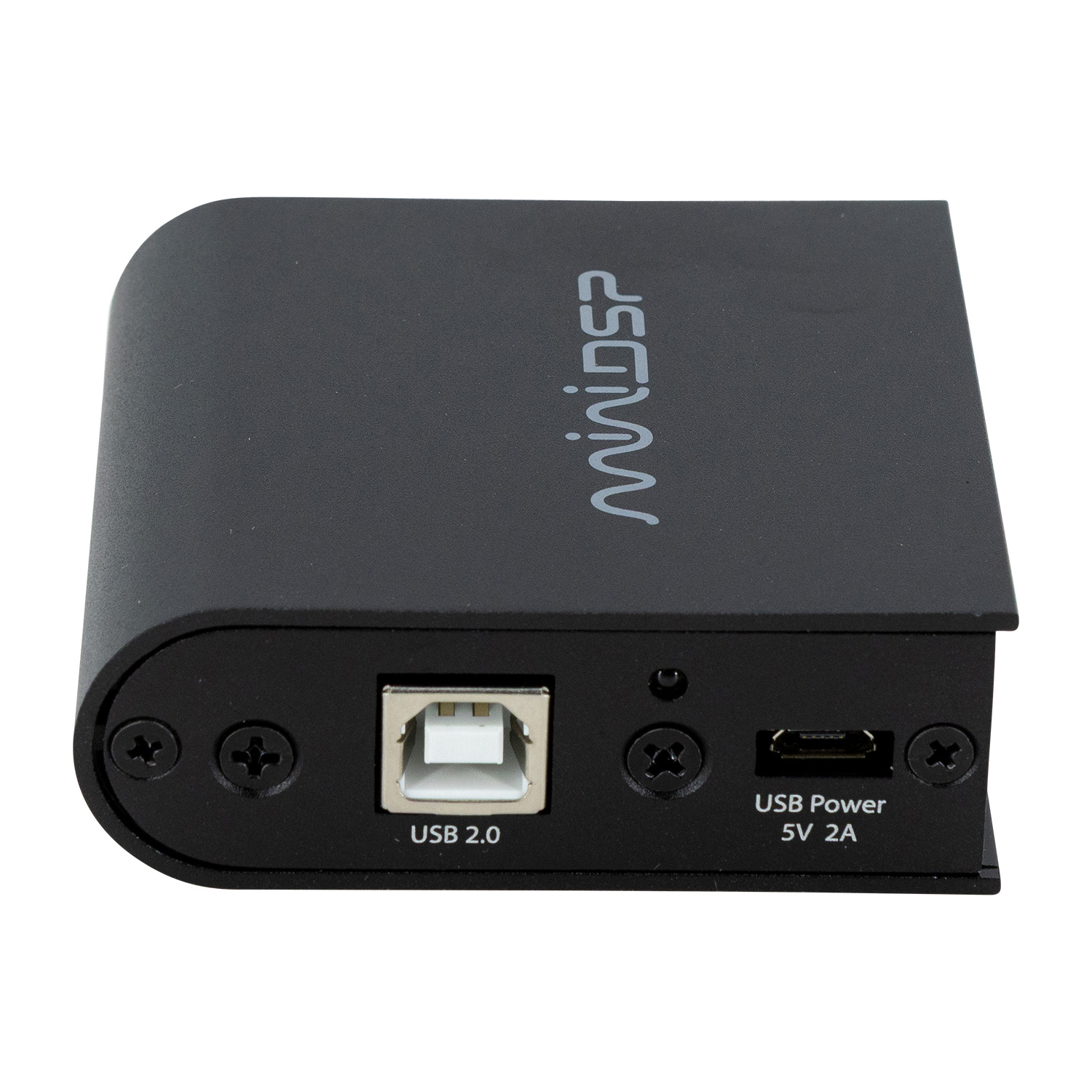

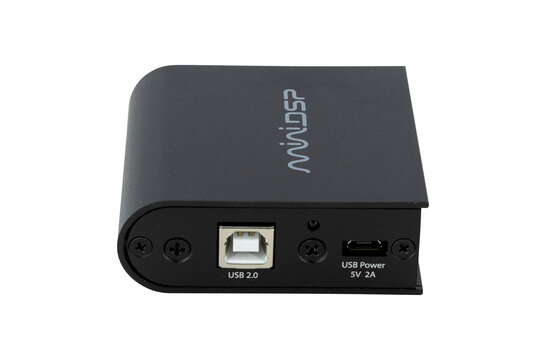

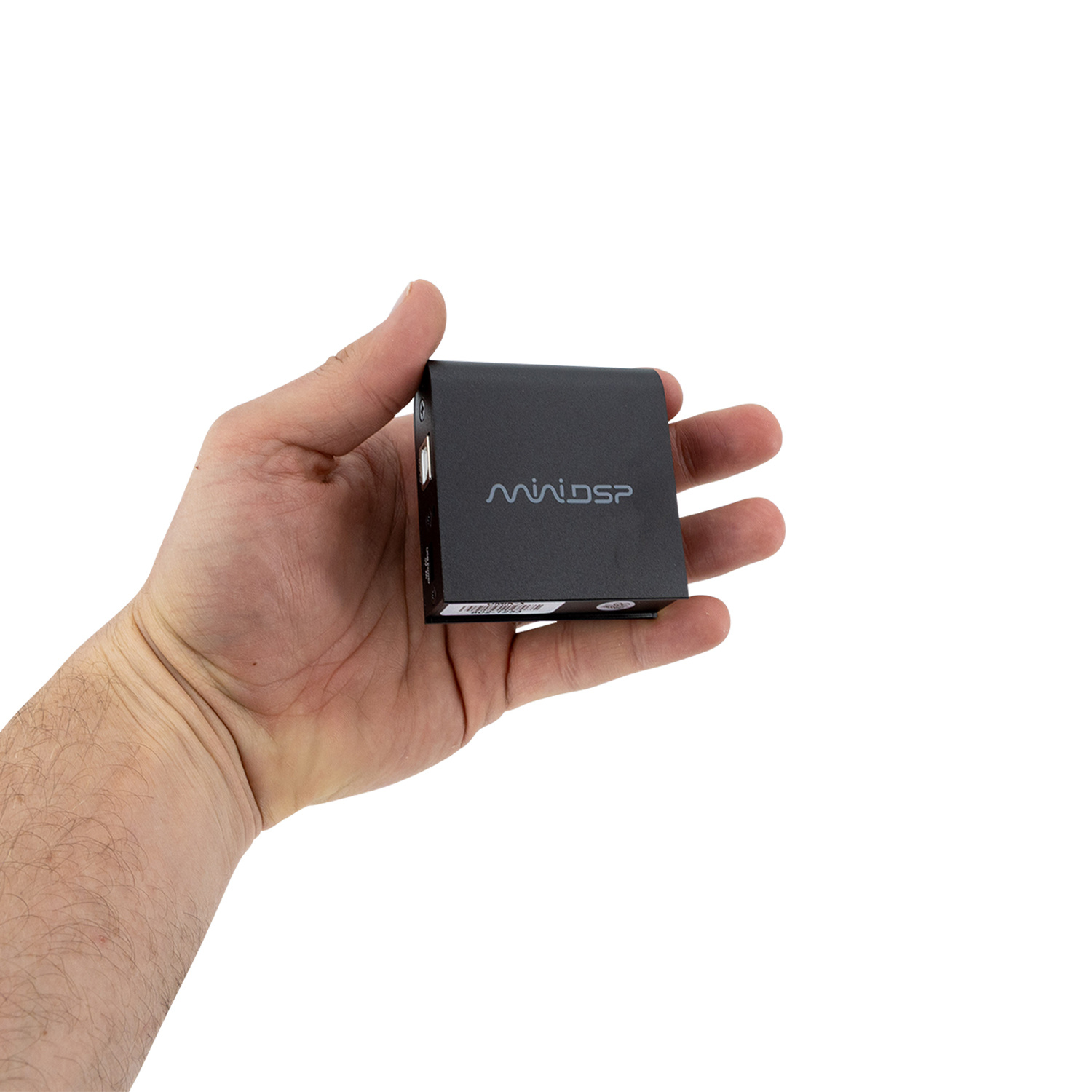

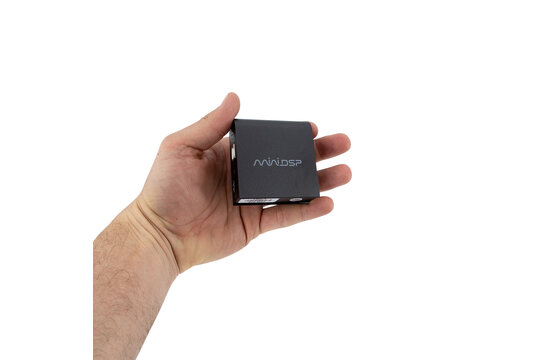

        Item: USB to A2B interface

        Description

        USB streaming engine

         XMOS Multicore USB audio processor for UAC2 streaming

        USB audio capabilities

        USB audio recording for up to 16ch audio channels

        • Driverless under OSx, Linux
        • Custom ASIO drivers for Win10 platforms

        Resolution / Sample rate

        24bit @ 44.1/48 kHz

        Analog devises A2B link

        Multichannel audio link via A2B protocol, Up to 40m long cable

        Toslink

        Toslink Out: Stereo link to Playback system / Toslink In: No enabled

        LED

        Power/Active link indication

        Power supply

        External 5V USB power supply

        Dimensions / Weight

        24x64x67mm / 90g

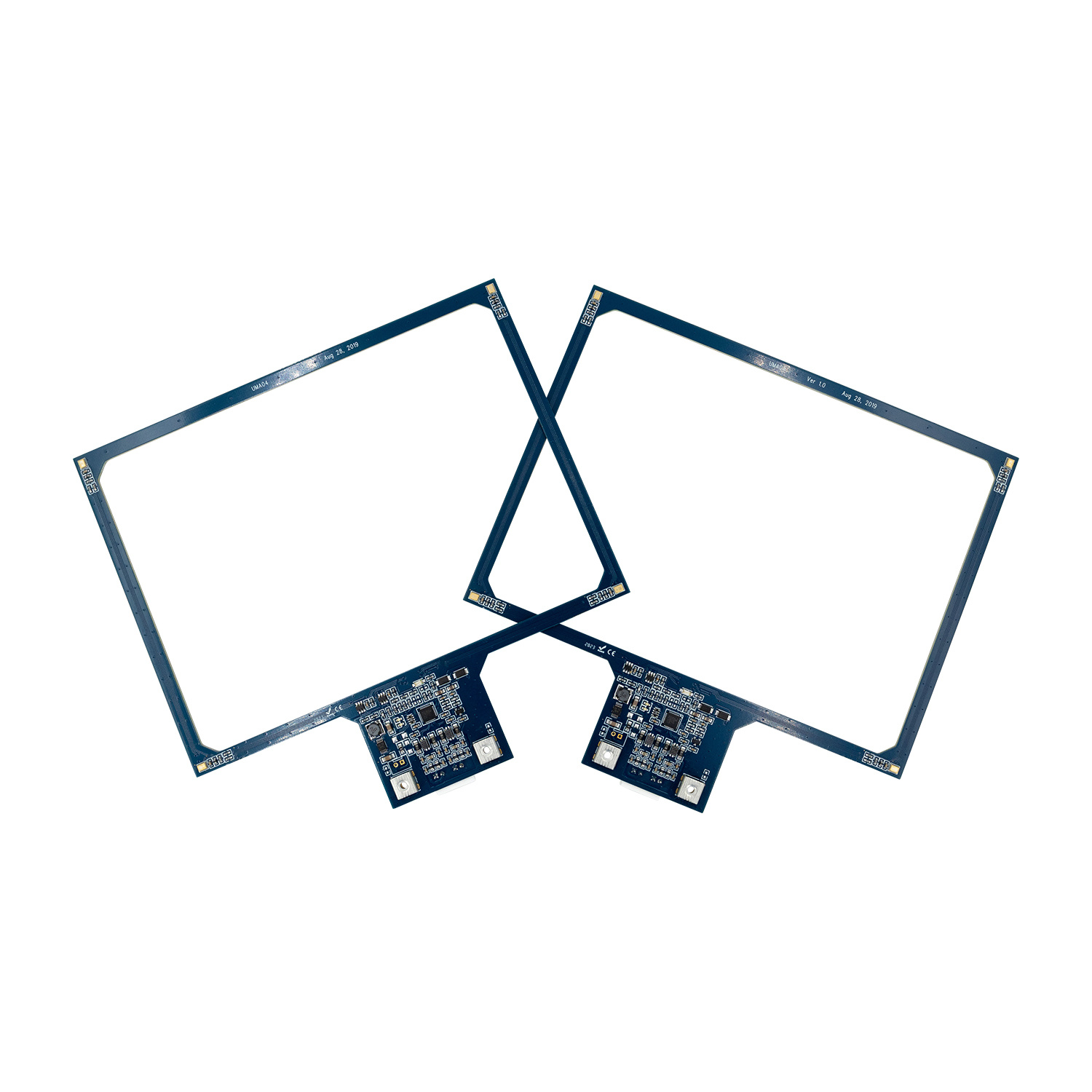

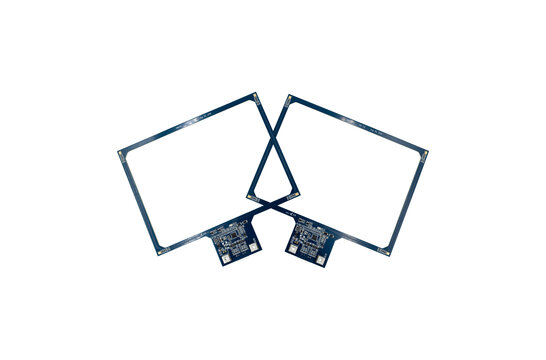

        Item: UMA-4  Microphone Module

        Description

        Analog devises A2B link

        Multichannel audio link via A2B protocol. Dual-port for Daisy chain up to 4 x UMA4

        MEMS microphones

        4 x Knowles MEMS with low noise buffer and high-performance modulator:

        • Low distortion: 1% @ 130 dB SPL
        • Sensitivity: -37dBFS @ 94dB SPL (1kHz)
        • Acoustic Overload Point (AOP): 132.5dB SPL
        • High SNR: 66 dBA and flat frequency response
        • RF shielded against mobile interference
        • Omnidirectional pick-up pattern
        • Matched sensitivity for uniform response

        Mounting

        Plastic clamp for microphone mounting

        Dimensions (mm) / Weight

        160x180mm / 27g



        Show more

        Specifications

        Article number
        UMIK-X-2
        EAN
        8785256845729
        Connector
        USB-B
        Resolution & Sample rate
        24bit @ 44.1/48 kHz
        Max SPL
        132.5dB
        Capsule Type
        UMA4 MEMS
        SNR
        66 dBA and flat frequency response
        USB-Audio
        XMOS Multicore
