Monacor SAM-500D Subwoofer Plate Amplifier

€349,95

1 In stock

Monacor SAM-500D Subwoofer Plate Amplifier

Brand: Monacor

Show all Plate amplifiers

1 x 500 W

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

SAM-500D Subwoofer Plate Amplifier

+1

€ 349,⁹⁵ 1 In stock

We ship to United States of America
Same day shipping
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Monacor SAM-500D Sub Plate Amplifier

Highlights

High-performance active module in class D technology
Variable low-pass filter: 40-200 Hz (18 dB)
Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
Line input, par. line output
Integrated bass boost of approx. 3 dB at 40 Hz
High-level inputs for parallel connection to the speaker cables
Very high power reserves for bass speakers with a diameter up to 46 cm
Connections: 1 x RCA (line in), 1 x speaker terminal (high power in), 1 x RCA (line out)

Product details

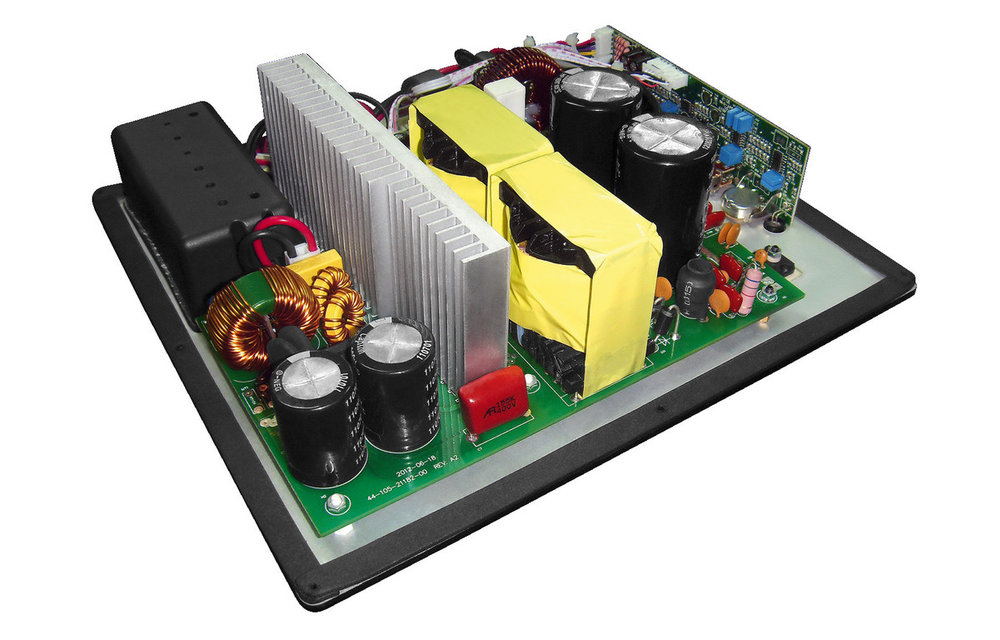

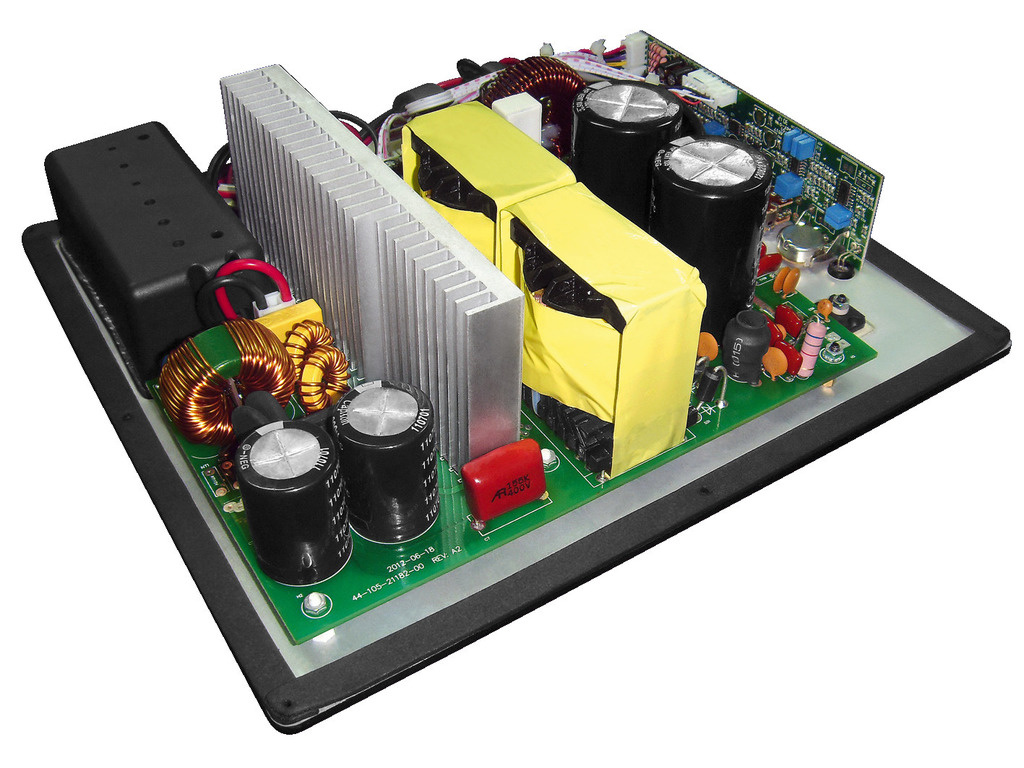

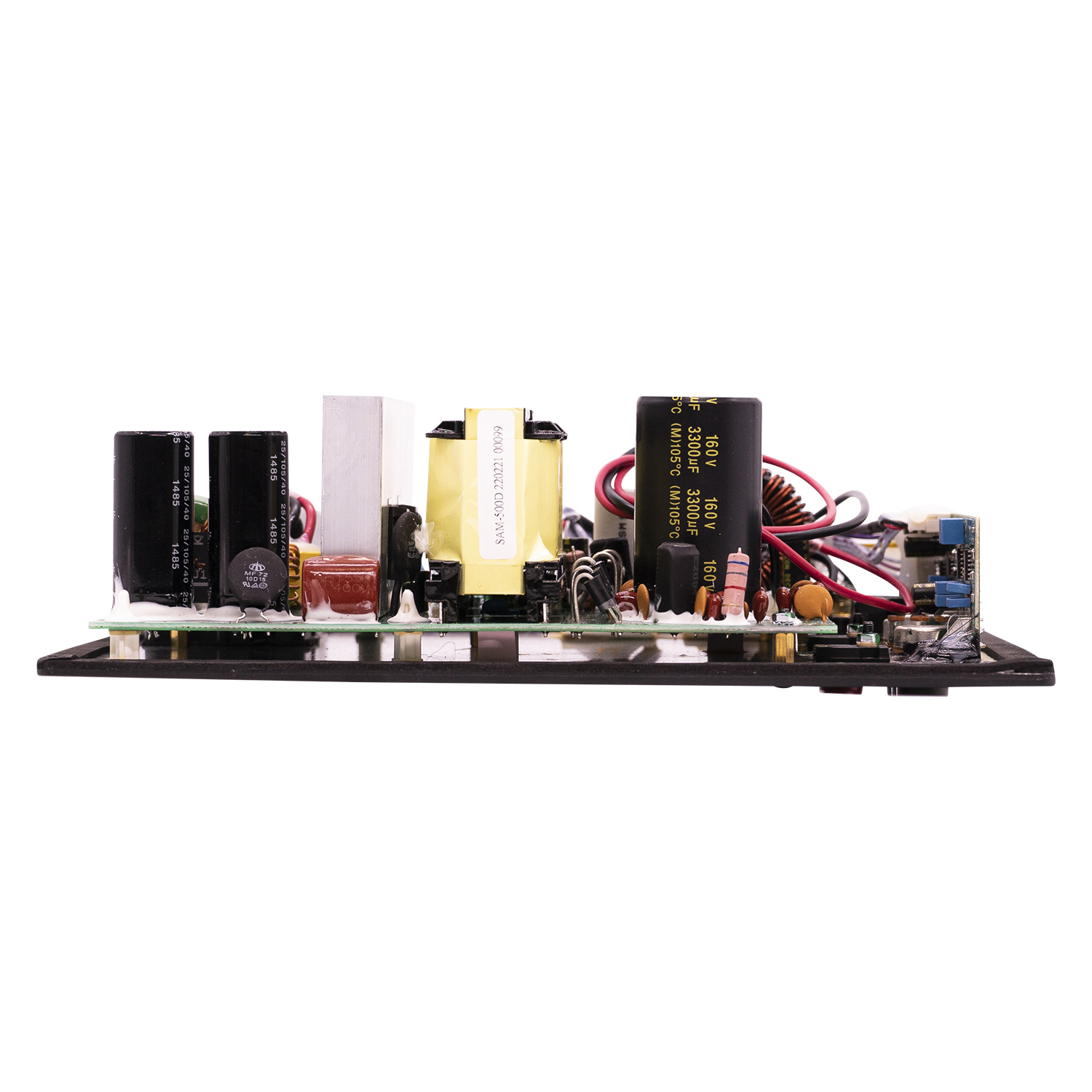

Monacor SAM-500D Class D 500W Active Subwoofer Module

Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG STAGELINE provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high-power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

Specifications

Article number

SAM-500D

EAN

4007754231588

Rated power output

1 x 500 watts at 4 ohms
1 x 250 watts at 8 ohms

Rated power output bridged

-

Minimum load

4 ohms

Signal-to-noise ratio (SNR)

> 70 dB

Distortion

< 1% THD

Distortion bridged

-

Amplifier classification

Class D

Circuit topology

-

Efficiency

-

Frequency response

20 - 200 Hz

Input impedance

22k ohms (line level input)
270 ohms (high level input)

Input sensitivity

170 mV (line level input)
1 V (high level input)

Auto turn-on sensitivity

-

DSP

-

DAC

-

Maximum sampling rate

-

Speaker output channels

1

Analog in/out

1/1

S/PDIF in/out

-/-

AES/EBU in/out

-/-

Coaxial in/out

-/-

RCA in/out

1/1

XLR in/out

-/-

Jack in/out

-/-

USB connection

-

Network connection

-

Bluetooth

-

Subwoofer pre-out

-

Auto on/off

-

Remote control

-

App control

-

Equalizer (EQ) adjustment

-

Equalizer (EQ) profiles

-

Phase control

Crossover frequency adjustment

Presets

-

Control software

-

Windows/Mac compatible

-/-

Power requirements

230 VAC

Power inlet connector

IEC C18

Standby power consumption

<0.5 watts

Current limit

-

Under/over voltage protection

-

Dimensions (H x W x D)

270 x 251 x 90 mm

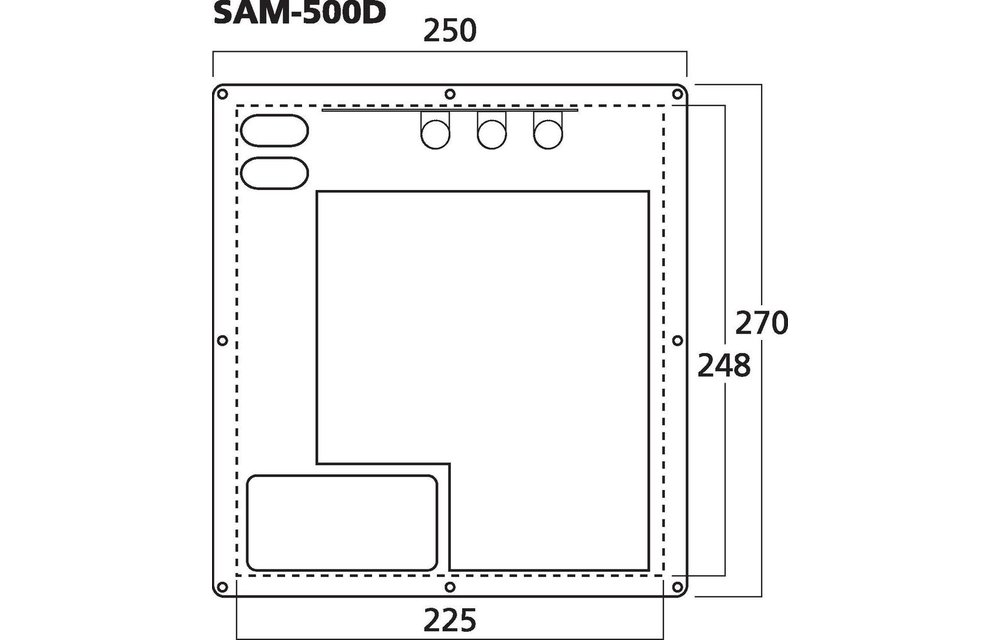

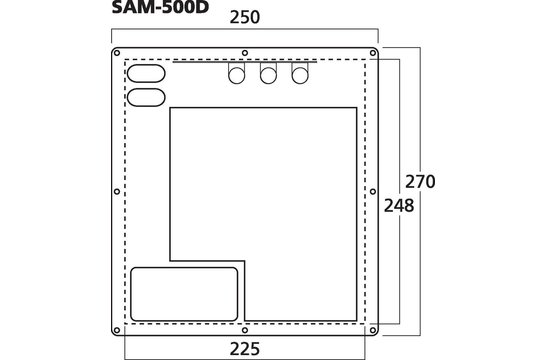

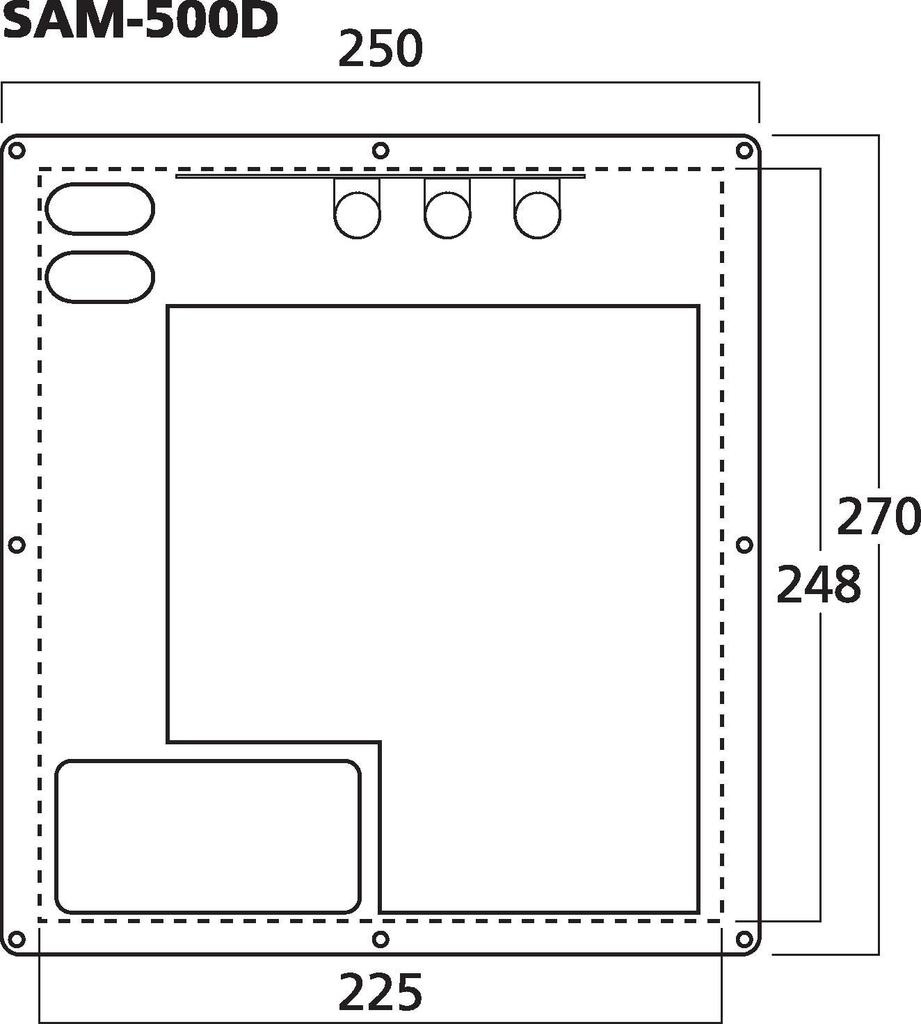

Cutout dimensions

248 x 225 mm

Show more

Reviews

Review this product

5 of 5

-

By Martin on 24 November 2024

4 of 5

Brutal amount of power thanks to a pretty solid power supply. Speaker connections on the inside seem to have loose fastons, I recommend fixing that before you install the amp. Makes an audible pop at auto power-off, nothing too loud though. Has a subsonic filter that can't be disabled or adjusted, which makes it suboptimal for subwoofers that should play down to or below 20Hz.

By Tomas on 26 November 2021

4 of 5

De module werd op één dag geleverd. Na plaatsing bleek er een defect aan de module te zijn. Zonder problemen retour en terugbetaling.....

By Erwin V. on 11 May 2021

5 of 5

Does the job it says on the box ;-)

By Mackeznie B. on 2 March 2021

1 of 5

De versterker na ontvangt ingebouwd en aangesloten , het rode lampje van standby bleef branden. de receiver iets harder gezet en de plaatversterker ging aan het groene lampje ging branden. de plaatversterker deed het goed. Alleen toen ik de muziek weer iets zachter had gezet , ging de versterker na ongeveer 20 minuten weer uit , met een luide "plop" , ik dacht dat de versterker al stuk was. Maar als je de muziek weer hard zet gaat de versterker w...

Show more

By Hans W. on 12 June 2020

4 of 5

Good for its price, a lot of power and a very good efficency. Nice control of the woofer, however it has an integrated HPF (subsonic filter) you can't disable or tune. There's no PEQ, either. Very soft, but noticable pop at auto turn-off. Using it paired to a Dayton UM10-22

By tk. on 22 March 2020
