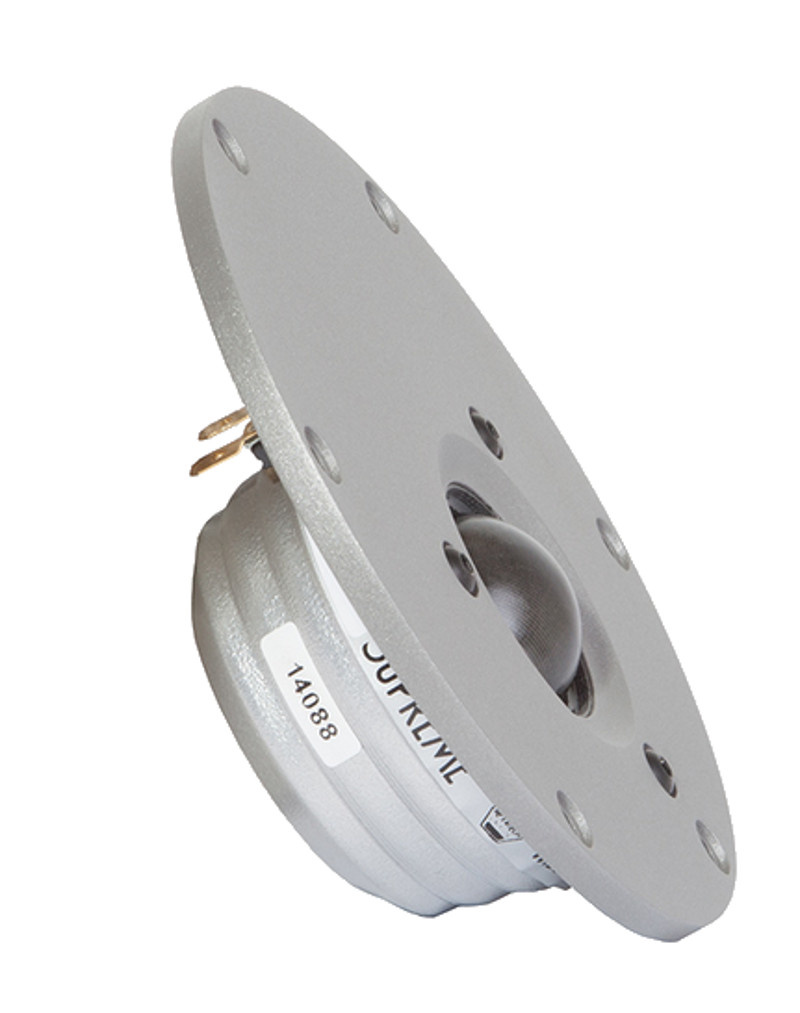

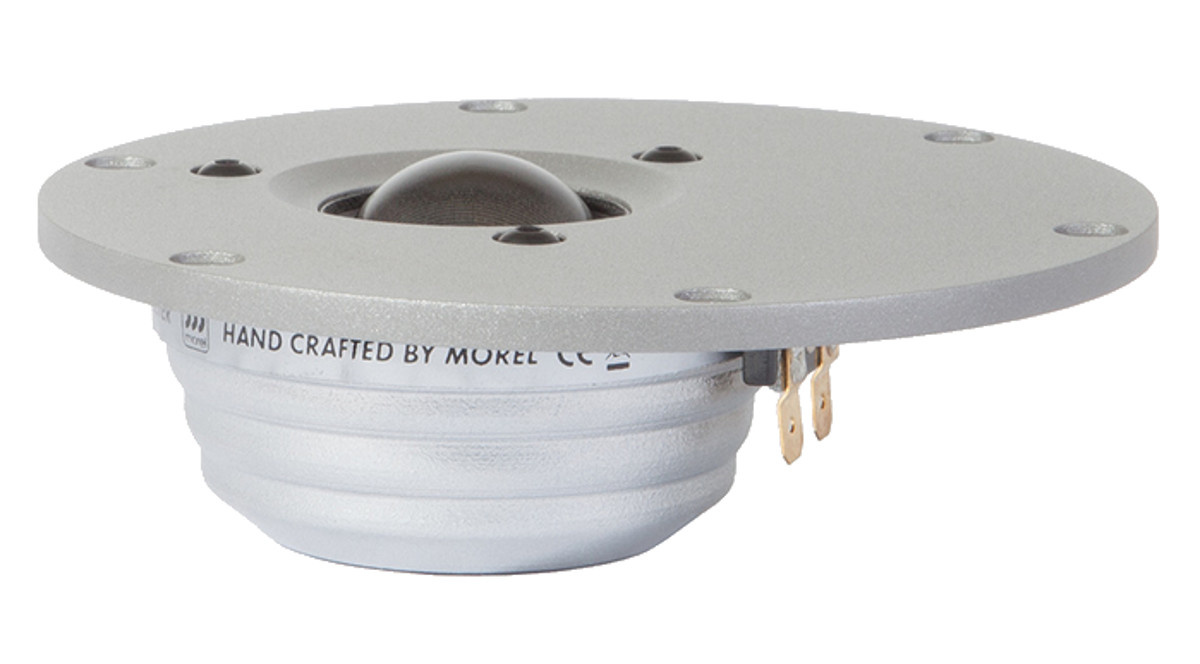

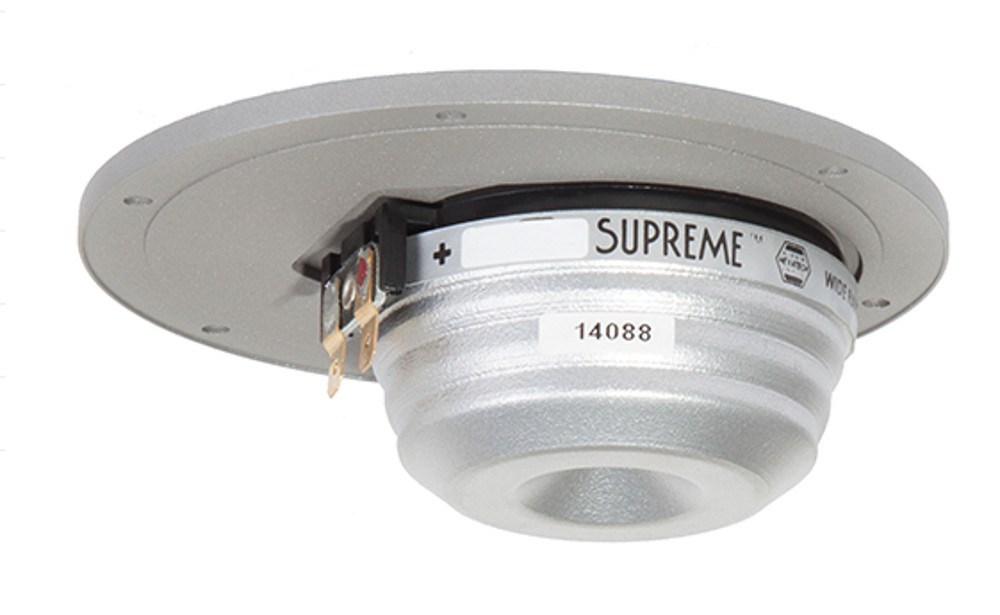

        Product description Morel Supreme ST 1308 Dome Tweeter Matched Pair

        Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.



        Highlights

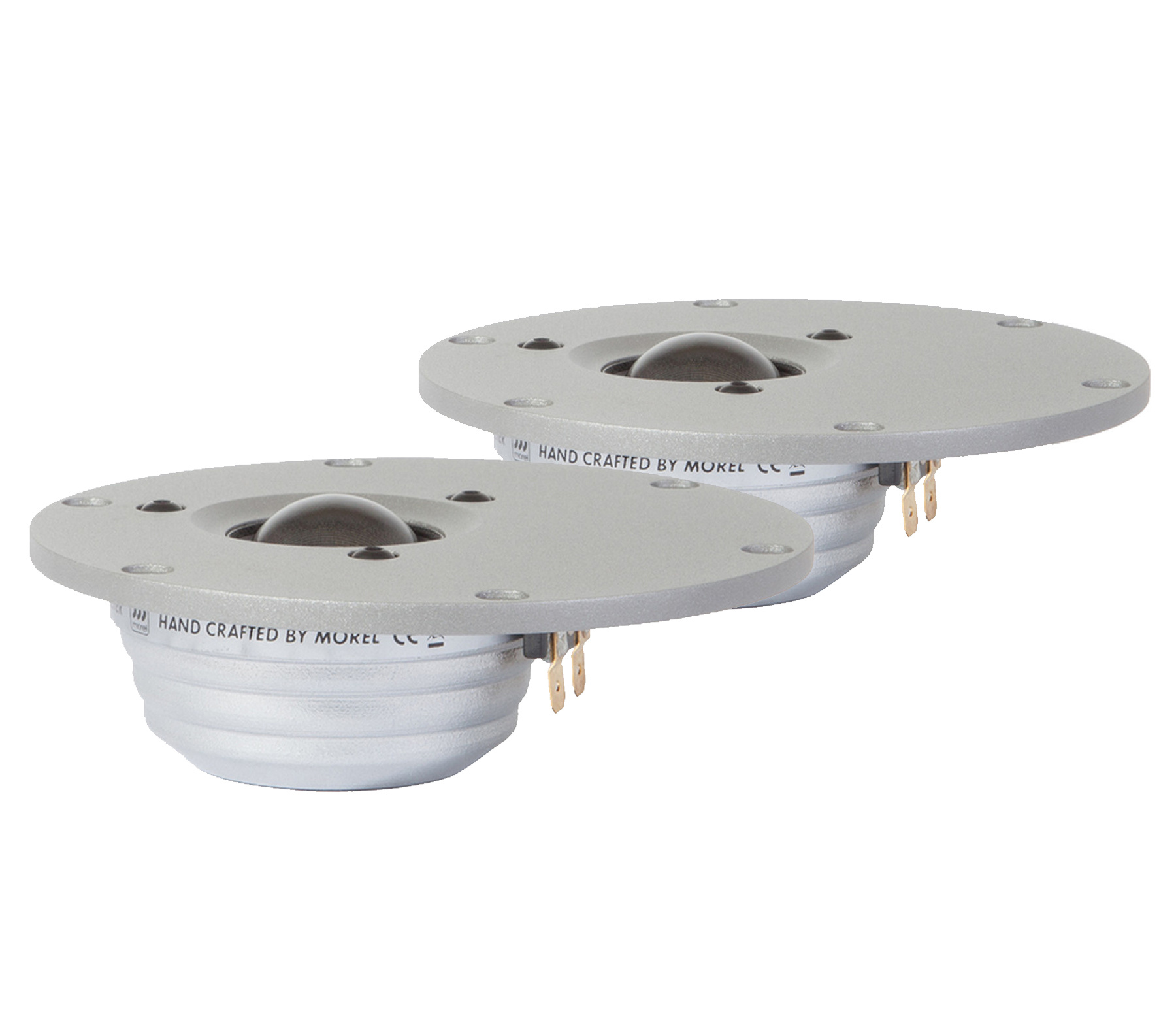

        • Sold in factory matched pairs
        • 130 mm IDR™ Improved Dispersion Recess aluminum faceplate
        • Flat neodymium motor structure provides maximum flux
        • Hexatech™ voice coil for maximum BL product and power handling
        • Acuflex™ coated dome with the perfect blend of internal damping and rigidity
        • Precisely matched acoustic loading between the dome cavity and rear chamber
        • Unique offset dome design



        Product details

        Morel Supreme ST 1308 1" Dome Tweeter Matched Pair



        Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.

        Show more

        Specifications

        Article number
        ST1308
        EAN
        0844632070815
        Tweeter Type
        Soft Dome
        Tweeter Series
        Supreme series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        220 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91.5 dB
        Frequency Response
        1,400-22,000 Hz
        Resonant Frequency (Fs)
        680 Hz
        DC Resistance (Re)
        5.2 ohms
        Voice Coil Inductance (Le)
        0.09 mH
        Total Q (Qts)
        0.44
        Overall Outside Diameter
        5.12"
        Cutout Diameter
        4.09"
        Depth
        1.57"
