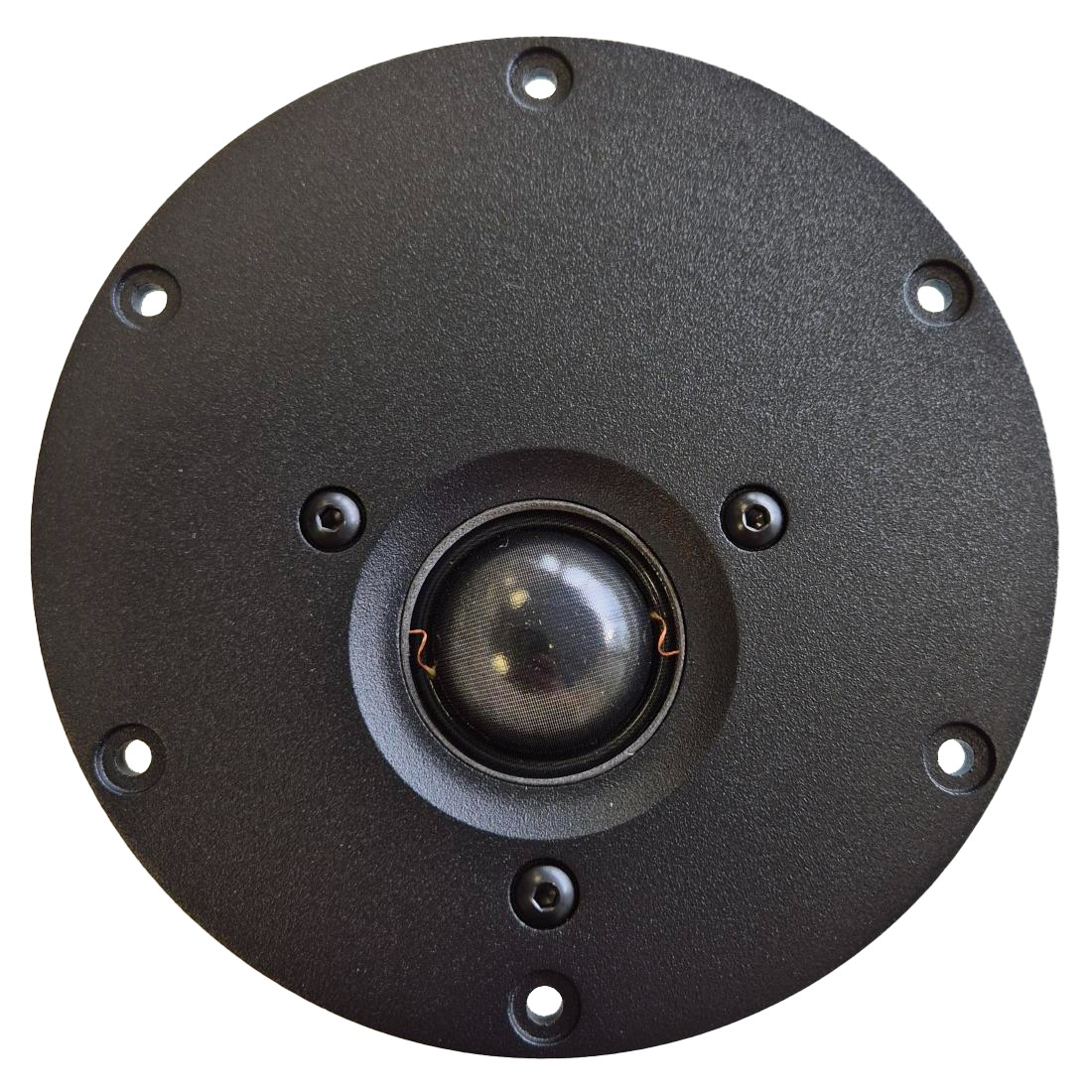

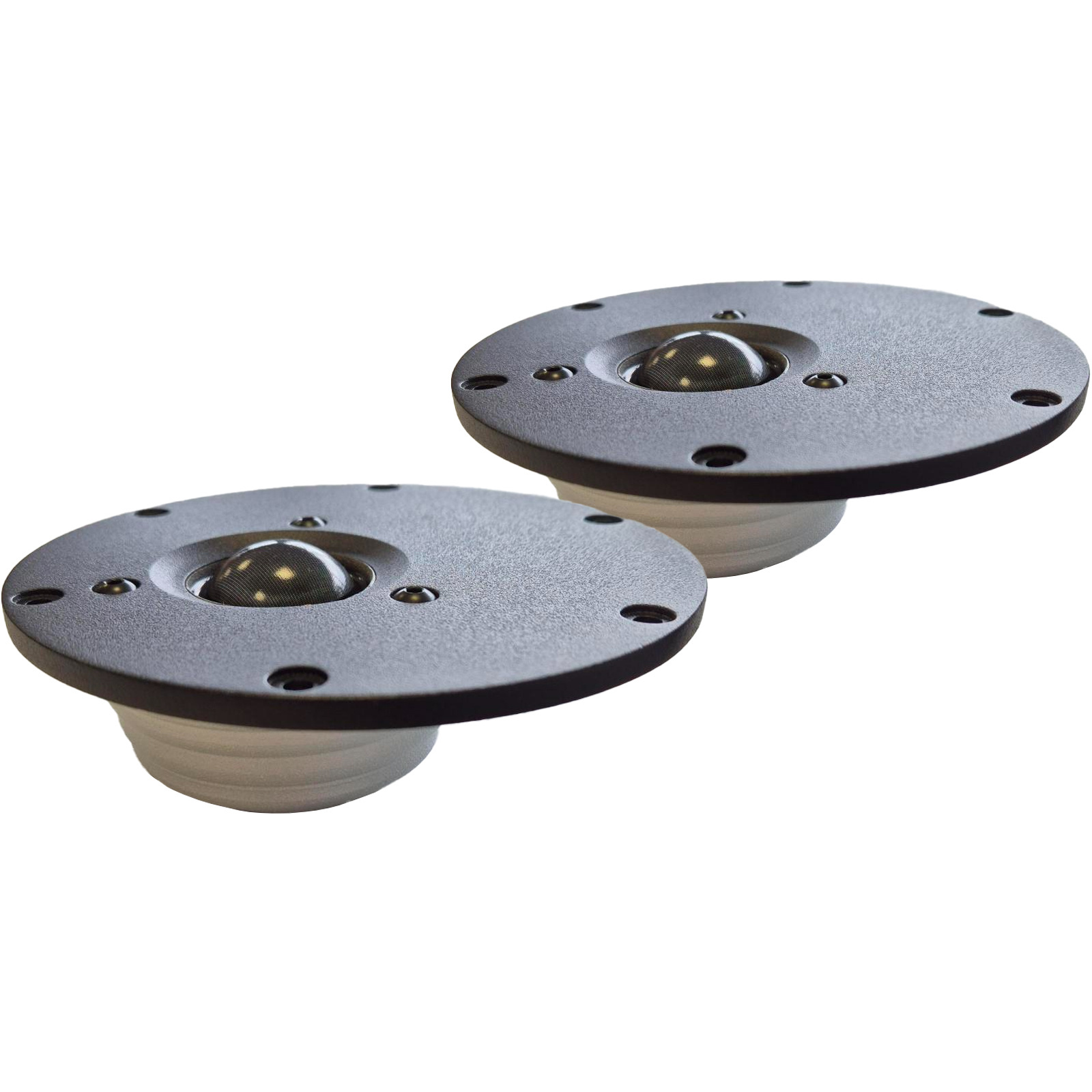

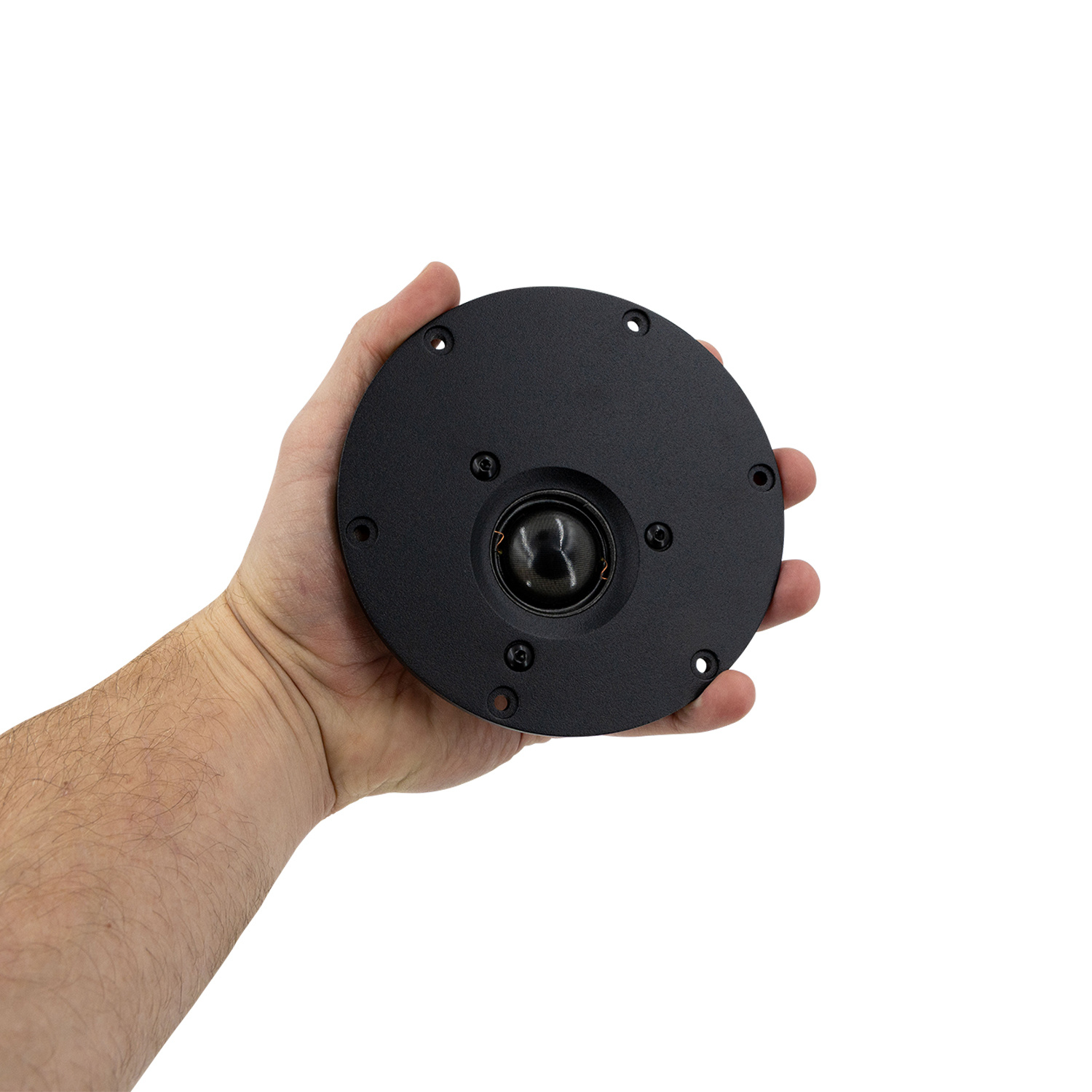

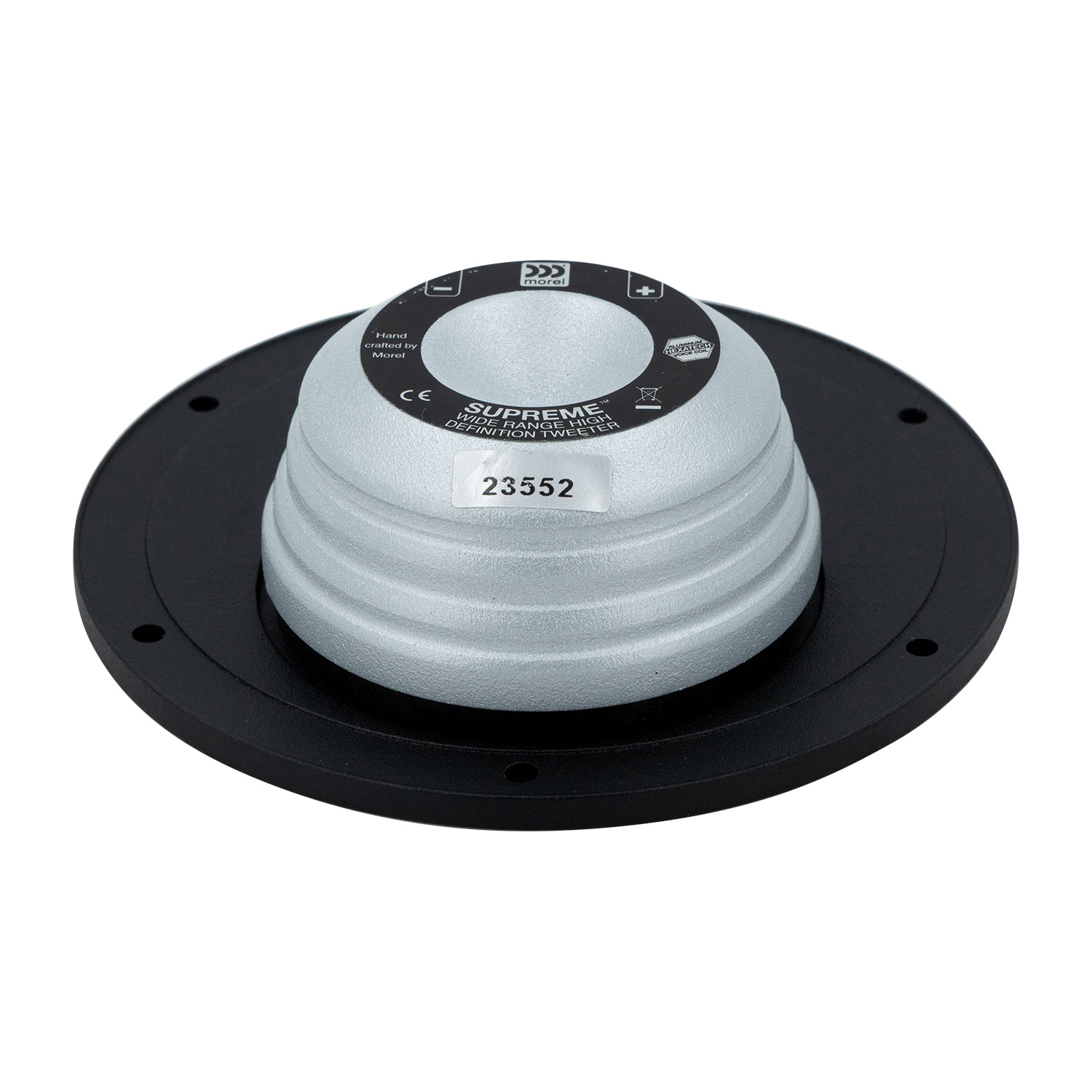

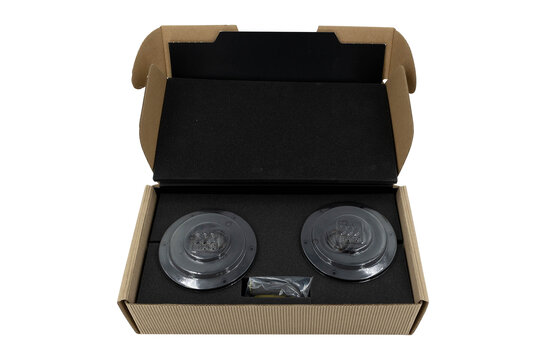

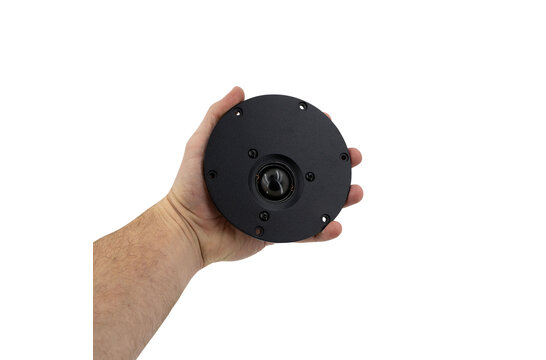

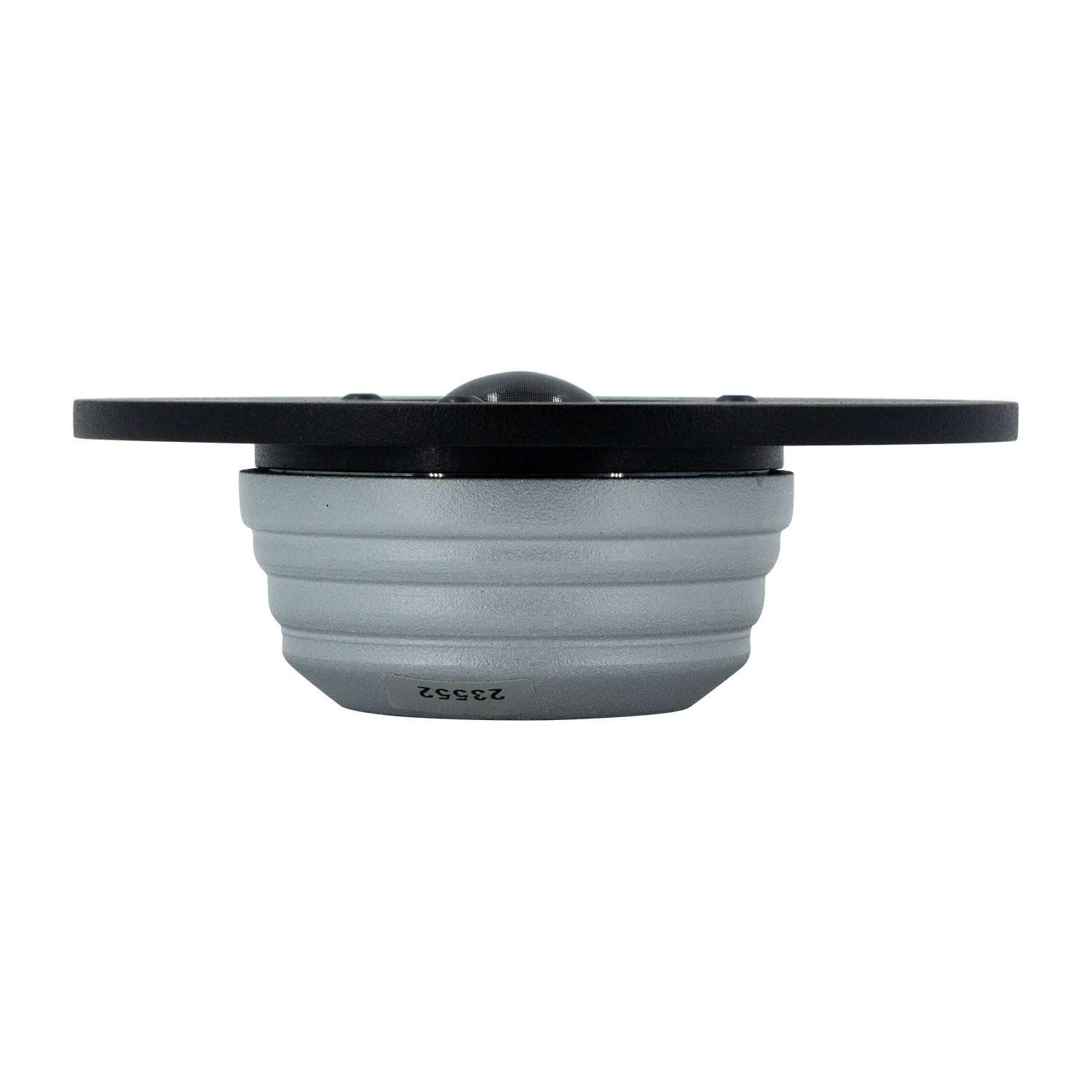

        Supreme ST 1308 Black Dome Tweeter Matched Pair

        Morel Supreme ST 1308 Black Dome Tweeter Matched Pair

        €629,95

        1 In stock

        Morel Supreme ST 1308 Black Dome Tweeter Matched Pair

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Morel
        € 520,62€ 629,95 1 In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Morel Supreme ST 1308 Black Dome Tweeter Matched Pair

        Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.



        Highlights

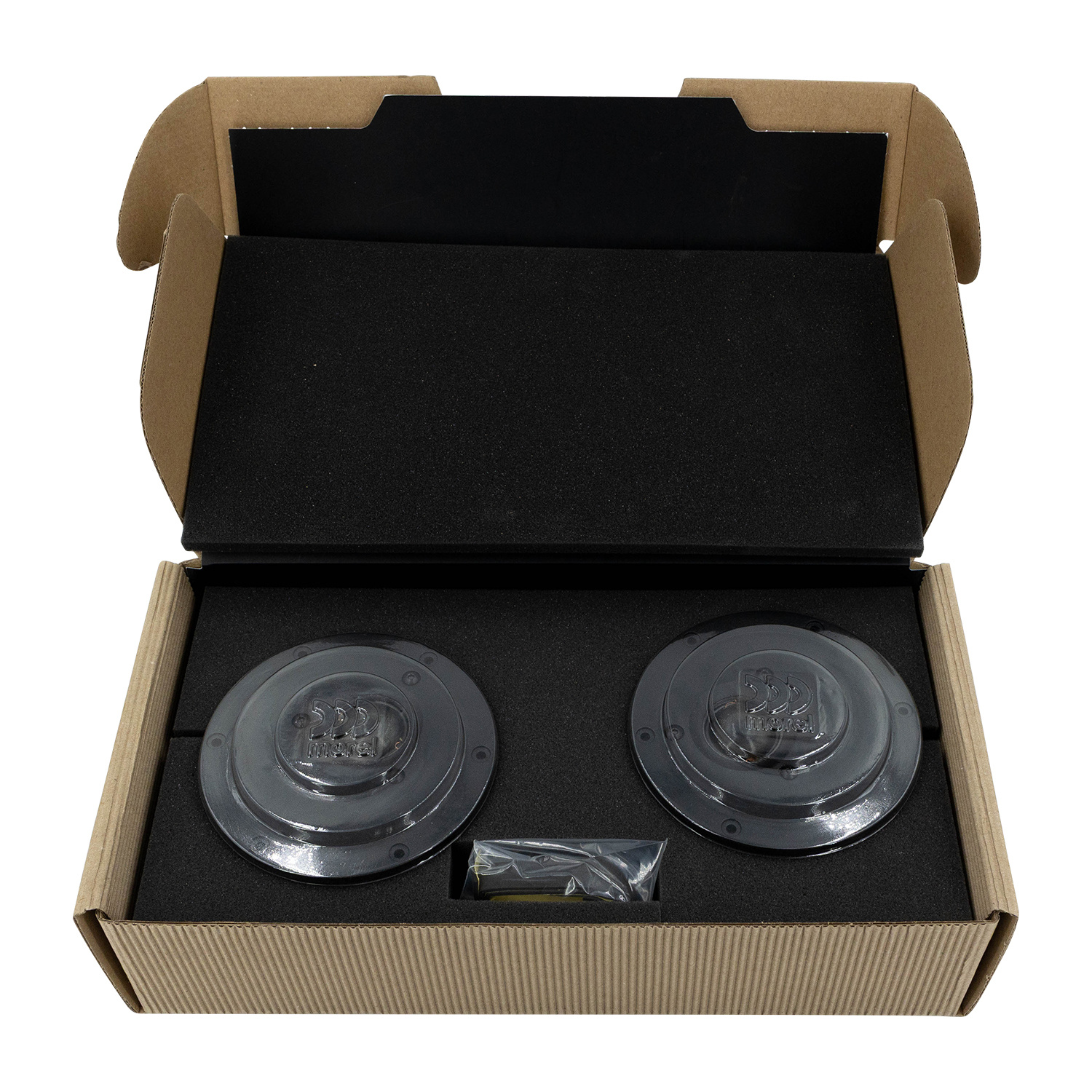

        • Sold in factory matched pairs

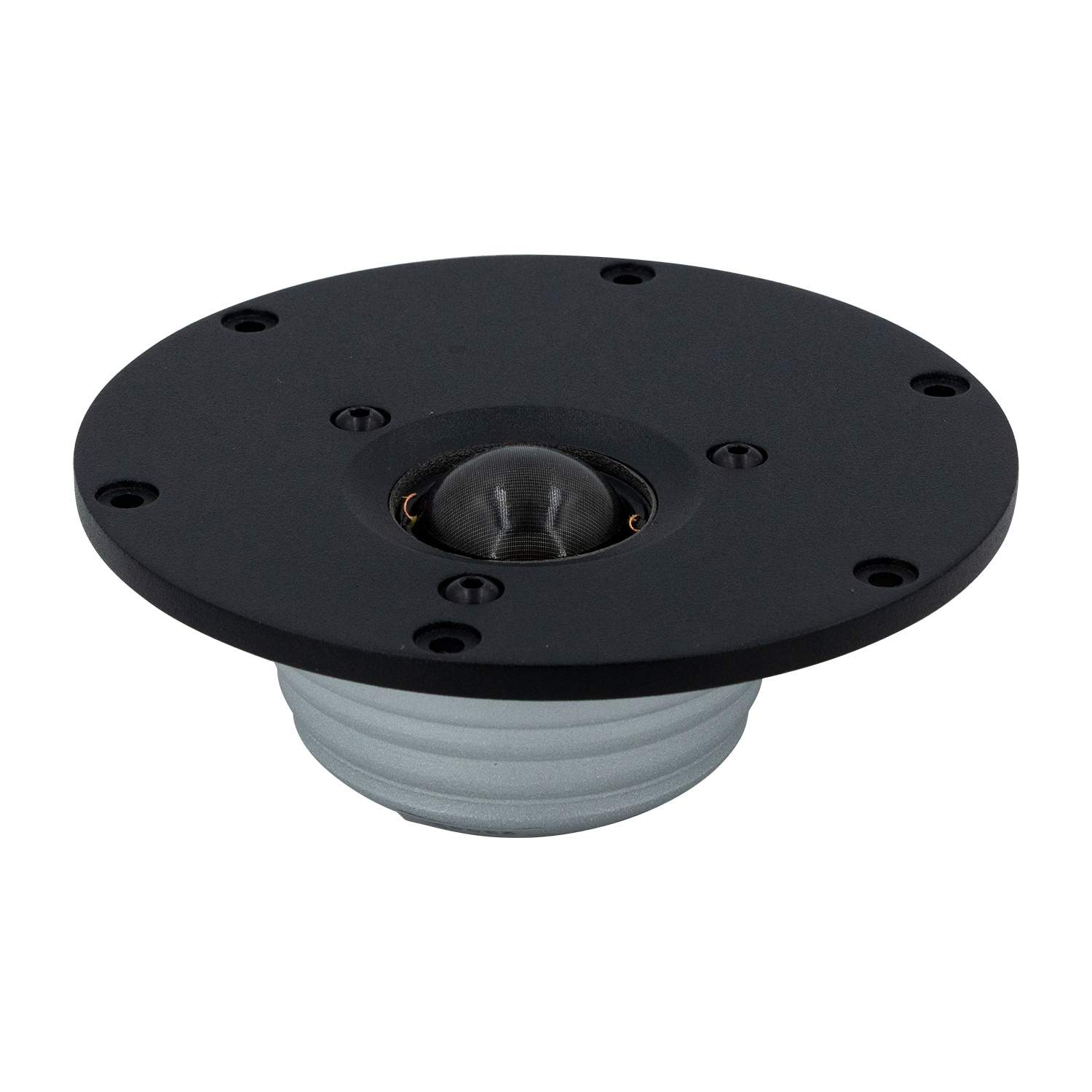

        • 130 mm IDR™ Improved Dispersion Recess aluminum faceplate
        • Flat neodymium motor structure provides maximum flux
        • Hexatech™ voice coil for maximum BL product and power handling
        • Acuflex™ coated dome with the perfect blend of internal damping and rigidity
        • Precisely matched acoustic loading between the dome cavity and rear chamber
        • Unique offset dome design



        Product details

        Morel Supreme ST 1308 Black 1" Dome Tweeter Matched Pair



        Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.

        Show more

        Specifications

        Article number
        ST1308B
        EAN
        8785256861774
        Tweeter Type
        Dome tweeter
        Tweeter Series
        Supreme Series
        Cone / Dome Diameter
        28 mm
        Power Handling (RMS)
        220 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91.5 dB
        Frequency Response
        1.400-22.000 Hz
        Resonant Frequency (Fs)
        680 Hz
        DC Resistance (Re)
        5.2 Ω
        Voice Coil Inductance (Le)
        0.09 mH
        Total Q (Qts)
        0.44
        Overall Outside Diameter
        130 mm
        Cutout Diameter
        104 mm
        Depth
        40 mm
        Mounting Type
        Holes (6) 3.7 mm

        Show more

        There are no reviews written yet about this product..
