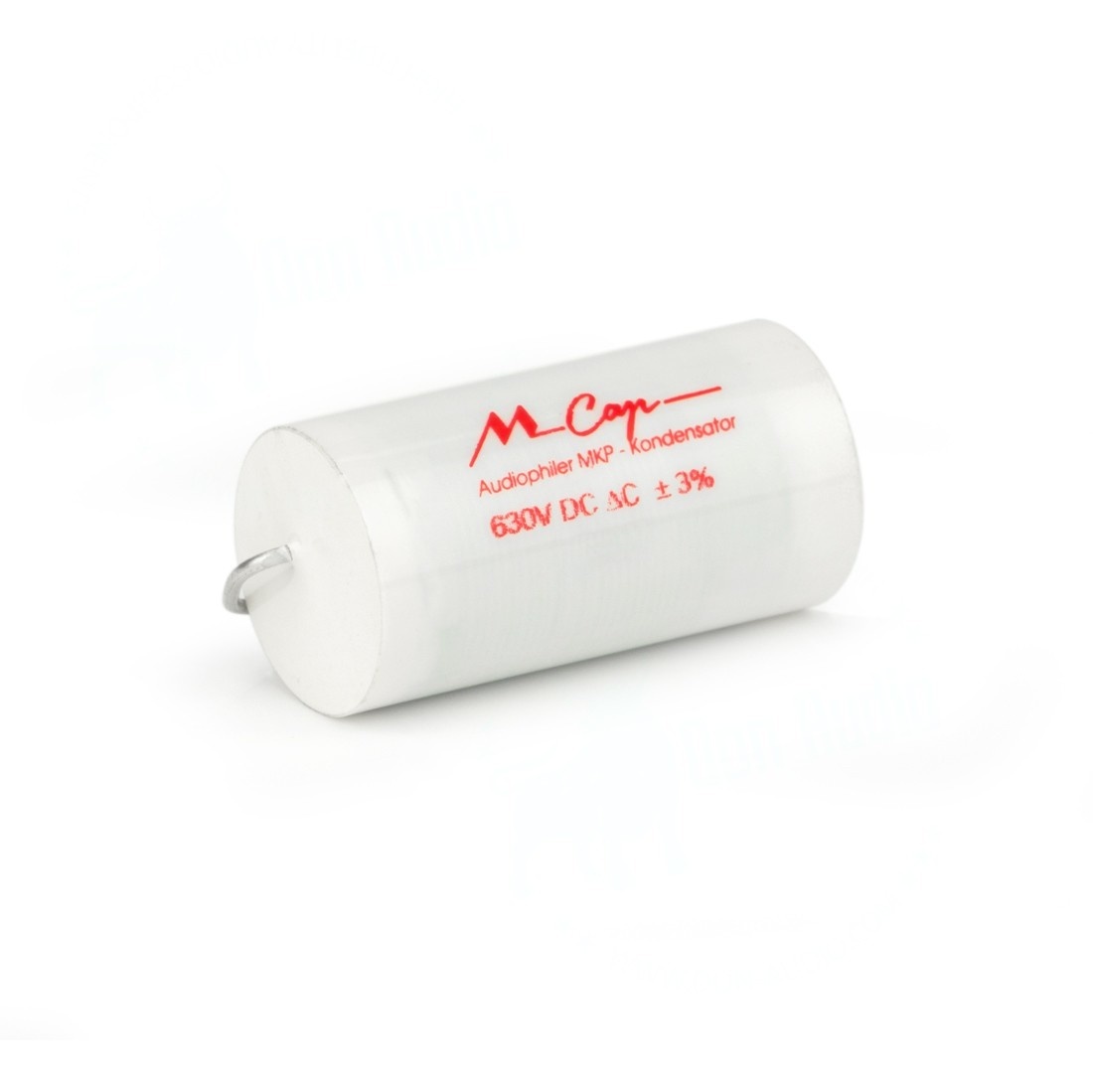

        MCAP630-1,00 | 1,00 µF | 3% | 630 V | Mcap Classic capacitor

        Mundorf MCAP630-1,00 | 1,00 µF | 3% | 630 V | Mcap Classic capacitor

        €6,45

        7 expected on 12-12-2024

        Add to cart

        Mundorf MCAP630-1,00 | 1,00 µF | 3% | 630 V | Mcap Classic capacitor

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Mundorf
        Show all Film/ foil capacitors
        MCAP630-1,00 | 1,00 µF | 3% | 630 V | Mcap Classic capacitor
        € 5,33€ 6,45 Out of stock7 expected on 12-12-2024
        • -5% Purchase 4 for only € 6,13 per piece
        • -10% Purchase 10 for only € 5,81 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        MCAP630-1,00 | 1,00 µF | 3% | 630 V | Mcap Classic capacitor

        Product description Mundorf MCAP630-1,00 | 1,00 µF | 3% | 630 V

        The MCap® Classic series has formed the basis of the Mundorf audio film capacitors since 1990. Avoiding an additional housing, the simple printing method and the classic longitudinal structure make it possible to create our most compact and cost-effective MKP-types.



        Highlights

        • Compact and cost-effective MKP-types
        • Made in Germany
        • High voltage rating



        Product details

        Mundorf MCAP630-1,00 | 1,00 µF | 3% | 630 V | Mcap Classic capacitor



        The MCap® is an audiophile metallized polypropylene capacitor. In selection of the materials used, special attention was given to the sound properties. The practically induction-free type of construction and the low loss factor of the MCap® results in a very “quick” capacitor. The MCap® forms the basis for vivid music reproduction rich in nuance. True to our motto of “Inner Excellence”, the best material selection and highest production quality guarantee low tolerances and the highest standards of safety in use, even in our entry-level model. The MCap® Classic’s three-dimensional, precise sound pattern, the richly detailed, harmonic music playback and dynamics are guaranteed with aluminised PP capacitor film.



        Specifications: Dielectric: Polypropylen • Dielectric strengh: 250-630 VDC • Metall-foil: 6 μm Tin • Loss factor: tan∂ = 0.0002@1kHz@1μF • Permissible ambient temperature 85°C/185°F

        Show more

        Specifications

        Article number
        MCAP630-1,00
        EAN
        4060158002185
        Capacitance (µF)
        1.0 µF
        Voltage Rating
        630 V
        Tolerance
        3%
        Dimensions: Ø * L (mm)
        16 x 26
        Termination Style
        Axial
