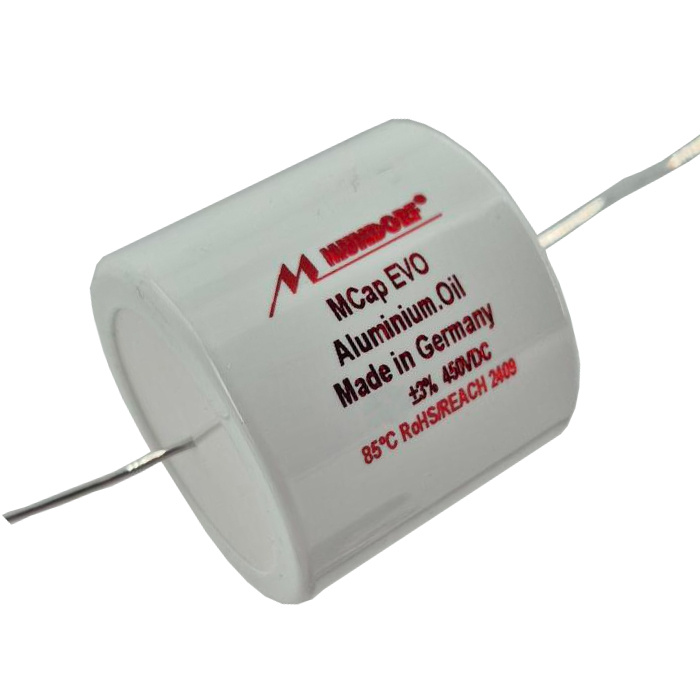

        MEO-12T3.450 | 12 µF | 3% | 450 V | MCap EVO Oil Condensator

        Mundorf MEO-12T3.450 | 12 µF | 3% | 450 V | MCap EVO Oil Condensator

        €29,95

        4 In stock

        Add to cart

        Mundorf MEO-12T3.450 | 12 µF | 3% | 450 V | MCap EVO Oil Condensator

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Mundorf
        Show all Film/ foil capacitors
        MEO-12T3.450 | 12 µF | 3% | 450 V | MCap EVO Oil Condensator
        € 24,75€ 29,95 4 In stock
        • -5% Purchase 4 for only € 28,45 per piece
        • -10% Purchase 10 for only € 26,96 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        MEO-12T3.450 | 12 µF | 3% | 450 V | MCap EVO Oil Condensator

        Product description Mundorf MEO-12T3.450 | 12 µF | 3% | 450 V | Oil

        The MCap EVO Oil combines the magic of the MCap EVO‘s sound characteristic with the acoustic advantages of oil impregnated capacitors.



        Highlights

        • EVOLUTION winding technology
        • Purest Polypropylene foil vaporized
        • Metallised with a thick aluminium layer
        • Temperature range -25 to +125°C
        • RoHS compliant, lead-free
        • Oil impregnated capacitors
        • Made in Germany



        Product details

        Mundorf MEO-12T3.450 | 12 µF | 3% | 450 V | MCap EVO Oil capacitor



        The new EVO, range of capacitors from Mundorf incorporate their amazing EVOLUTION winding technology. This features an unusually narrow but tall capacitor reel. This format results in two benefits over the normal dimensioning of capacitors. Firstly, as a shorter width is required the signal path between the huge contact areas is greatly reduced, thus an extremely low equivalent series resistance/ESR is achieved. Secondly, in order to achieve the same capacitance, the number of paralleled windings is larger than with regular caps, thus a minimized equivalent series inductivity/ESL is achieved.



        The MCap® EVO was designed in 2012 as the successor of the RXF to facilitate utmost musical enjoyment even in small spaces on a limited budget. The PP capacitor film used here is first metallized with the thickest possible aluminium layer, then wound precisely into innovative EVOLUTION winding geometry and then potted by hand into special casings. The winding process is incredibly precise, the reels are spooled by hand in especially developed housing. Resulting in near avoidance of vibration and microphonic effects during the winding process. Furthermore, Mundorf use the purest Polypropylene foil vaporized with the thickest metal layer possible. The Capacitors are manufactured with one lead-out larger than the other to allow for horizontal and vertical mounting, the shorter lead also indicates the caps outer foil.



        Specifiactions: Dielectric: Polypropylene • Metallisation: Aluminium • Loss factor tan ∂: 0.0002 @ 1kHz; 0.0001 @ 10kHz • Permissible ambient temperature 85°C / 185°F • RoHS compliant (lead-free) • REACH compliant.

        Show more

        Specifications

        Article number
        MEO-12T3.450
        EAN
        9501497546817
        Capacitance (µF)
        12 µF
        Voltage Rating
        450 V
        Tolerance
        3%
        Dimensions: Ø * L (mm)
        35 x 35
        Termination Style
        Axial
