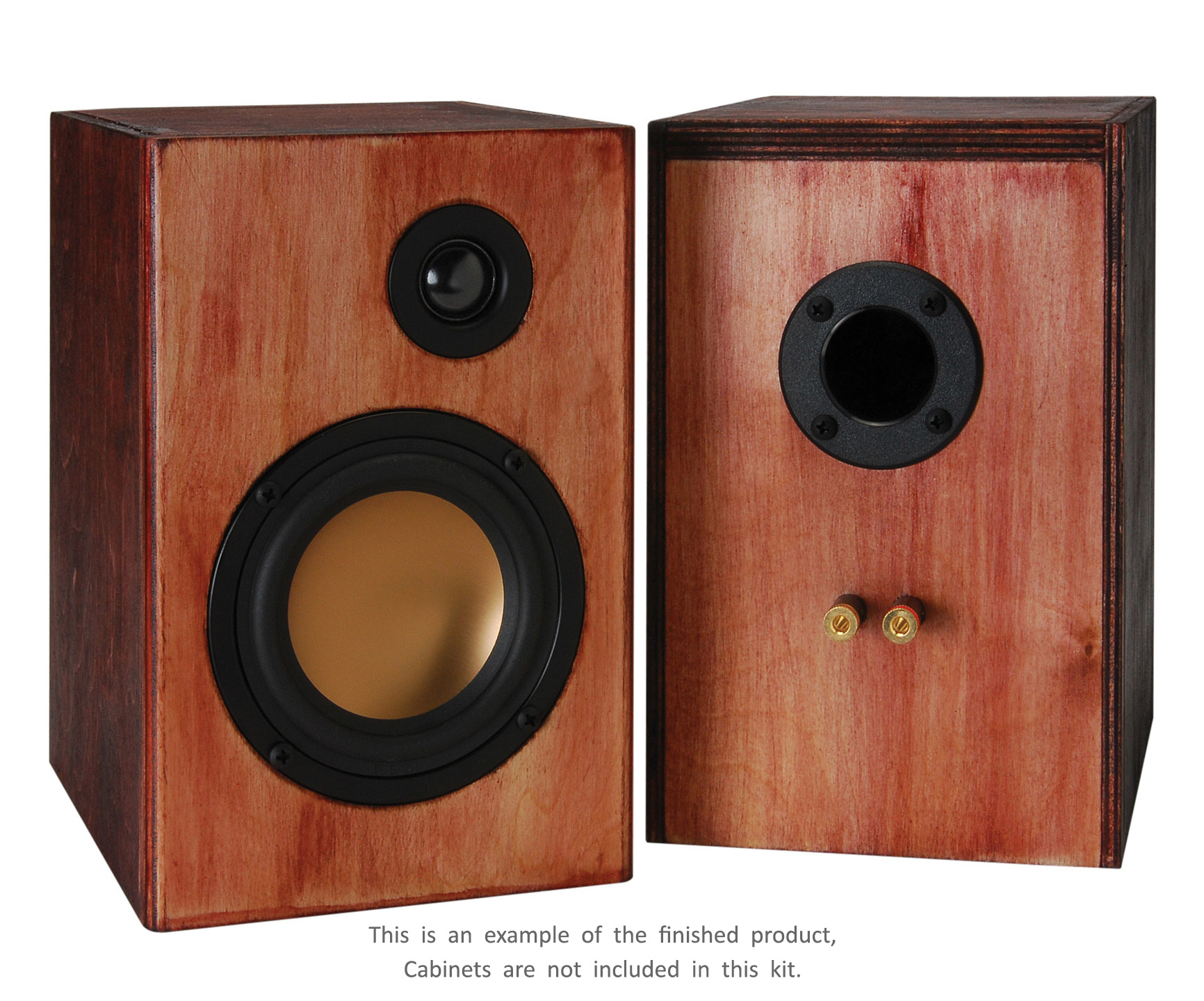

Build your own high-end near-field monitors with the audio components of the highly regarded Overnight Sensations MT speaker designed by Paul Carmody. This kit includes nearly everything to build a pair of speakers, including: drivers, ports, and crossover components.
Overnight Sensations MT Speaker Kit Pair
When Paul Carmody first listened to the Overnight Sensations speakers that he designed he exclaimed, "I wish I had a time machine. I would go back to my bedroom when I was in Jr. High or High School and give these to myself. These are the little bookshelf speakers I imagined I had: huge soundstage, deep bass, and tiny box. In reality, back then all I had were some impish Minimus-7s."
The Overnight Sensations are designed to be a quick, economical build that can put out a surprisingly big sound in a small box. Could be a weekender project for an addict, a gift for a teenager (see above), or—in Paul's case—a set of small, full-bodied monitors that he could listen to while grading papers.
For the Overnight Sensations' driver arrangement, Paul selected the versatile Dayton Audio ND20FA-6 3/4inch (1.9cm) neodymium silk dome tweeter and mated it to the attractive HiVi B4N 10cm aluminum midbass woofer. To extract as much bass as possible, Paul decided upon a cabinet size of roughly 4.5 liters which is tuned to 53 Hz using a 1-1/3inch (3.5cm) diameter port that is 6inch (15.2cm) long but feel free to design your own cabinet according to your preferences!
This kit includes nearly everything you need to build a top-notch pair of speakers in no time flat, including: drivers, ports, and crossover components.
Included Components:
| Qty | Part Number | Description |
| 2 | 004-10 | Dayton Audio DNR-10 10 Ohm 10W Precision Audio Grade Resistor |
| 2 | 004-6 | Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor |
| 2 | 027-402 | Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor |
| 2 | 027-412 | Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor |
| 2 | 027-415 | Dayton Audio DMPC-2.2 2.2uF 250V Polypropylene Capacitor |
| 2 | 027-424 | Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor |
| 2 | 255-030 | Jantzen 1204 0.35mH 20 AWG Air Core Inductor |
| 2 | 255-252 | Jantzen 1078 1.1mH 18 AWG Air Core Inductor |
| 2 | 260-388 | Port Tube 1-1/3inch (3.5cm) ID Adjustable |
| 2 | 275-030 | Dayton Audio ND20FA-6 3/4inch (1.9cm) Neodymium Dome Tweeter |
| 2 | 297-429 | HiVi B4N 4inch (10cm) Aluminum Midbass Round Frame |
| 2 | 091-340 | Binding Post Banana Jack Pair w/Tab |
| 1 | 081-423 | 25-Pack #6 x 3/4inch (1.9cm) Pan Head Deep Thread Black Screws |
| 1 | Red/Black 16 AWG 2-conductor Power Speaker Wire 1.8 m. | |
Note: Cabinets are not included.
Specifications: Power handling: 25 watts RMS/50 watts max • Impedance: 8 ohms • Sensitivity: 83 dB 1W/1m.
