The compact DX20BF00-04 semi-horn loaded 3/4" silk dome tweeter from Peerless achieves a remarkably low resonant frequency for its size by using a wide surround and large resonant chamber. With smooth response and low distortion, this is an excellent choice for smaller 2-way designs and car audio systems.
Highlights of the Peerless DX20BF00-04 Dome Tweeter
- Triple ferrite motor improves power handling over similar neodymium designs
- Extremely flat response from 1,500 Hz to 20,000 Hz up to 30° off axis

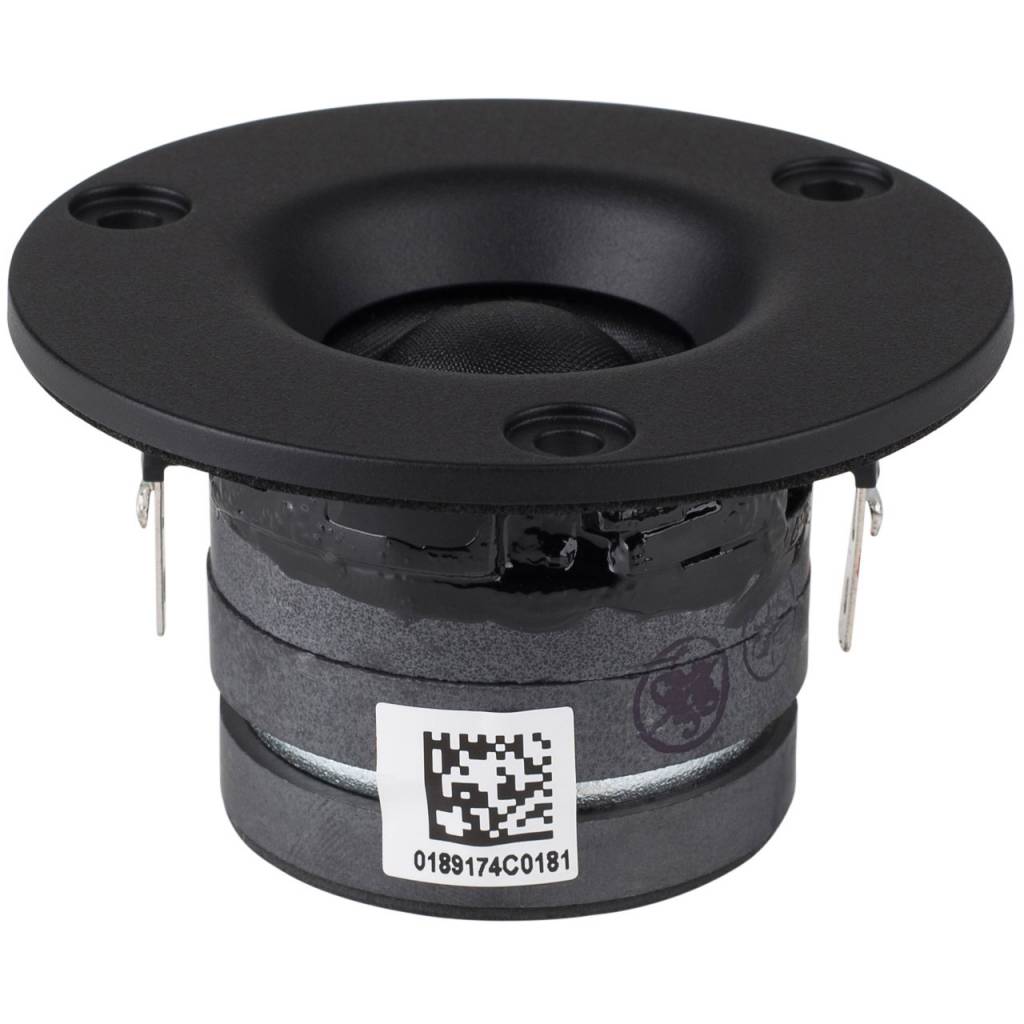

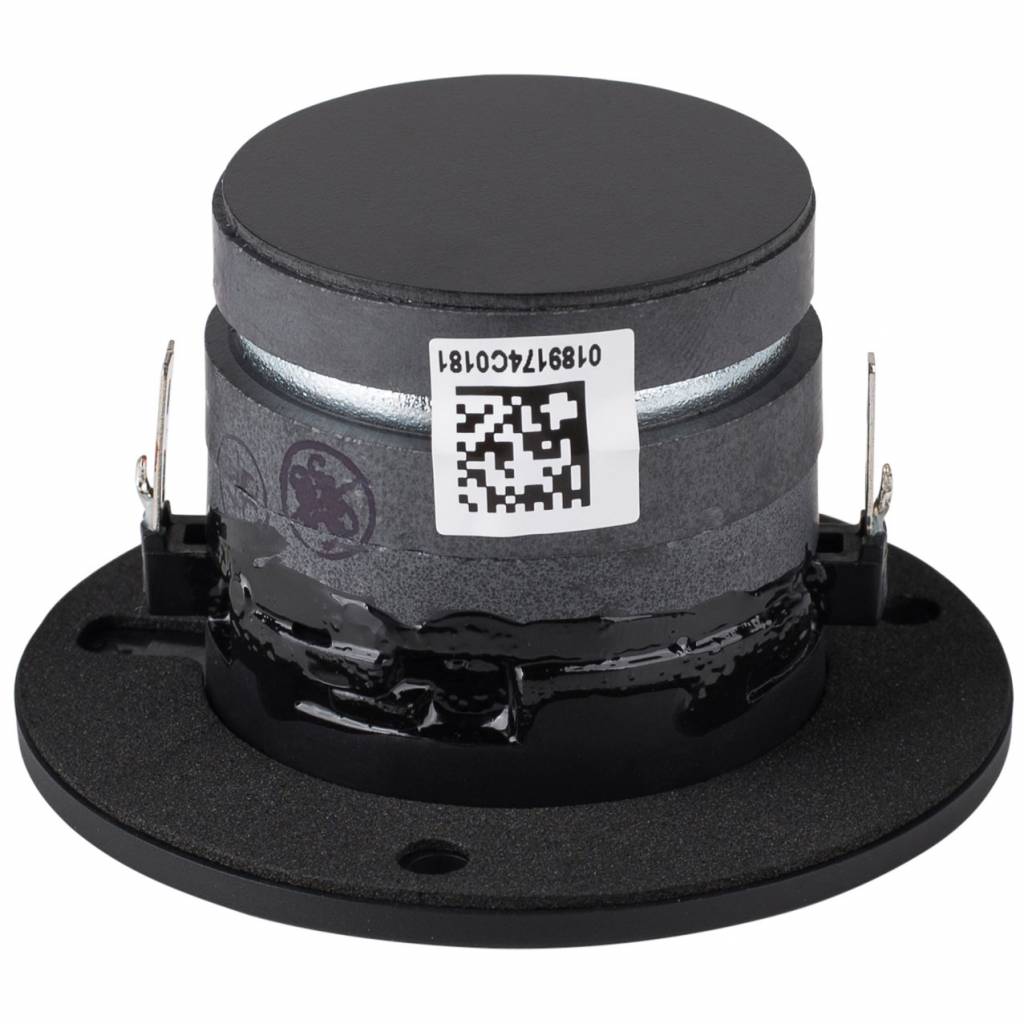

- The deep magnet design creates a large resonant chamber for a lower Fs
- Semi horn loading the dome improves efficiency and controls dispersion
Products details Peerless DX20BF00-04 Dome Tweeter
Peerless by Tymphany DX20BF00-04 3/4" Silk Dome Tweeter

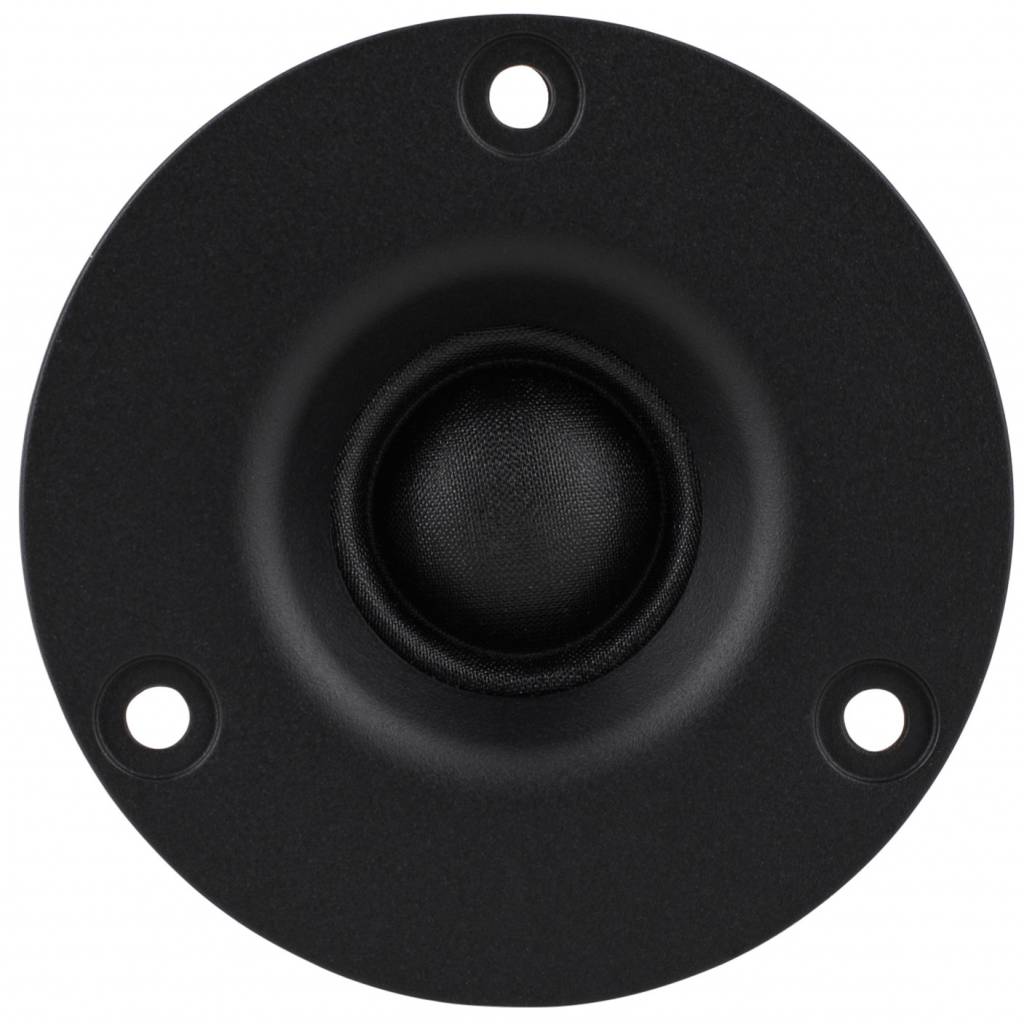

This DX family tweeter features a 19mm 4 ohm voice coil, a damped silk diaphragm with large surround roll to produce a low resonant frequency, and a ferrite magnet motor which adds heat sinking for power handling capacity. The faceplate features recessed mounting holes to minimize reflections.
FAQ about the Peerless DX20BF00-04 Dome Tweeter
How does the Peerless DX20BF00-04 perform in off-axis dispersion?
Its compact dome design provides good off-axis performance, ensuring a consistent listening experience even when you're not directly in front of the speaker.
What are the key specifications of the DX20BF00-04 tweeter?
- Impedance: 4 ohms
- Sensitivity: 89 dB (2.83V/1m)
- Frequency Range: 1,500 Hz to 20,000 Hz
- Recommended Crossover Point: > 2,500 Hz
- Power Handling: 15W RMS / 30W peak
What are the physical dimensions of the DX20BF00-04 dome tweeter?
- Faceplate Diameter: 2.17 inches (55mm)
- Depth: 1.22 inches (31mm)

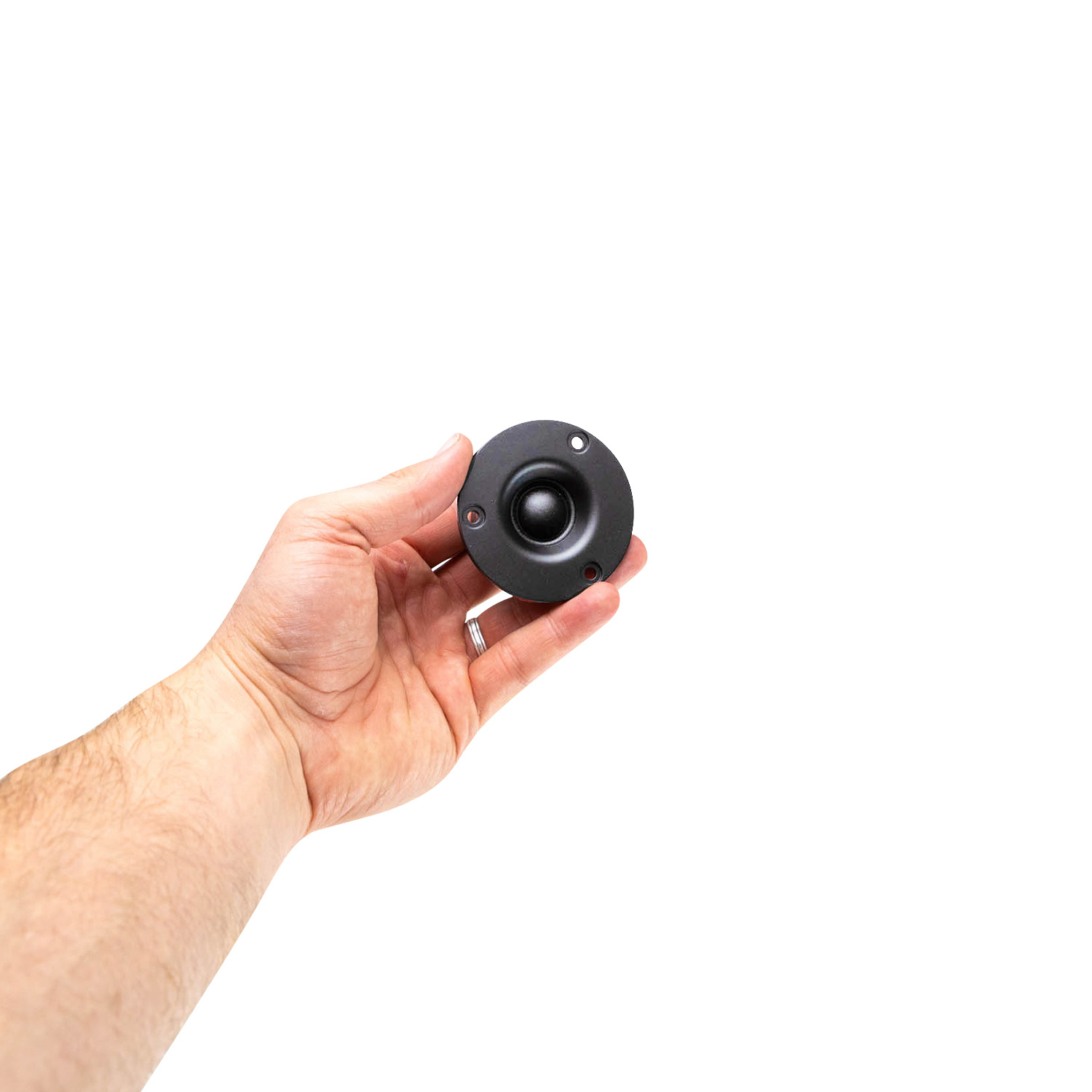

Its compact size makes it suitable for tight spaces and small speaker enclosures.
What crossover design is recommended for this tweeter?
A high-pass crossover with a cutoff frequency of at least 2,500 Hz is recommended. Using a second-order (12dB/octave) or higher crossover will protect the tweeter from excessive low-frequency energy.

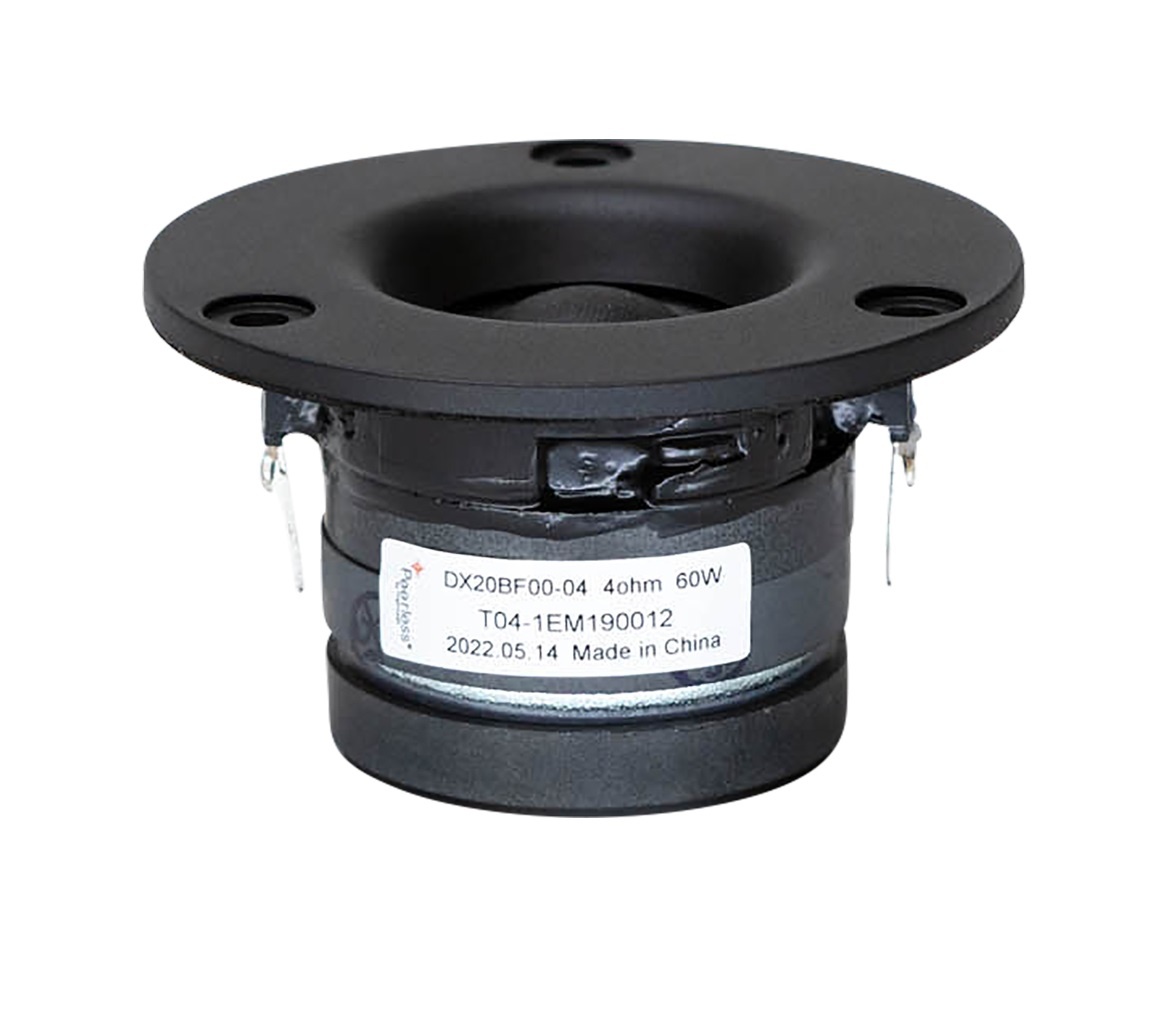

Peerless by Tymphany manufacturing code: T04-1EM190012
