        HDS-P830870 Bass-midwoofer

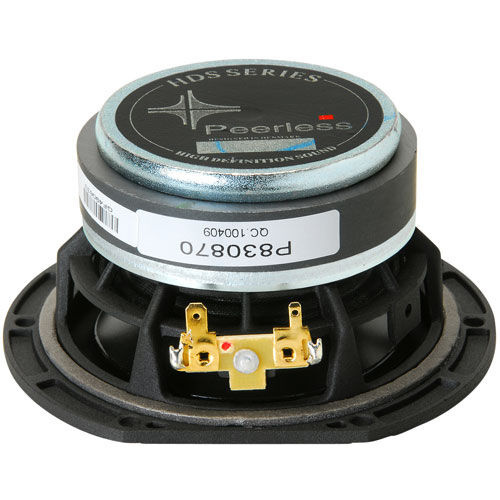

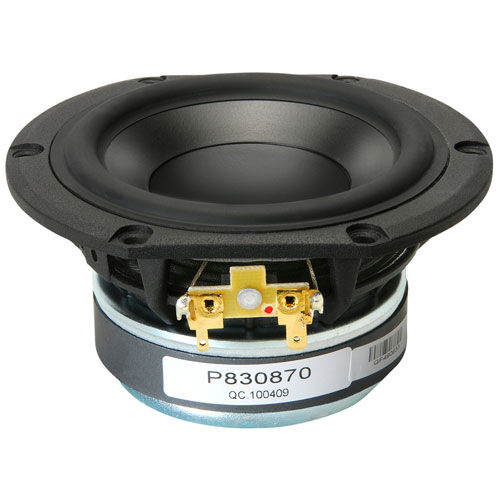

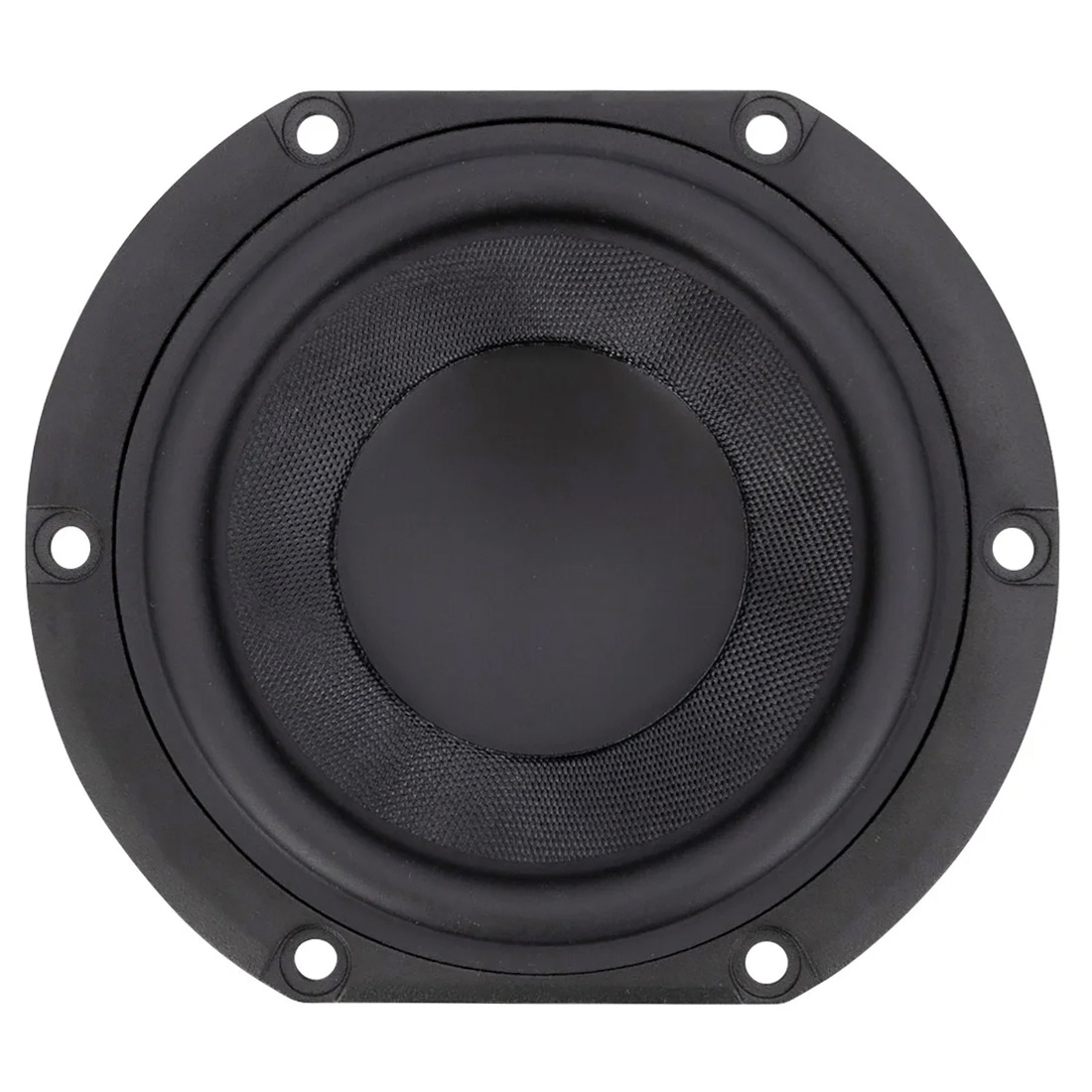

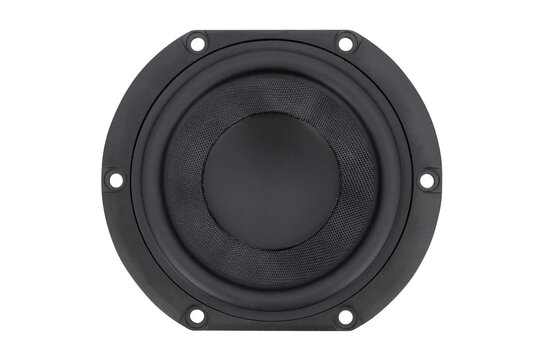

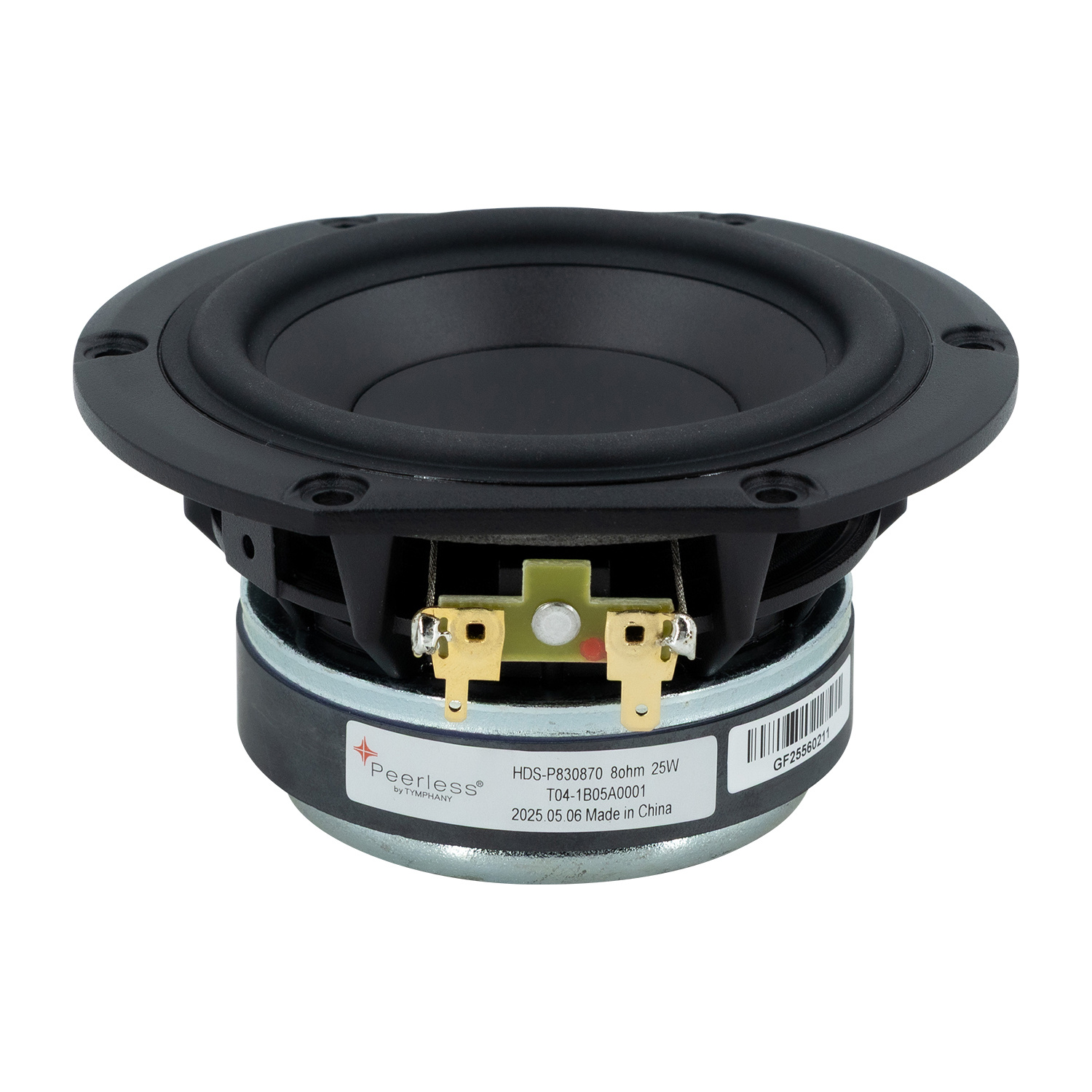

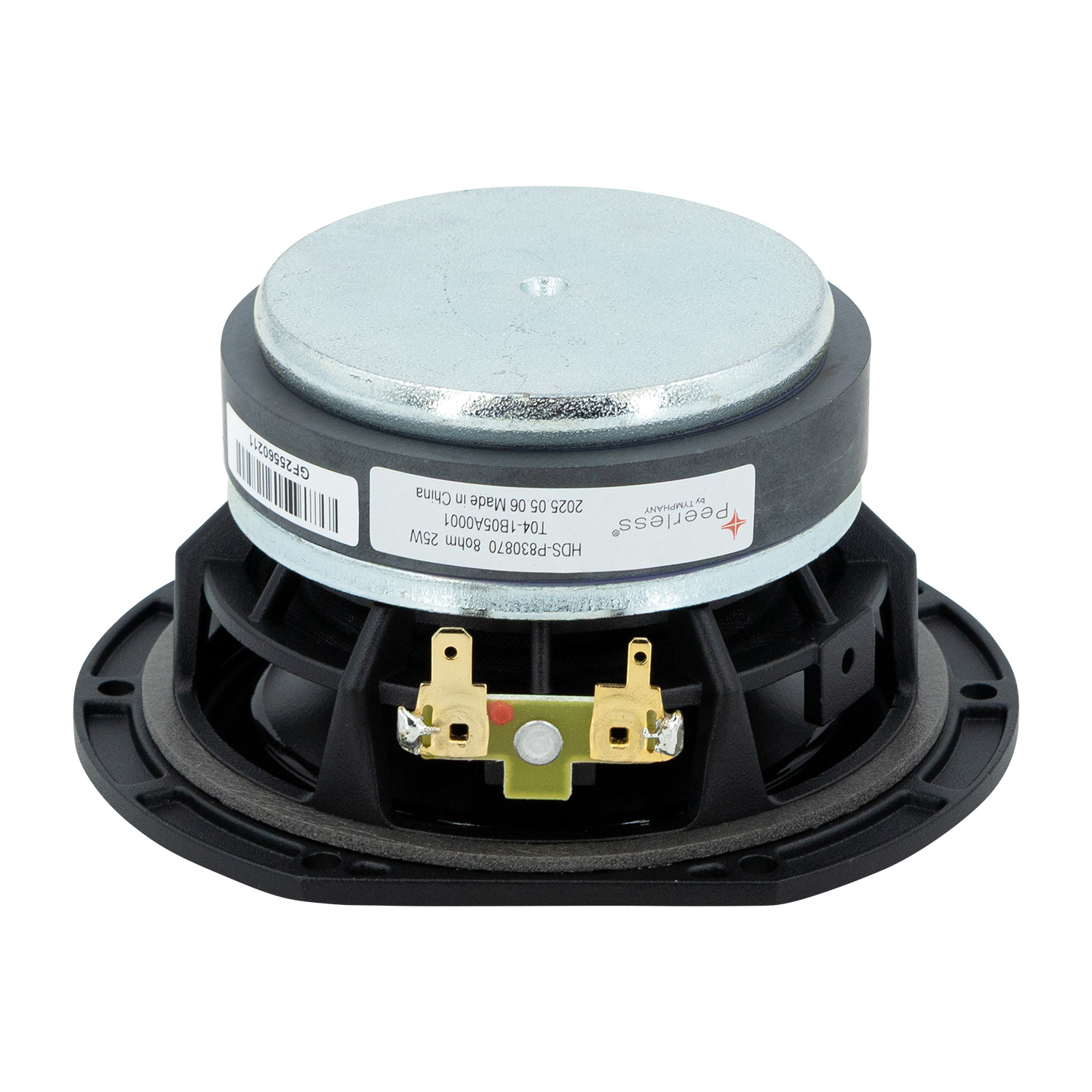

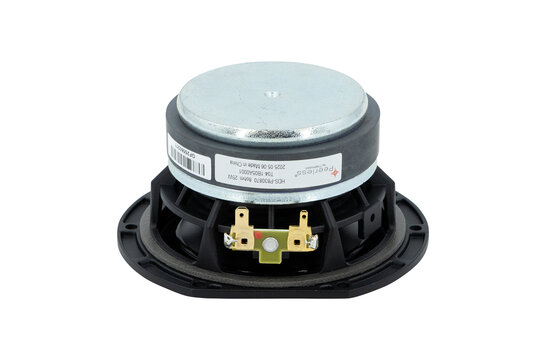

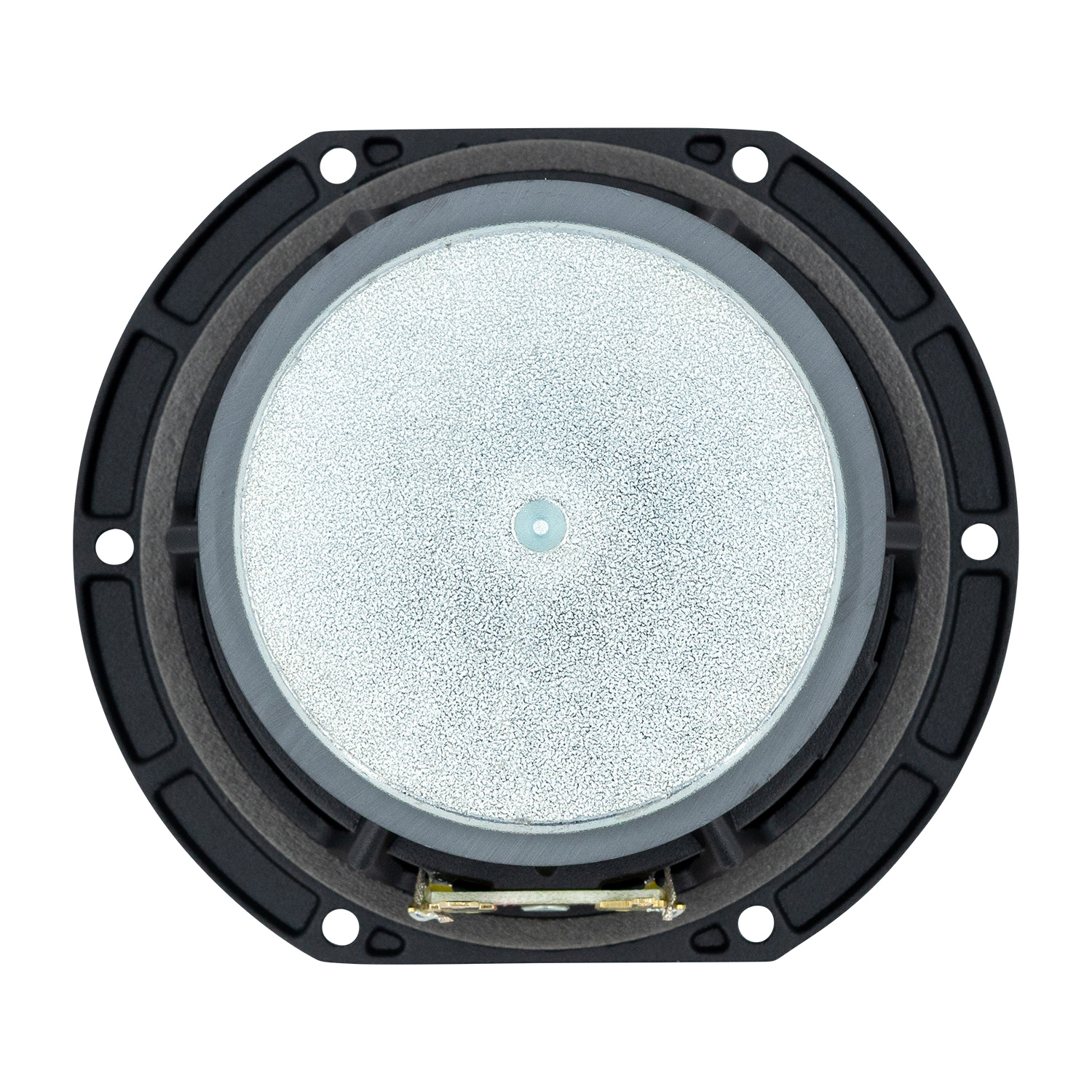

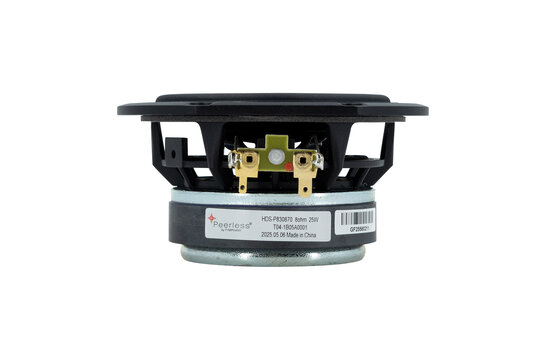

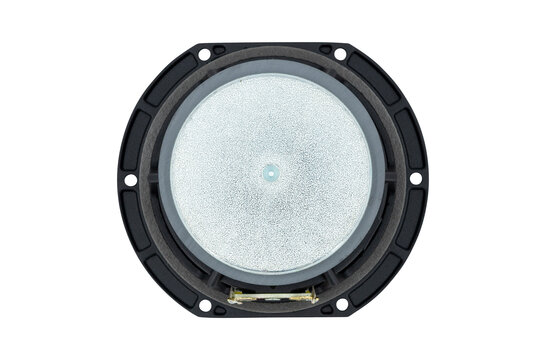

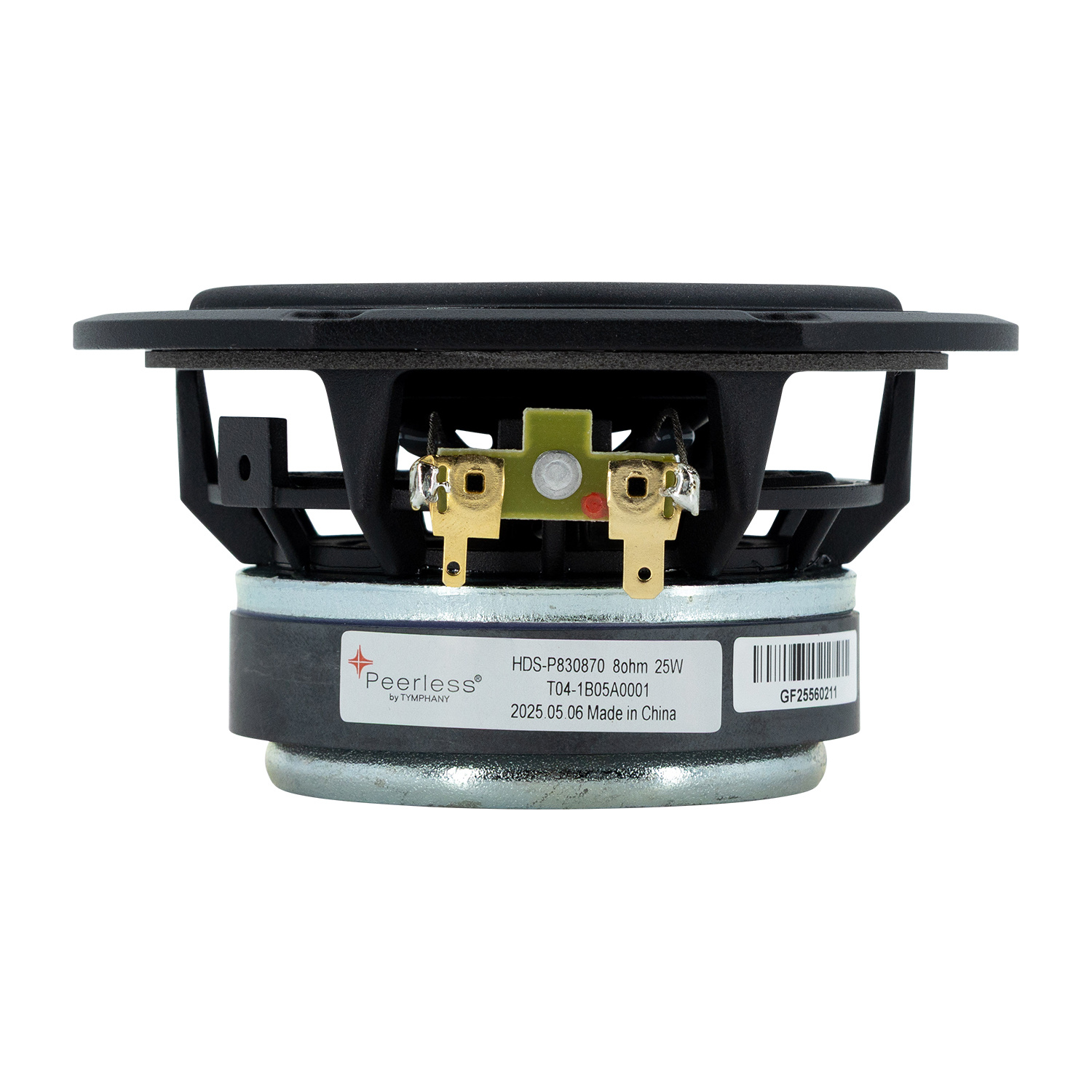

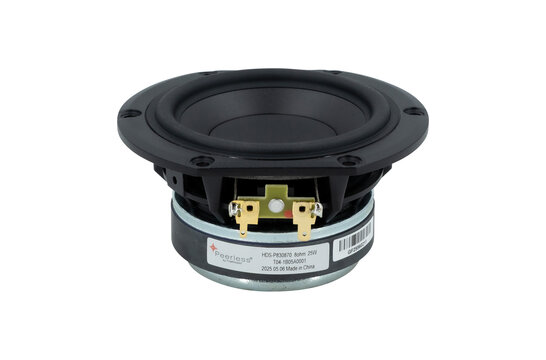

        Peerless by Tymphany HDS-P830870 Bass-midwoofer

        €49,95

        Out of stock

        Peerless by Tymphany HDS-P830870 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 41,28€ 49,95 Out of stock

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Peerless by Tymphany HDS-P830870 Bass-midwoofer

        The Peerless by Tymphany HDS-P830870 is a 4-inch, 8-ohm bass-midwoofer that is part of the company's High Definition Sound (HDS) series of high-quality speakers. It features a polypropylene cone, a fully ventilated diecast chassis, and a powerful long-throw motor system. This combination of features allows the HDS-P830870 to reproduce a wide range of frequencies with accuracy and clarity.



        Highlights

        • Smooth and extended frequency response
        • Powerful long-throw motor system
        • Polypropylene cone assembly
        • Vented cone neck / coil former
        • Fully vented diecast chassis
        • Versatile for a variety of applications



        Product details

        Peerless by Tymphany HDS-P830870 Bass-midwoofer



        The polypropylene cone is lightweight and stiff, which helps to reproduce accurate mid-range frequencies. The long excursion motor system allows the cone to move a large amount of air, which is important for reproducing deep bass frequencies. The vent on the cone neck and coil former helps to dissipate heat and improves the efficiency of the speaker. The fully vented diecast chassis is very strong and rigid, which helps to prevent the speaker from distorting under high power.



        The HDS-P830870 is a versatile bass-midwoofer that can be used in a variety of applications, including home audio, car audio, and professional sound reinforcement. It is a good choice for speakers that need to reproduce accurate mid-range and bass frequencies.

        Show more

        Specifications

        Article number
        HDS-P830870
        EAN
        9505384531368
        Woofer Series
        Peerless by Tymphany HDS series
        Woofer Type
        Bass-midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        30 Watts
        Power Handling (max)
        60 Watts
        Impedance (Z)
        Sensitivity (SPL at 1m / 2.83V)
        85.9 dB
        Frequency Response
        90 to 6,000Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        5.2Ω
        Voice Coil Inductance (Le)
        0.16mH
        Resonant Frequency (Fs)
        91 Hz
        Mechanical Q (Qms)
        1.92
        Electromagnetic Q (Qes)
        0.74
        Total Q (Qts)
        0.53
        Diaphragm Mass Inc. Airload (Mms)
        6.1g
        Mechanical Compliance of Suspension (Cms)
        0.51mm/N
        Surface Area of Cone (Sd)
        56.8cm²
        BL Product (BL)
        4.94T·m
        Compliance Equivalent Volume (Vas)
        0.08ft³
        Maximum Linear Excursion (Xmax)
        3 mm
        Cone / Diaphragm Material
        Poly
        Surround Material
        Rubber
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        4.76"
        Overall Depth
        2.09"
        Baffle Cutout Diameter
        3.74"
        # Mounting Holes
        6
        Sealed Volume
        0.07ft³
        Sealed F3
        136Hz
        Vented Volume
        0.15ft³
        Vented F3
        72.6Hz
