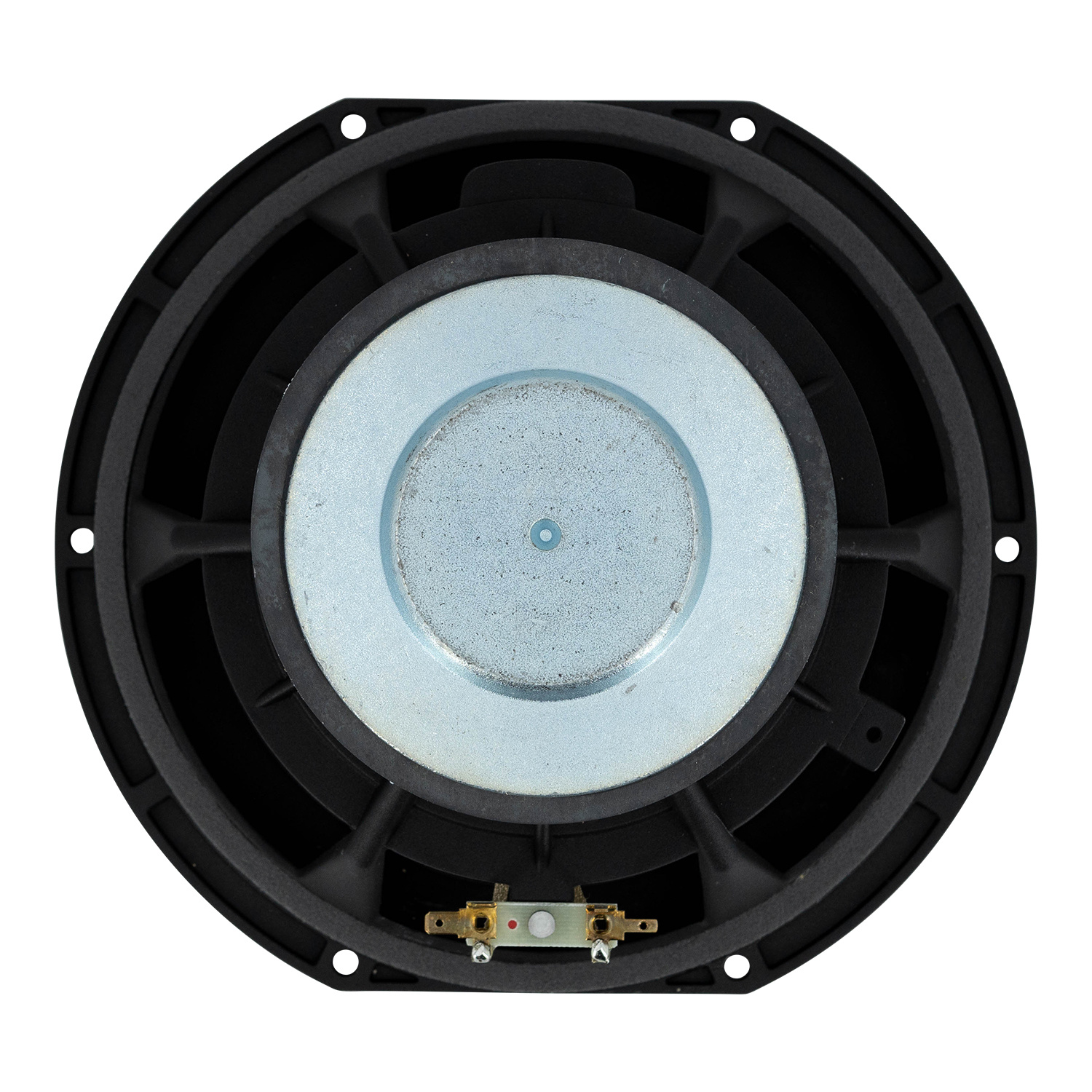

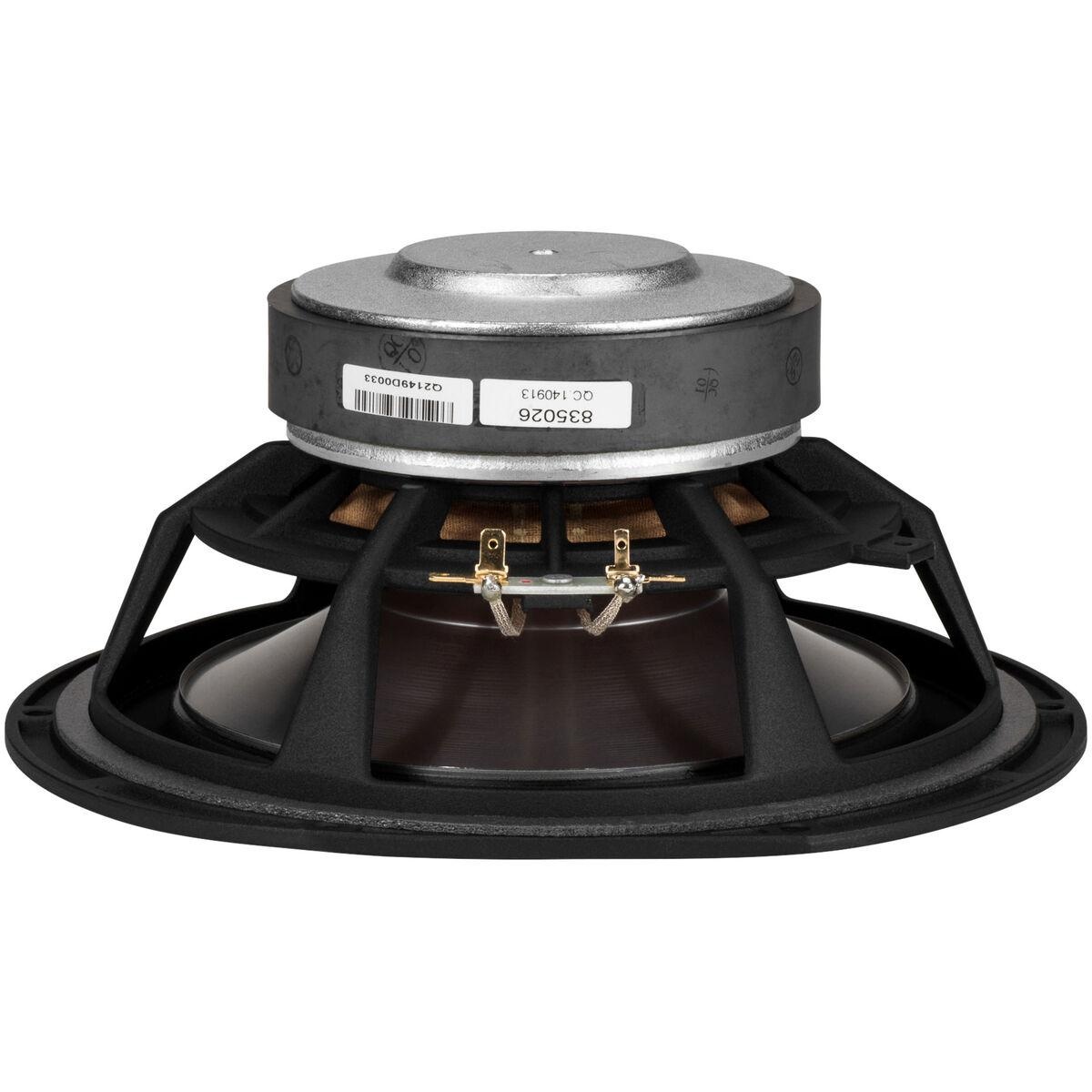

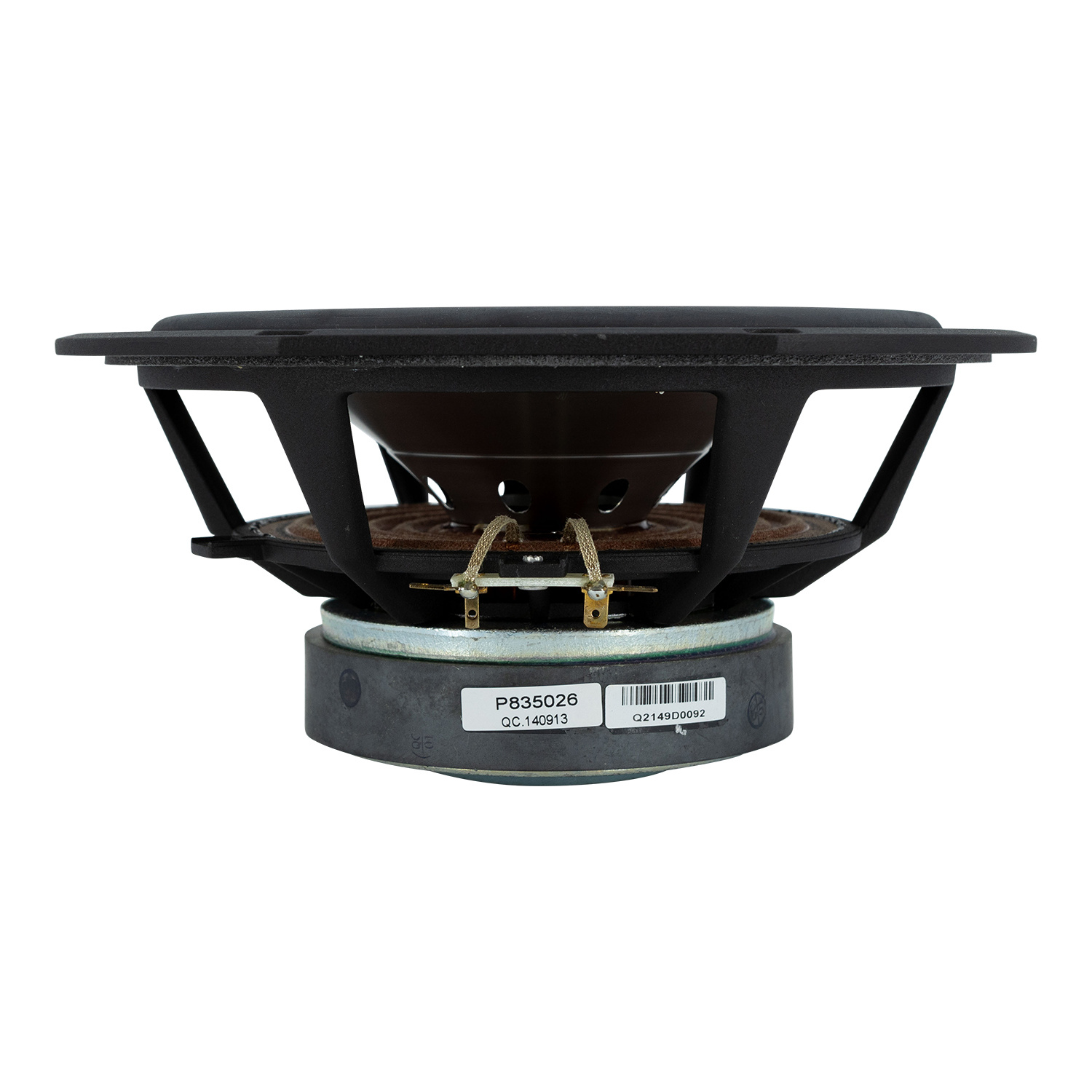

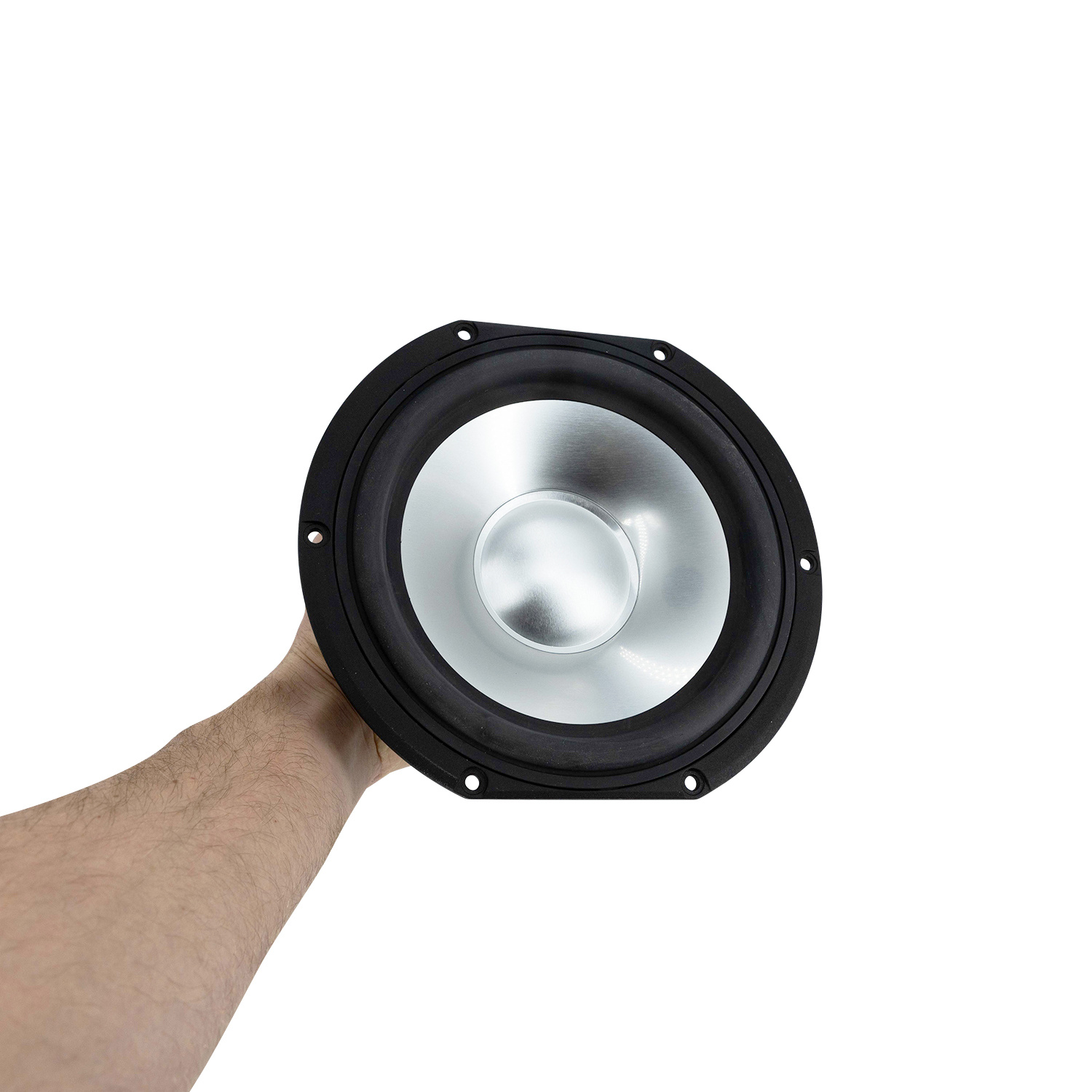

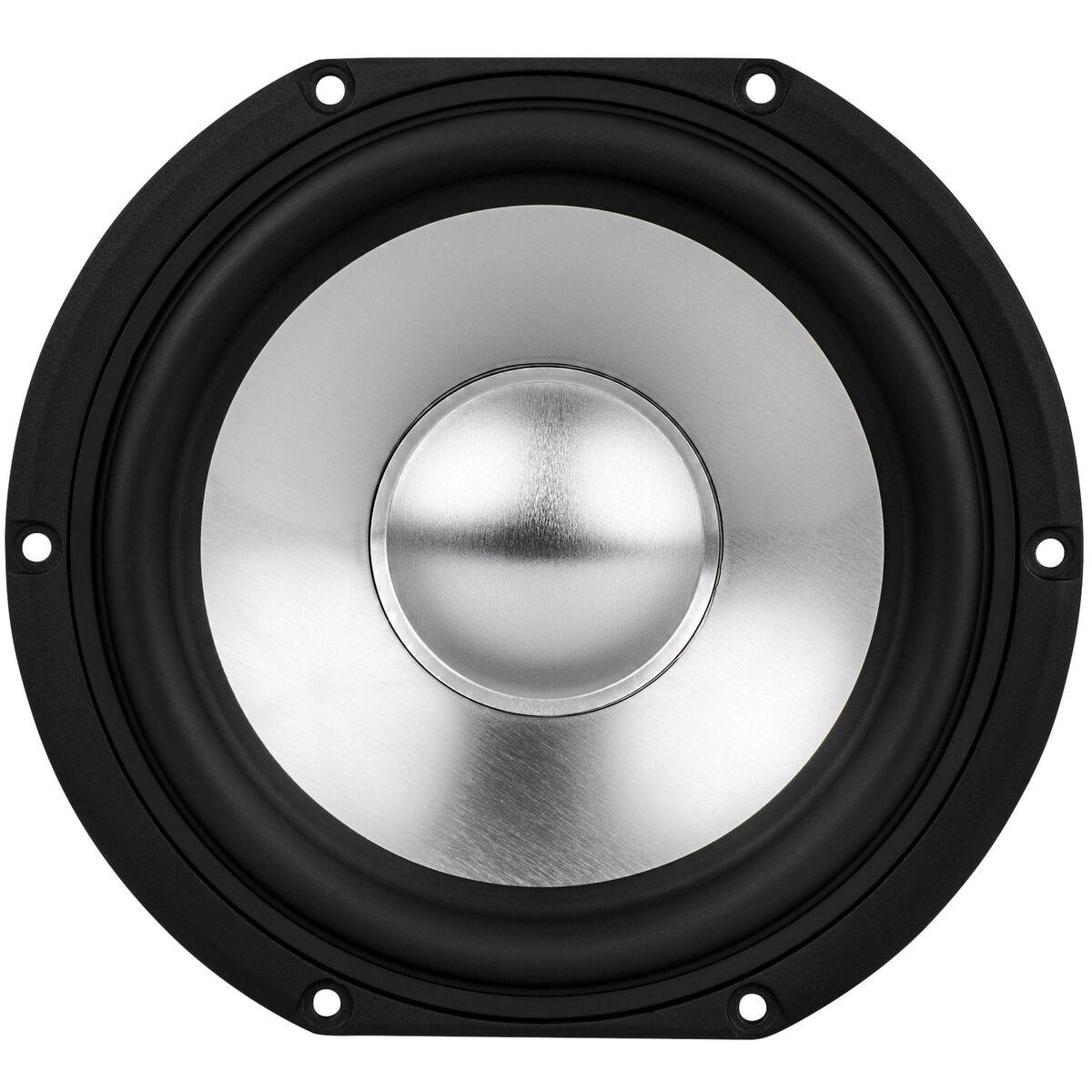

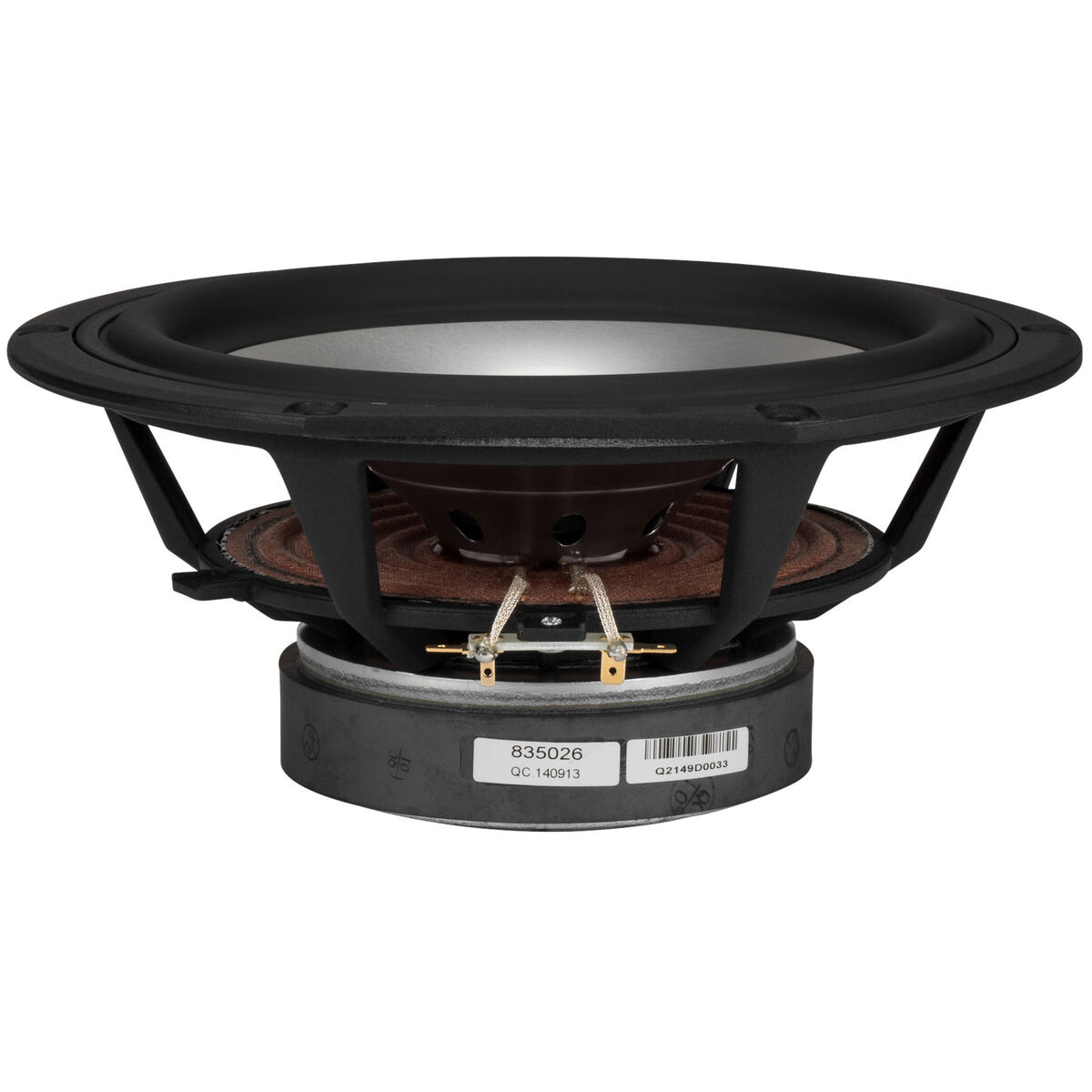

        Peerless by Tymphany 835026 8" Aluminum Cone HDS Bass-midwoofer

        Peerless by Tymphany Peerless by Tymphany 835026 8" Aluminum Cone HDS Bass-midwoofer

        €89,95

        10+ In stock

        Peerless by Tymphany Peerless by Tymphany 835026 8" Aluminum Cone HDS Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 74,34€ 89,95 10+ In stock
        • -5% Purchase 4 for only € 85,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Peerless by Tymphany HDS-P835026 Bass-midwoofer

        This 8 inch 8 ohm driver is a member of the high performance HDS family. The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.



        Highlights

        • Truncated cast aluminum frame
        • Aluminum cone with half-roll rubber surround
        • 1-1/2" diameter long-throw voice coil
        • Shorting rings for reduced distortion
        • Under-spider and voice coil ventilation



        Product details

        Peerless by Tymphany HDS-P835026 8" Aluminum Cone HDS Bass-midwoofer



        The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion.



        A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. The aluminum cone combines high strength with low moving mass, offering superb transient response and sharp definition.

        Show more

        Specifications

        Article number
        HDS-P835026
        EAN
        0844632084119
        Woofer Series
        Peerless by Tymphany HDS series
        Nominal Diameter
        8 Inch
        Power Handling (RMS)
        75 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Frequency Response
        20 - 3000 Hz
        Voice Coil Diameter
        38.44 mm
        DC Resistance (Re)
        5.43 Ω
        Voice Coil Inductance (Le)
        0.36 mH
        Resonant Frequency (Fs)
        31.12 Hz
        Mechanical Q (Qms)
        4.96
        Electromagnetic Q (Qes)
        0.52
        Total Q (Qts)
        0.47
        Diaphragm Mass Inc. Airload (Mms)
        38 g
        Mechanical Compliance of Suspension (Cms)
        688.8 µm/N
        Surface Area of Cone (Sd)
        232.4 cm²
        Compliance Equivalent Volume (Vas)
        65.96 L
        Maximum Linear Excursion (Xmax)
        6 mm
        Basket / Frame Material
        Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        225 mm
        Overall Depth
        96.5 mm
        # Mounting Holes
        6
