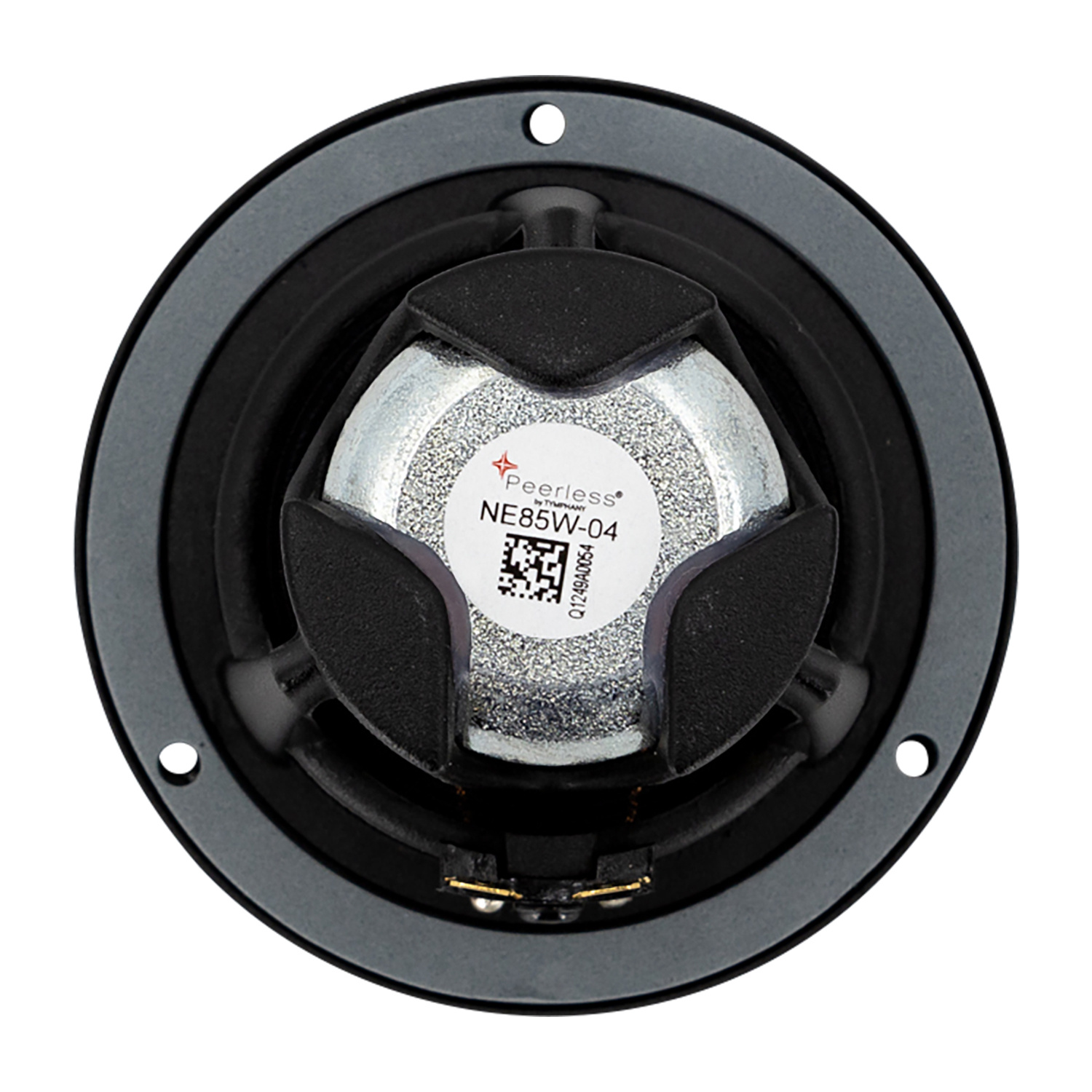

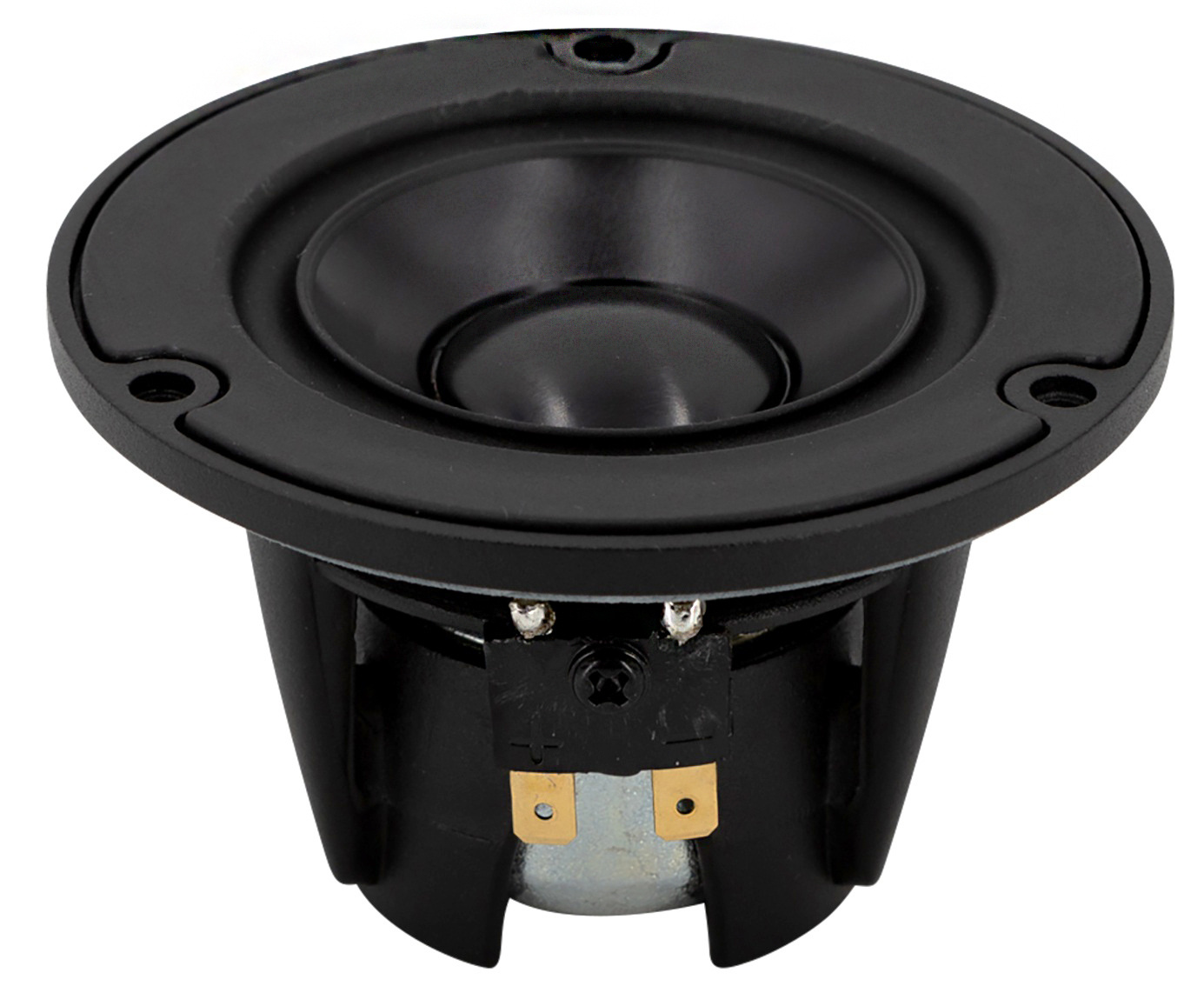

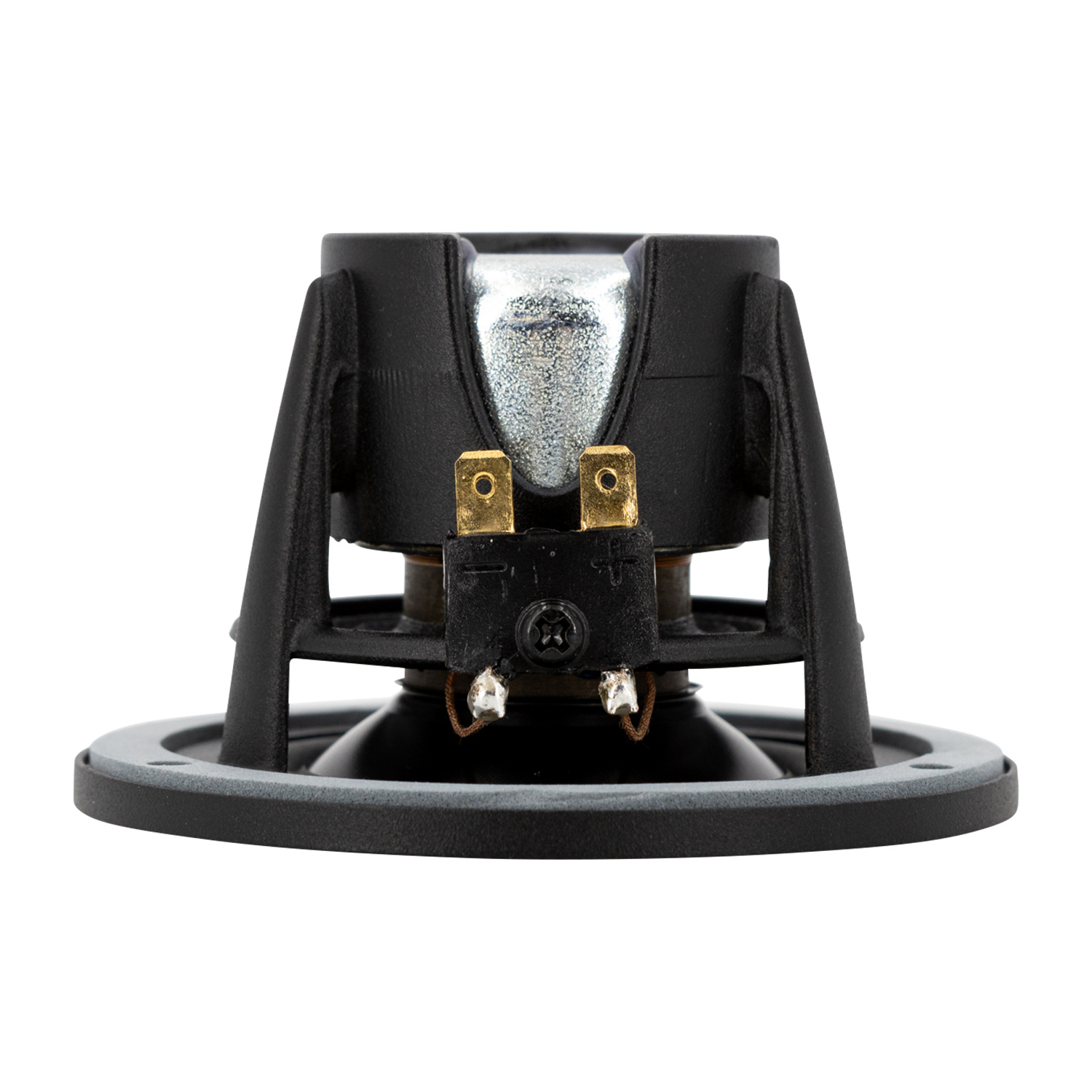

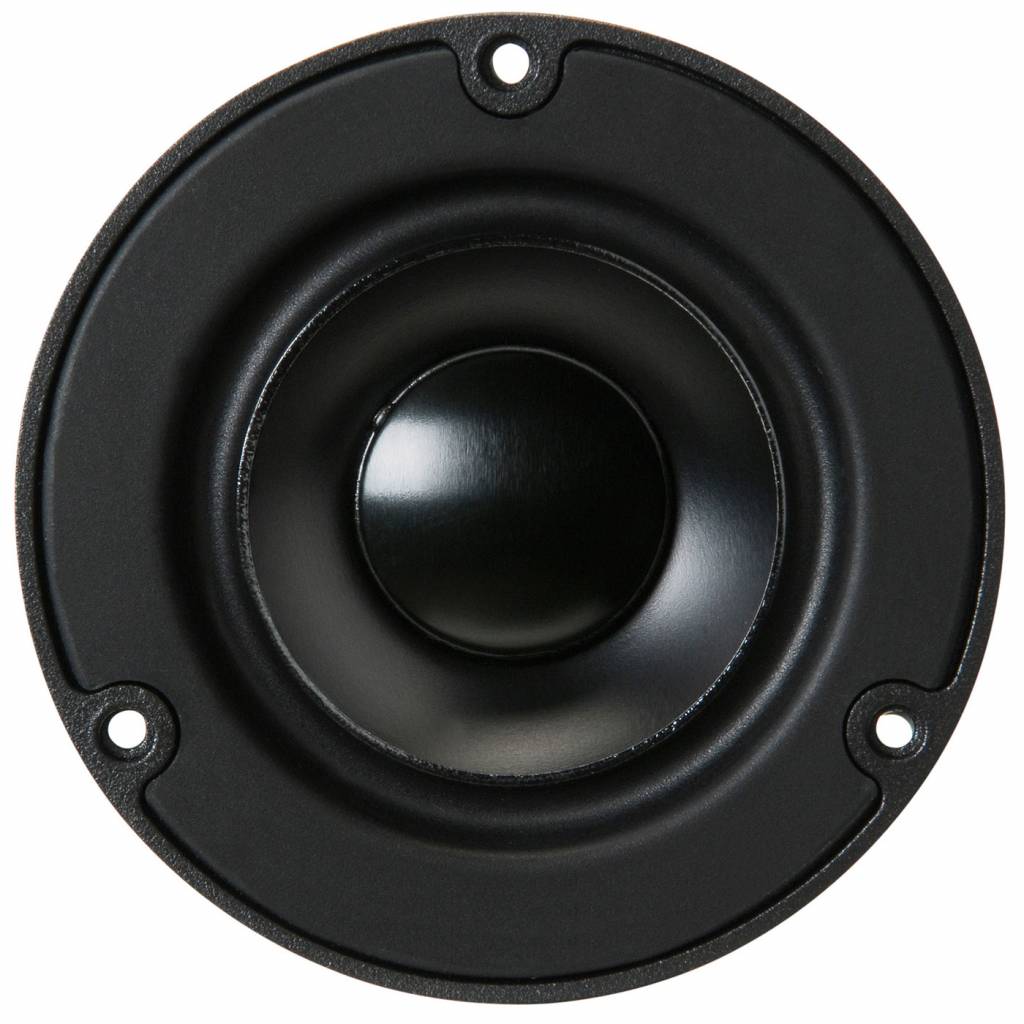

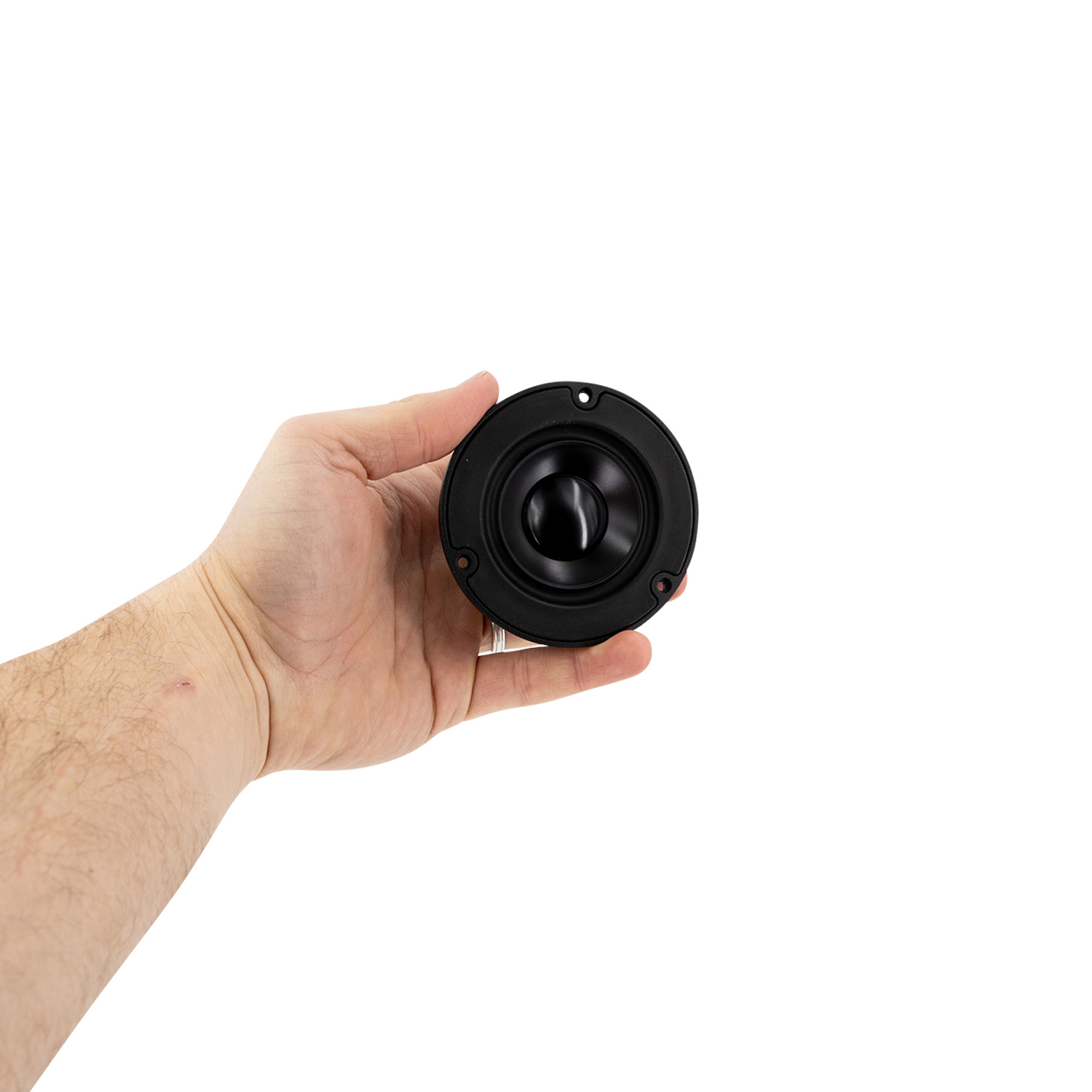

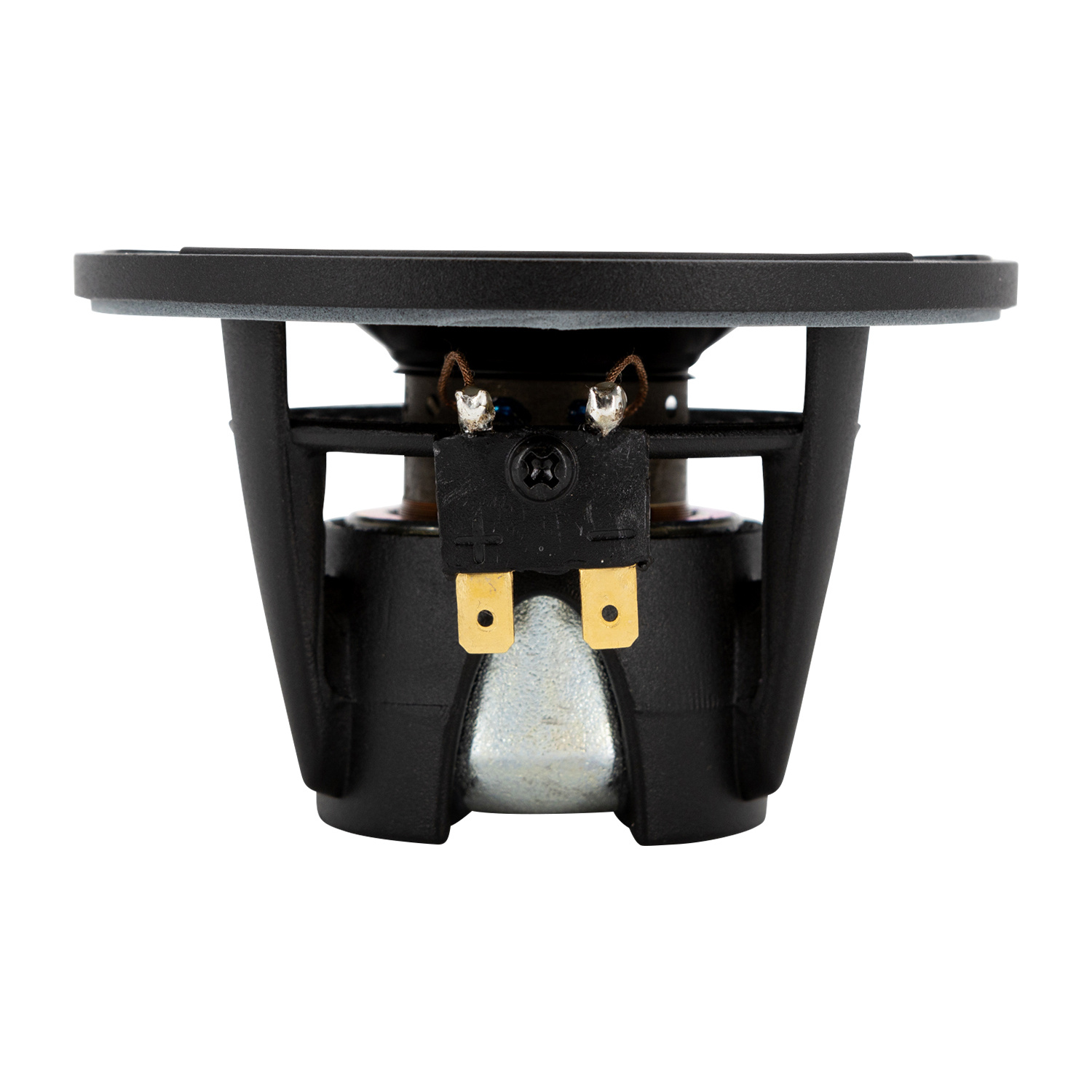

        NE85W-04 2-1/2" Full Range Woofer

        Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer

        €59,95

        10+ expected on 06-12-2024

        Add to cart

        Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        Show all Peerless by Tymphany woofers
        2.5" | 4 Ω
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        € 49,55€ 59,95 Out of stock10+ expected on 06-12-2024
        • -5% Purchase 4 for only € 56,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer
        NE85W-04 2-1/2" Full Range Woofer

        Product description Peerless by Tymphany NE85W-04 Full-range Woofer

        Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.



        Highlights of the Peerless NE85W-04 Full-range Woofer

        • Cast aluminum frame acts as a heatsink
        • Sculpted design promotes cooling and reduces reflections
        • High-strength compact neodymium motor
        • Aluminum cone with half-roll rubber surround
        • Long-throw voice coil on titanium former
        • Copper pole piece cap for extended HF response
        • 4 ohm nominal impedance



        Product details Peerless NE85W-04 Full-range Woofer

        Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer



        This 2.5 inch 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The full-range drivers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone is aluminium, with a butyl rubber surround designed through finite element analysis for linearity of performance. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies.



        FAQ about the Peerless by Tymphany NE85W-04 Full-range Woofer

        What is the power handling of the Peerless NE85W-04 Full-range Woofer?

        It has a rated power handling of 30W RMS and a maximum power handling of 60W, suitable for small to medium-sized audio applications.



        What are the Thiele/Small parameters for the NE82W-04 Full-range woofer?

        • Fs (Resonance Frequency): 80 Hz
        • Qts (Total Q Factor): 0.44
        • Vas (Equivalent Volume): 2.0 liters
        • Xmax (Linear Excursion): ±3 mm



        Can the NE82E-04 Full-range woofer be used without a tweeter?

        Yes, the NE85W-04 is designed to operate as a full-range driver. Its high-frequency response extends up to 20 kHz, making it capable of functioning without additional tweeters in many configurations.



        What type of enclosures work bvest for the NE82E-04 Full-range woofer?

        The NE85W-04 works well in both sealed and ported enclosures. A small sealed box of around 0.05 cubic feet or a ported enclosure tuned to 80 Hz will optimize its performance.



        Peerless by Tymphany manufacturing code: T04-1D02B0009











        Show more

        Specifications

        Article number
        NE85W-04
        EAN
        0844632083877
        Woofer Series
        Peerless by Tymphany NE series
        Woofer Type
        Full-range
        Nominal Diameter
        2-1/2"
        Power Handling (RMS)
        20 Watts
        Power Handling (max)
        40 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.7 dB
        Frequency Response
        100 to 20,000 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        3.7 ohms
        Voice Coil Inductance (Le)
        0.06 mH
        Resonant Frequency (Fs)
        105 Hz
        Mechanical Q (Qms)
        8.5
        Electromagnetic Q (Qes)
        0.69
        Total Q (Qts)
        0.64
        Diaphragm Mass Inc. Airload (Mms)
        2.16g
        Mechanical Compliance of Suspension (Cms)
        1.07 mm/N
        Surface Area of Cone (Sd)
        22.1 cm²
        BL Product (BL)
        2.75 Tm
        Compliance Equivalent Volume (Vas)
        0.03ft.³
        Maximum Linear Excursion (Xmax)
        1.75 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Neodymium
        Overall Outside Diameter
        3.35"
        Overall Depth
        2.02"
        Baffle Cutout Diameter
        2.25"
        # Mounting Holes
        3
        Sealed Volume
        0.05 ft.³
        Sealed F3
        131 Hz
        Vented Volume
        0.08 ft.³
        Vented F3
        68 Hz

        Show more

        Reviews

        1 reviews
        Review this product
        4 of 5
        Nice sound from this small speaker
        By Ola S. on 10 September 2019
