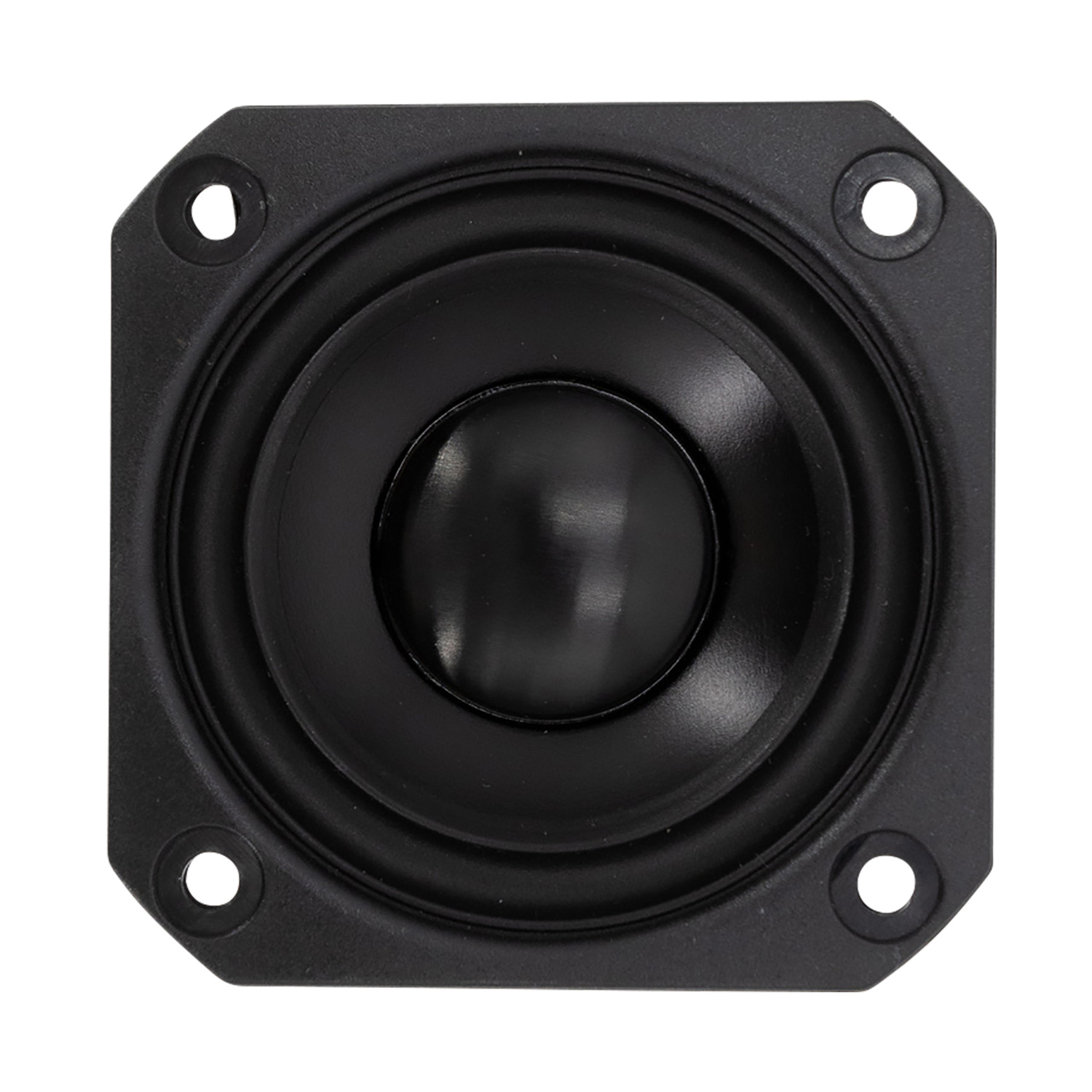

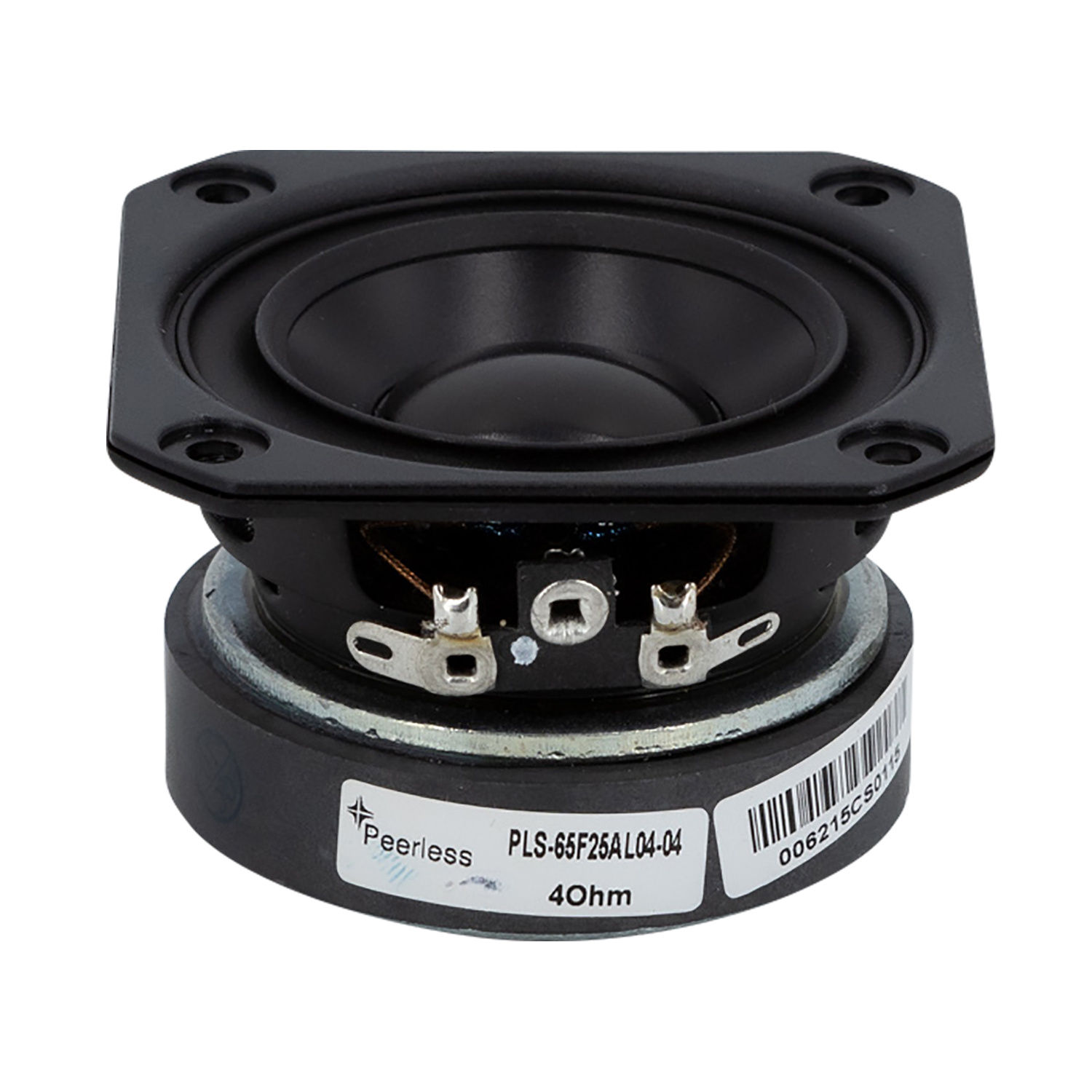

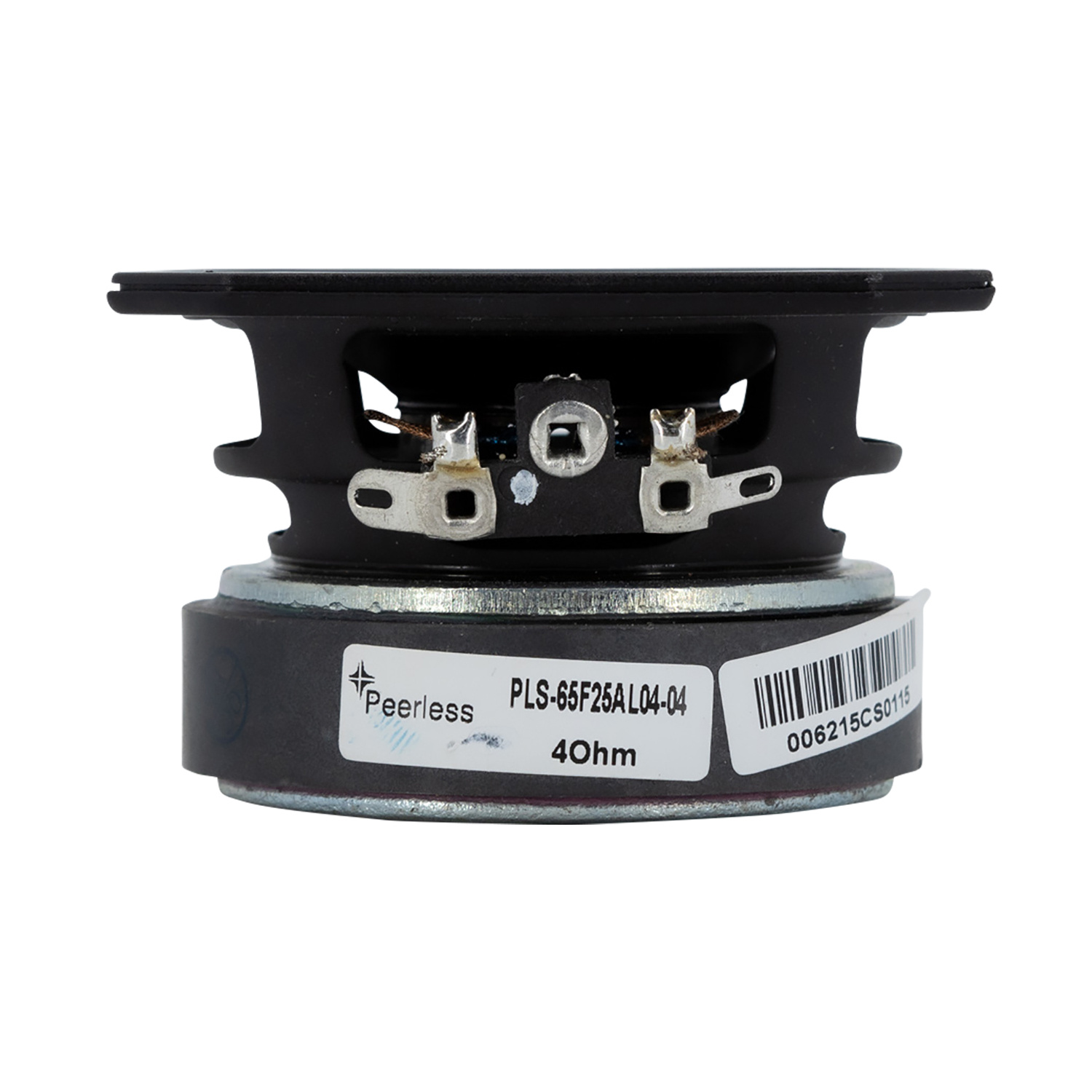

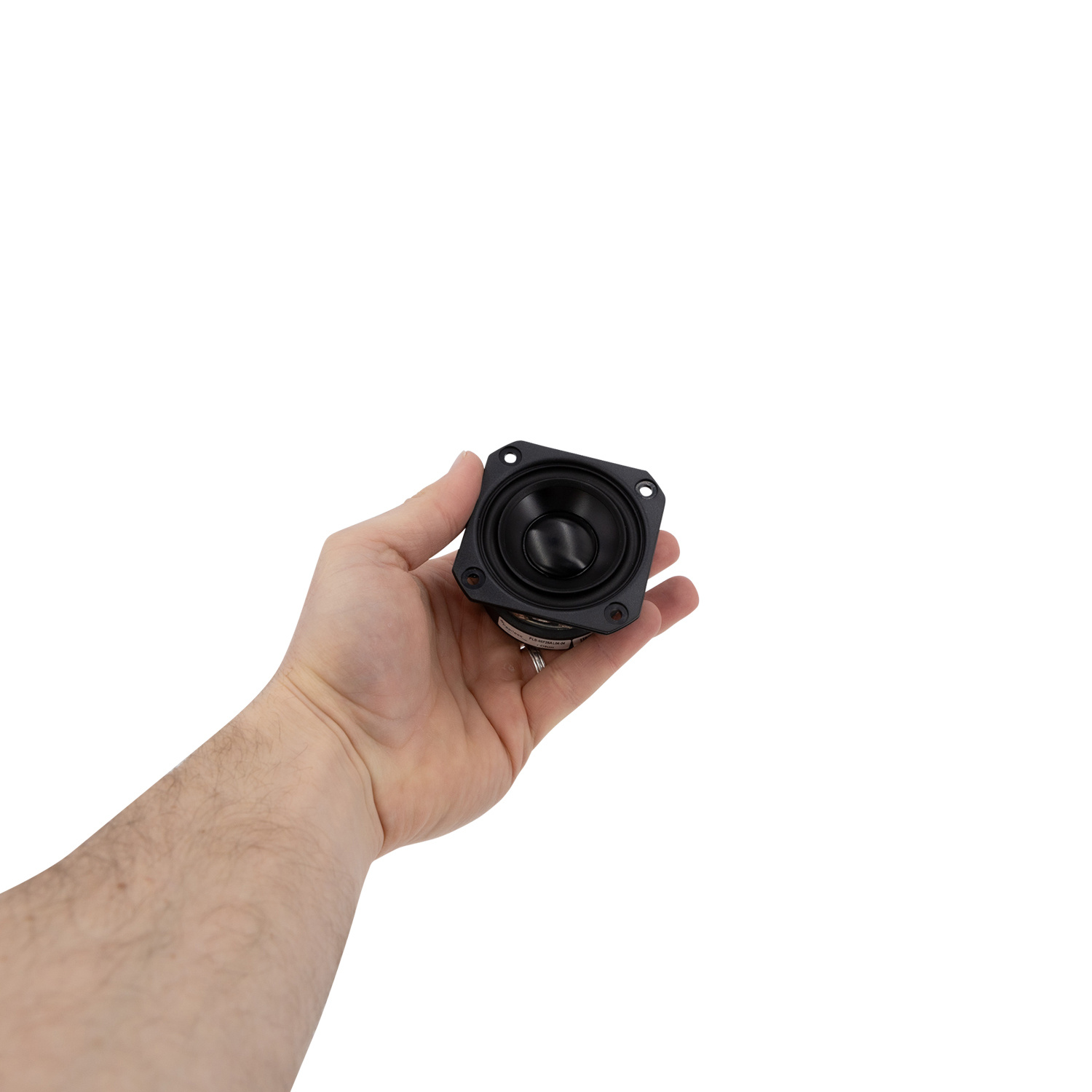

- Article number
- PLS-65F25AL04-04
- EAN
- 9503727173398
- Woofer Series
- Peerless by Tymphany PLS series
- Woofer Type
- Full-range
- Nominal Diameter
- 2-1/2"
- Power Handling (RMS)
- 25 Watts
- Power Handling (max)
- 50 Watts
- Impedance (Z)
- 4Ω
- Sensitivity (SPL at 1m / 2.83V)
- 84.99 dB
- Voice Coil Diameter
- 1.01"
- DC Resistance (Re)
- 3.43Ω
- Voice Coil Inductance (Le)
- 0.03mH
- Resonant Frequency (Fs)
- 112.07 Hz
- Mechanical Q (Qms)
- 3.08
- Electromagnetic Q (Qes)
- 0.85
- Total Q (Qts)
- 0.67
- Diaphragm Mass Inc. Airload (Mms)
- 2.1g
- Mechanical Compliance of Suspension (Cms)
- 954.6mm/N
- Surface Area of Cone (Sd)
- 21.2cm²
- BL Product (BL)
- 2.45T·m
- Compliance Equivalent Volume (Vas)
- 0.02ft³
- Maximum Linear Excursion (Xmax)
- 1.7 mm
- Cone / Diaphragm Material
- Aluminum
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 2.91"
- Overall Depth
- 1.78"
- Baffle Cutout Diameter
- 2.37"
- # Mounting Holes
- 4
- Sealed Volume
- 0.06ft³
- Sealed F3
- 132.5Hz
- Vented Volume
- 0.07ft³
- Vented F3
- 79.8Hz
