- Article number

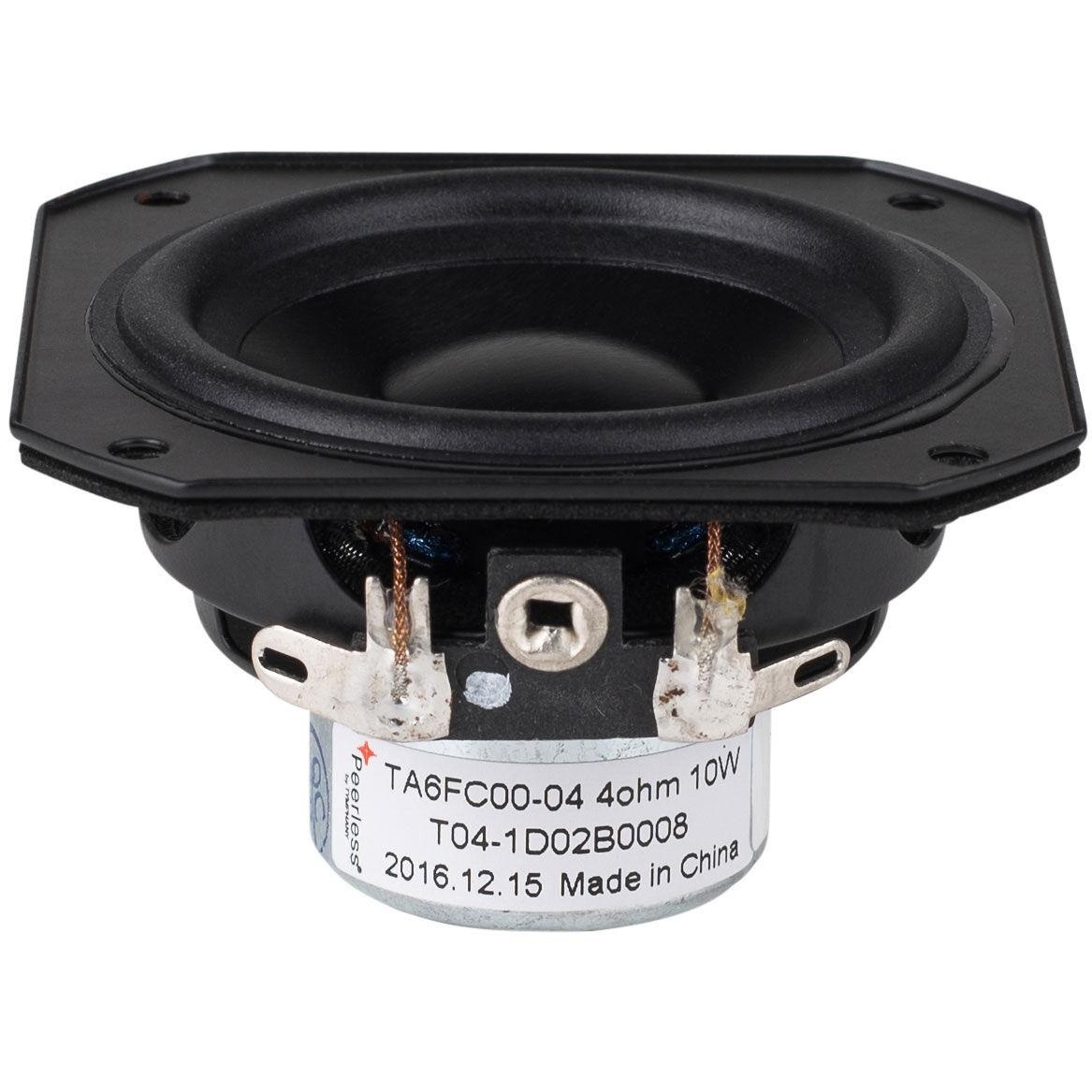

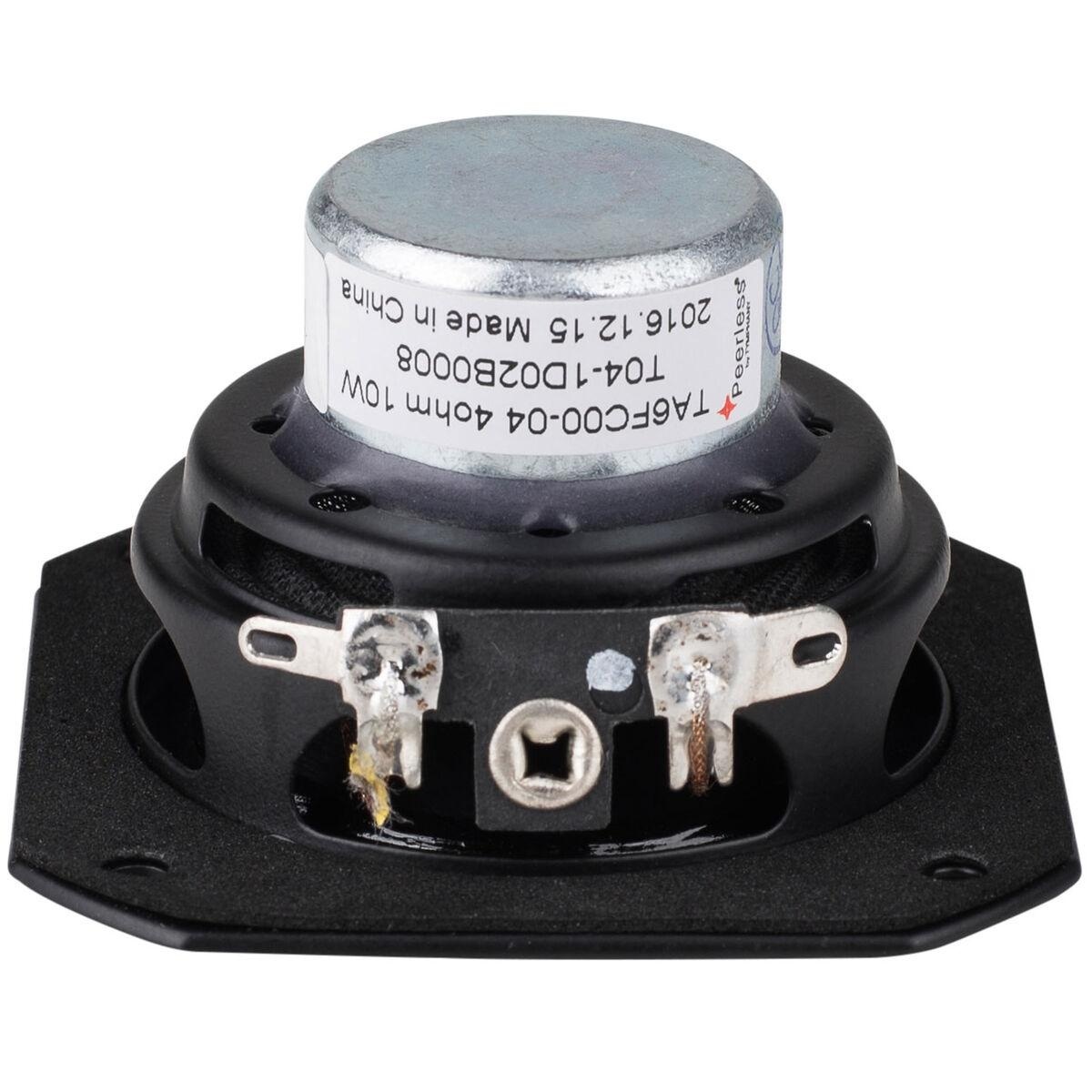

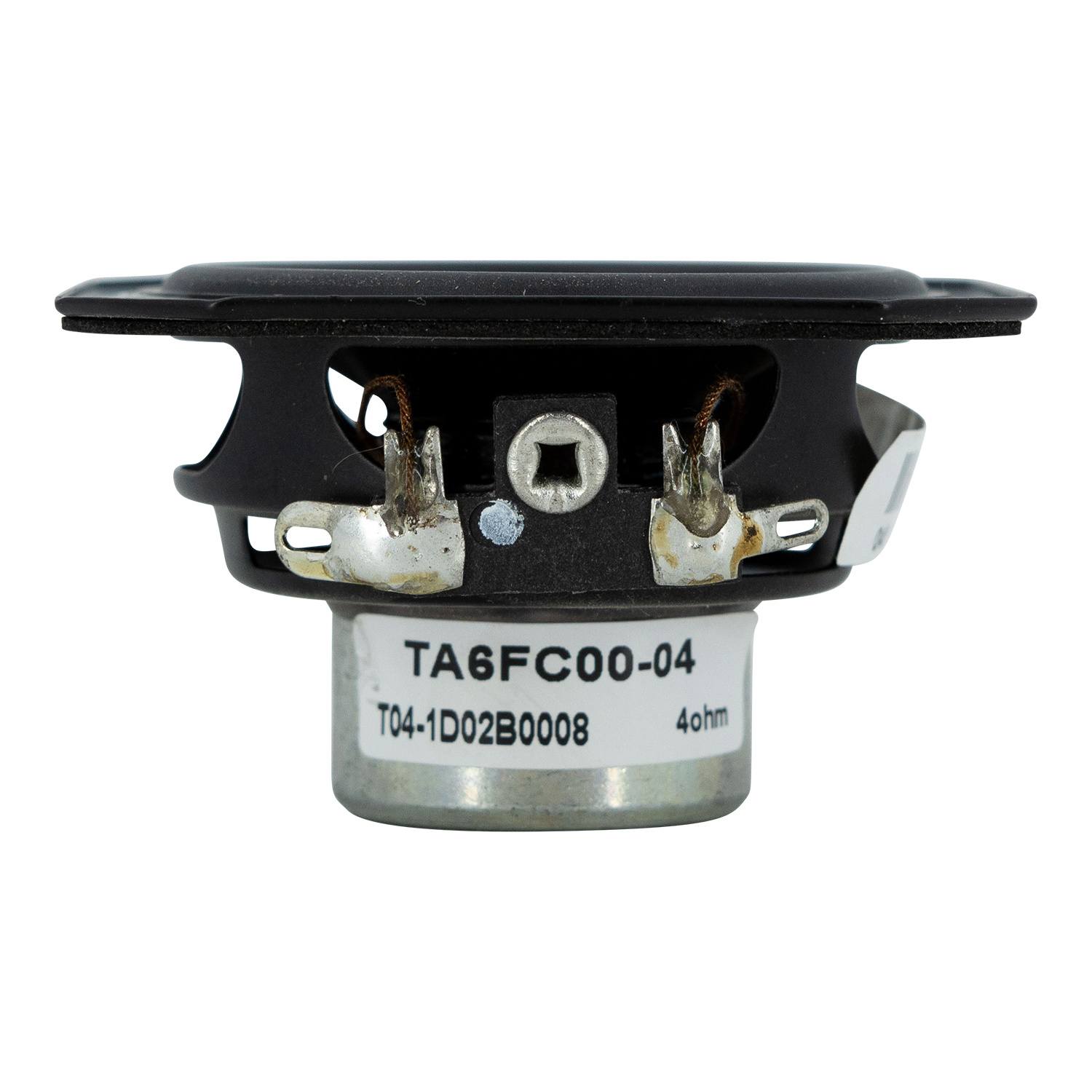

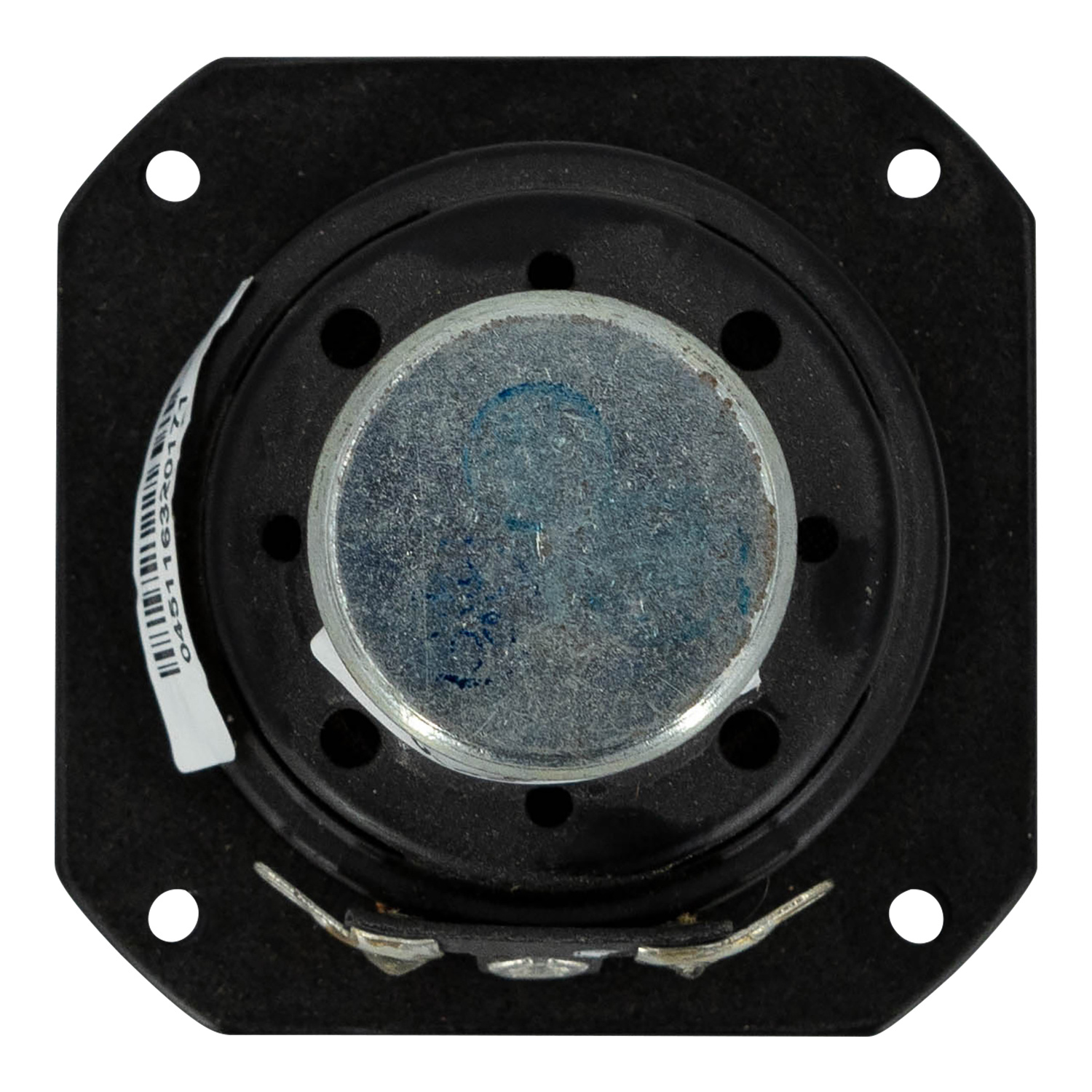

- TA6FC00-04
- EAN
- 9505945237227
- Woofer Series
- Peerless by Tymphany TA, TC & TG series
- Woofer Type
- Full-range
- Nominal Diameter
- 2"
- Power Handling (RMS)
- 10 Watts
- Power Handling (max)
- 20 Watts
- Impedance (Z)
- 4Ω
- Sensitivity (SPL at 1m / 2.83V)
- 82.4 dB
- Frequency Response
- 100 to 20,000Hz
- Voice Coil Diameter
- 0.76"
- DC Resistance (Re)
- 3.38Ω
- Voice Coil Inductance (Le)
- 0.03mH
- Resonant Frequency (Fs)
- 177 Hz
- Mechanical Q (Qms)
- 2.63
- Electromagnetic Q (Qes)
- 1.14
- Total Q (Qts)
- 0.79
- Diaphragm Mass Inc. Airload (Mms)
- 1.4g
- Mechanical Compliance of Suspension (Cms)
- 0.595mm/N
- Surface Area of Cone (Sd)
- 15.2cm²
- BL Product (BL)
- 2.12T·m
- Compliance Equivalent Volume (Vas)
- 0.01ft³
- Maximum Linear Excursion (Xmax)
- 1.1 mm
- Cone / Diaphragm Material
- Aluminum
- Surround Material
- Foam
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Neodymium
- Overall Outside Diameter
- 2.48"
- Overall Depth
- 1.26"
- Baffle Cutout Diameter
- 1.89"
- # Mounting Holes
- 4
- Sealed Volume
- 0.02ft³
- Sealed F3
- 187.5Hz
- Vented Volume
- 0.04ft³
- Vented F3
- 117.7Hz
