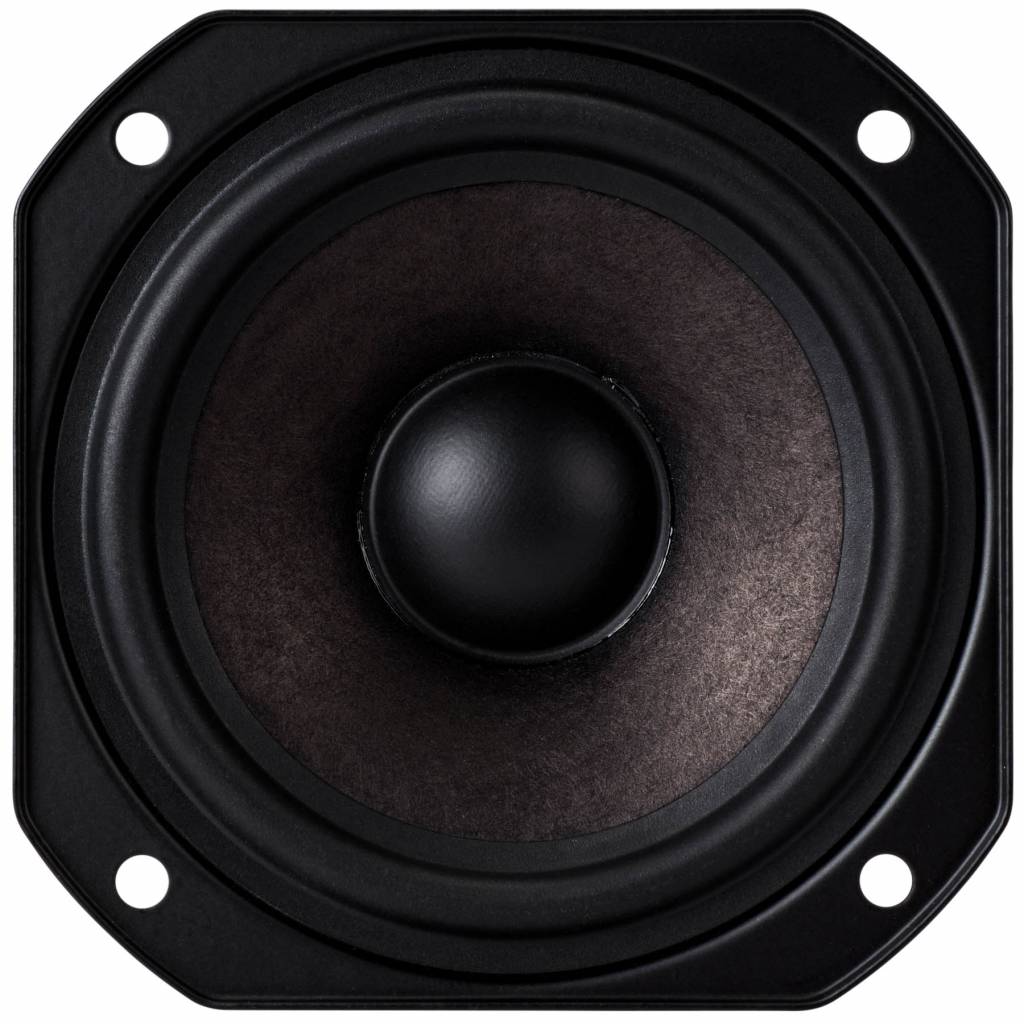

        TC8FD00-04 3" Full Range Paper Cone Woofer

        Peerless by Tymphany TC8FD00-04 3" Full Range Paper Cone Woofer

        €19,95

        Out of stock

        Peerless by Tymphany TC8FD00-04 3" Full Range Paper Cone Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 16,49€ 19,95 Out of stock
        • -5% Purchase 4 for only € 18,95 per piece

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Peerless by Tymphany TC8FD00-04 Full-range Woofer

        Choose the Tymphany TC Series TC8FD00-04 3", 4-ohm full-range driver for space-limited audio applications. The patented PentaCut NRSC cone damps and controls resonances for superior frequency response from 120 to 20,000 Hz.



        Highlights

        • Patented PentaCut NRSC cone for a flat, damped response
        • Copper capped pole piece reduces inductance and distortion
        • Great for building mini speakers and line array column speakers



        Product details

        Peerless by Tymphany TC8FD00 3" Full Range Speaker



        This TC family 3.0 inch 4 ohm full-range driver, with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.

        Show more

        Specifications

        Article number
        TC8FD00-04
        EAN
        0848864014999
        Woofer Series
        Peerless by Tymphany TA, TC & TG series
        Woofer Type
        Full Range Speaker
        Nominal Diameter
        3"
        Power Handling (RMS)
        25 Watts
        Power Handling (max)
        50 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.7 dB
        Frequency Response
        130 to 20,000Hz
        Voice Coil Diameter
        0.75"
        DC Resistance (Re)
        3.3 ohms
        Voice Coil Inductance (Le)
        0.03 mH
        Resonant Frequency (Fs)
        125 Hz
        Mechanical Q (Qms)
        3.7
        Electromagnetic Q (Qes)
        1.23
        Total Q (Qts)
        0.92
        Diaphragm Mass Inc. Airload (Mms)
        2.55g
        Mechanical Compliance of Suspension (Cms)
        0.64 mm/N
        Surface Area of Cone (Sd)
        33.2 cm²
        BL Product (BL)
        2.32 Tm
        Compliance Equivalent Volume (Vas)
        0.03 ft.³
        Maximum Linear Excursion (Xmax)
        2.4 mm
        Cone / Diaphragm Material
        Paper
        Surround Material
        Rubber
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        3.19"
        Overall Depth
        1.65"
        Baffle Cutout Diameter
        3.05"
        # Mounting Holes
        4
