        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core

        RAAL 140-15D Flatfoil True Ribbon Tweeter with Amorphous Core

        €769,95

        10 expected on 17-01-2025

        Add to cart

        RAAL 140-15D Flatfoil True Ribbon Tweeter with Amorphous Core

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: RAAL
        Show all New products
        Ribbon | 8 Ω
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        € 636,32€ 769,95 Out of stock10 expected on 17-01-2025
        • -5% Purchase 4 for only € 731,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core
        140-15D Flatfoil True Ribbon Tweeter with Amorphous Core

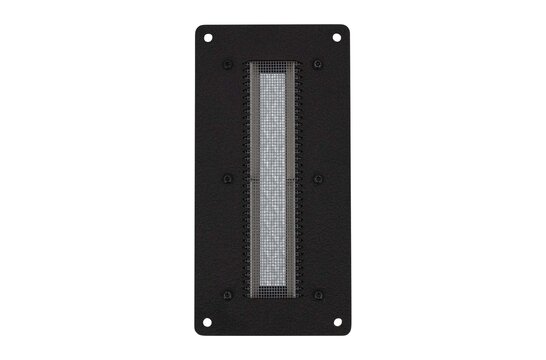

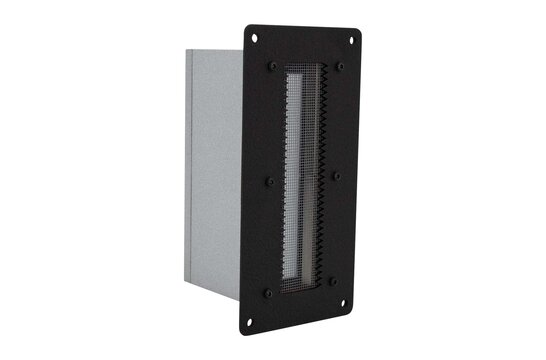

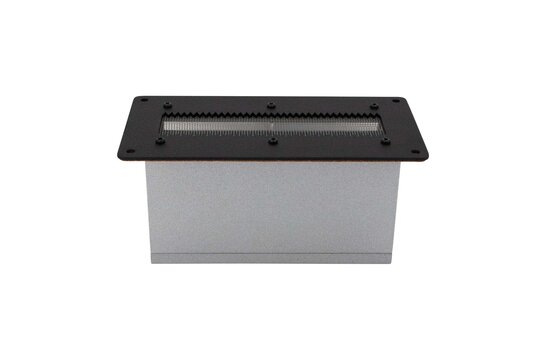

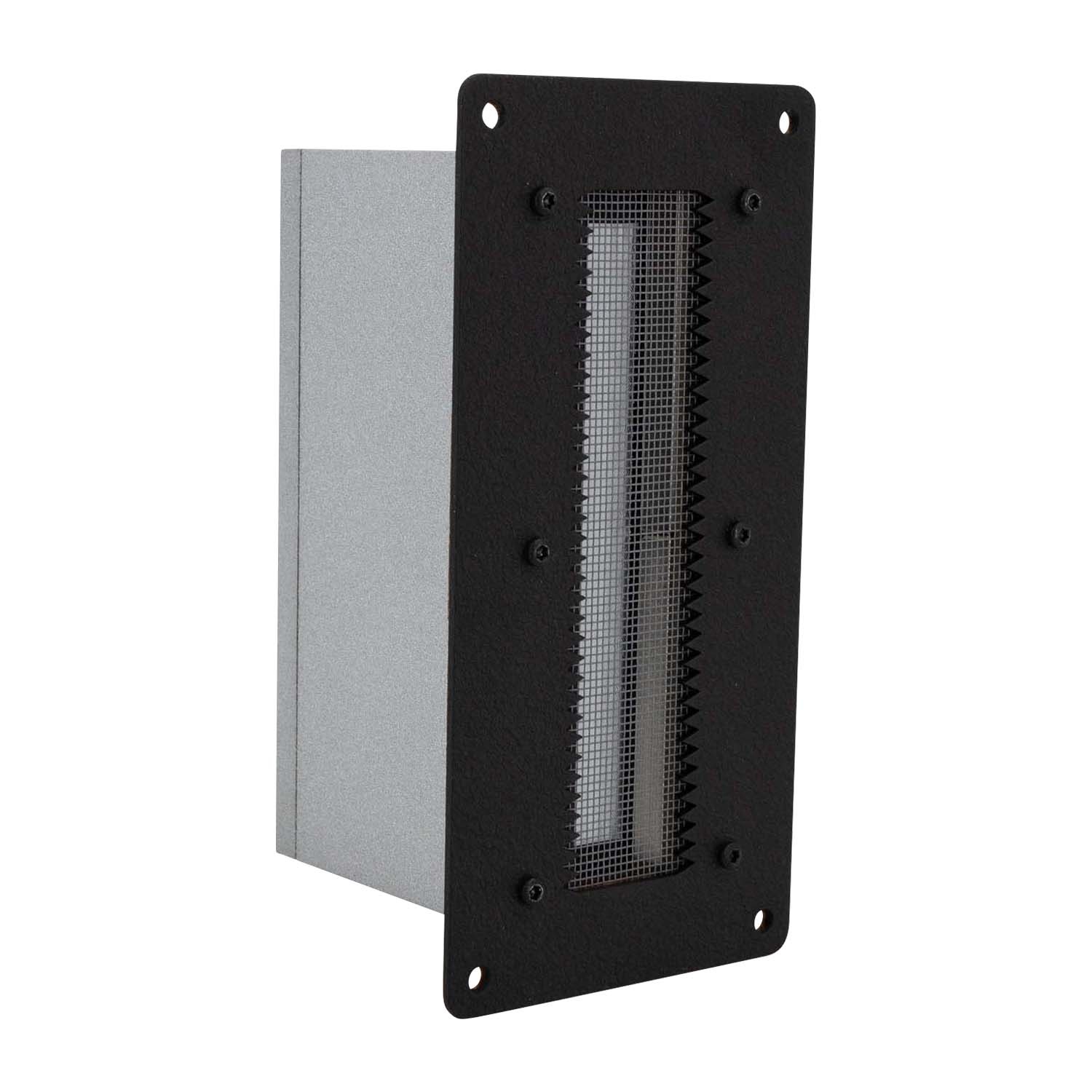

        Product description RAAL 140-15D Flatfoil Ribbon Tweeter

        Size matters! With surface of 21 sq. cm (3.25 in. sq.), super-light 22 mg flat foil, deflector pads, homogenous magnetic field, it represents the finest in today’s mid-high transducer design. Many other details in its construction serve as tools to achieve the flattest possible frequency response and fastest settling time. Its fast and accurate. The main difference is that, contrary to other ribbon drivers, it recreates the spherical sound wave, although it is a straight line source, so the high frequency range is not emphasised and “beamed" to a vertically very narrow space.



        Highlights

        • Special FLATFOIL pure Aluminium ribbon
        • Special SYMMLEAD low inductance signal path
        • Special EQUAFIELD NdFeB magnetic structure
        • Special "non-wave-guide" INOX front plate
        • Exceptional vertical dispersion
        • Super-fast settling time
        • Flat frequency response
        • Low nonlinear distortion
        • High signal power handling
        • Highest reliability



        Product details

        RAAL 140-15D Flatfoil Ribbon Tweeter



        Bad directivity characteristics is very audible, like constant presence of sound system in front of the listener, as the brain registers the changes in sound field with small head movements thus inducing the listener to use effort to be very still while listening. Also, too directive speakers, tend to provoke just a few of listening room’s reflections, making the needed diffuse sound field in room deprived of high frequency components, which is another problem to our brain. Real instruments don’t behave that way, so that should be recreated as much as possible. 140-15D does just that, it makes almost semi-spherical sound wave, like life around us does.



        Its ability to produce very high SPL with no audible distortion while keeping the minute music details revealed without any effort, brings natural character of the instrument played into the listening room, with such a quality of sound that upgrades the perspective of a listener to a participant in an event that happened somewhere else in time and place.



        It comes easily for the 140-15D to "fool" the human brain in such a way that, all of a sudden, makes everything sound right and just as it should. The brain has no option but to interpret that there are real living people playing real musical instruments, playing in the very room in which, a millisecond ago, contained nothing more than your stereo system. The sensation of hearing "natural" sound is overwhelming. The exact size of all the instruments and vocals, their perfect position within the sound stage, and the clarity of air between the instrument's positions are all instantly recognizable?



        Enough said. You must hear it to believe it.

        Show more

        Specifications

        Article number
        140-15D
        EAN
        8785256859184
        Tweeter Type
        Ribbon
        Power Handling (RMS)
        200 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Frequency Response
        2 kHz - 60 kHz
        Cutout Diameter
        153 x 63 mm
        Depth
        93.5 mm
        Diaphragm Material
        Aluminum
        Recommended cut frequency
        1600 Hz

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        Fantastic speaker, in my system I used 4.7uF 0.27mH 12uF crossover 2700hz. They are very, very dynamic and at the same time airy. Resolution absolutely at the highest level. After adding Duelund JDM Silver Cap 0.01uF 600VDC capacitors it showed extraordinary class. These capacitors are necessary to show the capabilities of this speaker. This speaker gives both a dynamic transmission and easily shows the background that classic speakers can only d...

        Show more

        By Ireneusz Procek on 6 August 2024
