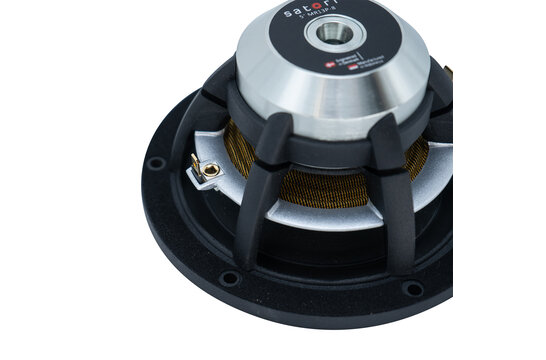

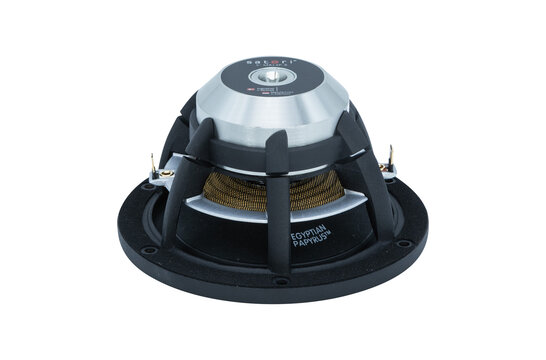

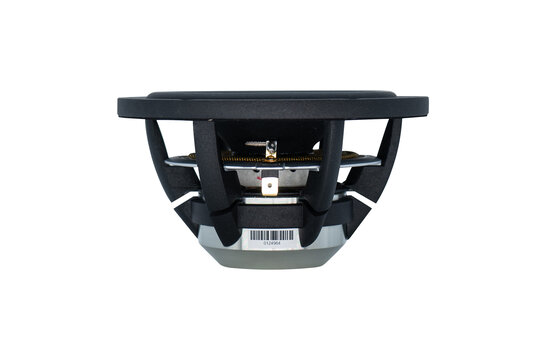

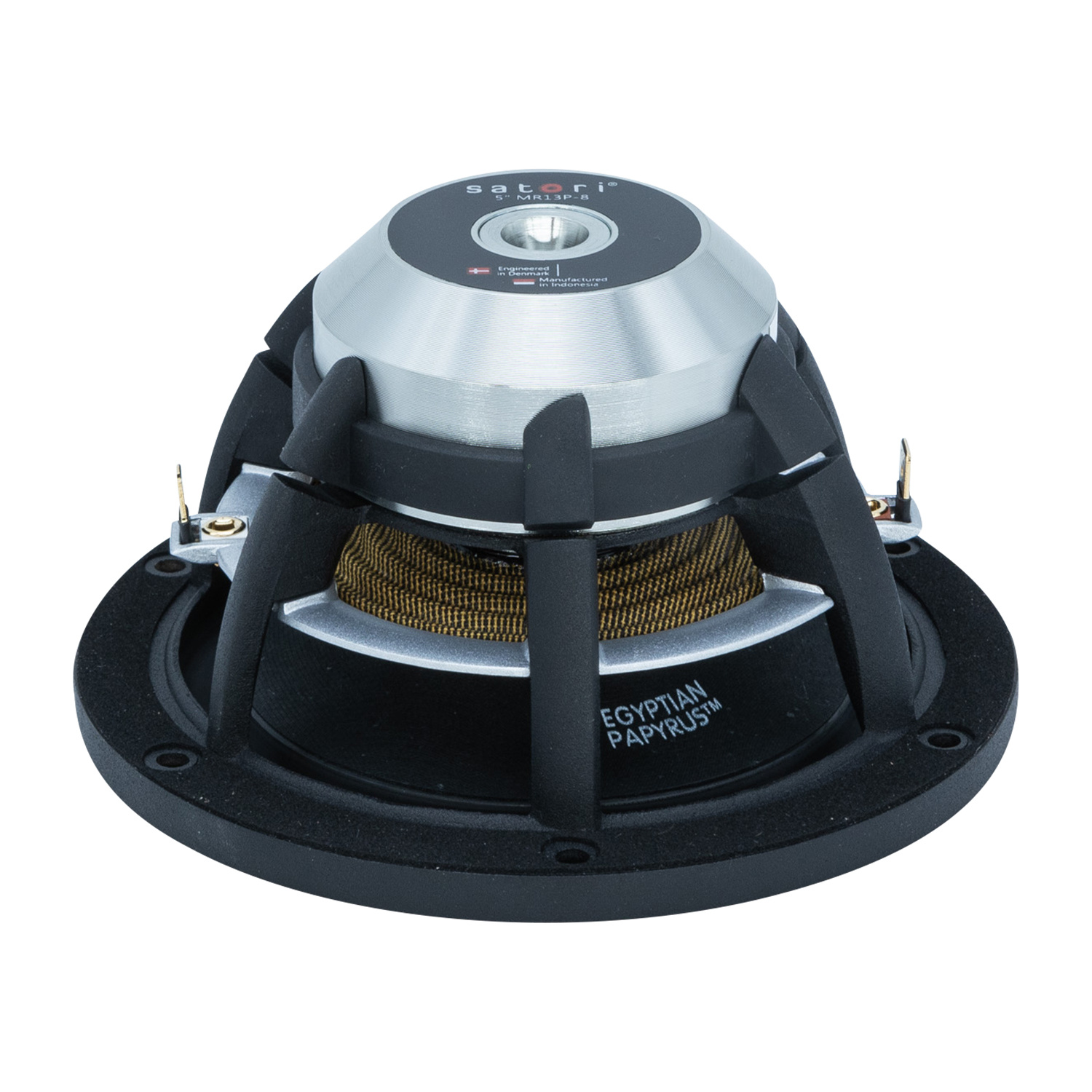

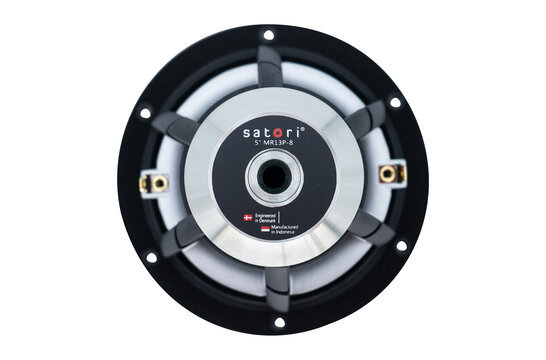

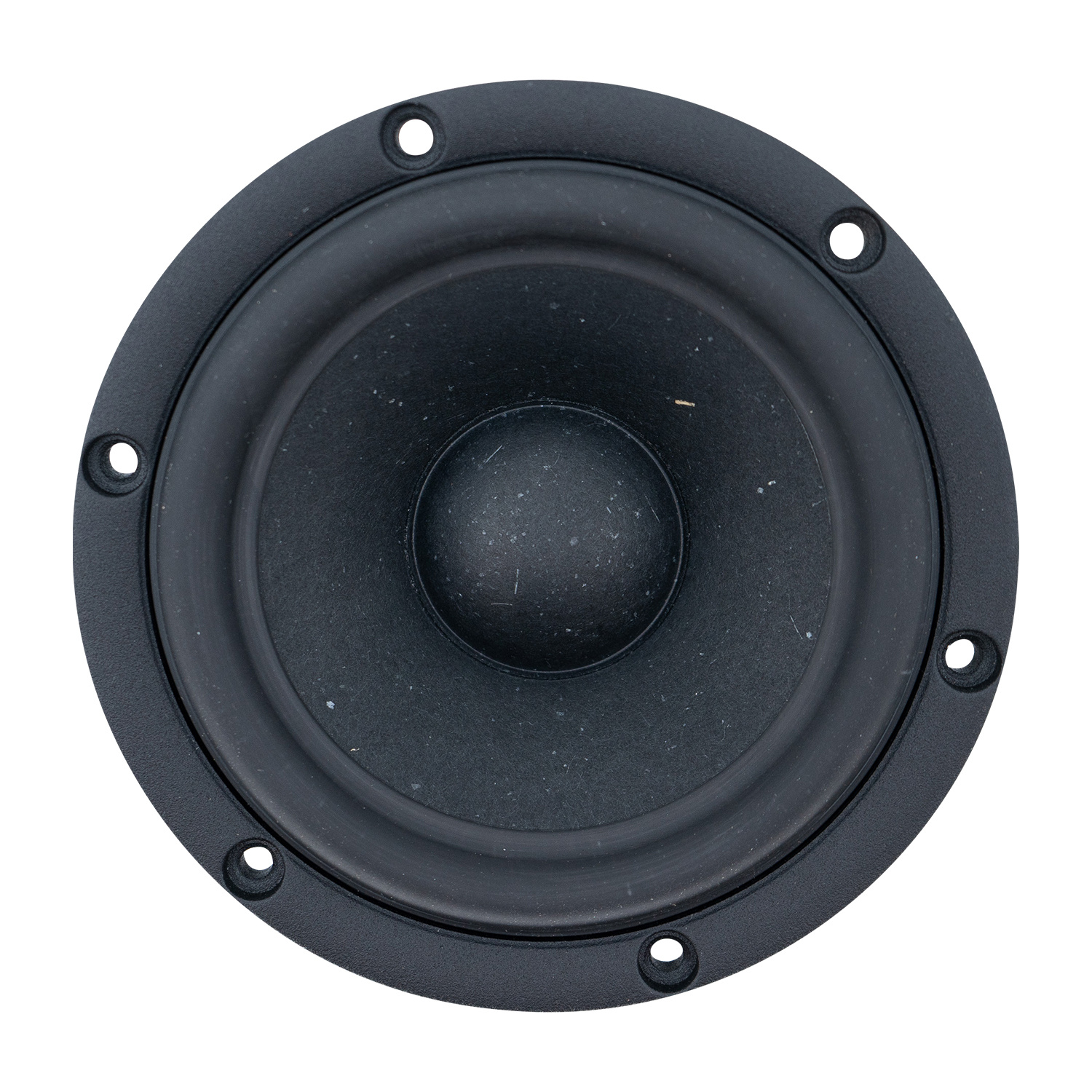

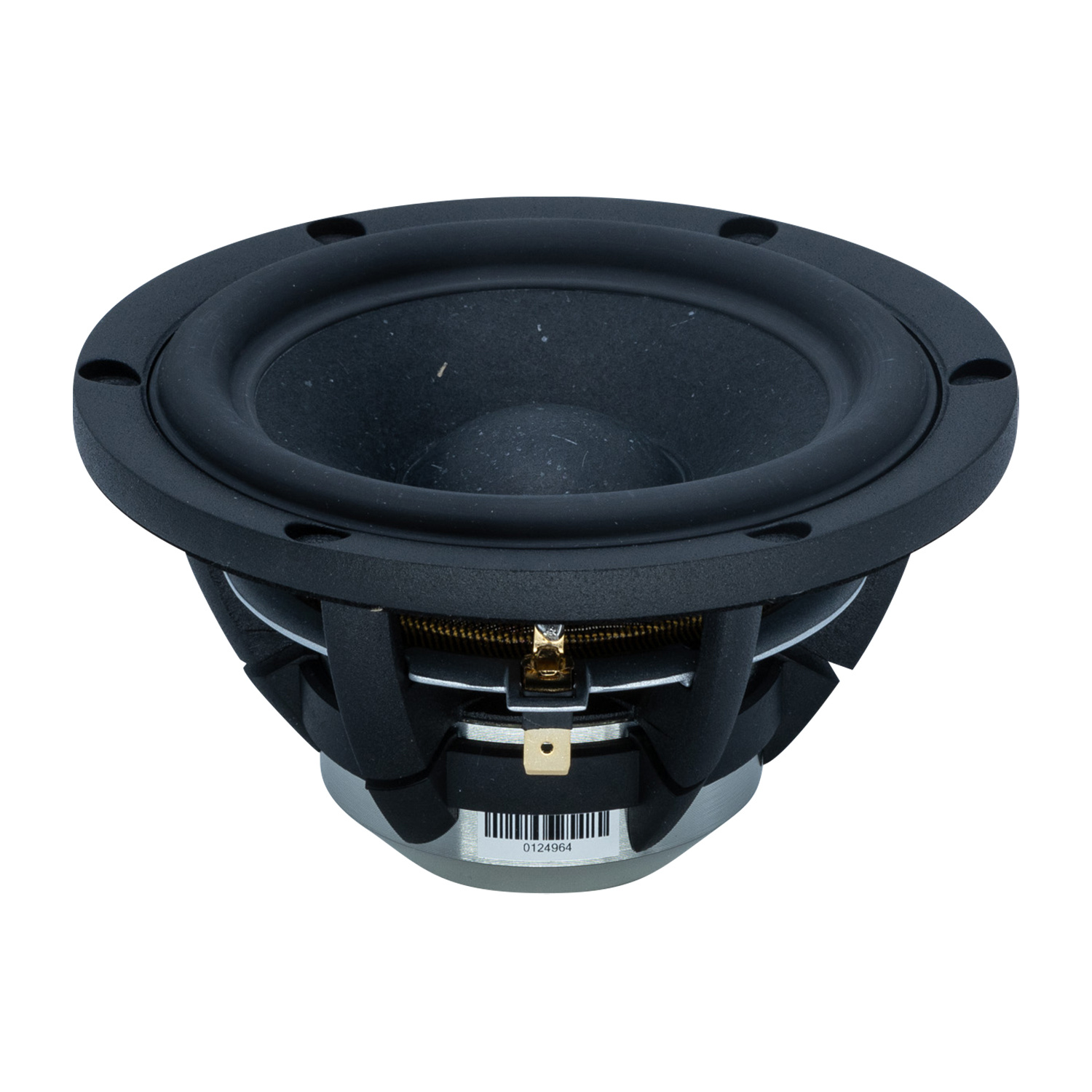

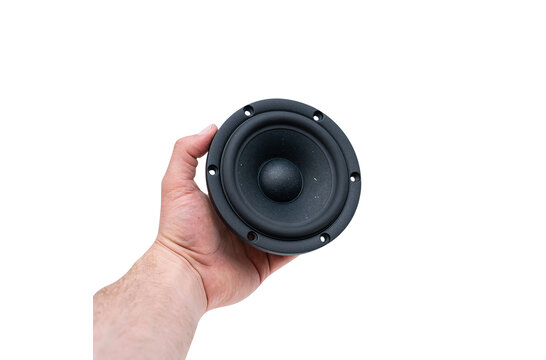

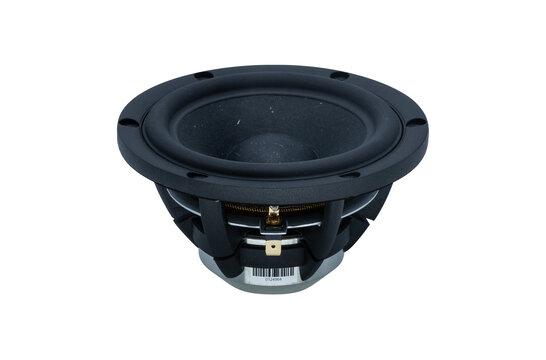

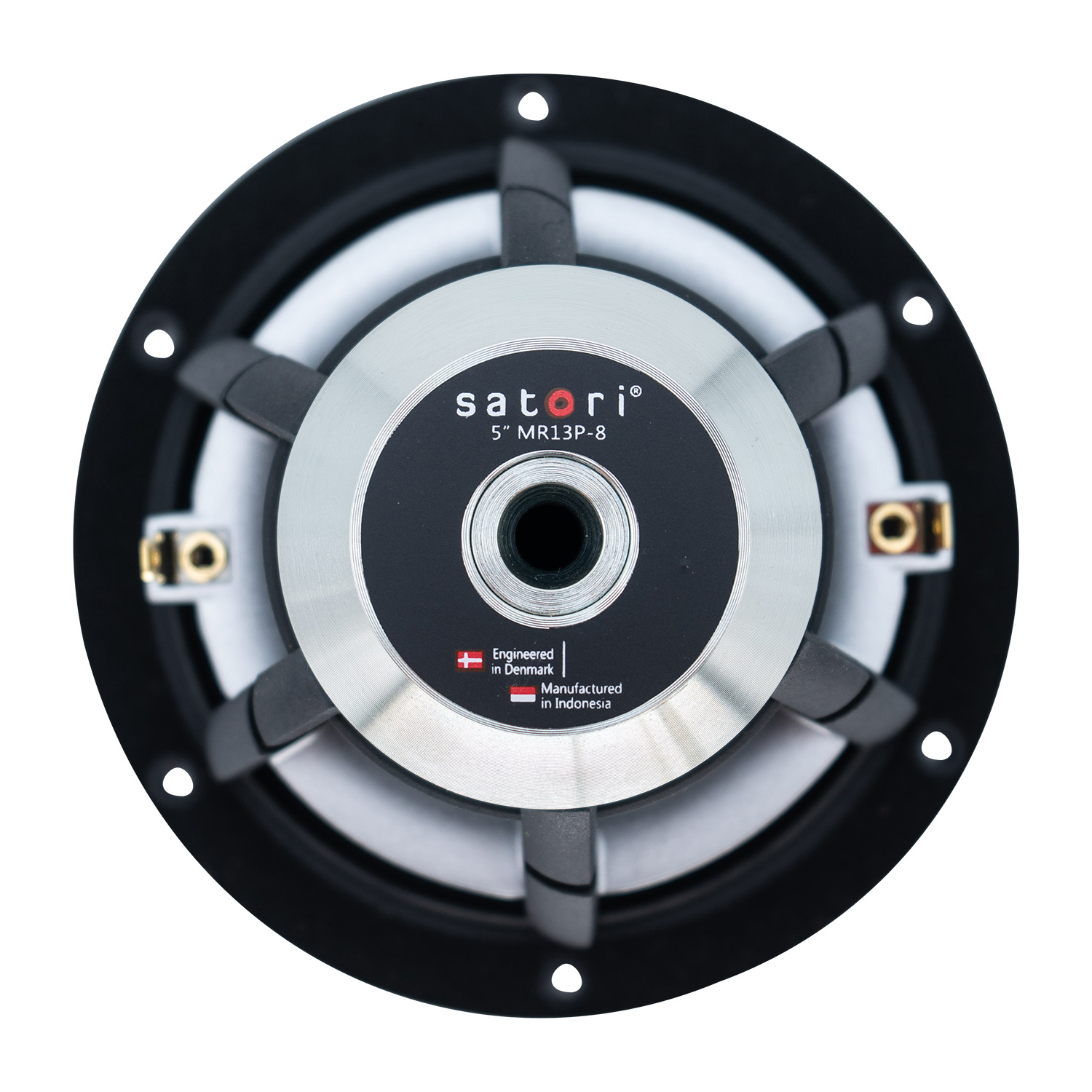

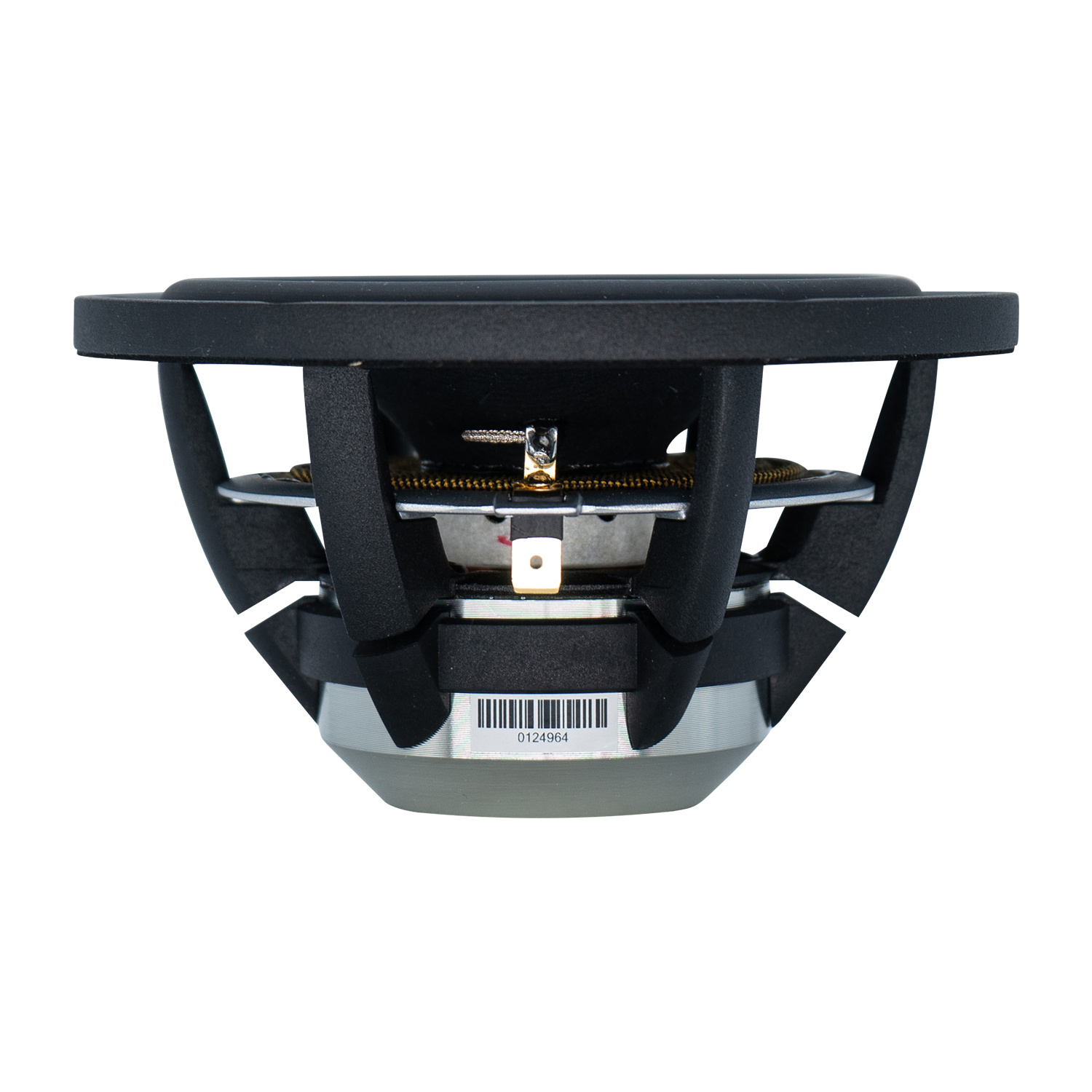

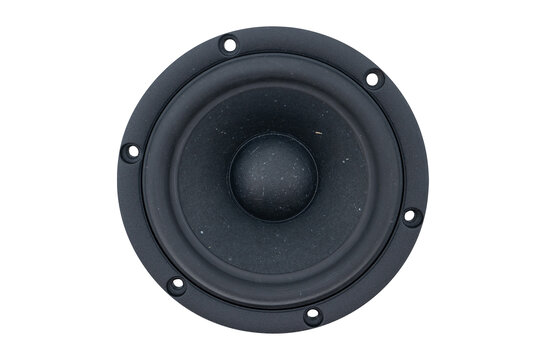

        Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

        SB Acoustics Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

        €179,95

        5 In stock5 expected on 26-12-2024

        SB Acoustics Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 148,72€ 179,95 5 In stock5 expected on 26-12-2024
        • -5% Purchase 4 for only € 170,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description SB Acoustics Satori MR13P-8 Bass-midwoofer

        Highlights

        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece and coil former for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



        Product details

        SB Acoustics Satori MR13P-8 5" Egyptian Papyrus Cone Midrange



        SB Acoustics Satori MR13P-8 Midrange is a simply outstanding Neodymium magnet 5" 8 ohm midrange, featuring a supplemented proprietary Papyrus Paper cone, a specially designed soft low damping optimum response rubber surround, BiMax spider, and a glassfiber former with copper sleeve pole piece.



        Fitted with a 1.25" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece provides an extremely low distortion. Fs 45Hz, and a class-leading level wide response curve. Extended level midrange response, a very flexible unit.

        Show more

        Specifications

        Article number
        MR13P-8
        EAN
        0696277269112
        Woofer Series
        SB Acoustics Satori series
        Woofer Type
        Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        30 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Voice Coil Diameter
        1.2"
        DC Resistance (Re)
        6.8 ohms
        Voice Coil Inductance (Le)
        0.11 mH
        Resonant Frequency (Fs)
        45 Hz
        Mechanical Q (Qms)
        4.25
        Electromagnetic Q (Qes)
        0.33
        Total Q (Qts)
        0.31
        Diaphragm Mass Inc. Airload (Mms)
        6 g
        Mechanical Compliance of Suspension (Cms)
        1.86 mm/N
        Surface Area of Cone (Sd)
        70 cm2
        BL Product (BL)
        6.1 Tm
        Compliance Equivalent Volume (Vas)
        0.44 ft.³
        Maximum Linear Excursion (Xmax)
        3 mm

        Show more

        5 of 5
        Fantastic workmanship. I replaced a Philips AD0210 SQ8 with a Satori MR13P in a vintage Jamo J80. The Satori works with the factory 12 " Jamo subwoofer and with an also new Eton 26 HD3 tweeter. Ingenious. Beautiful vocals and acoustic instruments, great 3D space, serious depth and width. Even though the Satori itself costs as much as the full J80 used, I am still happy with the purchase. You can hear the change and I am very pleased. I was ...

        Show more

        By gotanster on 15 December 2020
