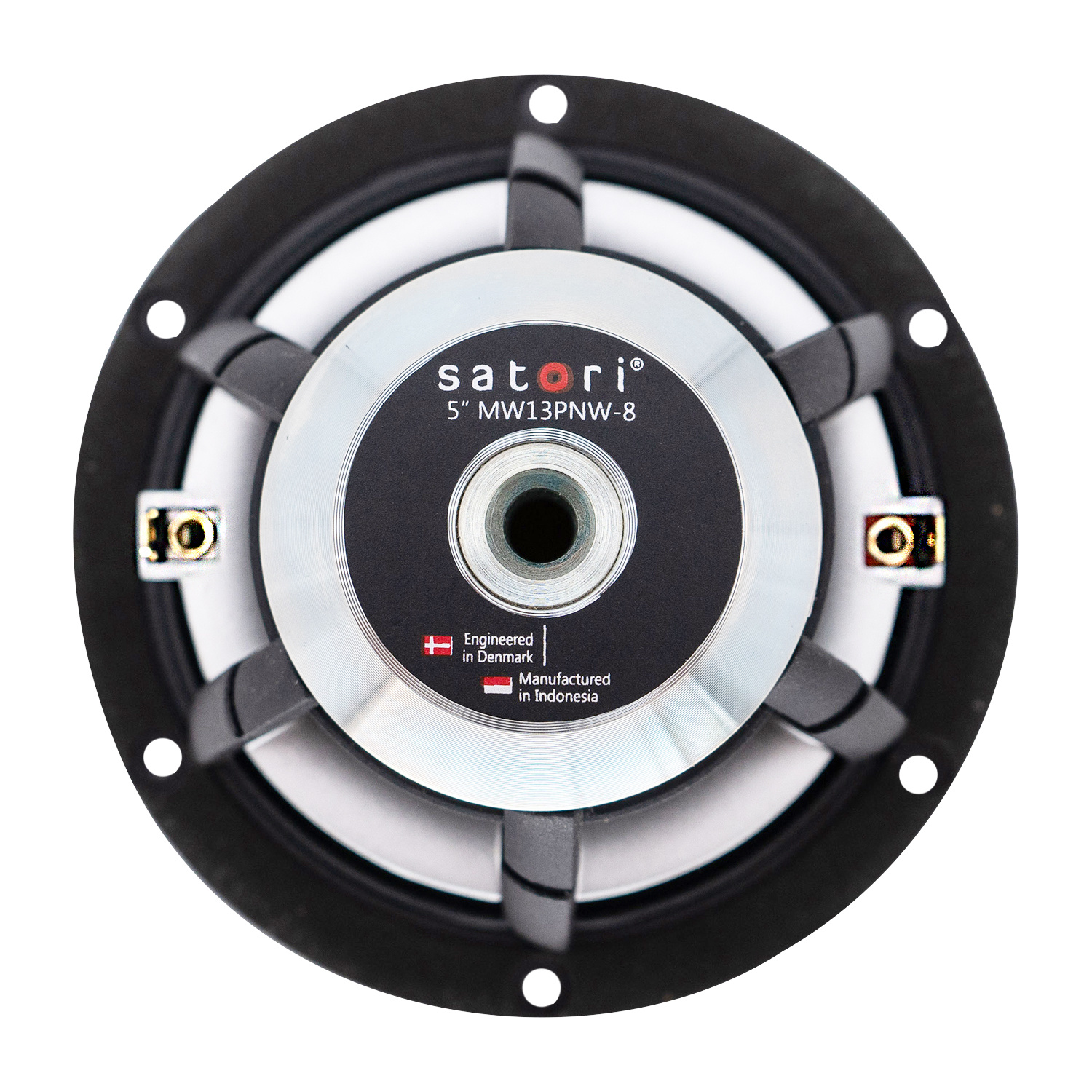

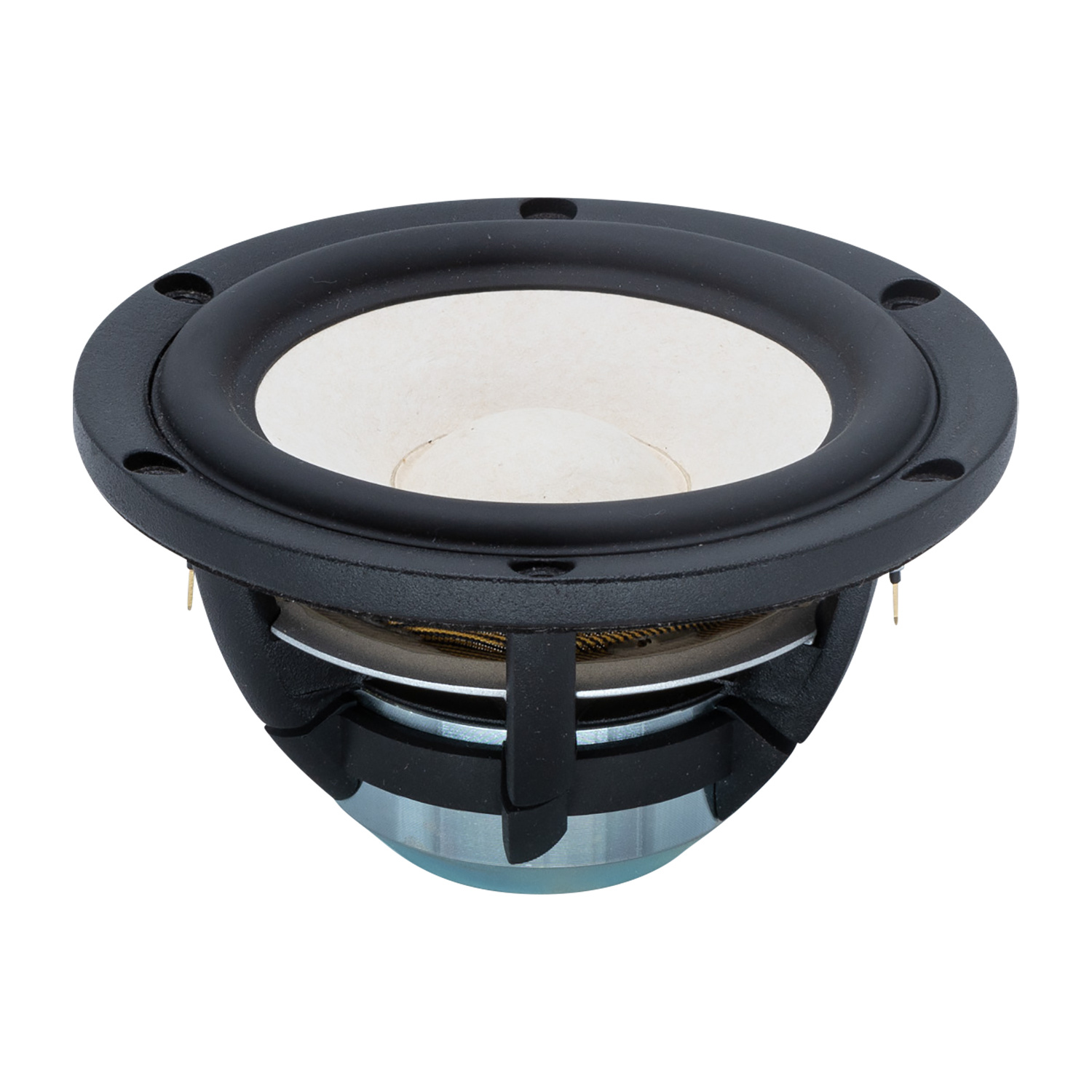

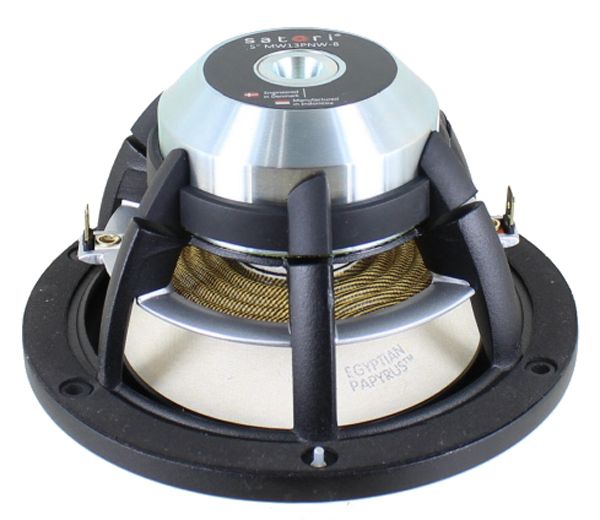

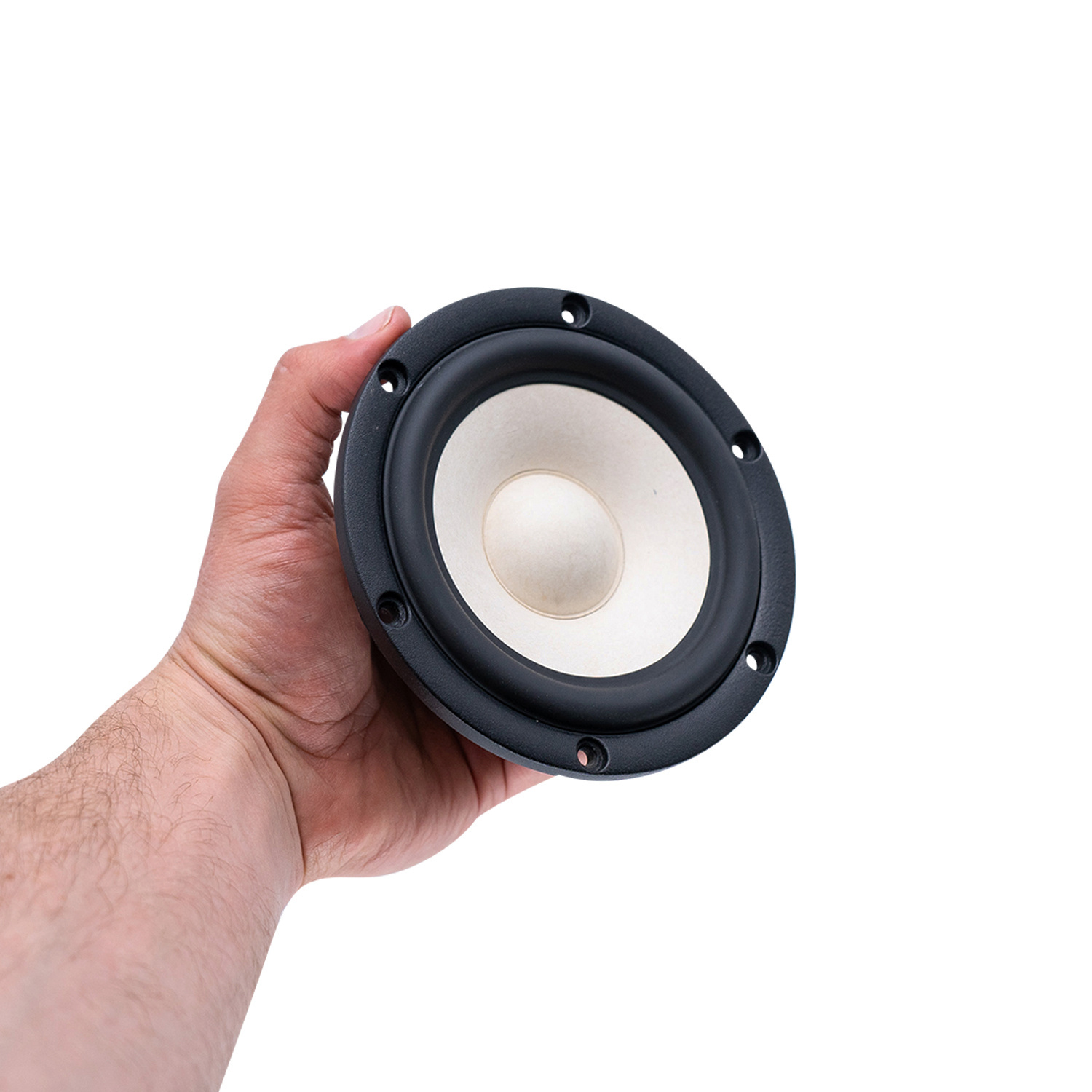

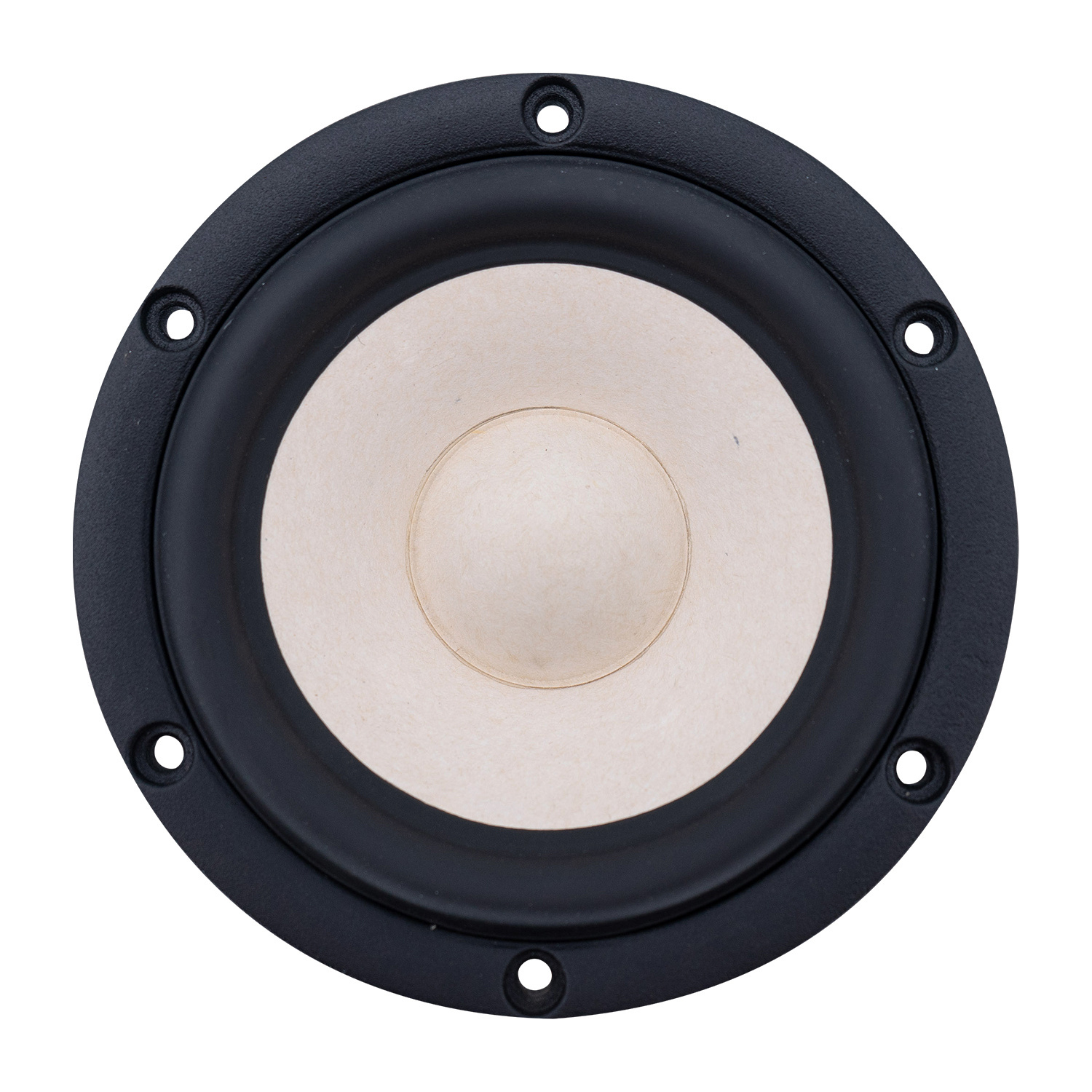

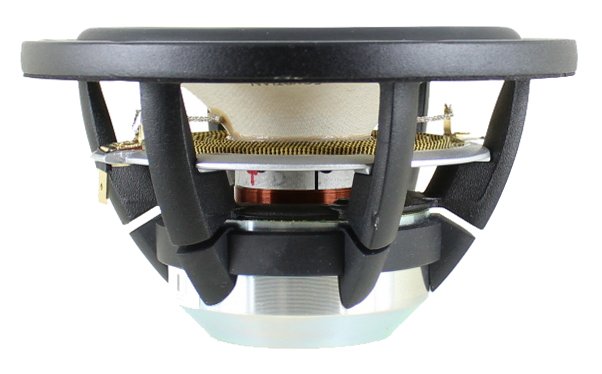

        Satori MR13PNW-8 5" White Egyptian Papyrus Cone Midrange

        SB Acoustics Satori MR13PNW-8 5" White Egyptian Papyrus Cone Midrange

        €179,95

        2 In stock

        SB Acoustics Satori MR13PNW-8 5" White Egyptian Papyrus Cone Midrange

        1 reviews
        2 from 5
        1 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        100%
        1 star
        0%
        View all reviews
        € 148,72€ 179,95 2 In stock
        • -5% Purchase 4 for only € 170,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description SB Acoustics Satori MR13PNW-8 Bass-midwoofer

        Highlights

        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece and coil former for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



        Product details

        SB Acoustics Satori MR13PNW-8 5" White Egyptian Papyrus Cone Midrange



        Vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house with soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass.



        Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

        Show more

        Specifications

        Article number
        MR13PNW-8
        EAN
        0696277269136
        Woofer Series
        SB Acoustics Satori series
        Woofer Type
        Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        30 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Voice Coil Diameter
        1.2"
        DC Resistance (Re)
        6.8 ohms
        Voice Coil Inductance (Le)
        0.11 mH
        Resonant Frequency (Fs)
        47 Hz
        Mechanical Q (Qms)
        4.58
        Electromagnetic Q (Qes)
        0.32
        Total Q (Qts)
        0.30
        Diaphragm Mass Inc. Airload (Mms)
        6.2 g
        Mechanical Compliance of Suspension (Cms)
        1.85 mm/N
        Surface Area of Cone (Sd)
        70 cm2
        BL Product (BL)
        6.2 Tm
        Compliance Equivalent Volume (Vas)
        0.45 ft.³
        Maximum Linear Excursion (Xmax)
        3 mm
