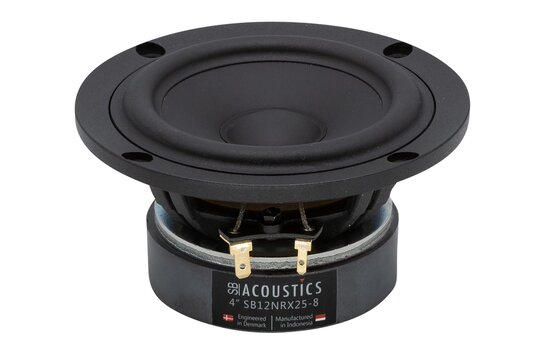

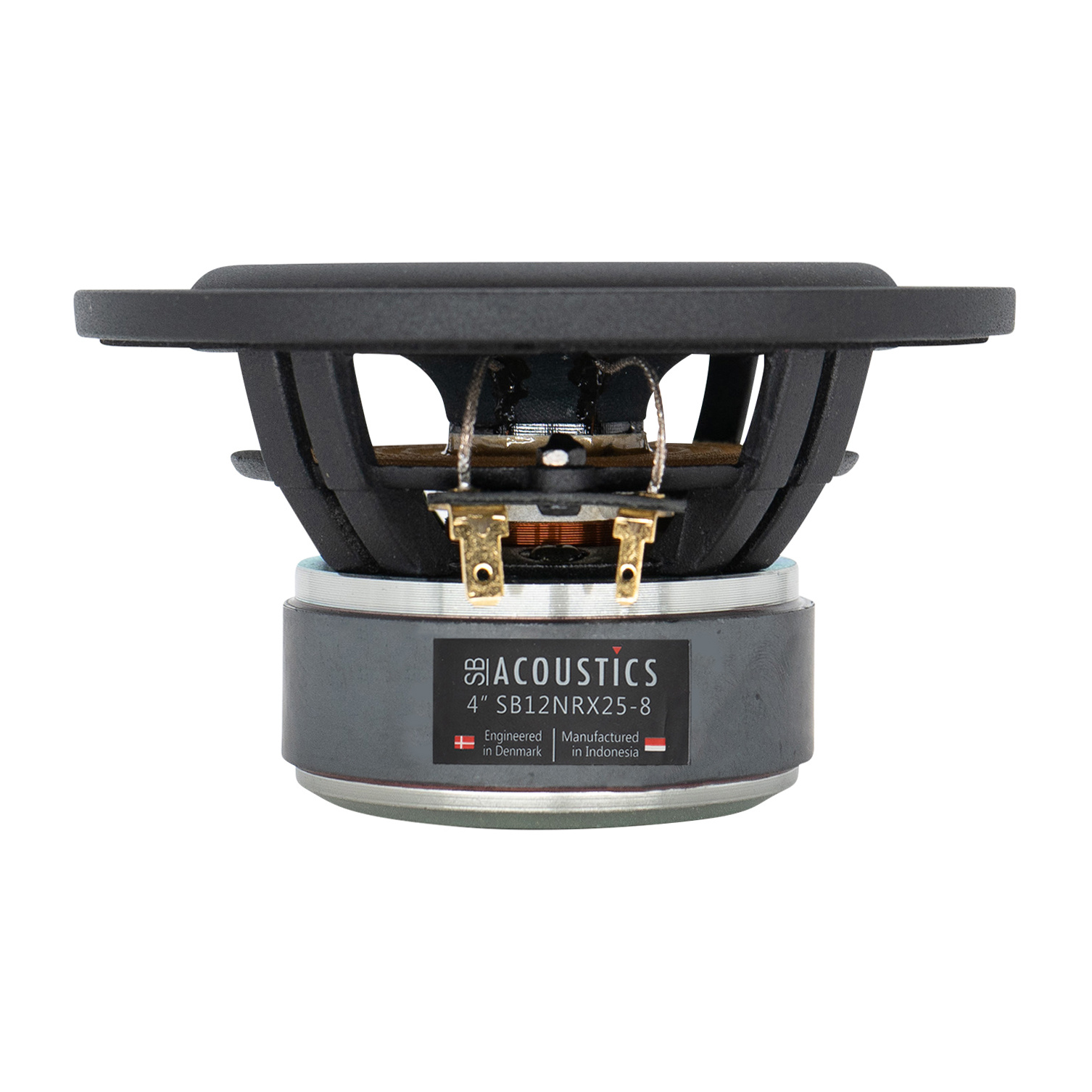

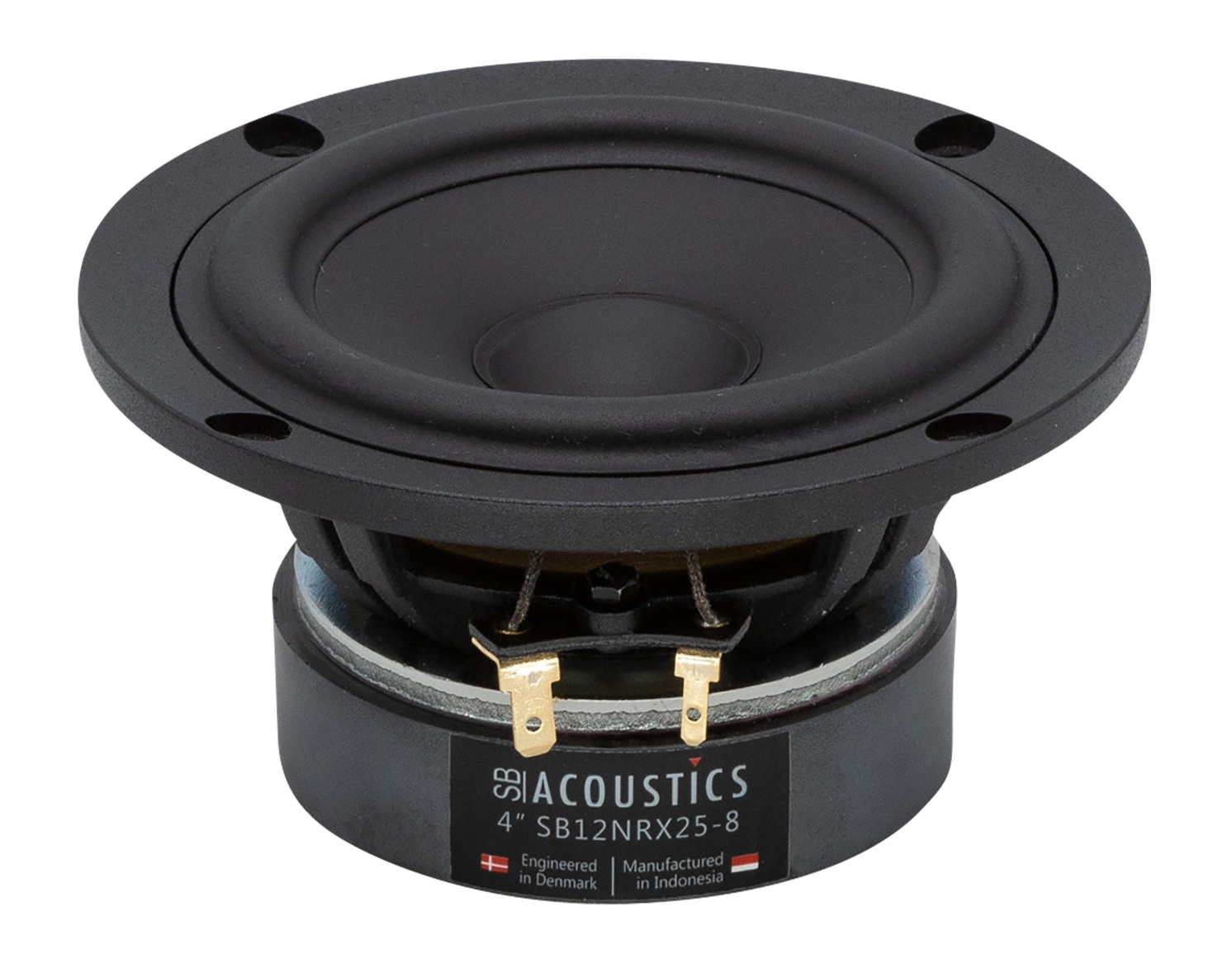

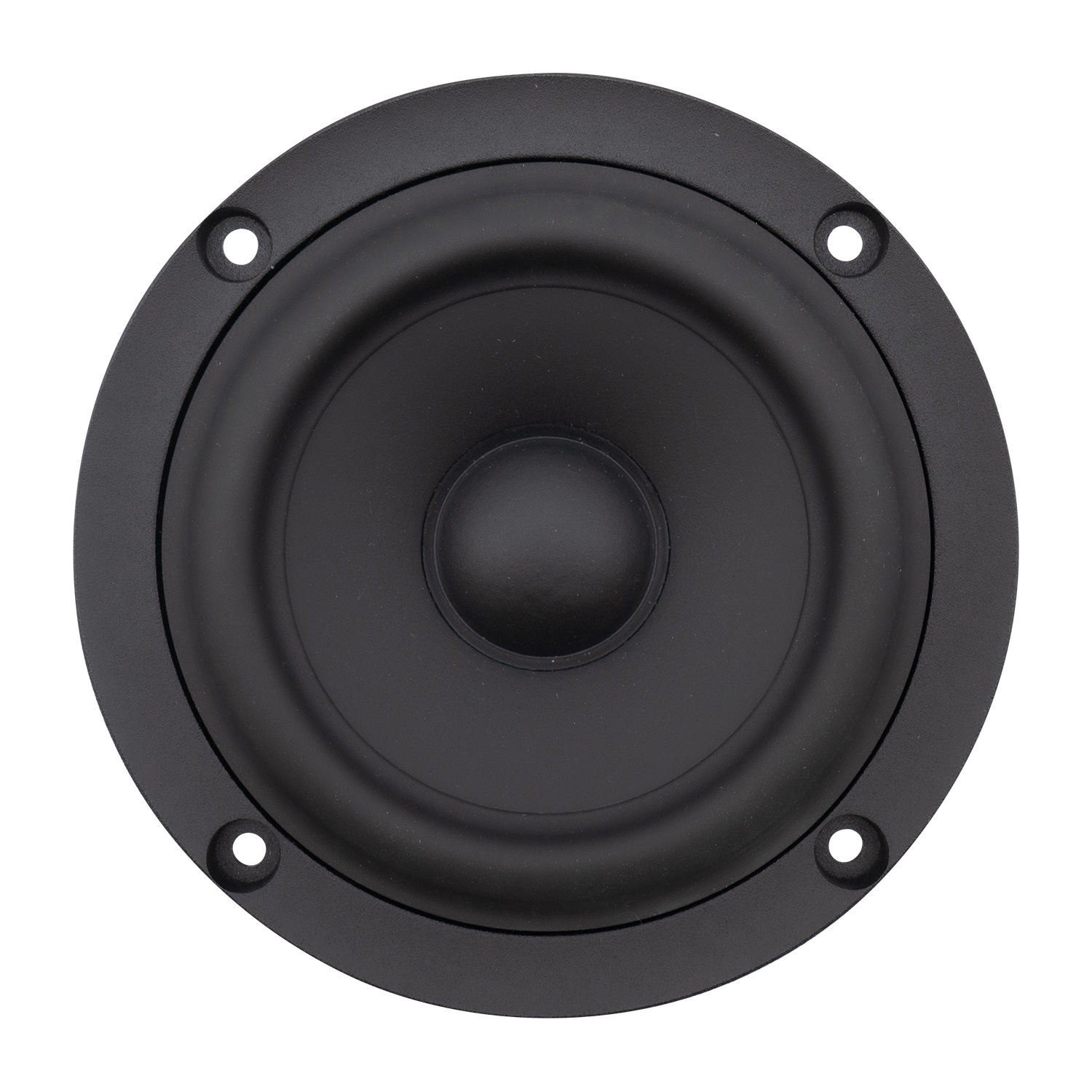

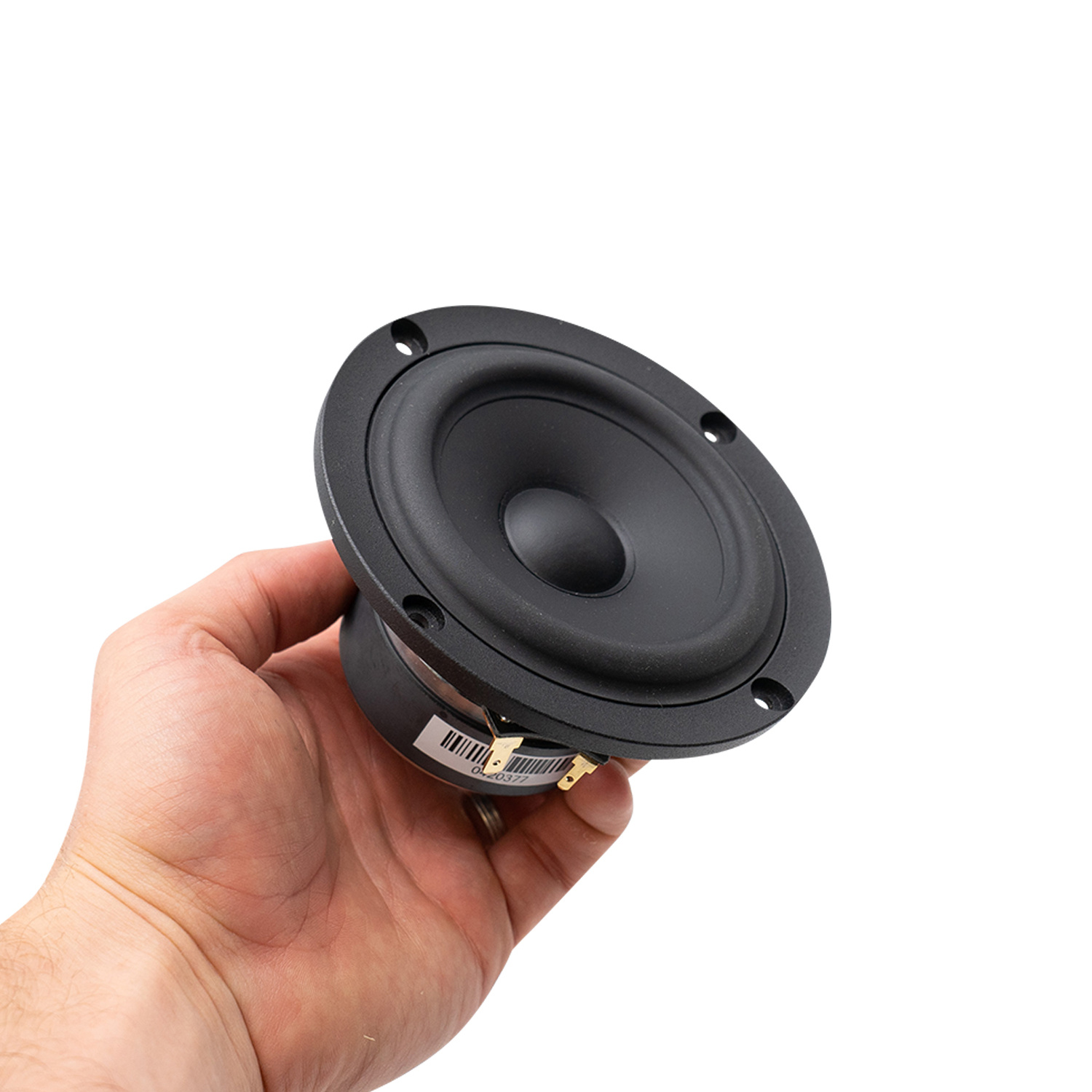

        SB12NRX25-8 4'' Midrange Woofer

        SB Acoustics SB12NRX25-8 4'' Midrange Woofer

        €61,95

        6 In stock

        Add to cart

        SB Acoustics SB12NRX25-8 4'' Midrange Woofer

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Bass-mid woofer
        4" | 8 Ω
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        € 51,20€ 61,95 6 In stock
        • -5% Purchase 4 for only € 58,85 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer
        SB12NRX25-8 4'' Midrange Woofer

        Product description SB Acoustics SB12NRX25-8 Bass-midwoofer

        Highlights

        • Proprietary cone material with natural fibres made in-house
        • High damping Butyl rubber surround for non-resonant sound character

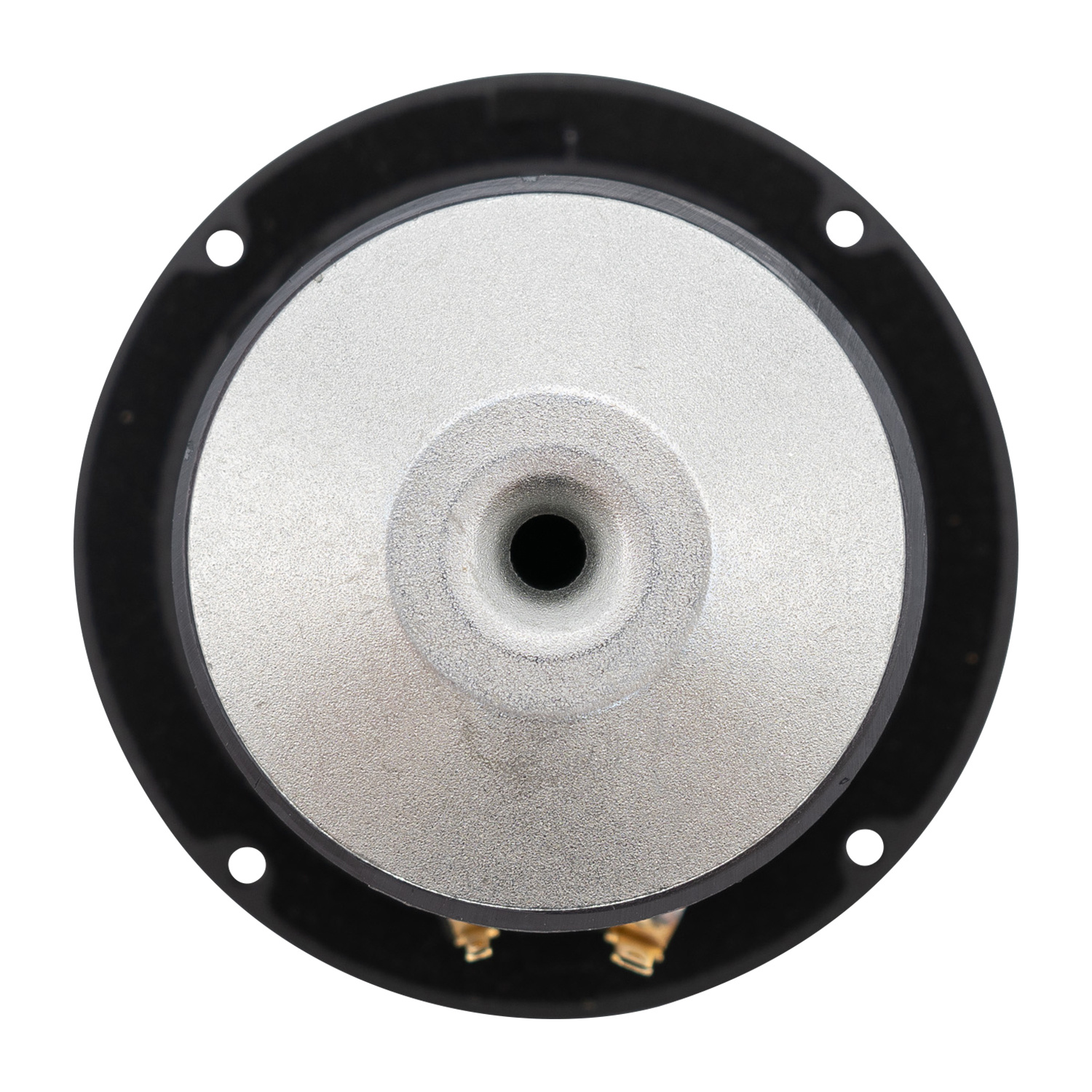

        • Vented pole piece for reduced compression
        • Vented cast aluminium chassis for optimum strength and low compression
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Non-conducting fibre glass coil former for minimum damping



        Product details

        SB Acoustics SB12NRX25-8 4'' Midrange Woofer



        The SB Acoustics SB12NRX25-8 4" Midwoofer is an excellent SB Acoustics Ferrite magnet midrange/midwoofer, featuring a high efficiency low damping rubber surround. Fitted with a proprietary composition paper cone, 1" voice coil. Very open cast frame for minimal reflections. Fs 55Hz, good level extended response up to 5KHz.

        Show more

        Specifications

        Article number
        SB12NRX25-8
        EAN
        0696277269006
        Woofer Series
        SB Acoustics NRX Norex series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        30 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.5 dB
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        6.4 ohms
        Voice Coil Inductance (Le)
        0.34 mH
        Resonant Frequency (Fs)
        57 Hz
        Mechanical Q (Qms)
        4.1
        Electromagnetic Q (Qes)
        0.41
        Total Q (Qts)
        0.37
        Diaphragm Mass Inc. Airload (Mms)
        5.2 g
        Mechanical Compliance of Suspension (Cms)
        1.49 mm/N
        Surface Area of Cone (Sd)
        50 cm2
        BL Product (BL)
        5.4 Tm
        Compliance Equivalent Volume (Vas)
        0.18 ft.³
        Maximum Linear Excursion (Xmax)
        5 mm

        Show more

        Reviews

        1 reviews
        Review this product
        4 of 5
        ... Duidelijk een product uit de oude school van Vifa...
        By Michel V. on 26 December 2020
