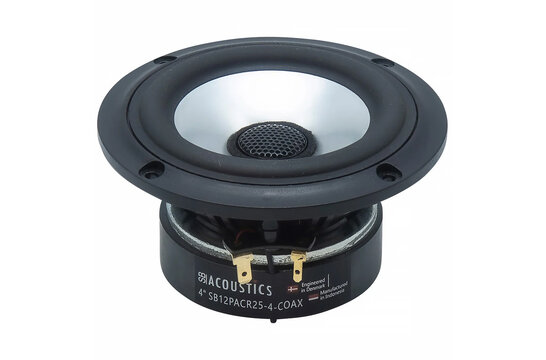

        SB12PACR25-4-COAX Coaxial Woofer

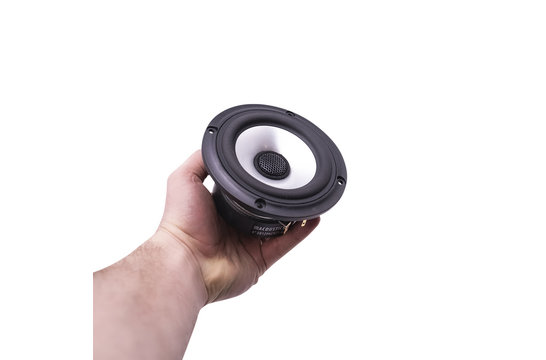

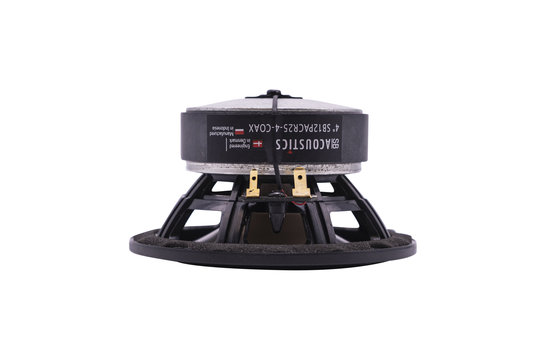

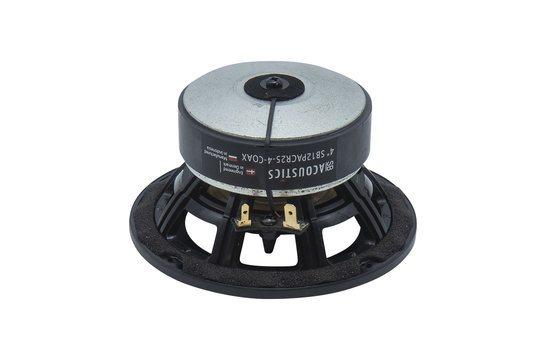

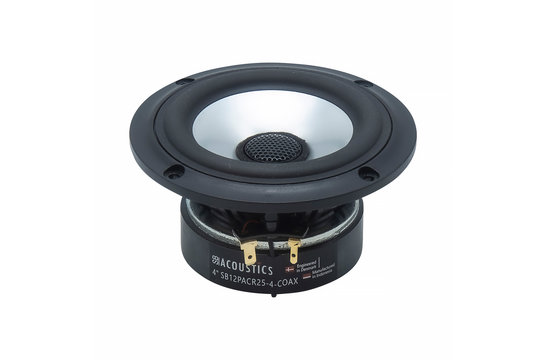

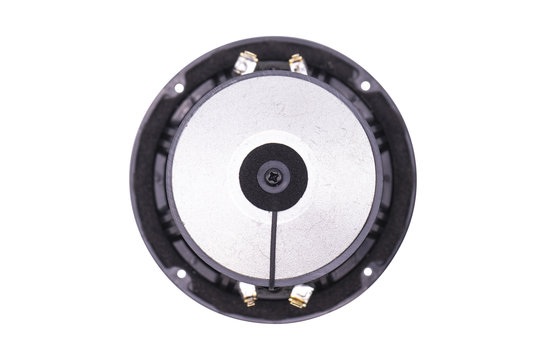

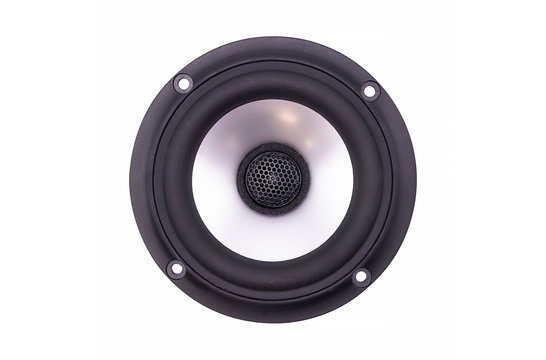

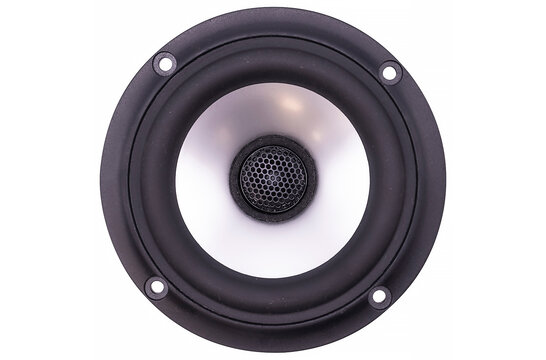

        SB Acoustics SB12PACR25-4-COAX Coaxial Woofer

        €68,45

        9 In stock10+ expected on 26-12-2024

        Add to cart

        SB Acoustics SB12PACR25-4-COAX Coaxial Woofer

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Coaxial woofer
        4'' | 4 Ω
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        € 56,57€ 68,45 9 In stock10+ expected on 26-12-2024
        • -5% Purchase 4 for only € 65,03 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer
        SB12PACR25-4-COAX Coaxial Woofer

        Product description SB Acoustics SB12PACR25-4-COAX Coaxial Woofer

        Highlights

        • Vented reinforced plastic chassis
        • Anodised aluminium cone
        • Low damping rubber surround
        • Large motor system
        • Long stroke linear suspension
        • Light weight CCAW voice coil
        • Non-conducting fibreglass coil former
        • Non-resonant long life lead wires
        • Compact large surround dome tweeter



        Product details

        SB Acoustics SB12PACR25-4-COAX Driver


        These were once OEM-only drivers and feature non-resonant ABS plastic cones. This version is great for low-cost builds and the plastic frame makes trimming for tight fits easy.

        Show more

        Specifications

        Article number
        SB12PACR25-4-COAX
        EAN
        8785256845439
        Nominal Diameter
        122 mm
        Power Handling (RMS)
        Woofer 30 Watt, Tweeter 10 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        87.5 dB
        Voice Coil Diameter
        Woofer 25.5 mm, Tweeter 12.4 mm
        DC Resistance (Re)
        3.1-3.0 Ohm
        Resonant Frequency (Fs)
        W: 55 Hz T: 1300 Hz
        Mechanical Q (Qms)
        4.84
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        5.6 g
        Surface Area of Cone (Sd)
        45 cm2
        BL Product (BL)
        4.0 Tm
        Compliance Equivalent Volume (Vas)
        4.3 Liters
        Maximum Linear Excursion (Xmax)
        5 mm
        Overall Outside Diameter
        122 mm
        Overall Depth
        69 mm
        Baffle Cutout Diameter
        102 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4 mm

        Show more

        Reviews

        1 reviews
        Review this product
        4 of 5
        TSP weichen sehr von den werten des Datenblattes ab
        By Wolfgang on 14 November 2023
