        SB12PACR25-4 Mid-range Woofer

        SB Acoustics SB12PACR25-4 Mid-range Woofer

        €29,95

        8 In stock8 expected on 26-12-2024

        Add to cart

        SB Acoustics SB12PACR25-4 Mid-range Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Mid-range woofer
        4" | 4 Ω
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        € 24,75€ 29,95 8 In stock8 expected on 26-12-2024
        • -5% Purchase 4 for only € 28,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer
        SB12PACR25-4 Mid-range Woofer

        Product description SB Acoustics SB12PACR25-4 Mid-range Woofer

        Highlights

        • Vented reinforced plastic chassis
        • Anodized aluminum cone
        • Low damping rubber surround
        • Large vented motor system
        • Long stroke linear suspension
        • Light-weight CCAW voice coil
        • Non-conducting fiberglass coil former
        • Non-resonant long life lead wires



        Product details

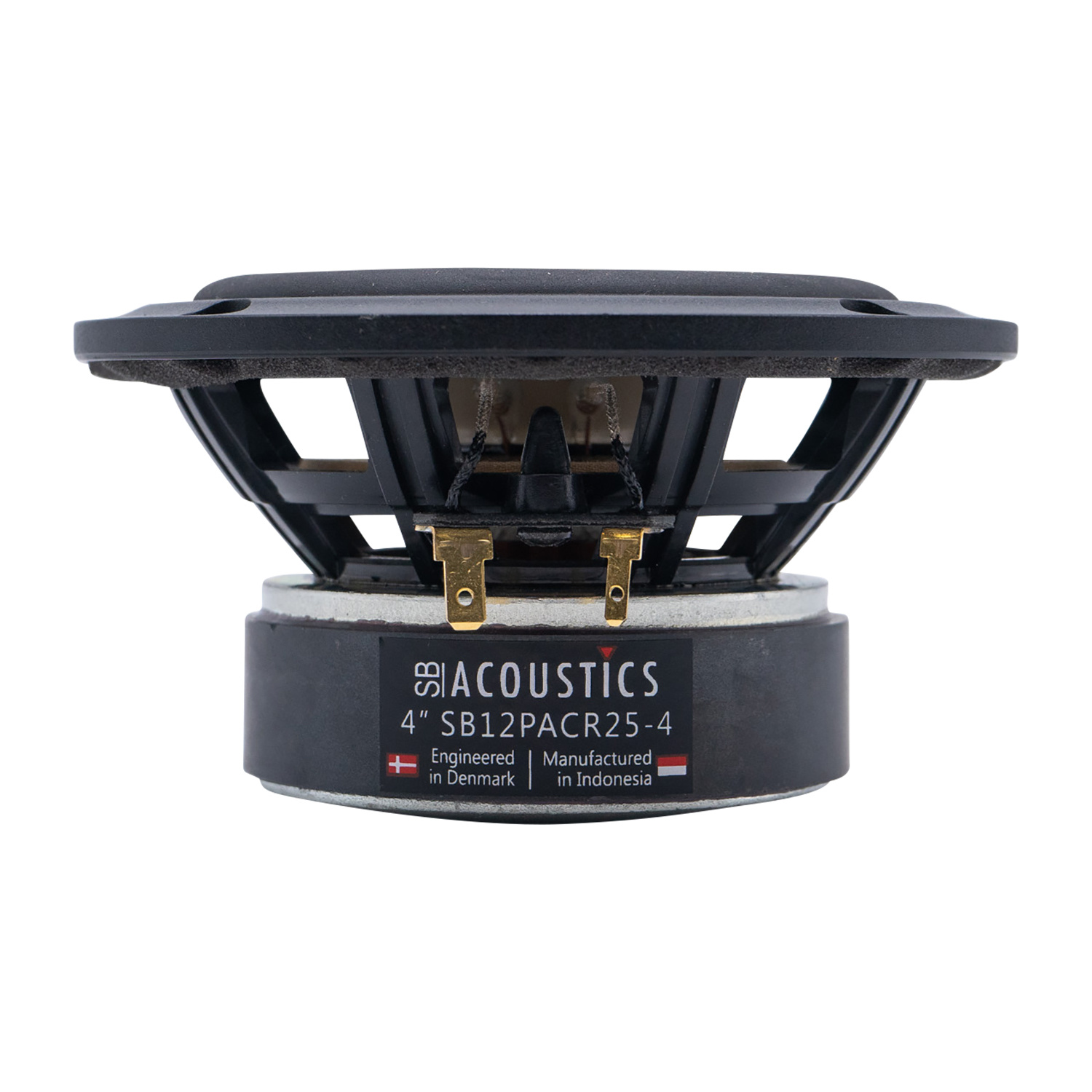

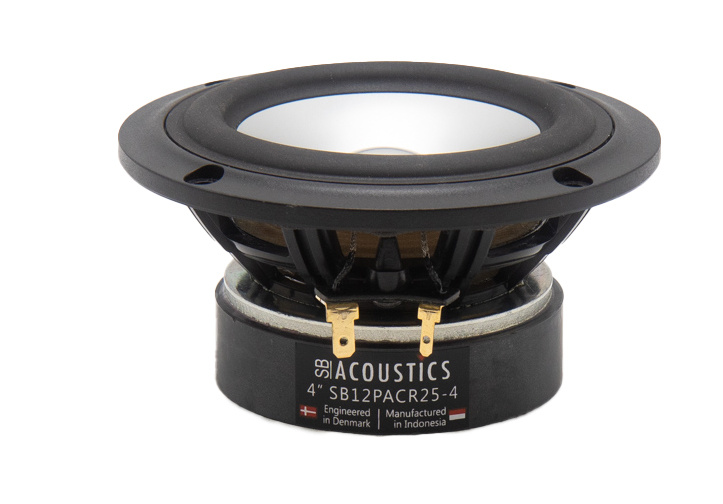

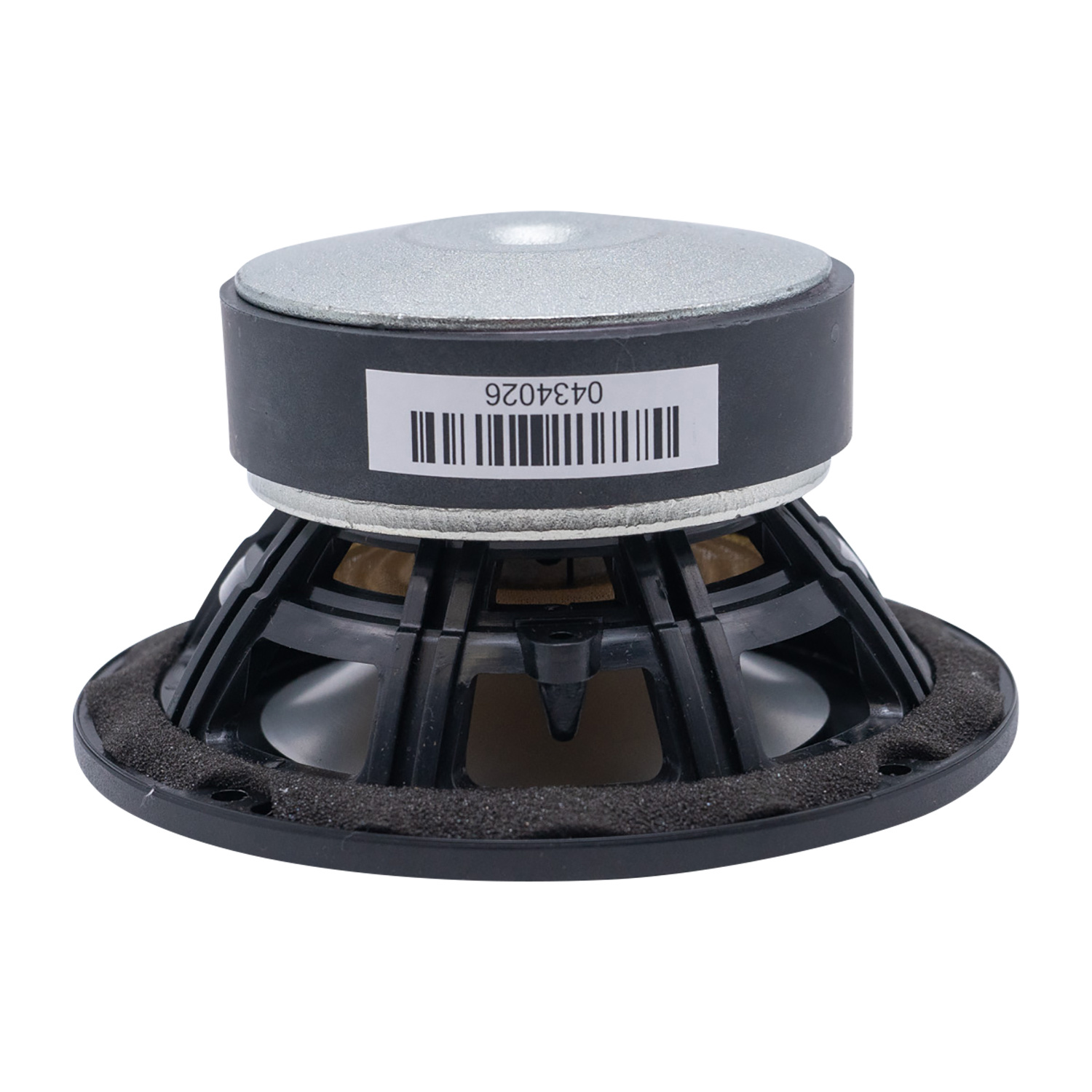

        SB Acoustics SB12PACR25-4 4” Aluminium Cone Mid-range Woofer



        The SB Acoustics SB12PACR25-4 is a 4 inch mid-range woofer with an aluminium cone. The SB12PACR25-4 uses a light-weight copper coated aluminium wire voice coil to create a responsive mid-range woofer. It also has a low Fs frequency which should allow for a low crossover point in a 3-way system.

        Show more

        Specifications

        Article number
        SB12PACR25-4
        EAN
        8785256842087
        Woofer Type
        Mid-range woofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        30 Watts
        Impedance (Z)
        4 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Voice Coil Diameter
        25.4 mm
        Magnet Weight
        400 g
        DC Resistance (Re)
        3.1 Ohms
        Voice Coil Inductance (Le)
        0.25 mH
        Resonant Frequency (Fs)
        52.5 Hz
        Mechanical Q (Qms)
        5.0
        Electromagnetic Q (Qes)
        0.33
        Total Q (Qts)
        0.31
        Diaphragm Mass Inc. Airload (Mms)
        6.1 g
        Mechanical Compliance of Suspension (Cms)
        1.5 mm/N
        Surface Area of Cone (Sd)
        50 cm2
        BL Product (BL)
        4.35 Tm
        Compliance Equivalent Volume (Vas)
        5.3 Ltr
        Maximum Linear Excursion (Xmax)
        5 mm
        Driver's Mechanical Losses (Rms)
        0.4 kg/s
        Cone / Diaphragm Material
        Aluminium
        Voice Coil Wire Material
        copper coated alumimium
        Basket / Frame Material
        Plastic
        Magnet Material
        Ferrite
