        SB13PFCR25-8 Paper Bass-midwoofer

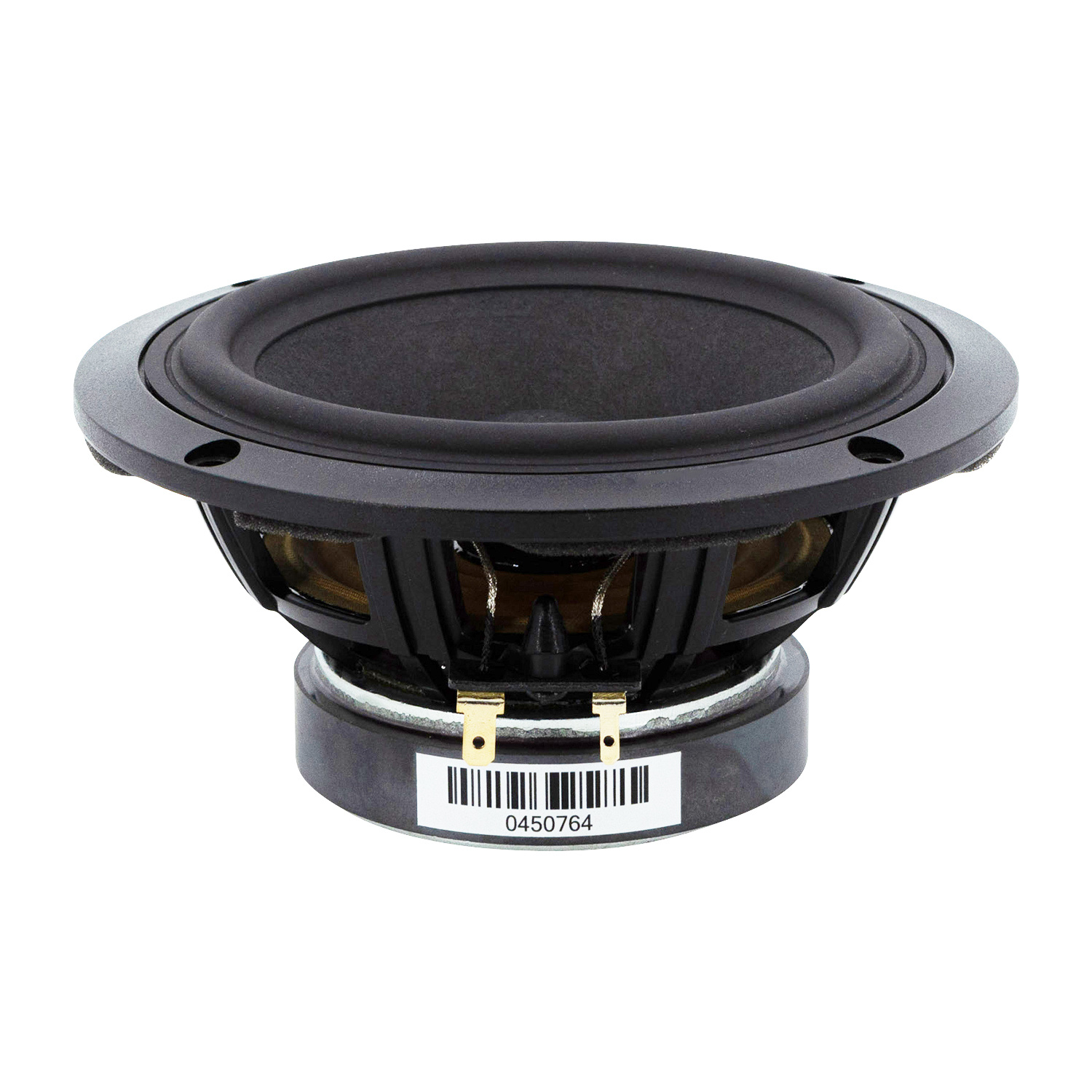

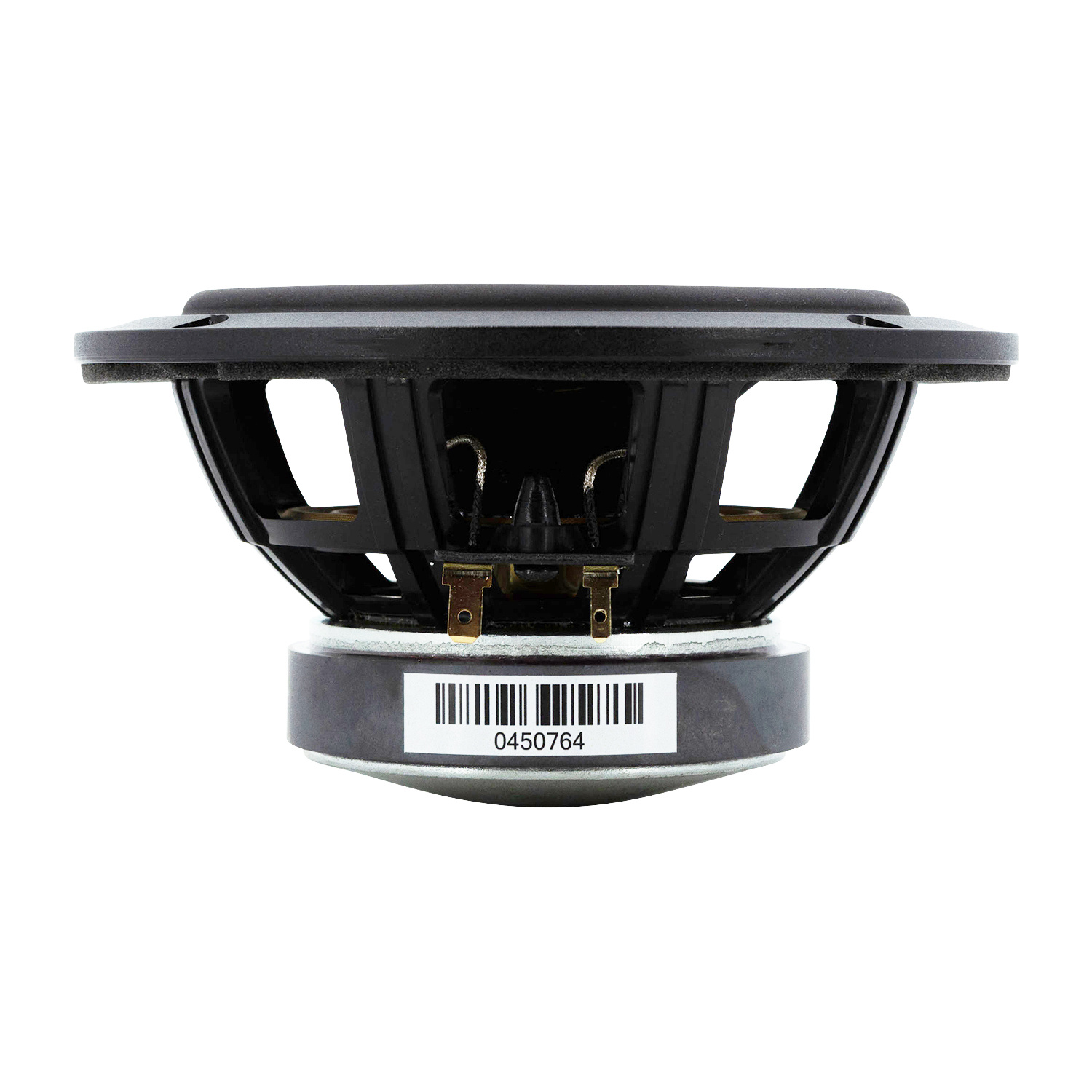

        SB Acoustics SB13PFCR25-8 Paper Bass-midwoofer

        €31,45

        8 In stock

        Add to cart

        SB Acoustics SB13PFCR25-8 Paper Bass-midwoofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all New products
        4" | 8 Ω
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        € 25,99€ 31,45 8 In stock
        • -5% Purchase 4 for only € 29,88 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer
        SB13PFCR25-8 Paper Bass-midwoofer

        Pros and cons

        According to our specialists
        • Copper voice coil for improved power handling

        Product description SB Acoustics SB13PFCR25-8 Bass-midwoofer

        The SB Acoustics SB13PFCR25-8 is a 5-inch bass-midwoofer with a vented reinforced plastic chassis and a proprietary cone material with natural fibers made in-house. It also has a soft low damping rubber surround for improved transient response and an optimized motor system.



        Highlights

        • Unique patented long throw shallow design
        • Vented cast aluminum chassis for optimum strength and low compression
        • Dual rigid aluminum cone structure
        • Non-conducting fiber glass coil former for minimum damping
        • Shorting ring in motor system for reduced distortion
        • Copper voice coil for improved power handling
        • Dual voice coil
        • Long life insulated silver lead wires
        • Powerful neodymium motor system



        Product Details

        SB Acoustics SB13PFCR25-8 Paper Bass-midwoofer



        The SB Acoustics SB13PFCR25-8 is a 5-inch bass-midwoofer that is designed to produce high-quality sound. The vented reinforced plastic chassis helps to reduce distortion and improve the overall sound quality. The proprietary cone material with natural fibers made in-house is designed to provide a smooth and accurate response across the frequency range.



        The soft low damping rubber surround helps to improve the transient response of the speaker, which means that it can respond more quickly to changes in the music. The optimized motor system helps to provide a more efficient and accurate response from the speaker. The voice coil diameter is 25.4 mm and the voice coil height is 14 mm. The air gap height is 5 mm and the linear coil travel (p-p) is 9 mm. The magnetic flux density is 1.07 T and the magnet weight is 0.36 kg. The net weight of the speaker is 0.91 kg. The free air resonance is 45 Hz and the sensitivity (2.83 V / 1 m) is 87 dB.

        Show more

        Specifications

        Article number
        SB13PFCR25-8
        EAN
        8785256848096
        Woofer Series
        SB Acoustics PFC Paper series
        Nominal Diameter
        134,5 mm
        Power Handling (RMS)
        40 Watt
        Power Handling (max)
        80 Watt
        Impedance (Z)
        8 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Voice Coil Diameter
        25.4 mm
        Magnet Weight
        0.36 kg
        DC Resistance (Re)
        3.2 Ohm
        Voice Coil Inductance (Le)
        0.77 mH
        Resonant Frequency (Fs)
        45 Hz
        Mechanical Q (Qms)
        2.2
        Electromagnetic Q (Qes)
        0.39
        Total Q (Qts)
        0.33
        Diaphragm Mass Inc. Airload (Mms)
        10 g
        Mechanical Compliance of Suspension (Cms)
        1.25 mm/N
        BL Product (BL)
        6.2 Tm
        Compliance Equivalent Volume (Vas)
        13.4 liters
        Driver's Mechanical Losses (Rms)
        1.4 kg/s
        Overall Outside Diameter
        134,5 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4,3 mm

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        Zum Lautsprecherbau.
        By Peter on 15 May 2024
