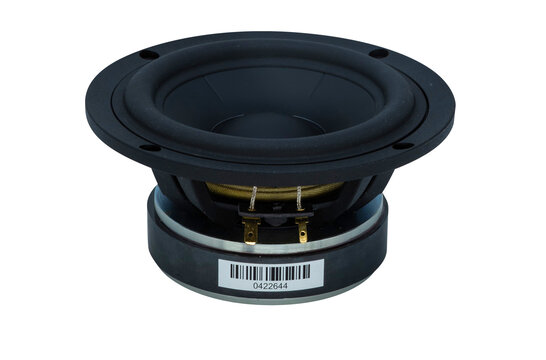

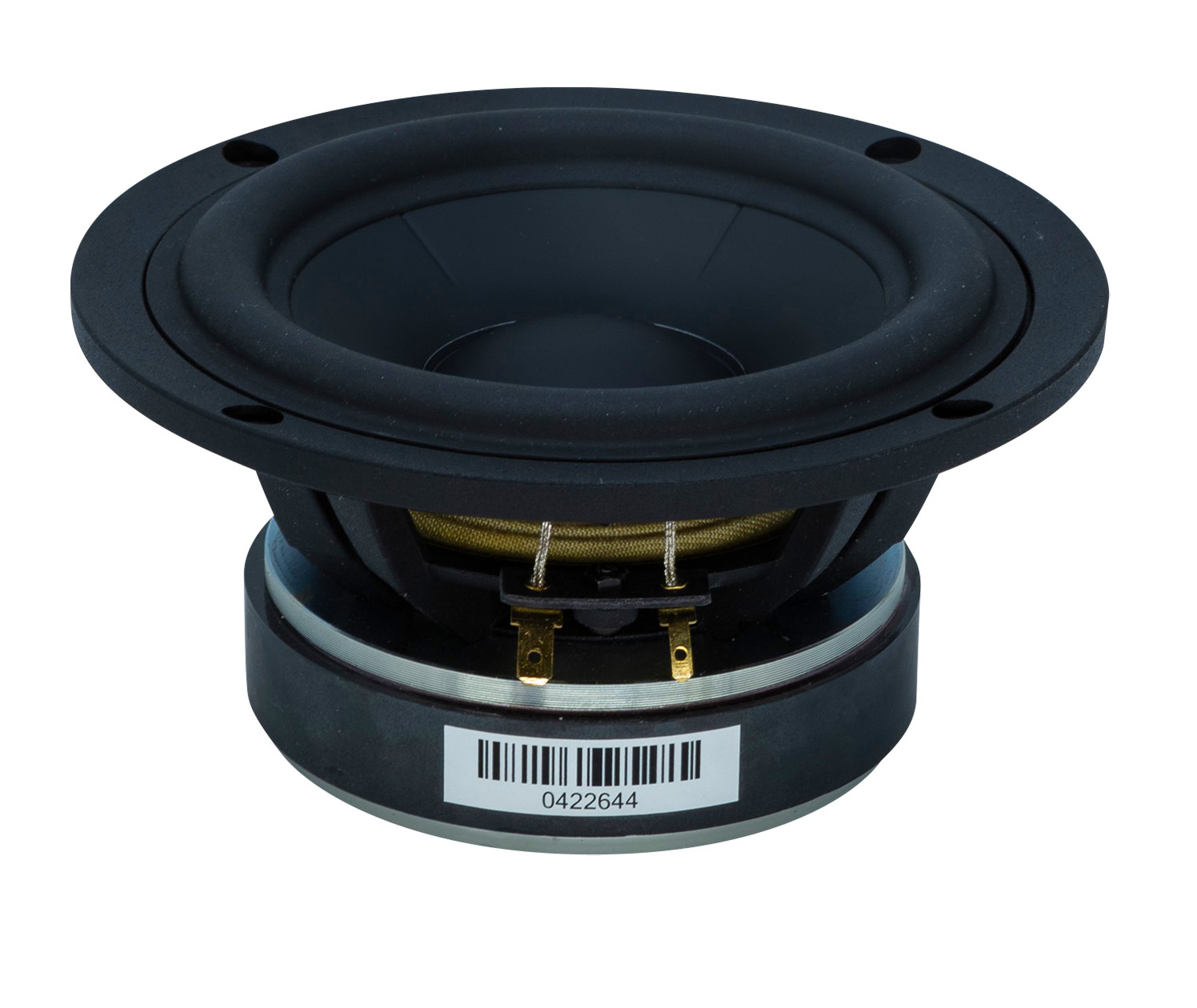

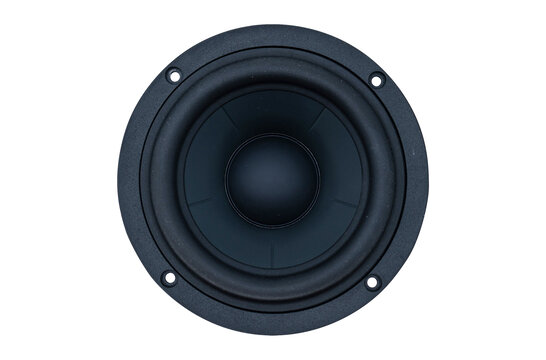

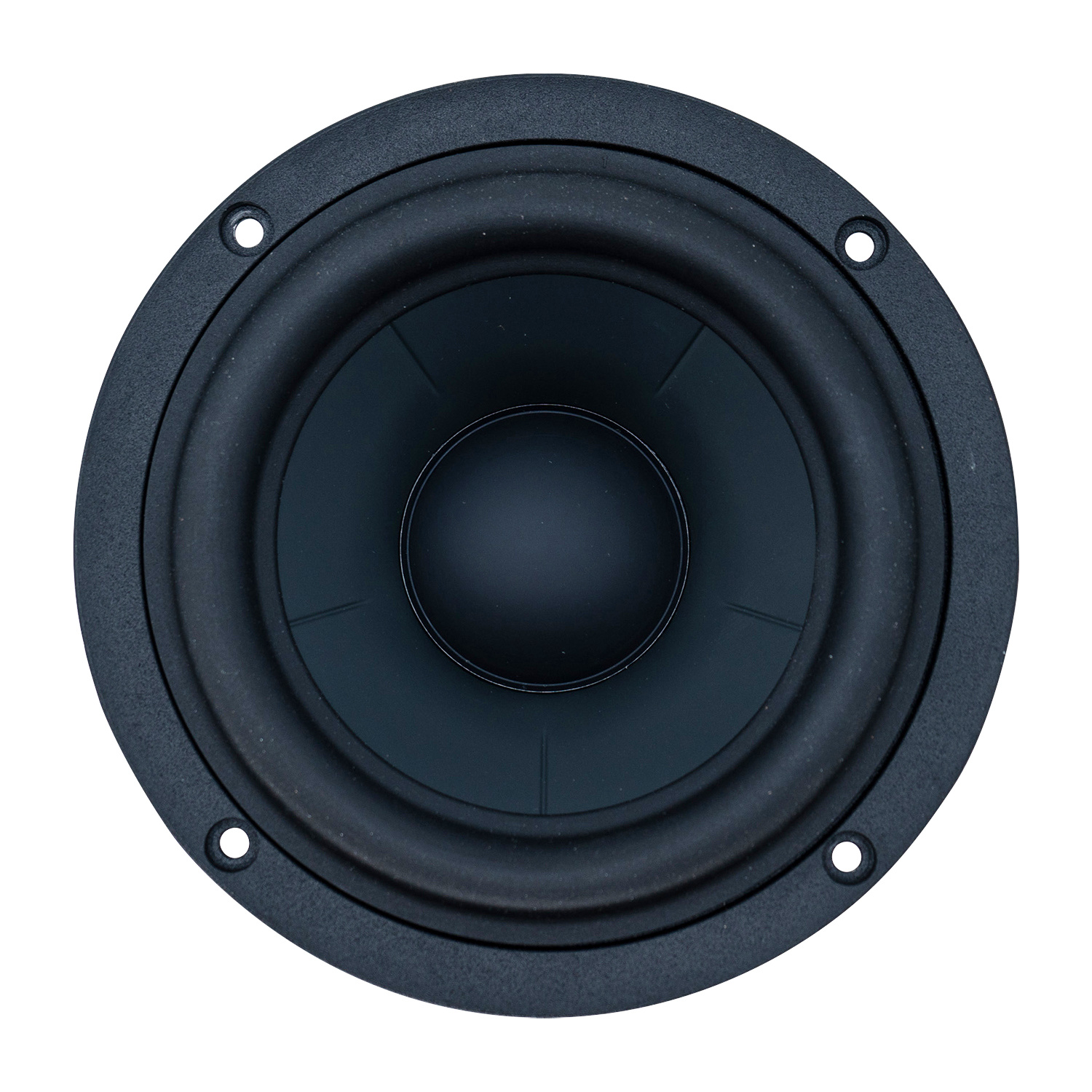

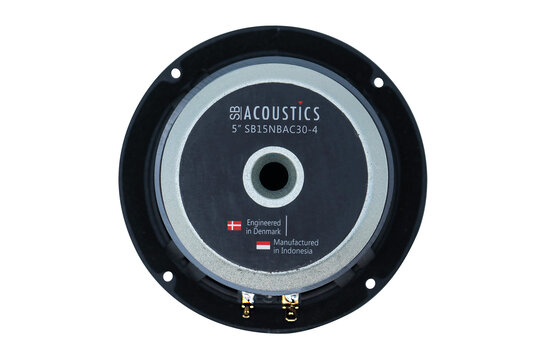

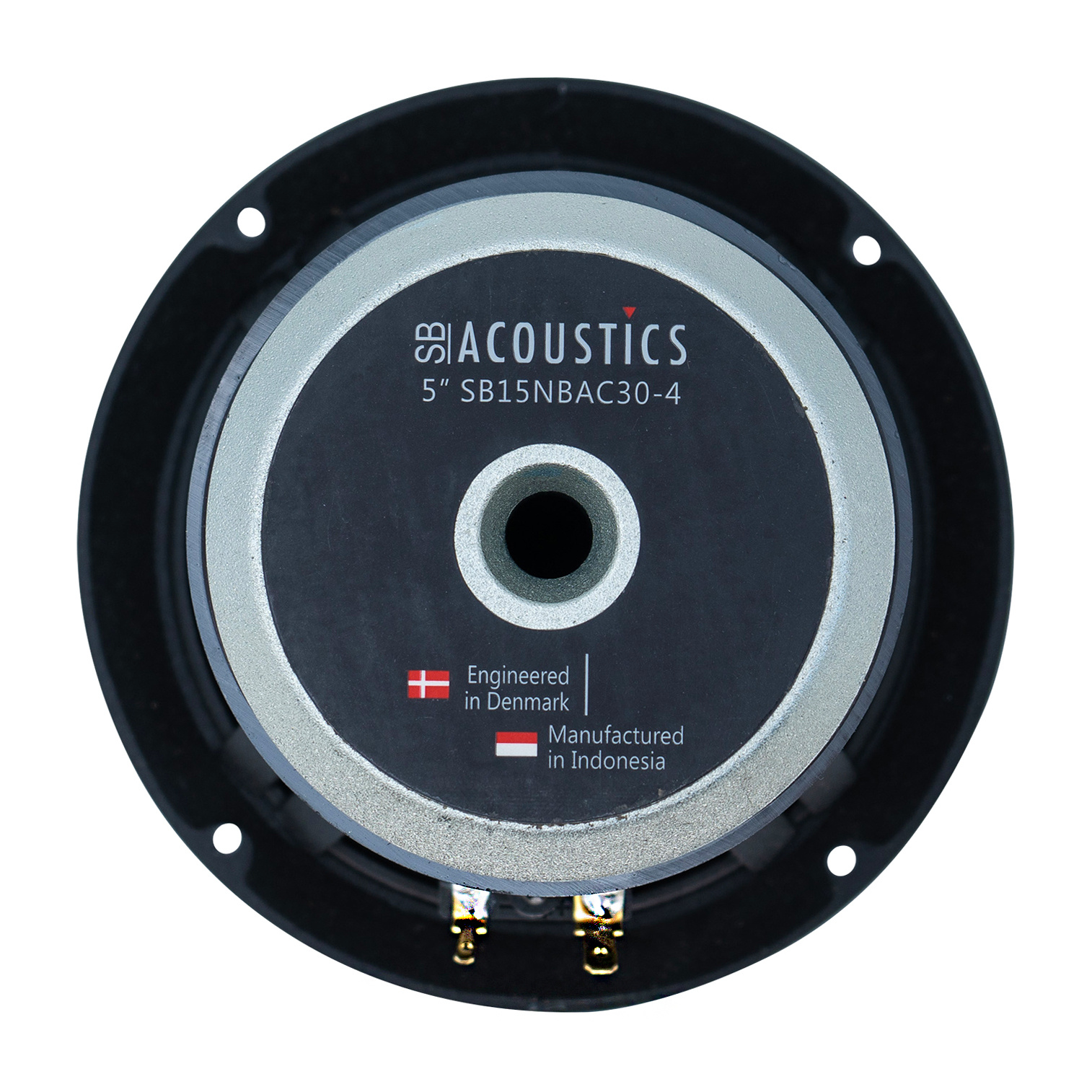

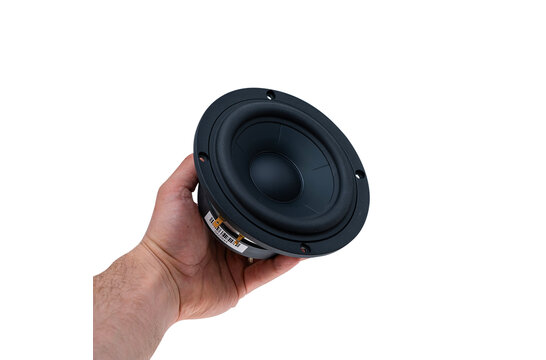

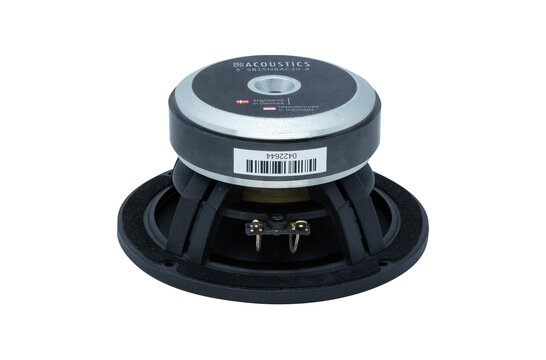

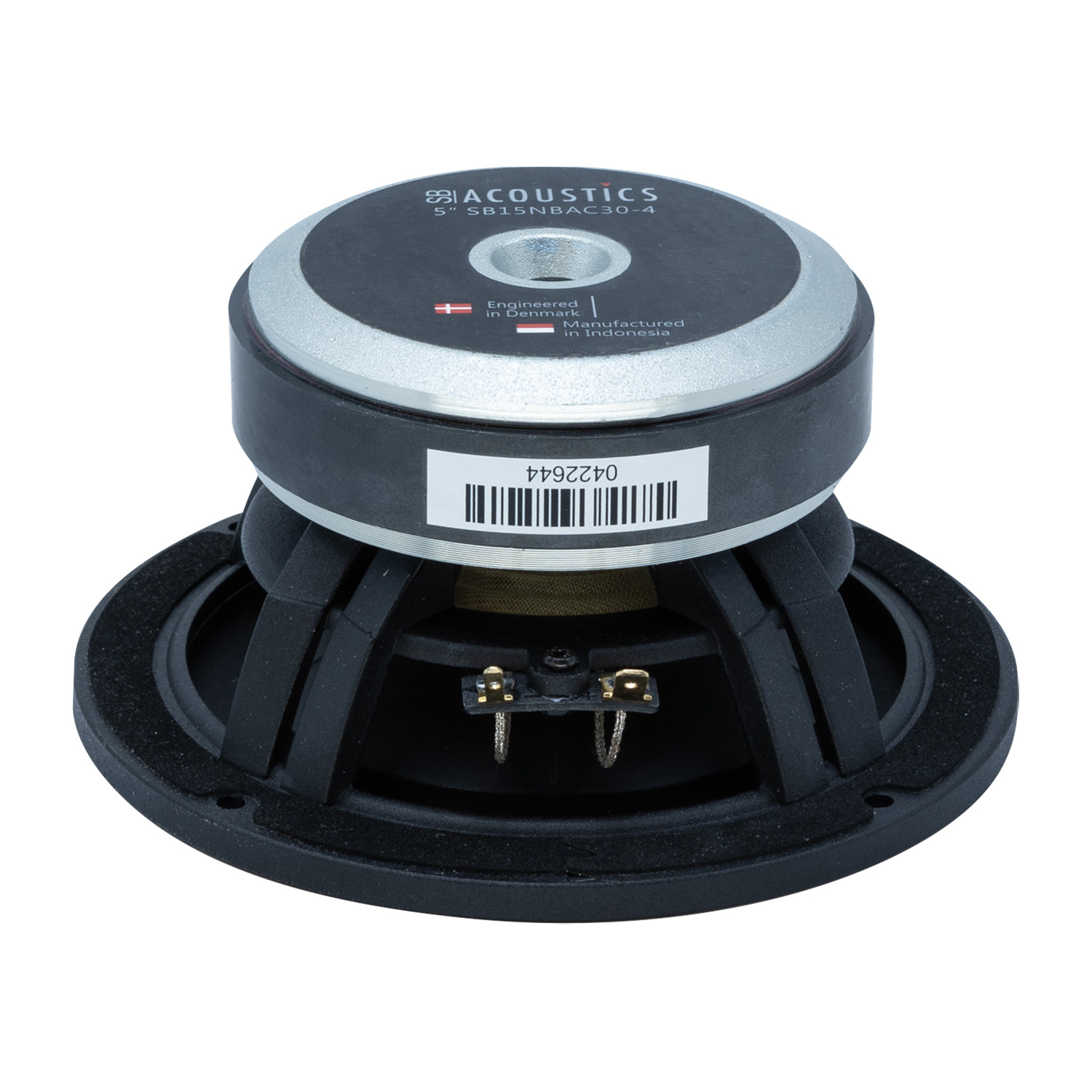

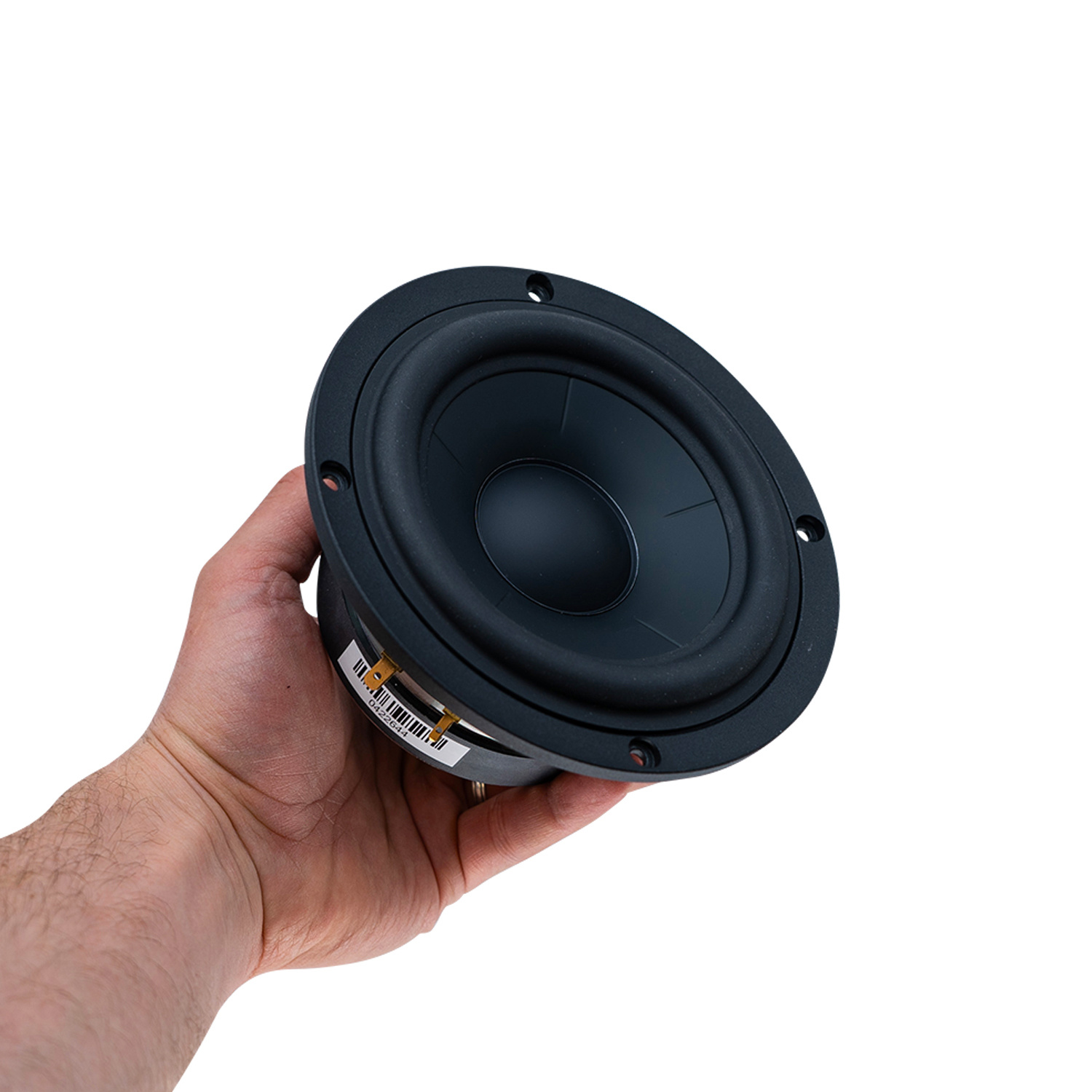

        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

        SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

        €82,95

        10+ In stock

        Add to cart

        SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Bass-mid woofer
        5" | 4 Ω
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        € 68,55€ 82,95 10+ In stock
        • -5% Purchase 4 for only € 78,80 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
        SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

        Product description SB Acoustics SB15NBAC30-4 Bass-midwoofer

        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass



        The SB Acoustics SB15NBAC30-4 is a powerful 5’’ midwoofer with a vented chassis that provides optimum strength and allows low compression. Its geometrically reinforced aluminum cone gives it an optimum piston operation and a reduced break-up. Minimum damping and low inductance and distortion thanks to its non-conducting fiber glass voice coil former and extended copper sleeve on the pole piece. CCAW voice coil, long life silver lead wires and vented pole piece for a reduced compression.

        Show more

        Specifications

        Article number
        SB15NBAC30-4
        EAN
        0696277269419
        Woofer Series
        SB Acoustics NAC Aluminum series
        Woofer Type
        Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        50 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Voice Coil Diameter
        1.2"
        DC Resistance (Re)
        3.1 ohms
        Voice Coil Inductance (Le)
        0.12 mH
        Resonant Frequency (Fs)
        33 Hz
        Mechanical Q (Qms)
        4.4
        Electromagnetic Q (Qes)
        0.31
        Total Q (Qts)
        0.29
        Diaphragm Mass Inc. Airload (Mms)
        10.6 g
        Mechanical Compliance of Suspension (Cms)
        2.2 mm/N
        Surface Area of Cone (Sd)
        82 cm2
        BL Product (BL)
        4.7 Tm
        Compliance Equivalent Volume (Vas)
        0.74 ft.³
        Maximum Linear Excursion (Xmax)
        5 mm

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        In a 10L cabinet with a 1inch port this driver can produce some great low end. Detailed and soft bass and midrange. Great driver
        By Marcel on 11 March 2022
