        SB16PFCR25-4-COAX Coaxial Woofer

        SB Acoustics SB16PFCR25-4-COAX Coaxial Woofer

        €64,95

        10+ In stock10+ expected on 26-12-2024

        Add to cart

        SB Acoustics SB16PFCR25-4-COAX Coaxial Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Coaxial woofer
        6" | 4 Ω
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        € 53,68€ 64,95 10+ In stock10+ expected on 26-12-2024
        • -5% Purchase 4 for only € 61,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer
        SB16PFCR25-4-COAX Coaxial Woofer

        Pros and cons

        According to our specialists
        • Soft low damping rubber surround for improved transient response

        Product description SB Acoustics SB16PFCR25-4-COAX Coaxial Woofer

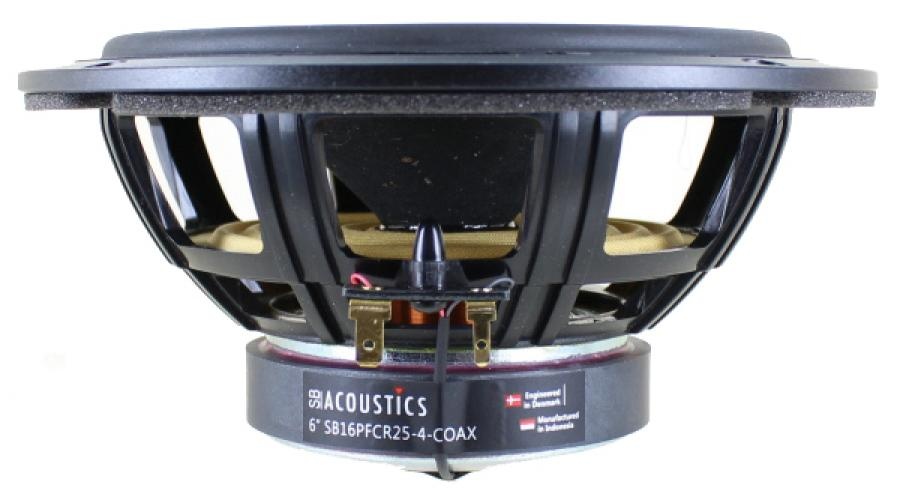

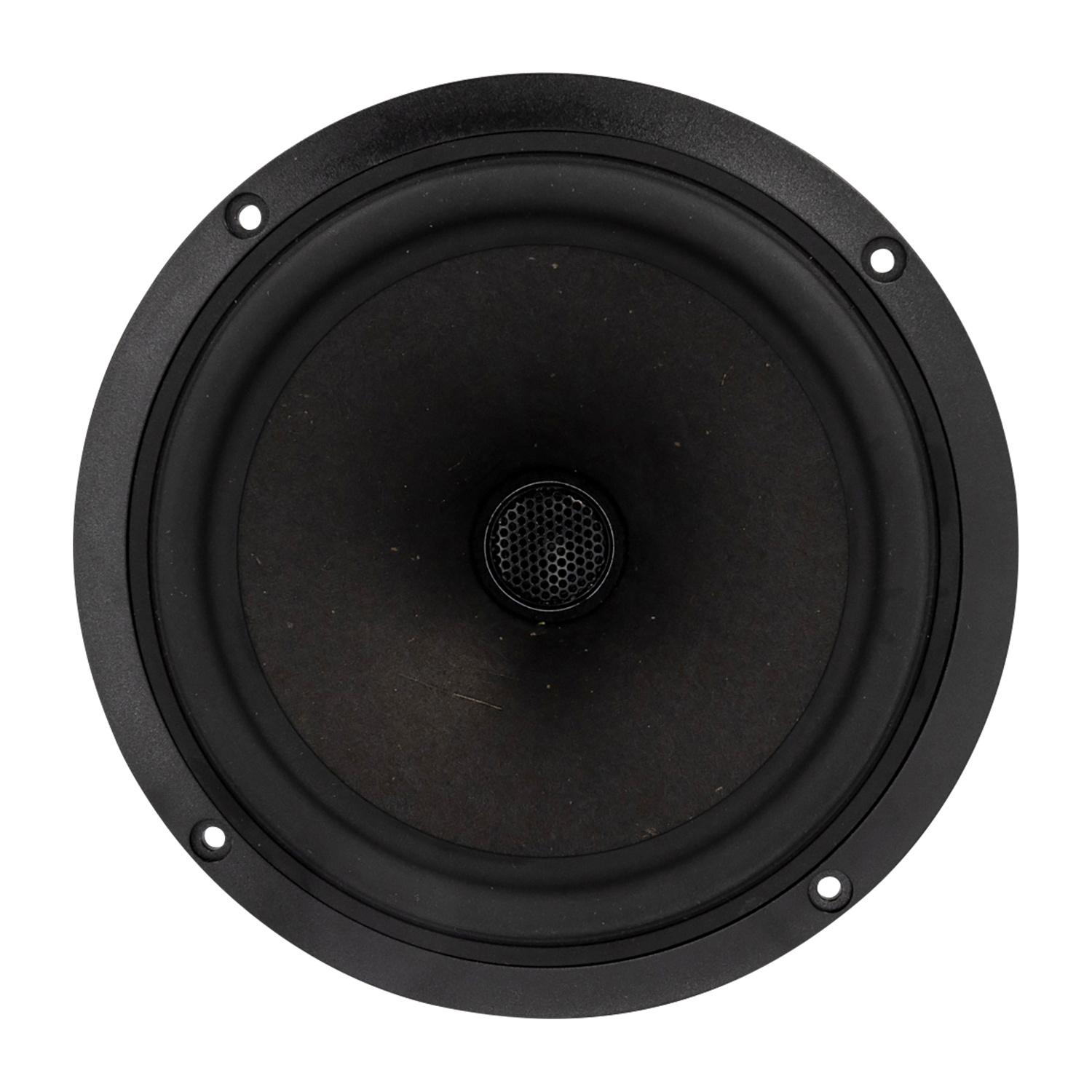

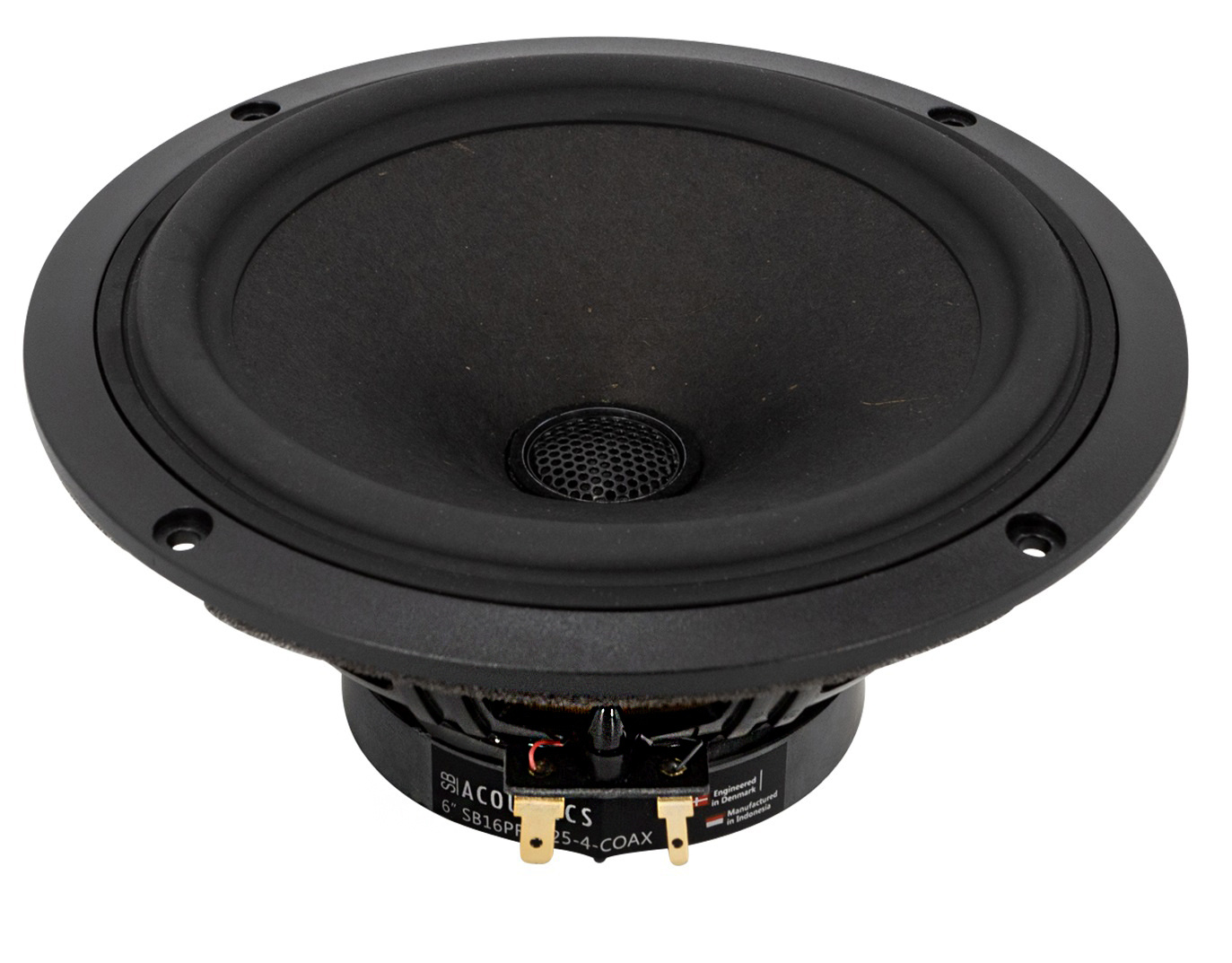

        The SB Acoustics SB16PFCR25-4-COAX is a 2-way coaxial loudspeaker drive unit featuring a 6" paper composite cone midwoofer with a 1" center-mounted soft dome tweeter. The vented reinforced plastic chassis and proprietary cone material with natural fibers made in-house provide a soft low damping rubber surround for improved transient response. The optimized motor system and vented coil former for low compression ensure non-resonant long life lead wires.



        Highlights

        • Vented reinforced plastic chassis
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for improved transient response
        • Optimized motor system
        • Non-resonant long life lead wires
        • Compact large surround dome tweeter



        Product details

        SB Acoustics SB16PFCR25-4-COAX Coaxial Woofer



        The SB Acoustics SB16PFCR25-4-COAX is a 6-inch coaxial speaker that features a proprietary cone material with natural fibers made in-house, a soft low damping rubber surround for improved transient response, an optimized motor system, non-resonant long life lead wires, and a compact large surround dome tweeter. It has a nominal impedance of 4 ohms, a frequency response of 36-20,000 Hz, a sensitivity of 90 dB, and a rated power handling of 40 watts.



        The cone material is lightweight and rigid, which provides good linearity and transient response. And its surround provides a smooth and controlled response, which helps to improve the overall sound quality. The motor system provides good power handling and efficiency.

        Show more

        Specifications

        Article number
        SB16PFCR25-4-COAX
        EAN
        8785256848133
        Woofer Series
        SB Acoustics PFC Paper series
        Nominal Diameter
        176 mm
        Power Handling (RMS)
        40 Watt. tweeter 10 watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Frequency Response
        36-20,000 Hz
        Voice Coil Diameter
        25.4 mm
        DC Resistance (Re)
        3.2 Ohm
        Voice Coil Inductance (Le)
        0.31mH
        Resonant Frequency (Fs)
        W: 36 Hz T: 1300 Hz
        Mechanical Q (Qms)
        2.6
        Electromagnetic Q (Qes)
        0.35
        Total Q (Qts)
        0.31
        Diaphragm Mass Inc. Airload (Mms)
        12.5 g
        Mechanical Compliance of Suspension (Cms)
        1.56 mm/N
        Surface Area of Cone (Sd)
        119 cm 2
        BL Product (BL)
        5.1 Tm
        Compliance Equivalent Volume (Vas)
        31.3 liters
        Maximum Linear Excursion (Xmax)
        9.3 mm
        Driver's Mechanical Losses (Rms)
        1.1 kg/s
        Basket / Frame Material
        Vented reinforced plastic chassis
        Overall Outside Diameter
        176 mm
        Overall Depth
        88.3 mm
        Baffle Cutout Diameter
        144.5 mm
        # Mounting Holes
        4
