        SB16PFCR25-4 Paper Bass-midwoofer

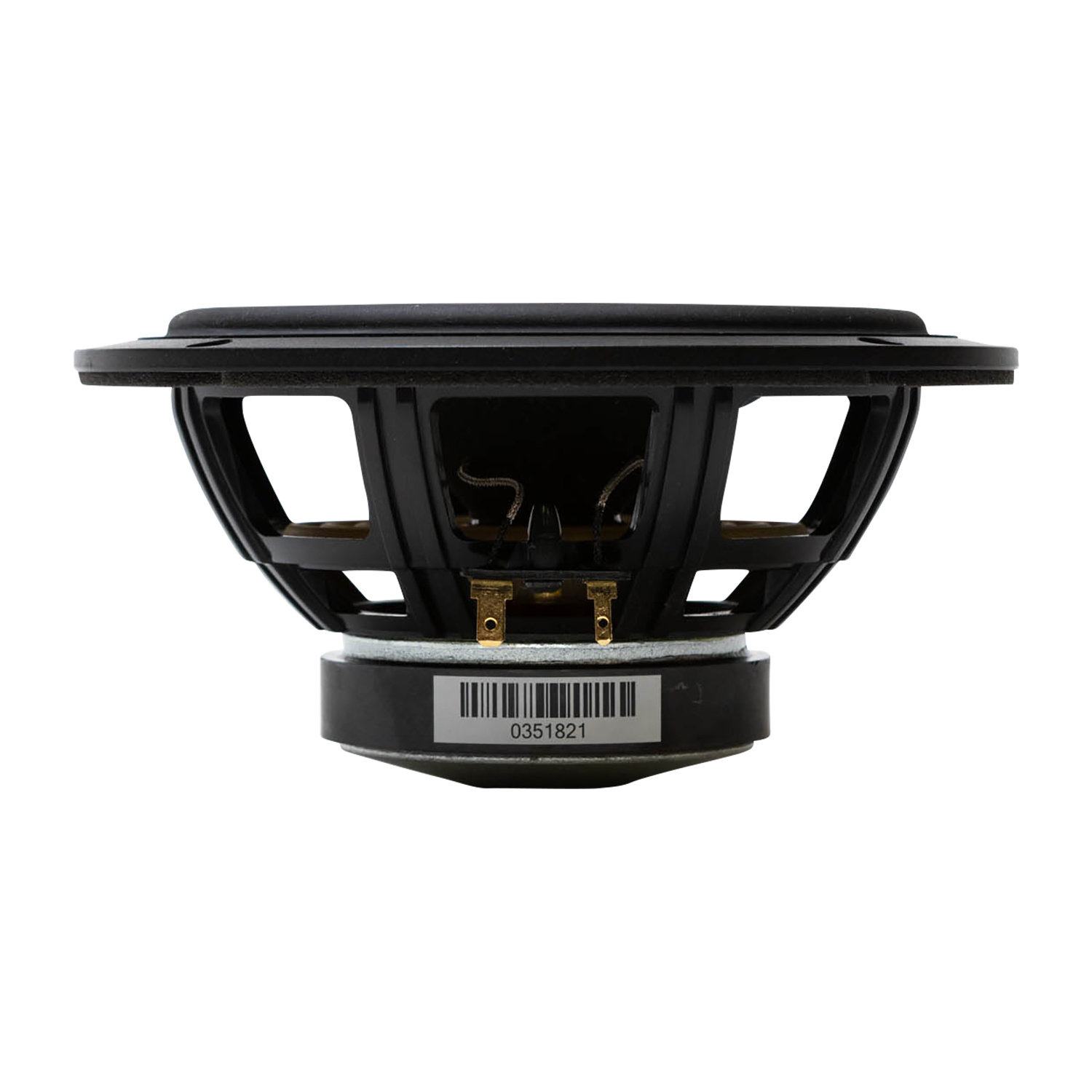

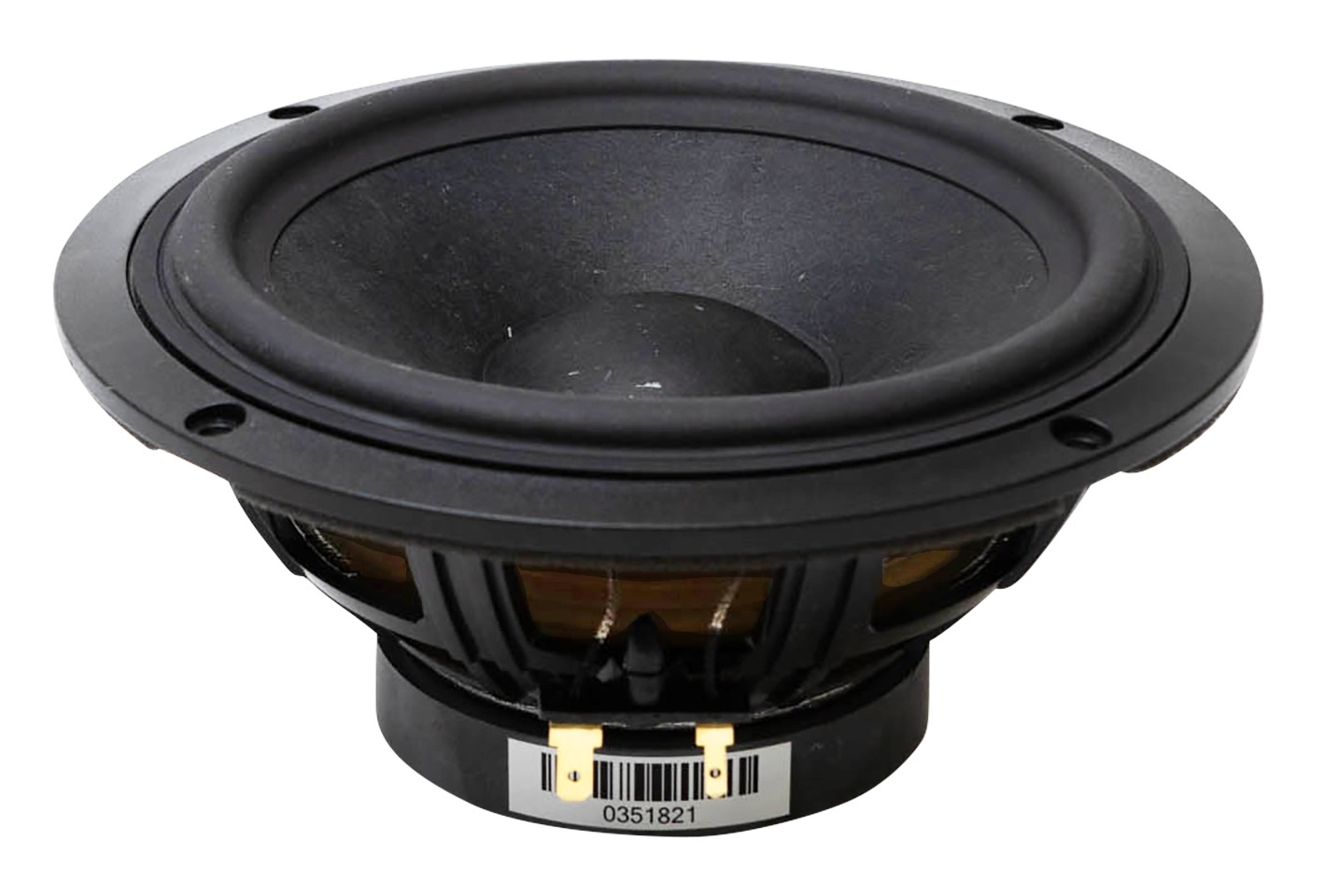

        SB Acoustics SB16PFCR25-4 Paper Bass-midwoofer

        €36,45

        10+ In stock

        Add to cart

        SB Acoustics SB16PFCR25-4 Paper Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all New products
        6" | 4 Ω
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        € 30,12€ 36,45 10+ In stock
        • -5% Purchase 4 for only € 34,63 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer
        SB16PFCR25-4 Paper Bass-midwoofer

        Pros and cons

        According to our specialists
        • Vented coil former for low compression and Soft low damping rubber surround for improved transient response

        Product description SB Acoustics SB16PFCR25-4 Bass-midwoofer

        The SB Acoustics SB16PFCR25-4 is a 6" mid-woofer with a 25mm voice coil and a vented reinforced plastic chassis. It features a proprietary cone material with natural fibers made in-house and a soft low damping rubber surround for improved transient response. The optimized motor system and vented coil former for low compression are also noteworthy features of this mid-woofer.



        Highlights

        • Vented reinforced plastic chassis
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for improved transient response
        • Optimized motor system
        • Vented coil former for low compression
        • Non-resonant long life lead wires



        Product details

        SB Acoustics SB16PFCR25-4 Paper Bass-midwoofer



        The SB Acoustics SB16PFCR25-4 is a mid-woofer that is designed to reproduce frequencies in the range of 35 Hz to 4 kHz. It is suitable for use in a two-way speaker system or as a mid-woofer in a three-way system. The vented reinforced plastic chassis helps to reduce unwanted resonances and the proprietary cone material with natural fibers made in-house provides a good balance between stiffness and damping. The soft low damping rubber surround helps to improve the transient response of the driver. The optimized motor system and vented coil former for low compression help to reduce distortion and improve power handling.



        The SB Acoustics SB16PFCR25-4 is a 6-inch paper cone woofer with a 4-ohm nominal impedance. It has a free-air resonance of 35 Hz and a sensitivity of 89.5 dB. This is a versatile woofer that can be used in a variety of applications, including home audio, car audio, and professional audio. It is well-suited for use in sealed and ported enclosures, and it can handle up to 40 watts of continuous power.

        Show more

        Specifications

        Article number
        SB16PFCR25-4
        EAN
        8785256848157
        Woofer Series
        SB Acoustics PFC Paper series
        Nominal Diameter
        176 mm
        Power Handling (RMS)
        40 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        89.5 dB
        Frequency Response
        35 Hz to 4 kHz
        Voice Coil Diameter
        25.4 mm
        DC Resistance (Re)
        3.2 Ohm
        Voice Coil Inductance (Le)
        0.56 mH
        Resonant Frequency (Fs)
        35 Hz
        Mechanical Q (Qms)
        2.76
        Electromagnetic Q (Qes)
        0.39
        Total Q (Qts)
        0.34
        Diaphragm Mass Inc. Airload (Mms)
        13.8 g
        Surface Area of Cone (Sd)
        124 cm2
        BL Product (BL)
        5.0 Tm
        Compliance Equivalent Volume (Vas)
        32.7 liters
        Basket / Frame Material
        Vented reinforced plastic
        Overall Outside Diameter
        176 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4.3 mm
