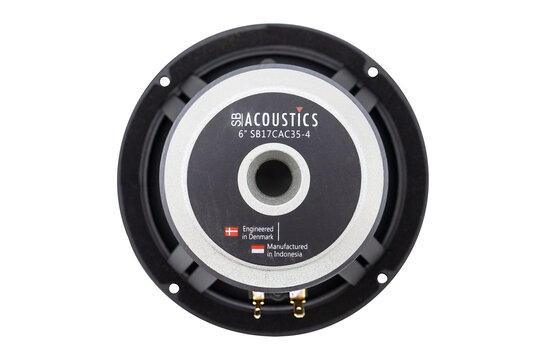

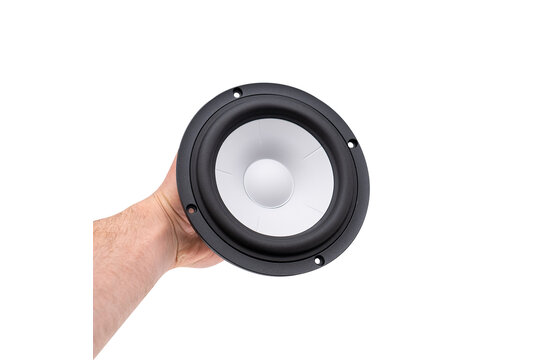

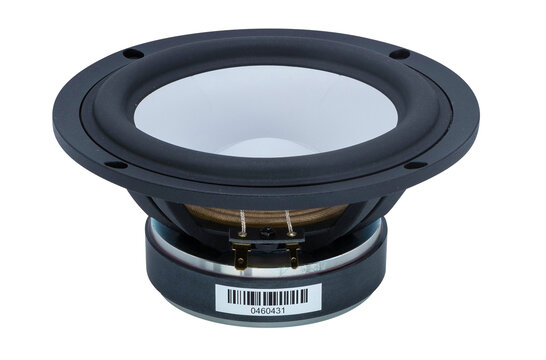

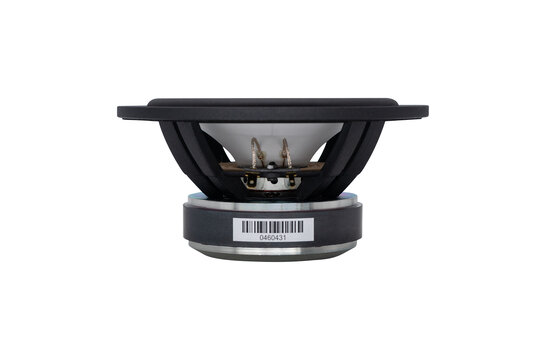

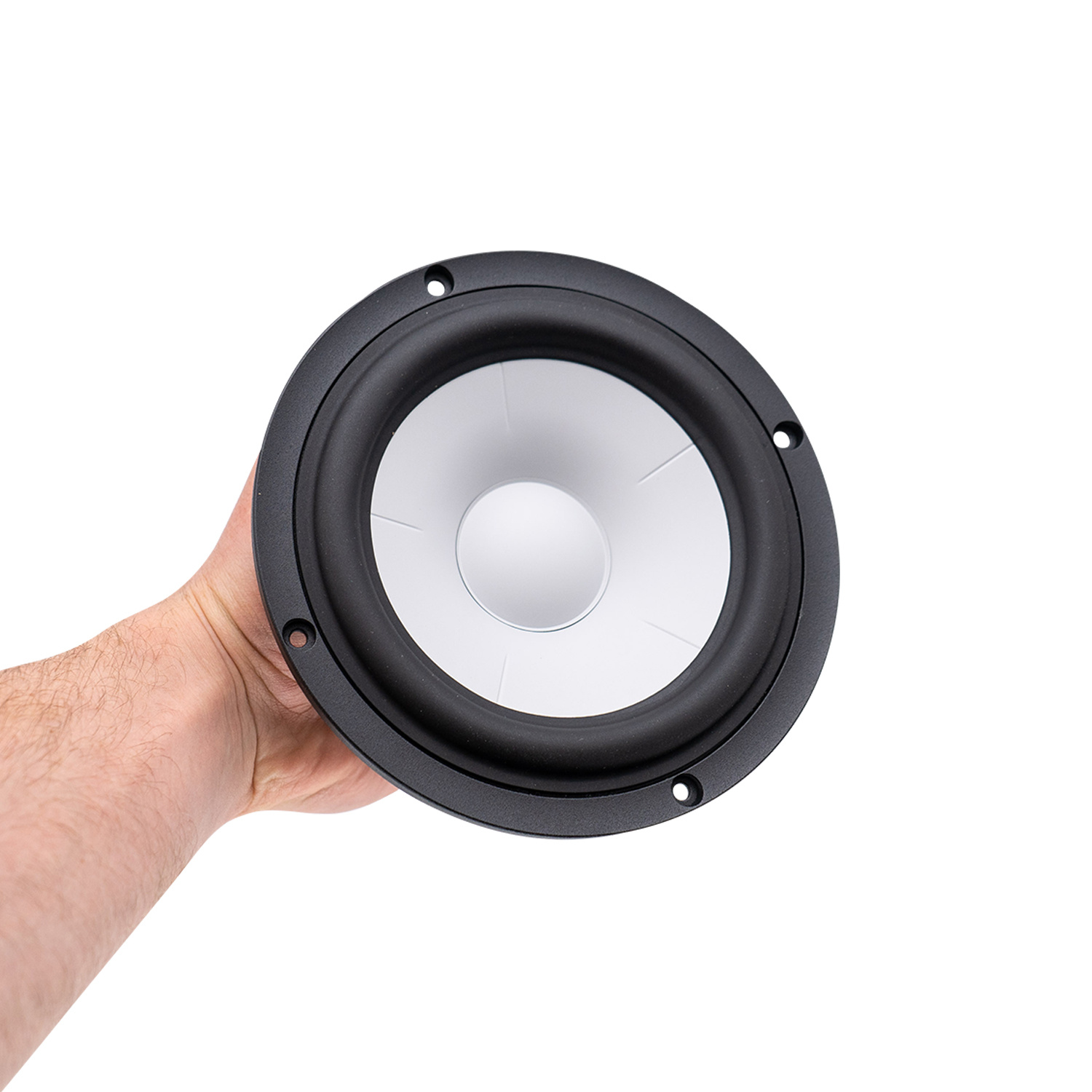

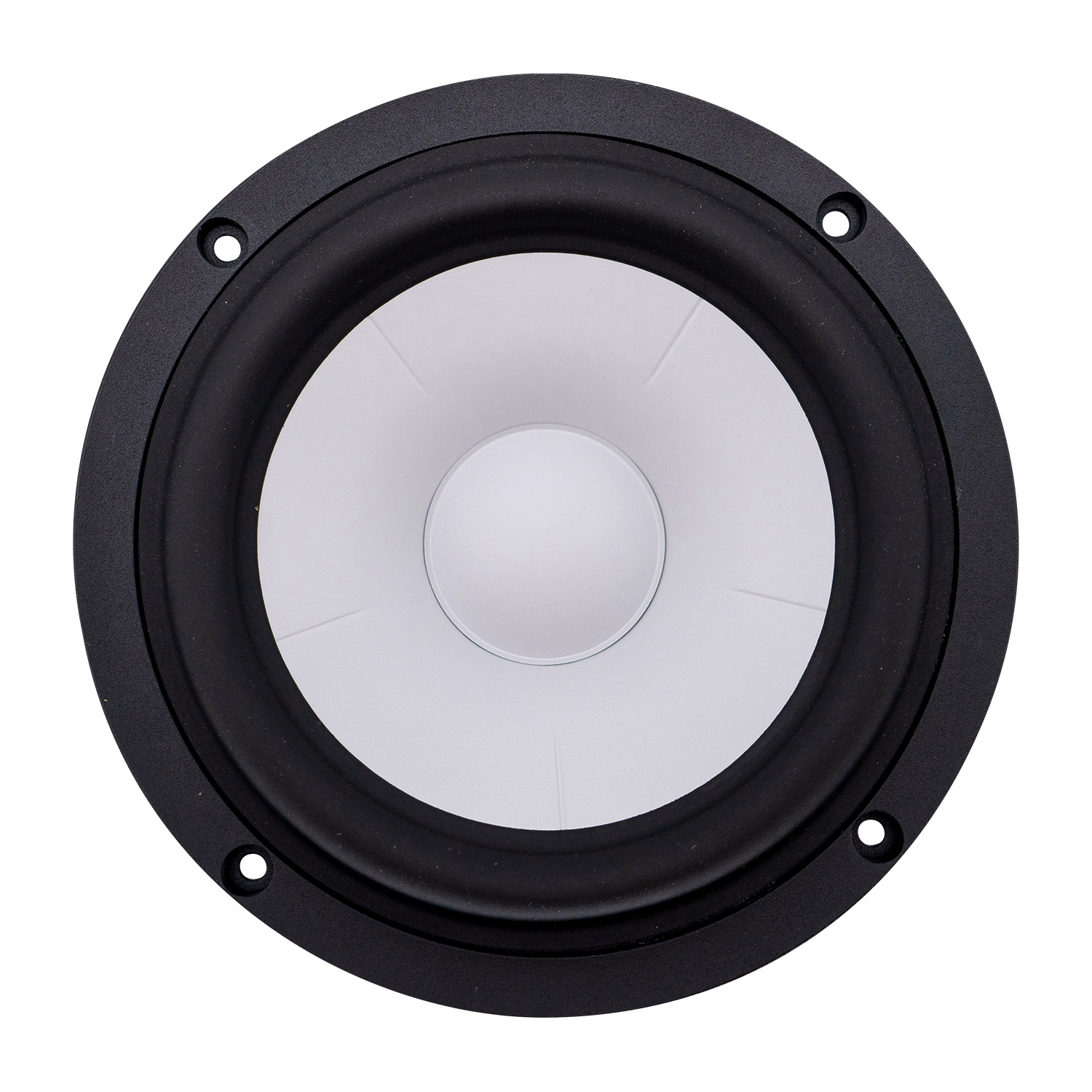

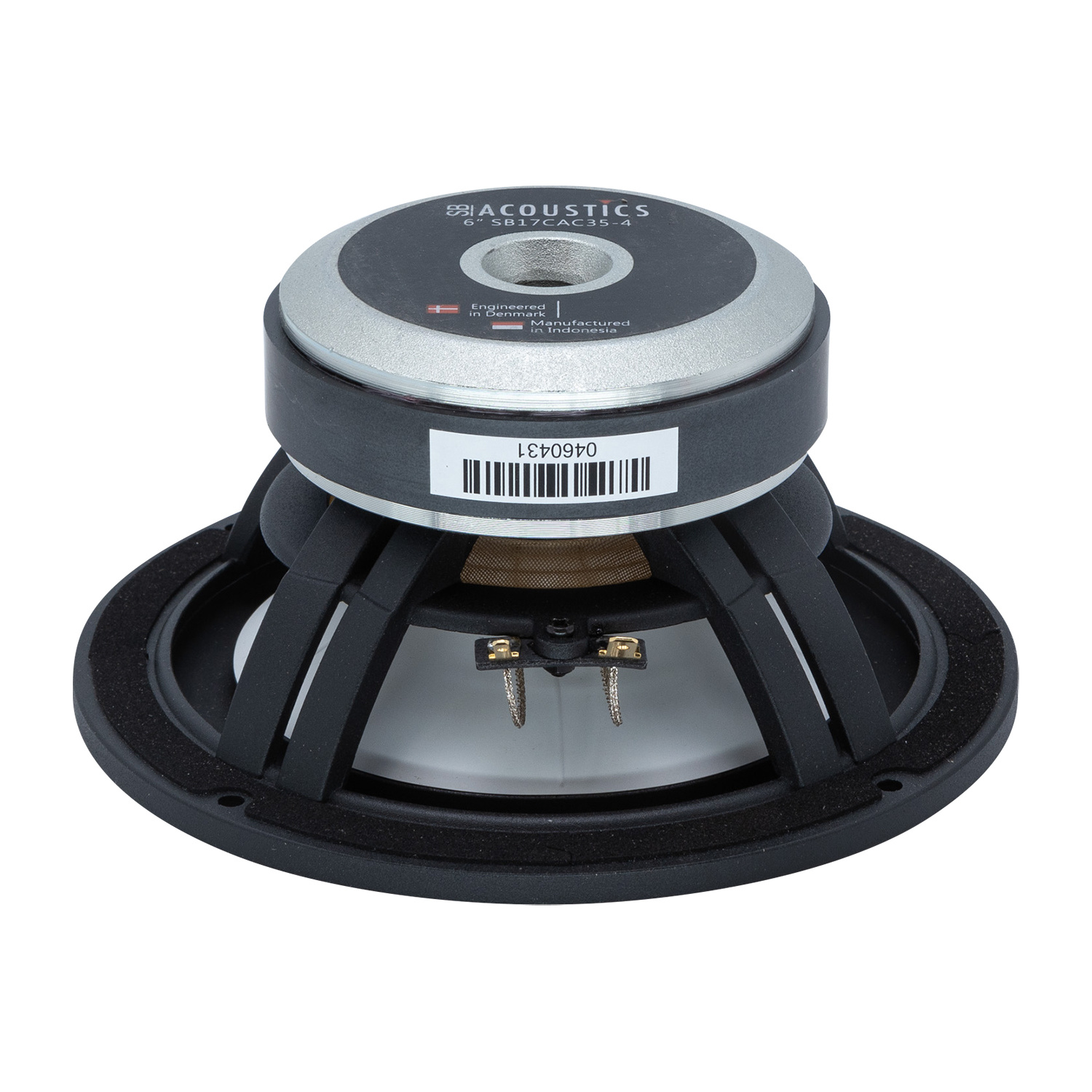

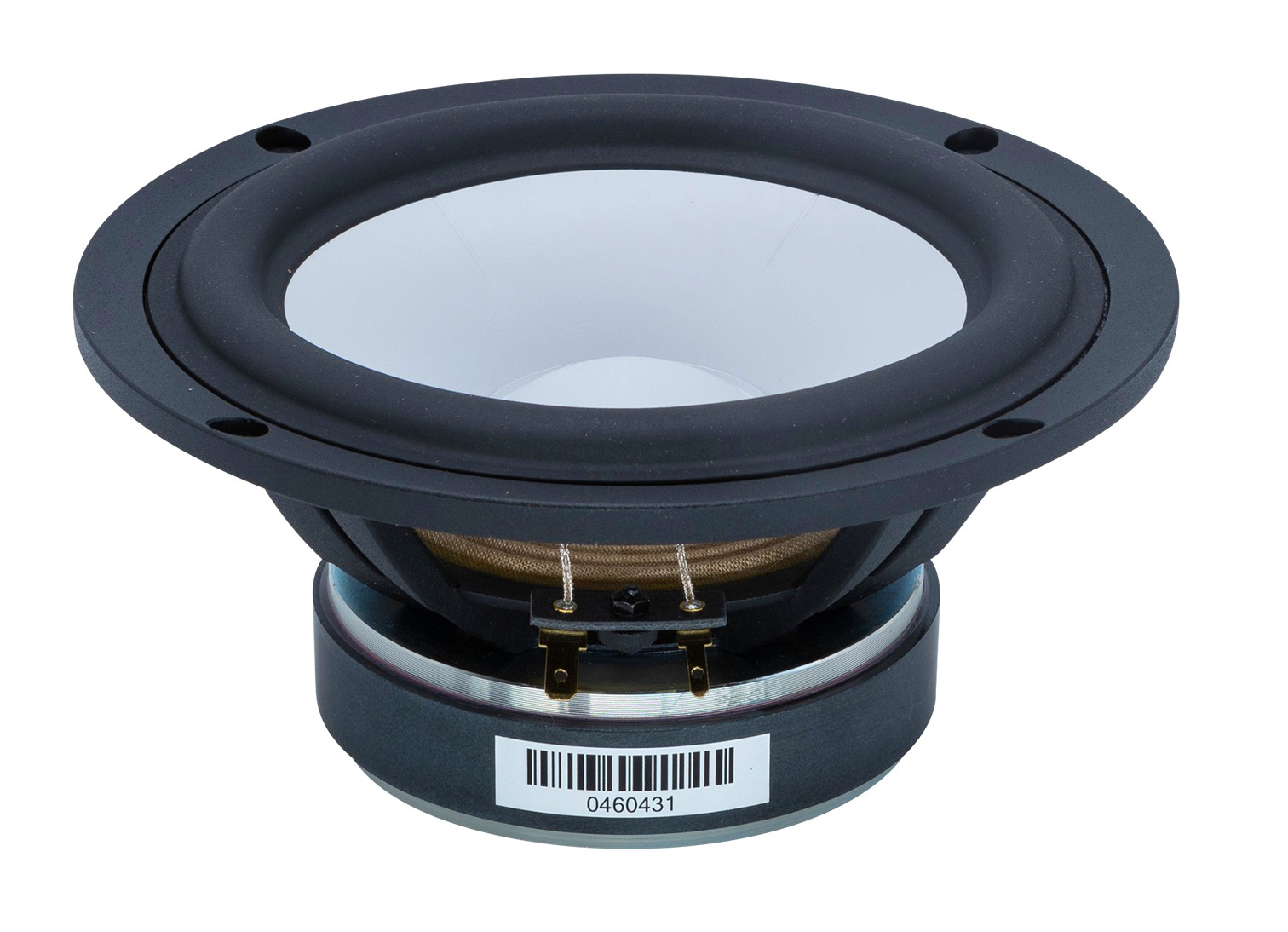

        SB17CAC35-4 6" Ceramic Woofer

        SB Acoustics SB17CAC35-4 6" Ceramic Woofer

        €104,95

        10 In stock10 expected on 26-12-2024

        Add to cart

        SB Acoustics SB17CAC35-4 6" Ceramic Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Bass-mid woofer
        6" | 4 Ω
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        € 86,74€ 104,95 10 In stock10 expected on 26-12-2024
        • -5% Purchase 4 for only € 99,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer
        SB17CAC35-4 6" Ceramic Woofer

        Product description SB Acoustics SB17CAC35-4 Bass-midwoofer

        Highlights

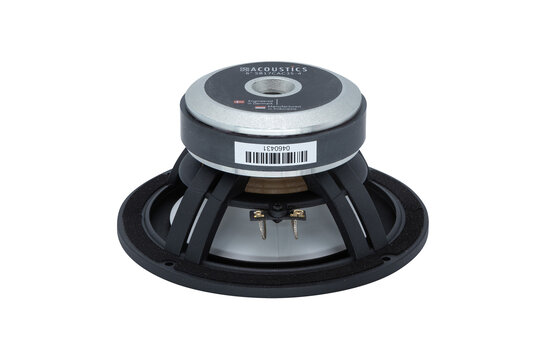

        • Vented cast aluminum chassis for optimum strength and low compression

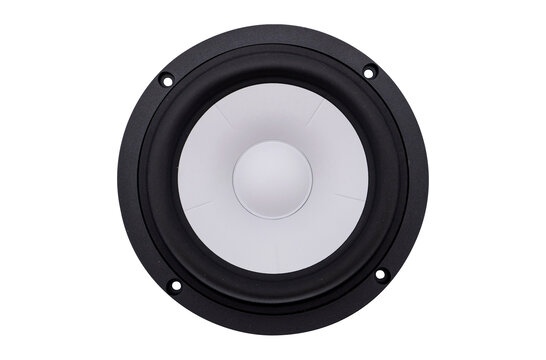

        • Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB17CAC35-4 6" Ceramic Woofer



        SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.



        Other than that, ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

        Show more

        Specifications

        Article number
        SB17CAC35-4
        EAN
        0696277269365
        Woofer Series
        SB Acoustics CAC Ceramic series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6"
        Power Handling (RMS)
        60 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Voice Coil Diameter
        1.39"
        DC Resistance (Re)
        3.1 ohms
        Voice Coil Inductance (Le)
        0.13 mH
        Resonant Frequency (Fs)
        29.5 Hz
        Mechanical Q (Qms)
        4.7
        Electromagnetic Q (Qes)
        0.31
        Total Q (Qts)
        0.29
        Diaphragm Mass Inc. Airload (Mms)
        15.2 g
        Mechanical Compliance of Suspension (Cms)
        1.91 mm/N
        Surface Area of Cone (Sd)
        118 cm2
        BL Product (BL)
        5.3 Tm
        Compliance Equivalent Volume (Vas)
        1.33 ft.³
        Maximum Linear Excursion (Xmax)
        5.5 mm

        Show more
