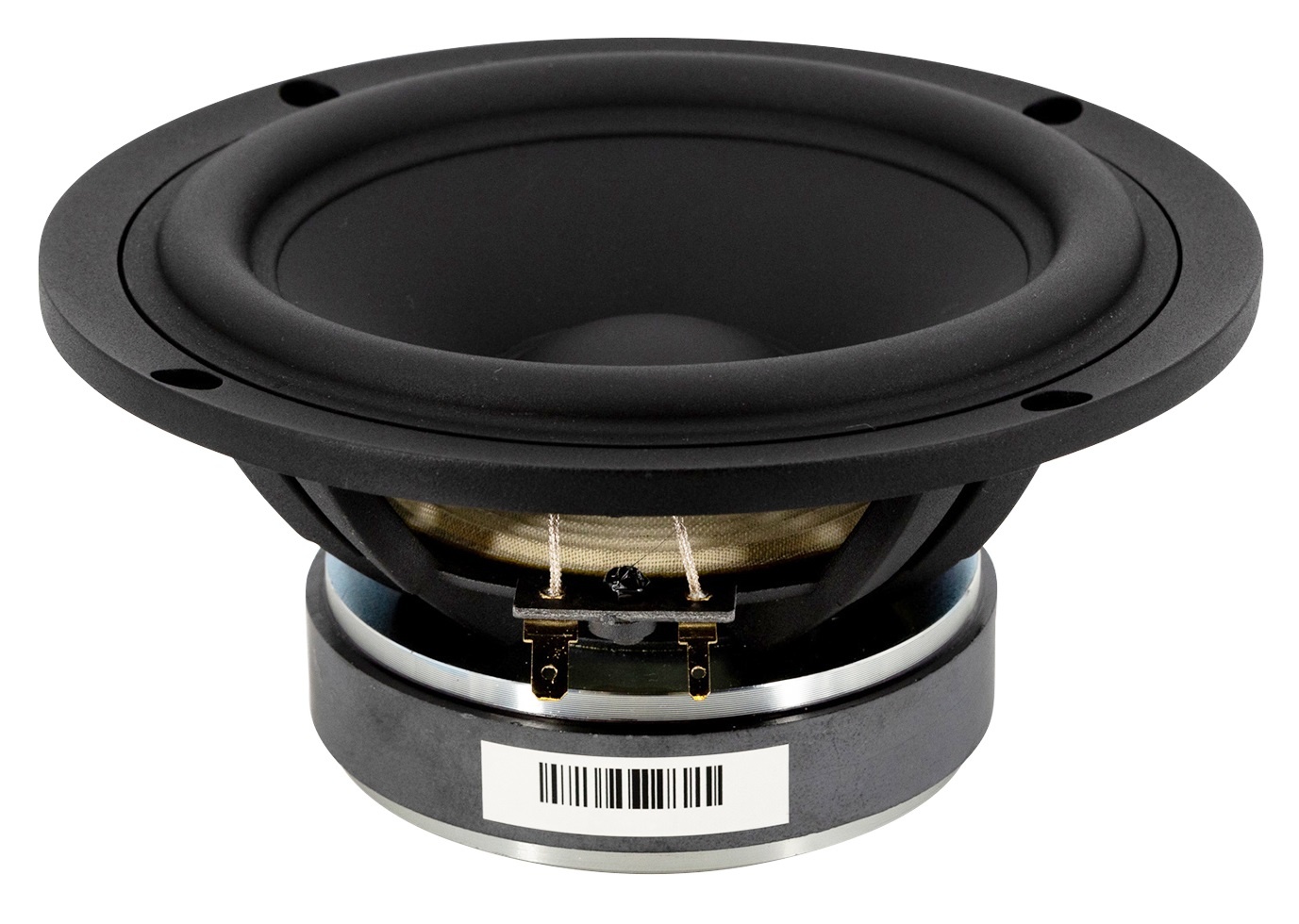

        SB17NRX2C35-8 Norex Bass-midwoofer

        SB Acoustics SB17NRX2C35-8 Norex Bass-midwoofer

        €75,95

        10+ In stock10+ expected on 26-12-2024

        Add to cart

        SB Acoustics SB17NRX2C35-8 Norex Bass-midwoofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all New products
        6.5" | 8 Ω
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        € 62,77€ 75,95 10+ In stock10+ expected on 26-12-2024
        • -5% Purchase 4 for only € 72,15 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer
        SB17NRX2C35-8 Norex Bass-midwoofer

        Pros and cons

        According to our specialists
        • Non-conducting fiber glass voice coil former for minimum damping
        • · Extended copper sleeve on pole piece for low inductance and low distortion

        Product description SB Acoustics SB17NRX2C35-8 Bass-midwoofer

        The SB Acoustics SB17NRX2C35-8 is a 6.5" woofer with a nominal impedance of 8 ohms. It has a frequency response of 35-4000 Hz, a sensitivity of 87 dB, and a rated power handling of 50 watts. The woofer is made with a proprietary cone material with natural fibers, a soft low damping rubber surround, and a non-conducting fiberglass voice coil former. It has a vented cast aluminum chassis and a long life silver lead wires.



        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • Vented coil former
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB17NRX2C35-8 Norex Bass-midwoofer



        The SB Acoustics SB17NRX2C35-8 Bass-midwoofer is a 6.5" midrange woofer that features a vented cast aluminum chassis for optimum strength and low compression. The proprietary cone material with natural fibers made in-house is used to produce a very accurate sound. The newly developed Norecx non-resonant poly-coated papyrus fiber cone is used to reduce resonance and improve sound quality. The low damping SBR rubber surround has high exertion and resilience, while the open structure cast frame is used for reduced reflections and compression. The aluminum alloy is used for light weight, non-magnetic and extra rigidity. Finally, the shorting copper cap on pole piece is used to reduce voice coil inductance.



        The SB17NRX2C35-8 is a versatile woofer that can be used in a variety of applications, including home audio, car audio, and professional audio. It is known for its accurate sound reproduction, its smooth frequency response, and its ability to handle high power levels.

        Show more

        Specifications

        Article number
        SB17NRX2C35-8
        EAN
        8785256848034
        Woofer Series
        SB Acoustics NRX Norex series
        Nominal Diameter
        171 mm
        Power Handling (RMS)
        60 Watt
        Power Handling (max)
        120 Watt
        Impedance (Z)
        8 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Frequency Response
        35-4000 Hz
        Voice Coil Diameter
        35,5 mm
        Magnet Weight
        0.54 kg
        DC Resistance (Re)
        5.7 Ohm
        Voice Coil Inductance (Le)
        0.15 mH
        Resonant Frequency (Fs)
        36.5 Hz
        Mechanical Q (Qms)
        4.55
        Electromagnetic Q (Qes)
        0.47
        Total Q (Qts)
        0.42
        Diaphragm Mass Inc. Airload (Mms)
        13.9 g
        Mechanical Compliance of Suspension (Cms)
        1.37 mm/N
        Surface Area of Cone (Sd)
        118 cm2
        Compliance Equivalent Volume (Vas)
        27 liters
        Driver's Mechanical Losses (Rms)
        0.7 kg/s
        Basket / Frame Material
        Vented cast aluminum chassis
        Overall Outside Diameter
        171 mm
        Overall Depth
        85.9 mm
        Baffle Cutout Diameter
        144.9 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4.3 mm

        Show more
