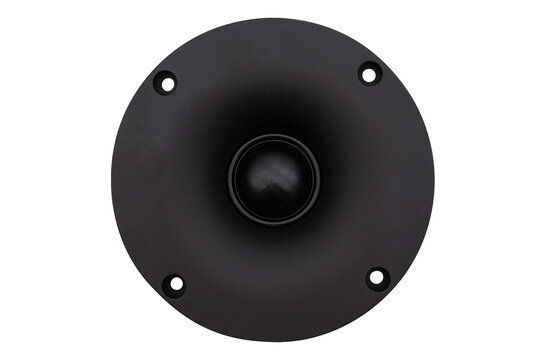

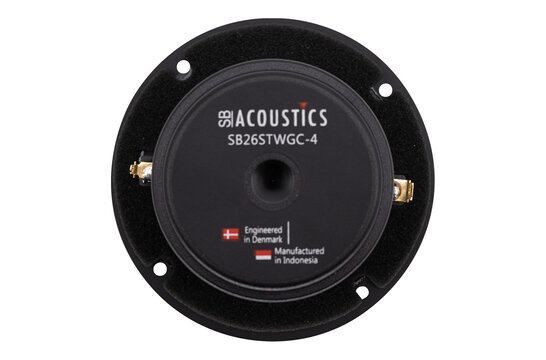

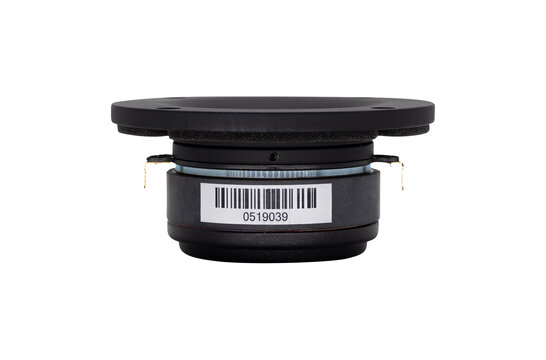

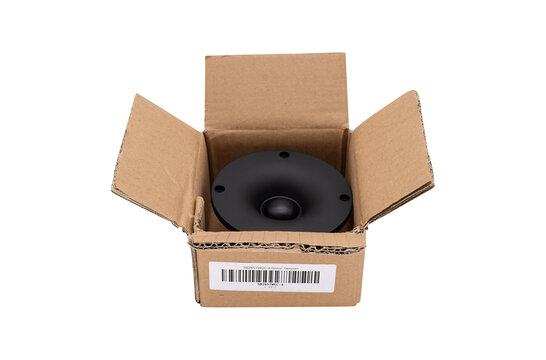

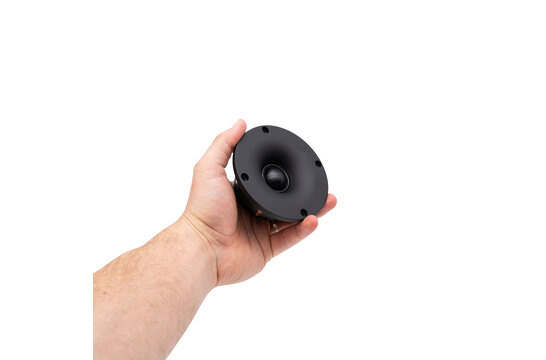

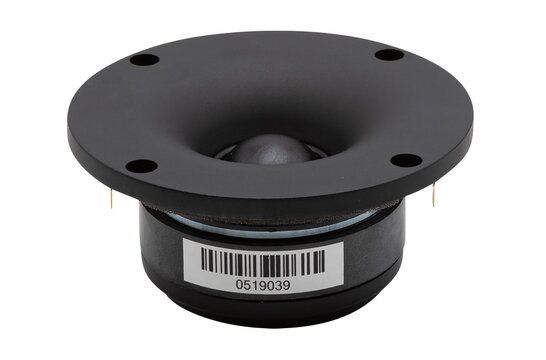

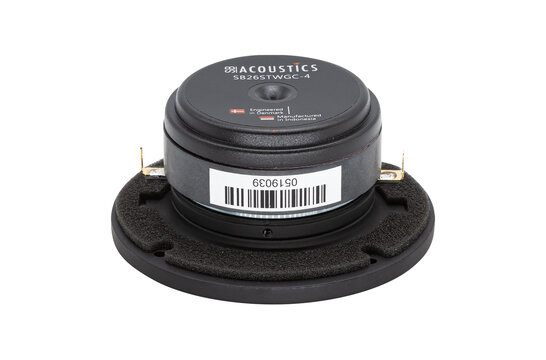

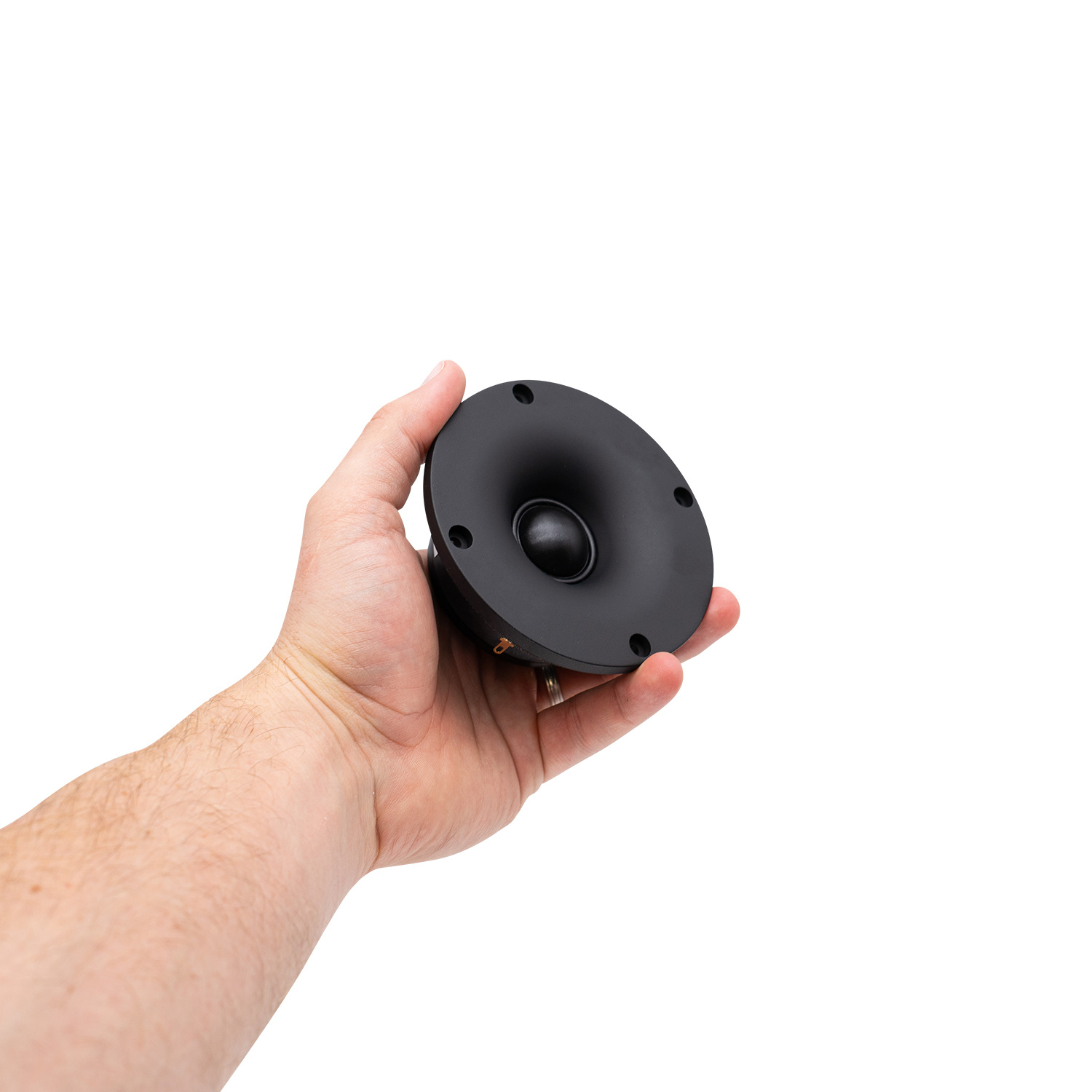

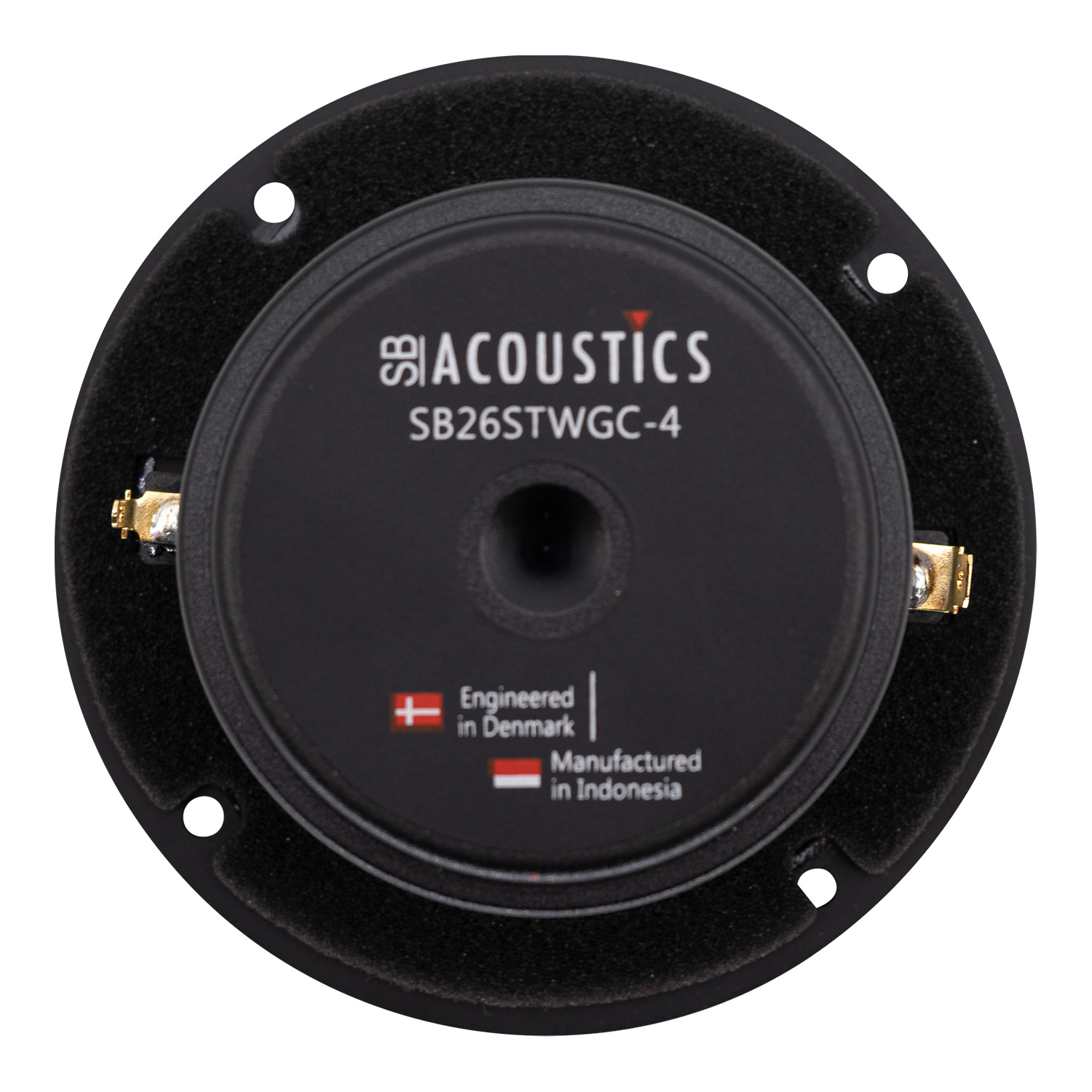

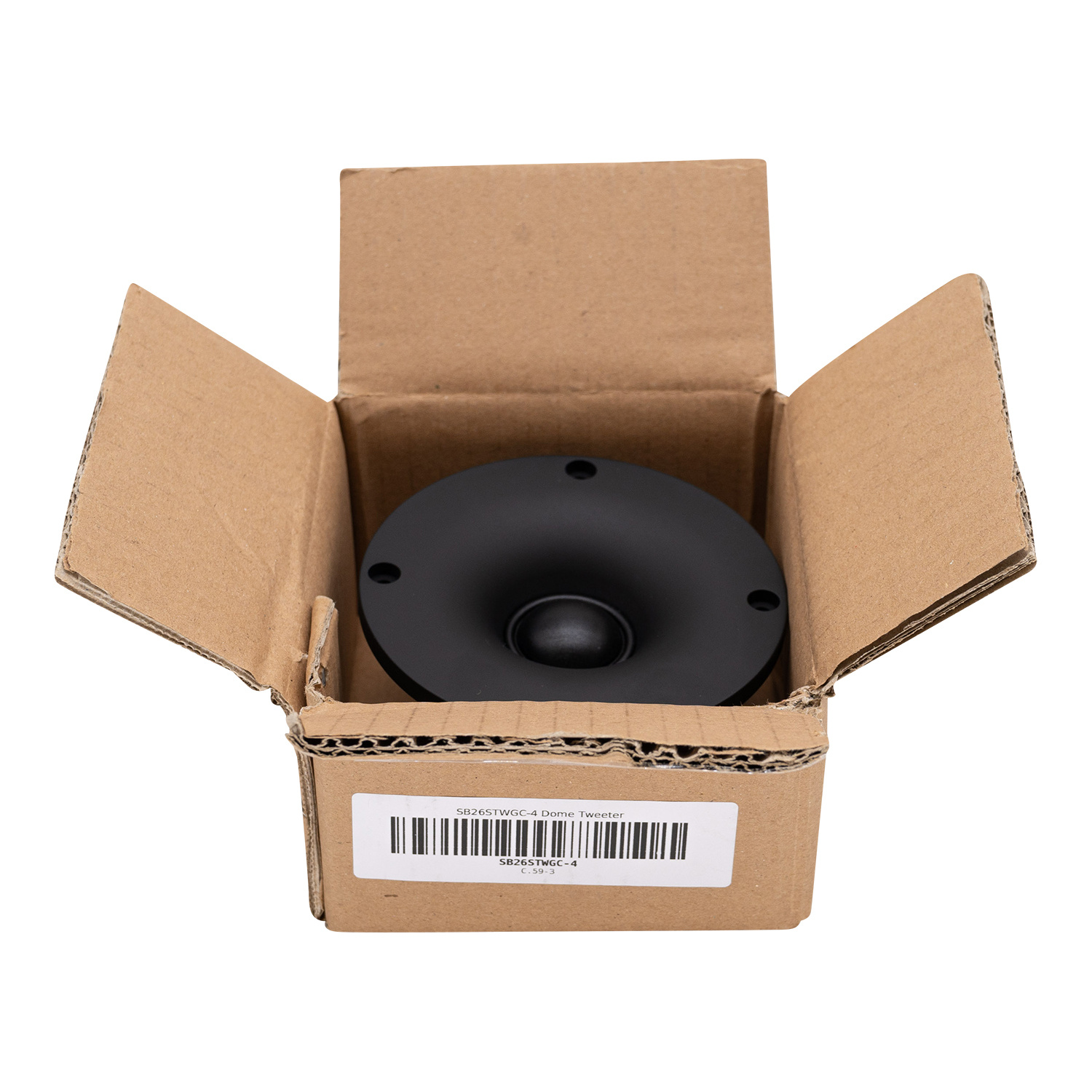

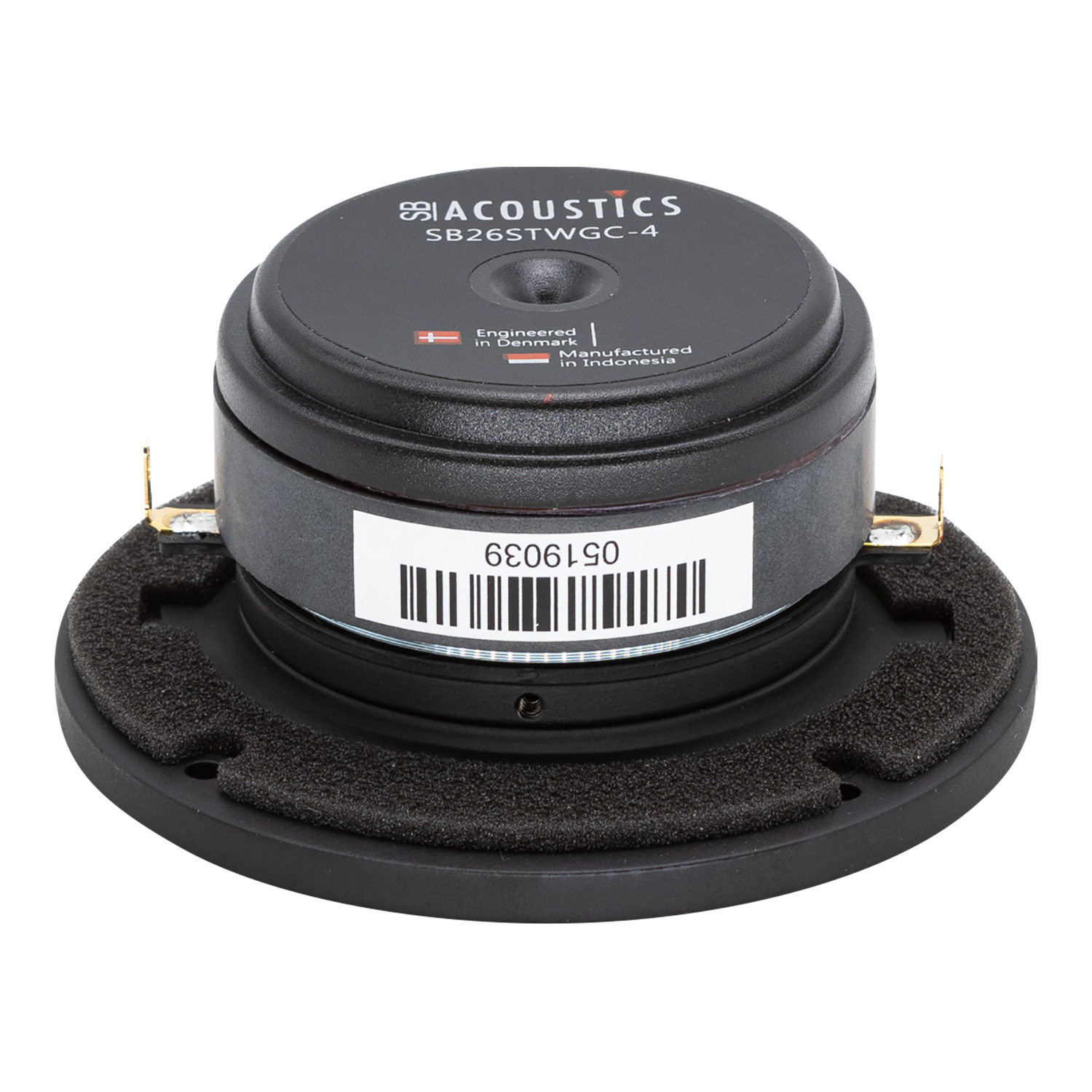

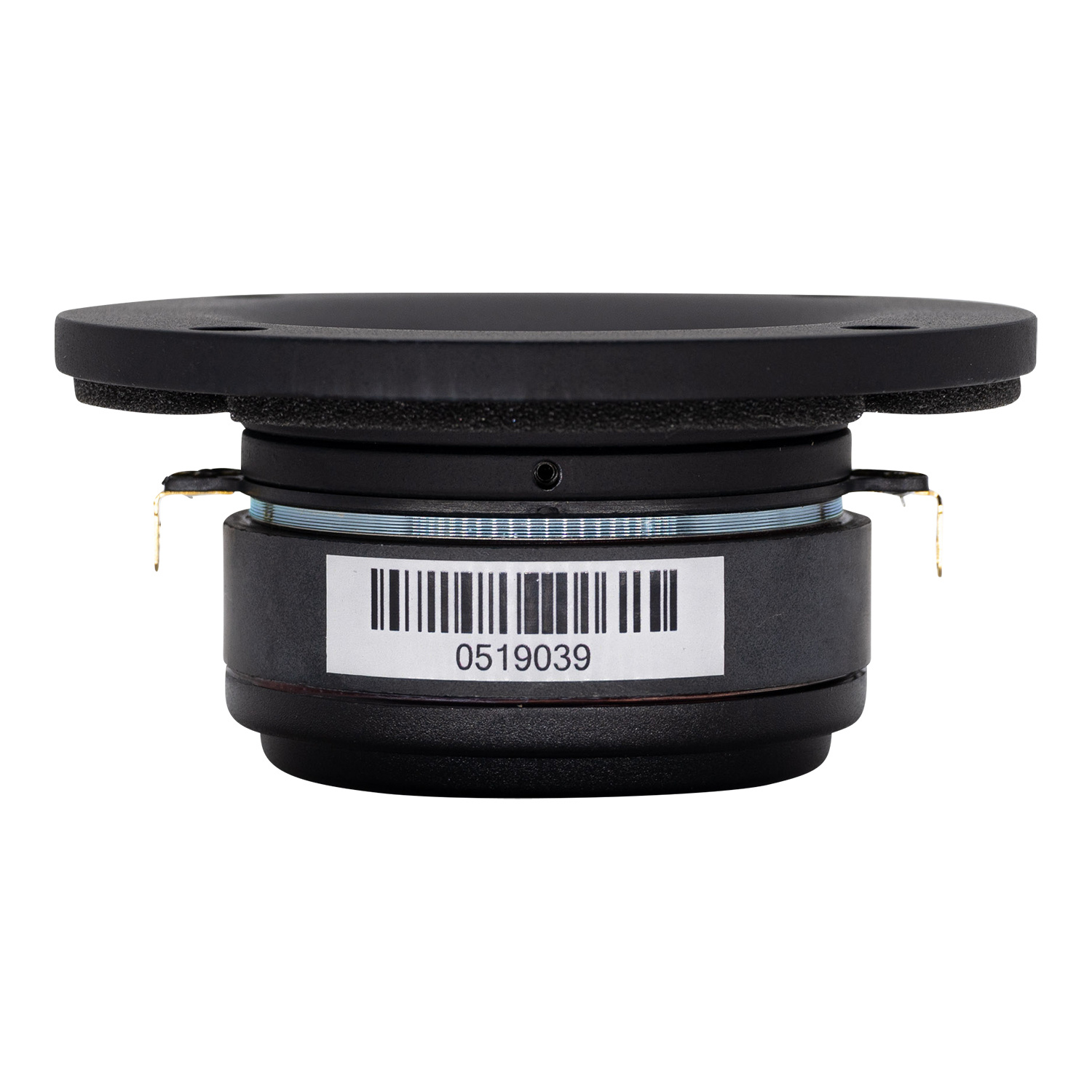

        SB26STWGC-4 Dome Tweeter

        SB Acoustics SB26STWGC-4 Dome Tweeter

        €84,95

        10+ In stock

        Add to cart

        SB Acoustics SB26STWGC-4 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all SB Acoustics tweeters
        1" | 4 Ω
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        € 70,21€ 84,95 10+ In stock
        • -5% Purchase 4 for only € 80,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter
        SB26STWGC-4 Dome Tweeter

        Product description SB Acoustics SB26STWGC-4 Dome Tweeter

        Highlights

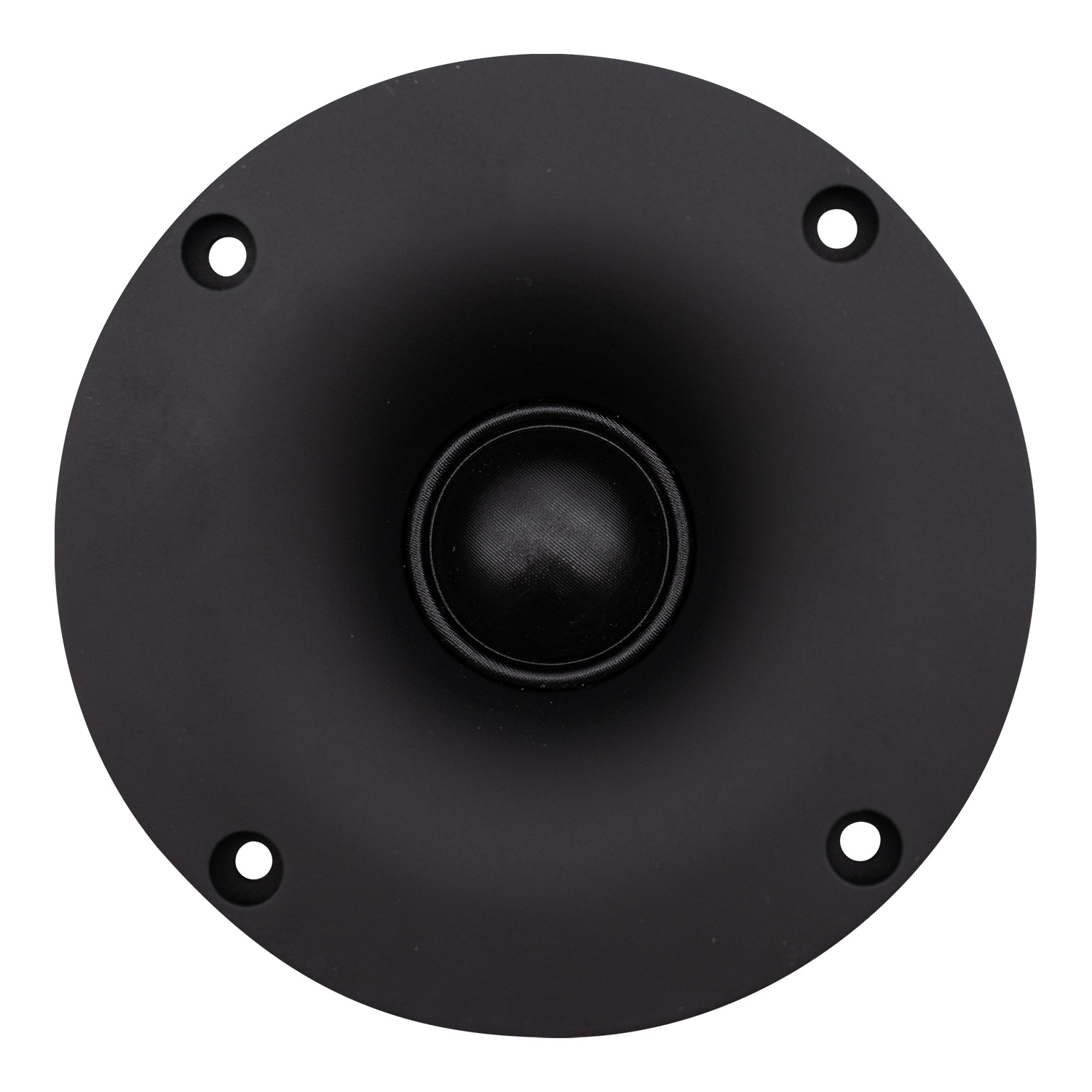

        • Solid aluminium waveguide
        • Controlled directivity
        • Adapter ring for bolt-less mounting to driver
        • Copper cap for reduced voice coil inductance and minimum phase shift
        • Non-reflective rear chamber with optimized damping for improved dynamics



        Product details

        SB acoustics SB26STWGC-4 Tweeter



        Flow optimized vented pole piece for optimum coupling to rear chamber, Fine weave soft fabric dome for smooth frequency response, Saturation controlled motor system for low distortion, CCAW voice coil for low moving mass, Long life silver lead wires, Low resonance frequency.

        Show more

        Specifications

        Article number
        SB26STWGC-4
        EAN
        0691046949301
        Tweeter Type
        Dome
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        120 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Resonant Frequency (Fs)
        780 Hz
        DC Resistance (Re)
        3.2 Ohms
        Voice Coil Inductance (Le)
        0.04 mH
        Mechanical Q (Qms)
        2.8
        Electromagnetic Q (Qes)
        2.1
        Total Q (Qts)
        1.20

        Show more

        Reviews

        2 reviews
        Review this product
        5 of 5
        Fairly good horn, distortion is minimal above 1300hz even at 96db measurments below it increases quite fast. Linearity is amazing when I did free field measurments althrough I had small dip between 2-3khz with nice round q. Could be fault of diffraction. If you want to use it measure it in your enclosure but its easy driver to work with and easy to integrate.
        By Wadim Brzozowski on 3 July 2023
        5 of 5
        Bringt sehr akkurate aber unaufdringliche Höhen. Tief ankoppelbar, ab 1350 Hz, solide Verarbeitung, insbesondere natürlich der Waveguide aus Alu. Klare Empfehlung!
        By Marc H. on 24 February 2021
