        SB29BNC-C000-4 Beryllium Dome Tweeter

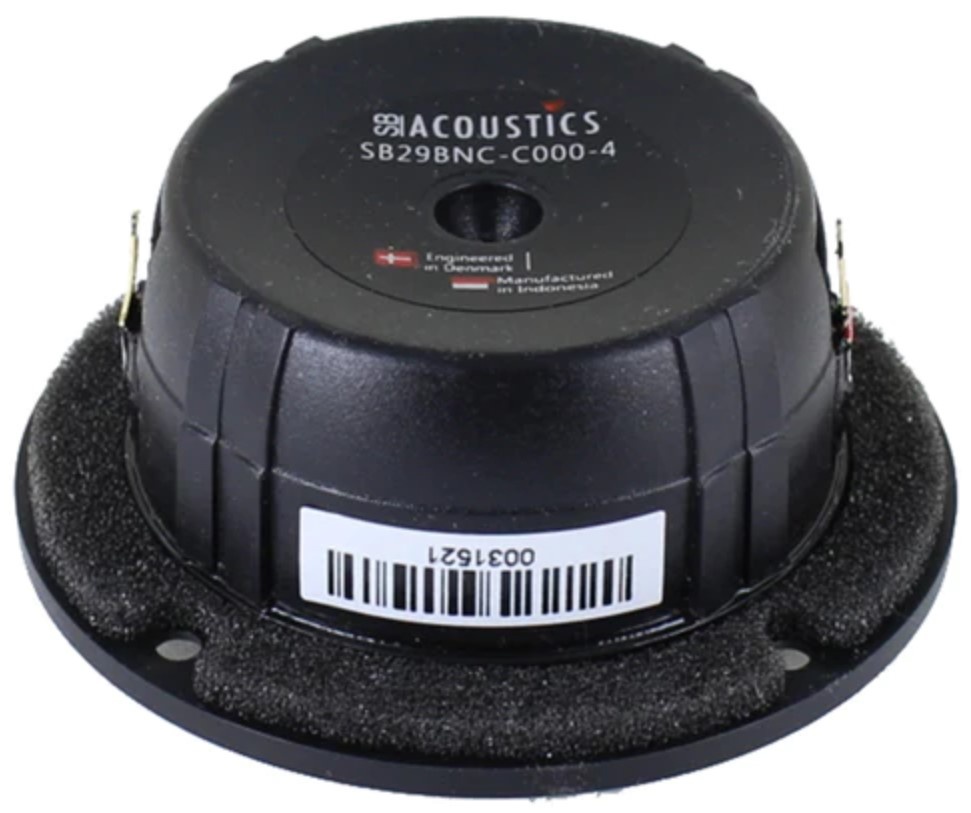

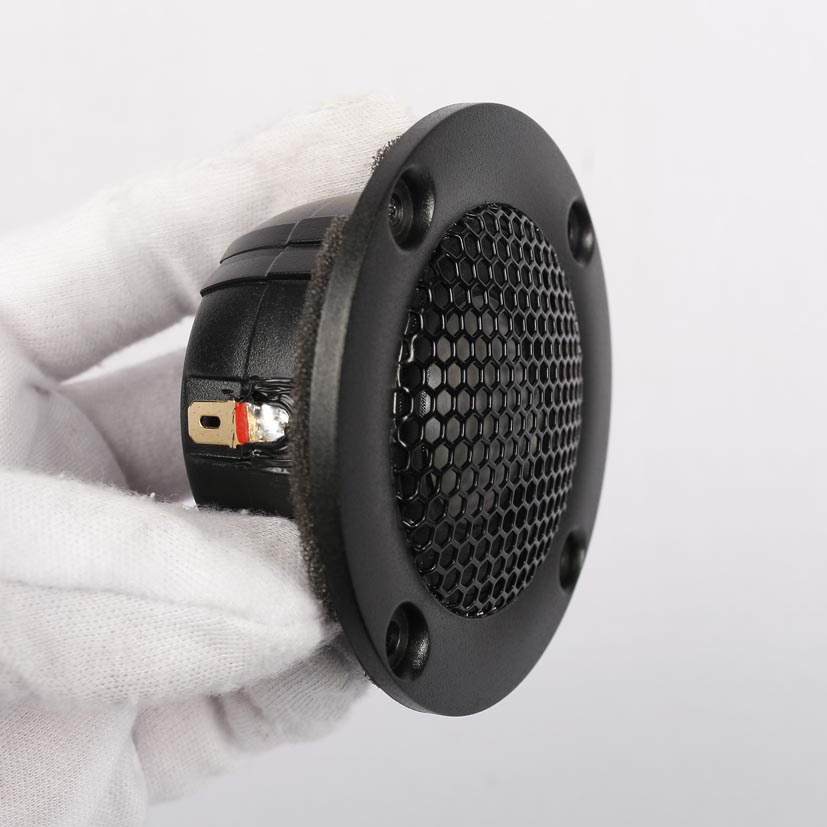

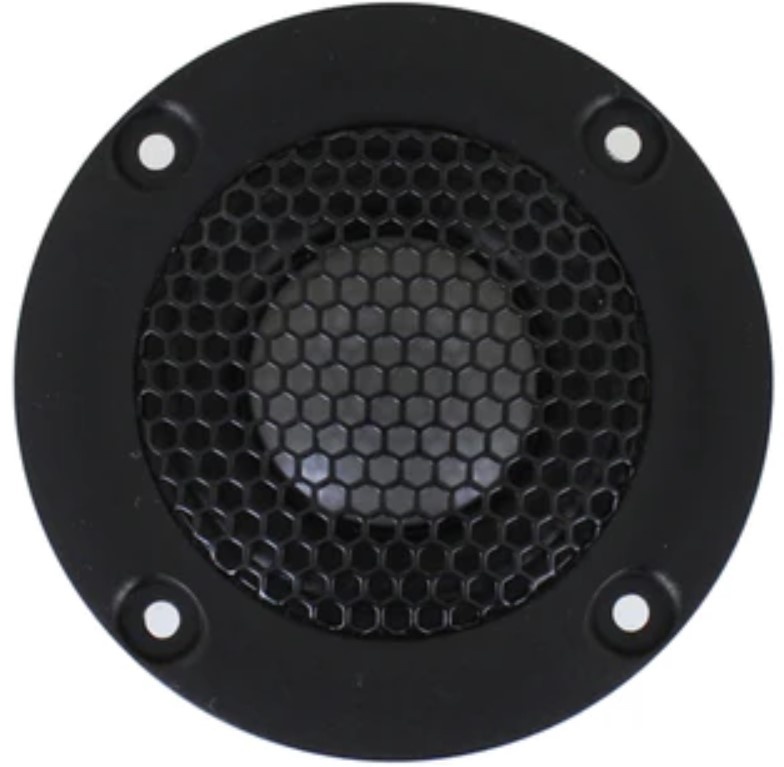

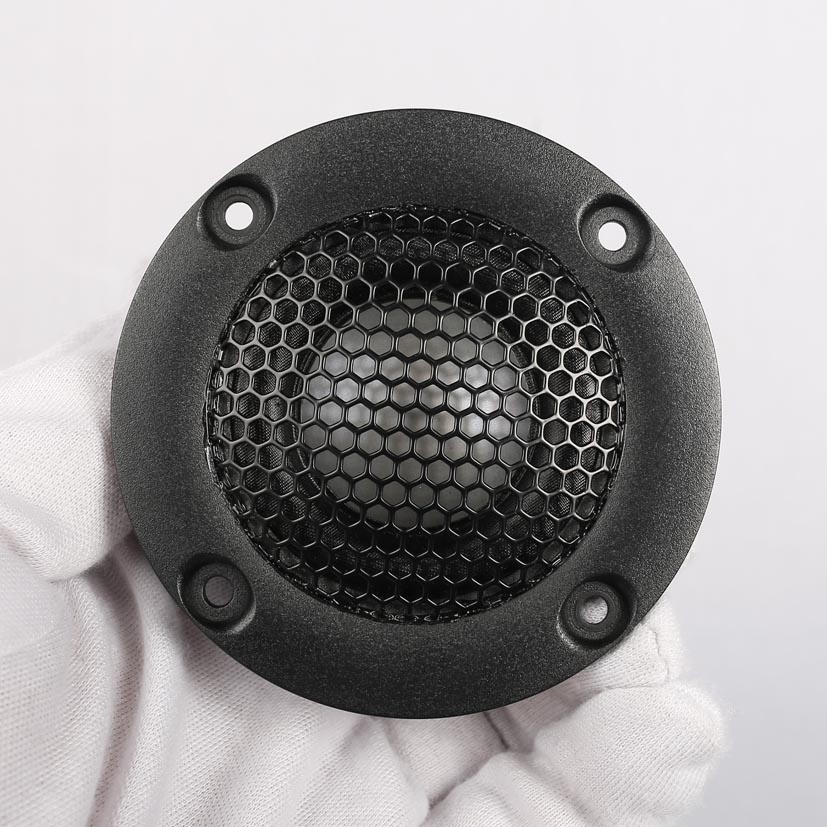

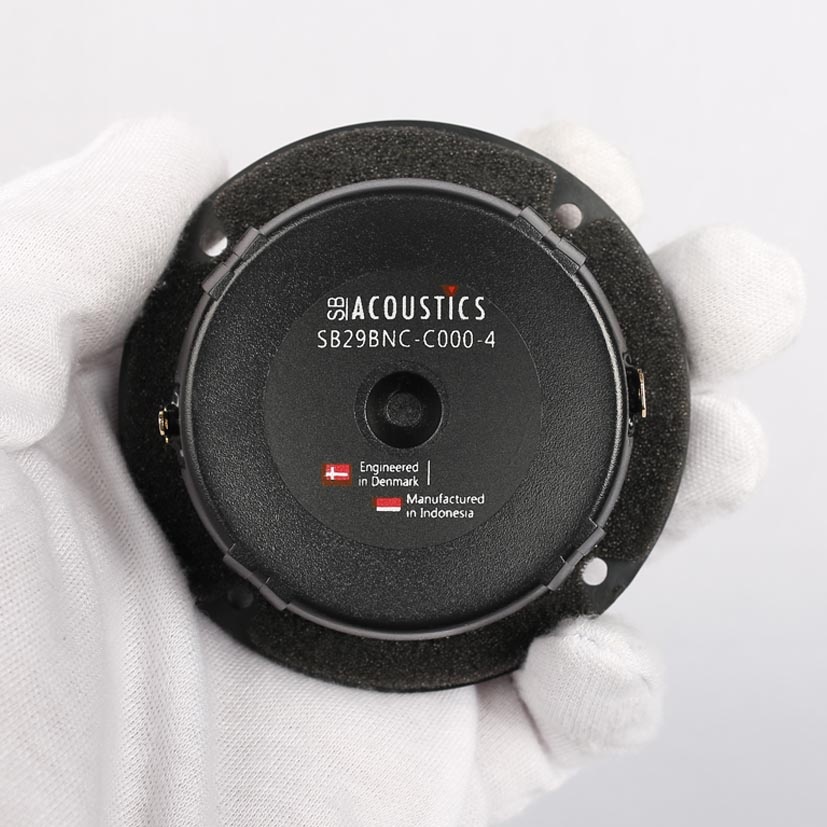

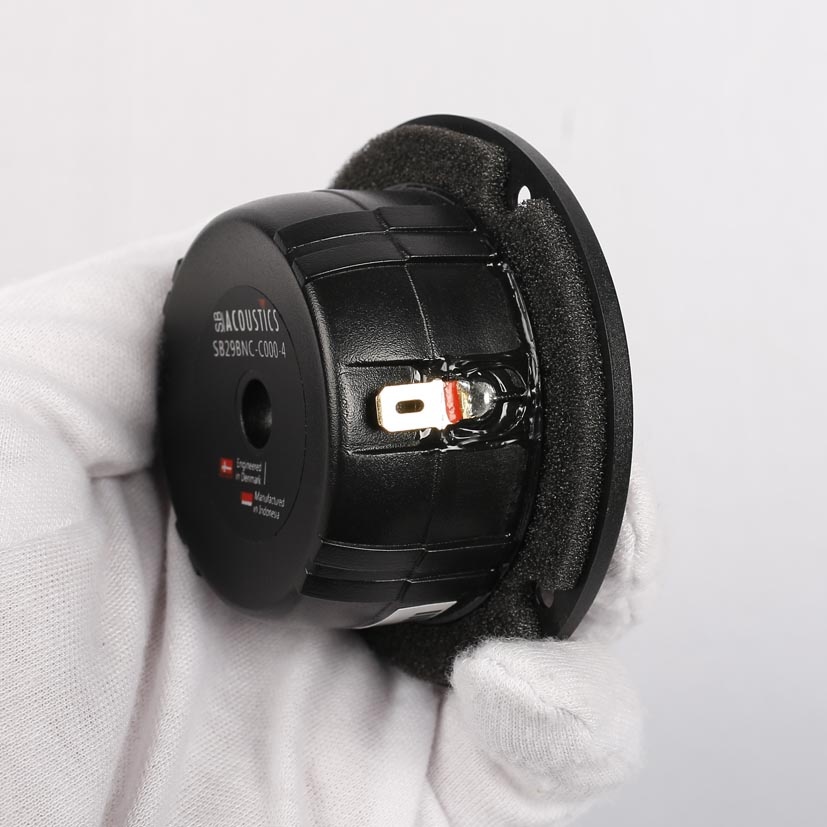

        SB Acoustics SB29BNC-C000-4 Beryllium Dome Tweeter

        €284,95

        5 In stock

        Add to cart

        SB Acoustics SB29BNC-C000-4 Beryllium Dome Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all SB Acoustics tweeters
        1⅛" | 4 Ω
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        € 235,50€ 284,95 5 In stock
        • -5% Purchase 4 for only € 270,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter
        SB29BNC-C000-4 Beryllium Dome Tweeter

        Pros and cons

        According to our specialists
        • Inherently shielded neodymium motor system
        • Internal pressure equalization and flow resistor for non-resonant coupling of cavities

        Product description SB Acoustics SB29BNC-C000-4 Dome Tweeter

        The SB Acoustics SB29BNC-C000-4 Dome Tweeter is a high-end tweeter that features a beryllium dome for non-resonant high frequency extension, copper cap on pole piece for reduced voice coil inductance and minimum phase shift, CCAW voice coil for low moving mass, internal pressure equalization and flow resistor for non-resonant coupling of cavities, and long life flexible lead wires.



        Highlights

        • Beryllium dome for non-resonant high frequency extension
        • Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
        • CCAW voice coil for low moving mass
        • Internal pressure equalization and flow resistor for non-resonant coupling of cavities
        • Long life flexible lead wires
        • Inherently shielded neodymium motor system
        • Compact design
        • Low resonance frequency



        Product details

        SB Acoustics SB29BNC-C000-4 Beryllium Dome Tweeter



        The SB Acoustics SB29BNC-C000-4 Dome Tweeter features a beryllium dome. Beryllium is a very stiff and lightweight material that has a high modulus of elasticity and is used in high-end tweeters because it can produce a very accurate sound. The copper cap on pole piece reduces voice coil inductance and minimum phase shift, while the CCAW voice coil reduces moving mass.



        The internal pressure equalization and flow resistor are used for non-resonant coupling of cavities, which helps to reduce distortion. Finally, the long life flexible lead wires are used to ensure that the tweeter will last for many years. The tweeter has a nominal impedance of 4 ohms, a sensitivity of 95dB, and a frequency response of 950Hz to 20kHz.

        Show more

        Specifications

        Article number
        SB29BNC-C000-4
        EAN
        8785256848010
        Tweeter Type
        Dome
        Tweeter Series
        Beryllium
        Cone / Dome Diameter
        29 mm
        Power Handling (max)
        80 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Frequency Response
        ±2 dB from 2.0 kHz to 26.1 kHz
        Resonant Frequency (Fs)
        950 Hz
        DC Resistance (Re)
        3.0 Ohm
        Voice Coil Inductance (Le)
        0.05 mH
        Mechanical Q (Qms)
        1.36
        Electromagnetic Q (Qes)
        1.40
        Total Q (Qts)
        0.69
        Cutout Diameter
        72 mm
        Depth
        33.6 mm
        Recommended cut frequency
        2600 Hz, 12 dB/oct

        Show more
