        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm

        SB Acoustics SB65WBAC25-4 2,5" Full Range Driver 4 Ohm

        €33,45

        10+ In stock

        Add to cart

        SB Acoustics SB65WBAC25-4 2,5" Full Range Driver 4 Ohm

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Full-range woofer
        2.5" | 4 Ω
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        € 27,64€ 33,45 10+ In stock
        • -5% Purchase 4 for only € 31,78 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm
        SB65WBAC25-4 2,5" Full Range Driver 4 Ohm

        Product description SB Acoustics SB65WBAC25-4 Full-range Woofer

        Highlights

        • Geometrically furrowed aluminum cone
        • Copper cap
        • Low damping surround and non-conductive voice coil former
        • Linear neodymium motor system
        • Vented voice coil former



        Product details

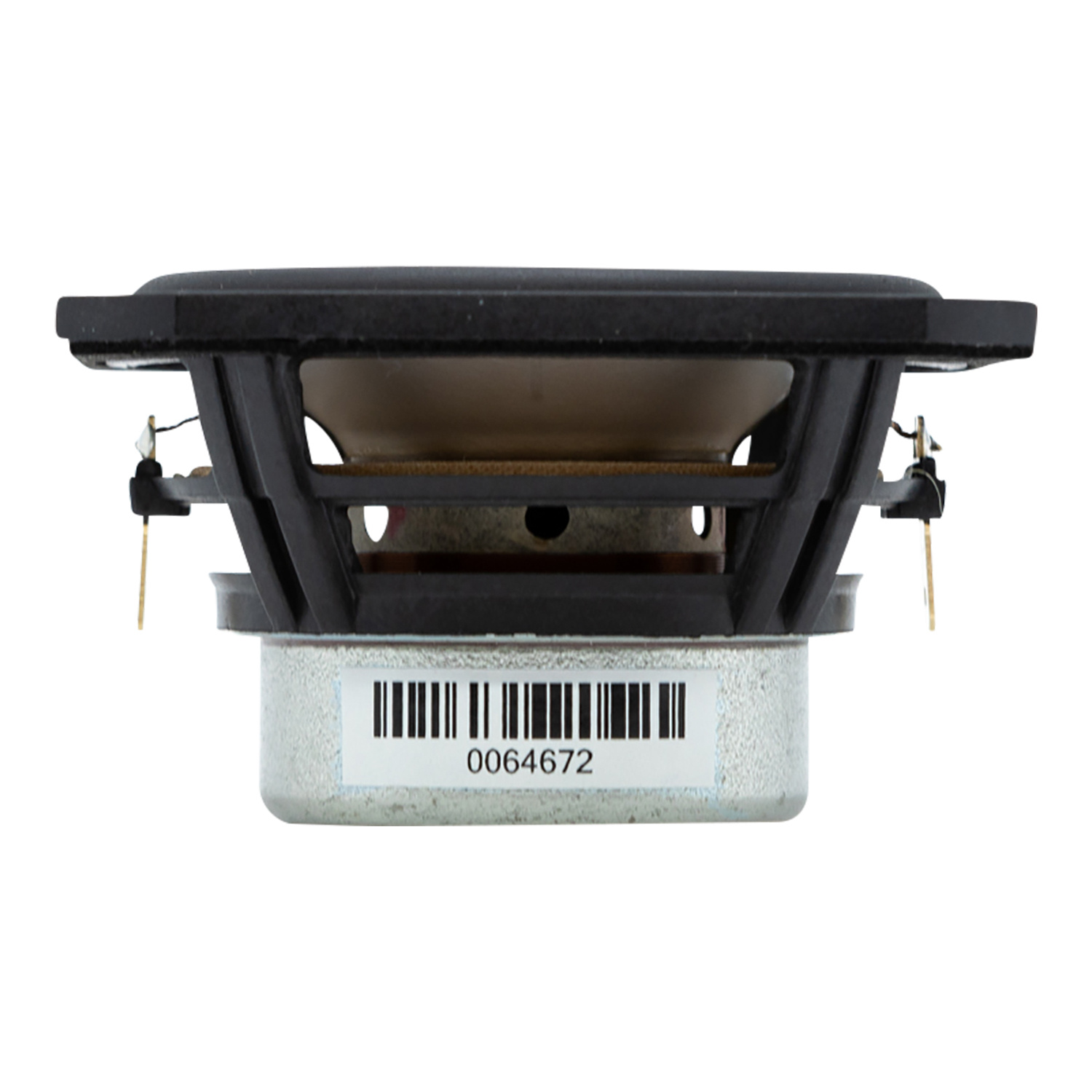

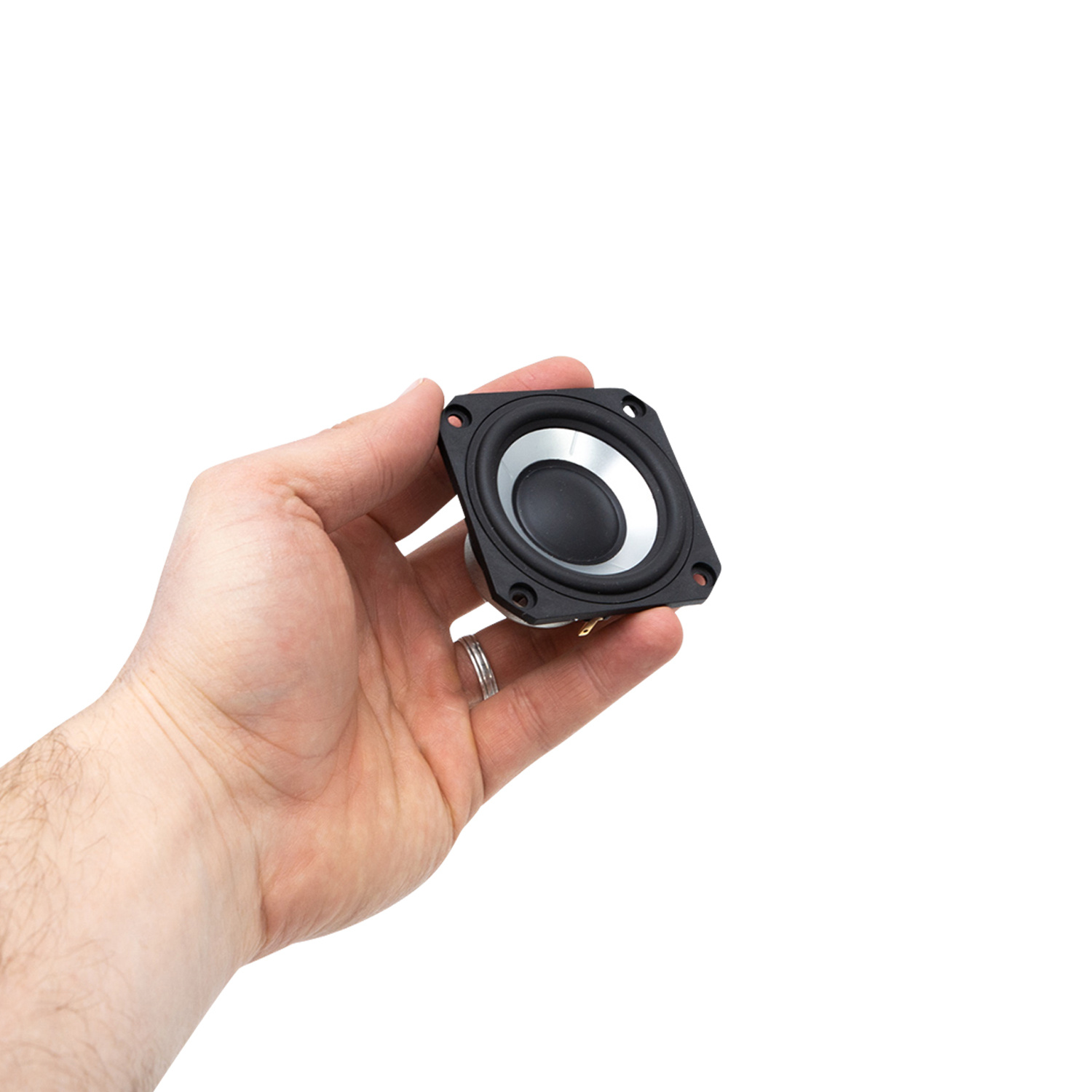

        SB Acoustics SB65WBAC25-4 2,5" Full Range Driver



        The SB Acoustics SB65WBAC25-4 is a high-tech little full-range driver. It has a Geometrically furrowed aluminum cone for extended usable frequency range, Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability. Furthermore it uses a low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution. All of these components are driven by a linear neodymium motor system for reduced distortion and a vented voice coil former for reduced compression.

        Show more

        Specifications

        Article number
        SB65WBAC25-4
        EAN
        0691046947482
        Woofer Series
        SB Acoustics NAC Aluminum series
        Woofer Type
        Full-Range
        Nominal Diameter
        2.5"
        Power Handling (RMS)
        20 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        83.5 dB
        Voice Coil Diameter
        25.4 mm
        Magnet Weight
        0.02 kg
        DC Resistance (Re)
        3.6 ohms
        Voice Coil Inductance (Le)
        0.15 mH
        Resonant Frequency (Fs)
        115 Hz
        Mechanical Q (Qms)
        6.0
        Electromagnetic Q (Qes)
        0.77
        Total Q (Qts)
        0.68
        Diaphragm Mass Inc. Airload (Mms)
        2.5g
        Mechanical Compliance of Suspension (Cms)
        0.77 mm/N
        Surface Area of Cone (Sd)
        20 cm2
        BL Product (BL)
        2.9 Tm
        Compliance Equivalent Volume (Vas)
        0.43 liters
        Maximum Linear Excursion (Xmax)
        2.65 mm
        Cone / Diaphragm Material
        Aluminum
        Magnet Material
        Neodymium
        Overall Depth
        38 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        3.3 mm

        Show more

        Reviews

        2 reviews
        Review this product
        5 of 5
        sehr gut
        By Manfred G. on 14 May 2021
        5 of 5
        Leuke luidspreker voor het geld. Mooi helder geluid. Fantastisch al surround luidspreker.
        By Daniel v. on 12 March 2020
